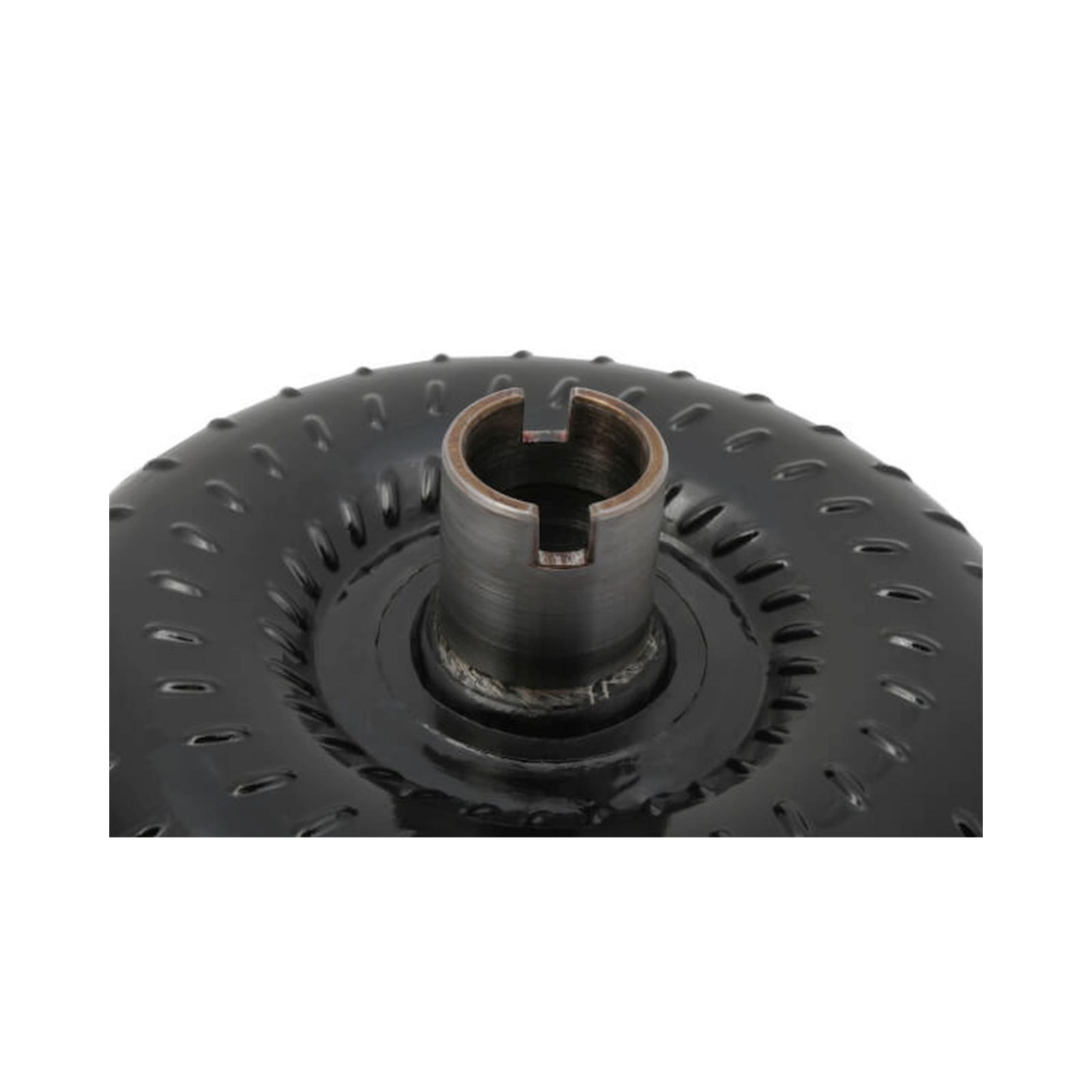

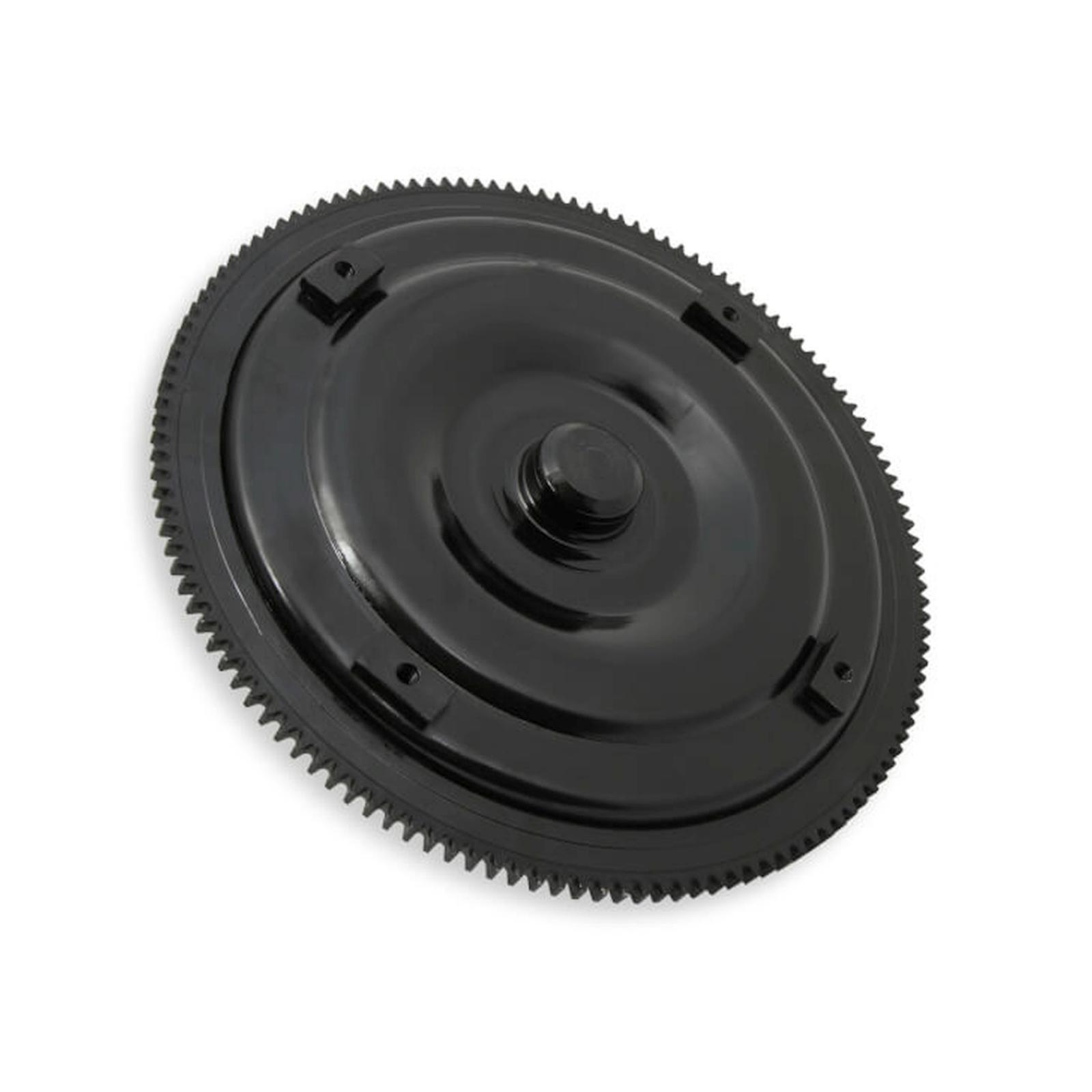

Hays Twister Full Race Torque Converters feature a custom designed anti-balloon plate to stop any converter ballooning and swelling in racing situations. These torque converters are designed for use with a trans-brake and great for power adders such as nitrous, superchargers, and turbos.

They are available with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss. Utilizes 7/16 inch -20 flexplate bolts (Not included).

Features and Benefits:

• All Full Race series converters are built, tested, and proven to support up to 1,000 horsepower
• Features a custom anti-balloon plate designed to stop potential torque converter ballooning
• Designed to handle the extreme shock and abuse of trans-brakes, nitrous oxide, superchargers, and turbochargers
• State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
• Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality
• All Hays torque converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
• Heavy duty Torrington bearings are used for greater strength and durability
• Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
• Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter
• Full Race series torque converters are offered in several different stall speeds for popular automatic transmissions
• Industry leading Tech Support Team is available to provide assistance with stall speed selection

Details:

• Anti-Balloon Plate: Yes
• Balanced: Yes
• Bolt Circle: 10 Inch
• Crank Pilot Diameter: 1.81 Inch
• Diameter: 10 Inch
• Emission Code: 5
• Input Spline: 24
• Lock Up/Overdrive: No
• Series: Full Race
• Stall: 2800-3200
• Transmission: TF-727
• Use with Power Adder: Yes
• Use with Trans-Brake: Yes

Application Summary:

• 1204 1970-1974 Land Rover Range Rover Base
• 1970-1973 Land Rover Land Rover Base
• 1962-1971 Chrysler 300 Base
• 1975-1983 Chrysler Cordoba Base 300 LS Crown
• 1983-1989 Chrysler Fifth Avenue Base
• 1962-1975 Chrysler Imperial Base LeBaron
• 1977-1981 Chrysler LeBaron Medallion Base S Salon Special Town & Country
• 1962-1982 Chrysler New Yorker Base Brougham
• 1962-1981 Chrysler Newport Base Custom
• 1975-1981 Chrysler Town & Country Base
• 1962-1965 Dodge 880 Custom Base
• 1962-1967 Dodge D100 Series Base
• 1962-1967 Dodge D200 Series Base
• 1962-1967 Dodge D300 Series Base
• 1969-1974 Dodge M300 Base
• 1962-1973 Dodge Polara Base
• 1962-1967 Dodge W100 Series Base
• 1962-1967 Dodge W200 Series Base
• 1962-1967 Dodge W300 Series Base
• 1967-1969 Dodge A100 Pickup Base
• 1973 Dodge R300 Base
• 1973-1974 Dodge RM300 Base
• 1978-1980 Dodge RD200 Base
• 1971-1974 Dodge B100 Van Base
• 1975-1980 Dodge B100 Base
• 1981-1994 Dodge B150 Base
• 1975-1980 Dodge B200 Base
• 1981-1994 Dodge B250 Base
• 1975-1980 Dodge B300 Base
• 1976-1980 Dodge Aspen Base Custom Special Edition
• 1981-1989 Dodge B350 Base
• 1975-1989 Dodge D100 Custom Warlock Warlock II
• 1977-1989 Dodge D150 Base Li'l Red Express Miser
• 1975-1980 Dodge D200 Custom Base
• 1981-1989 Dodge D250 Base
• 1975-1980 Dodge D300 Custom Base
• 1981-1989 Dodge D350 Base
• 1975-1989 Dodge W100 Custom
• 1977-1993 Dodge W150 Base S
• 1975-1980 Dodge W200 Base
• 1981-1989 Dodge W250 Base
• 1975-1980 Dodge W300 Custom Base
• 1981-1993 Dodge W350 Base
• 1971-1974 Dodge B200 Van Base
• 1971-1974 Dodge B300 Van Base
• 1973-1980 Dodge CB300 Base
• 1970-1983 Dodge Challenger Base Premium
• 1966-1978 Dodge Charger Base Special Edition Sport
• 1965-1976 Dodge Coronet Base Brougham Crestwood Custom
• 1968-1974 Dodge D100 Pickup Base
• 1968-1974 Dodge D200 Pickup Base
• 1968-1974 Dodge D300 Pickup Base
• 1962-1976 Dodge Dart Base Swinger Special Swinger Sport Custom Special Edition Sport 360
• 1978-1989 Dodge Diplomat Medallion Base S Salon Sport SE
• 1978-1979 Dodge Magnum XE

Associated Comments:

• Note: The Full Race series converters are designed to be used with Trans-brakes and power adders such as Nitrous Oxide, Superchargers, or Turbos.
• Warning: Stall ranges will vary depending on Engine set-up, Weight of vehicle, and Gear Ratio
