Bolts must be 3/8-16 x 3/4 to 1 inch in length and only use Grade 8 quality.

Features and Benefits:

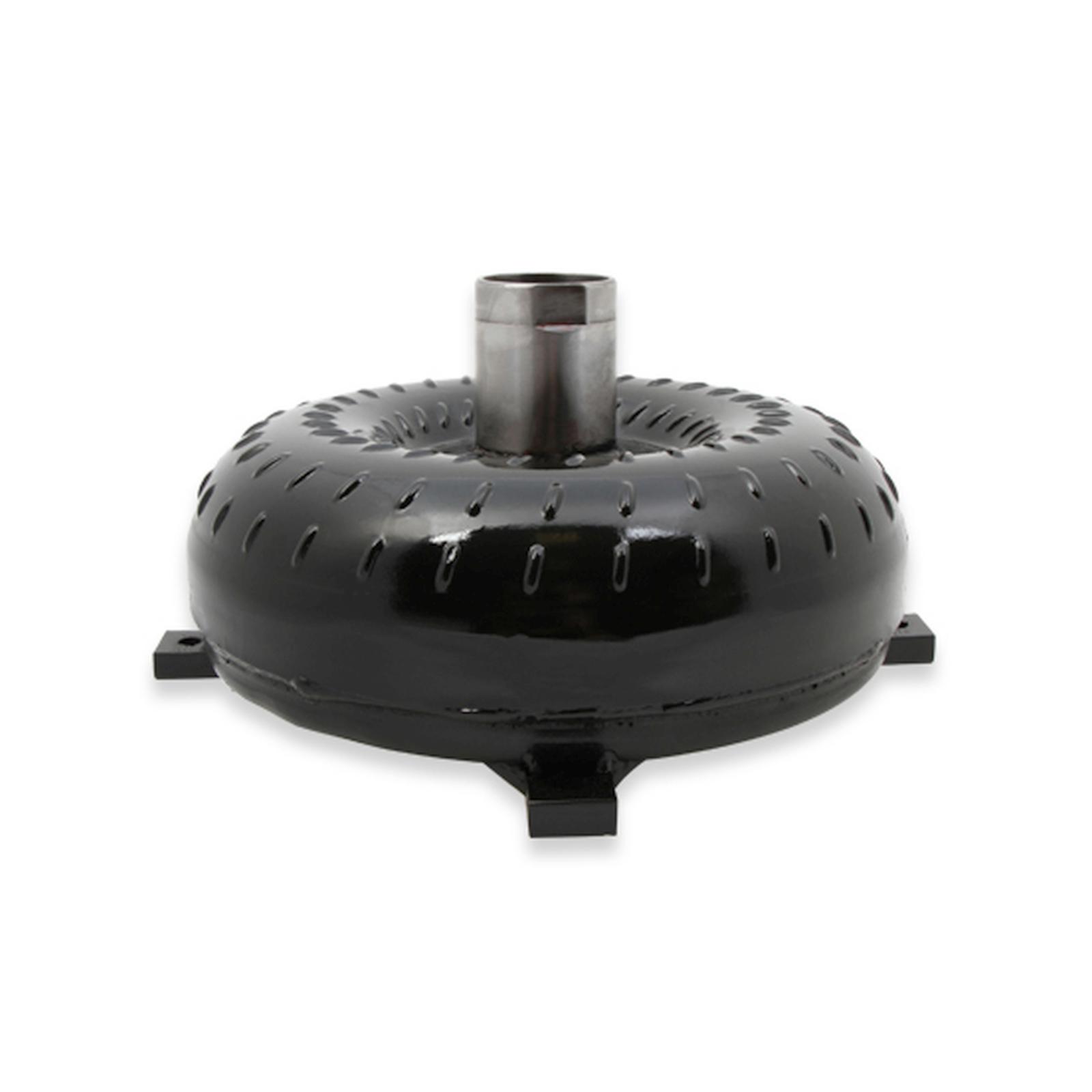

• 3/4 Race series converters are built, tested, and proven to support up to 650 HP
• State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
• Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality
• All Hays converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
• Heavy duty Torrington bearings are used for greater strength and durability
• Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
• Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
• 3/4 Race series converters are offered in several different stall speeds for GM, Ford, and Chrysler transmissions
• Industry leading Tech Support Team is available to provide assistance with stall speed selection

Details:

• Anti-Balloon Plate: No
• Balanced: Yes
• Bolt Circle: 11-7/16 Inch
• Bolt size: 3/8-16 x 1|3/8-16 x 3/4
• Crank Pilot Diameter: 1.375 Inch
• Diameter: 10 Inch
• Emission Code: 5
• Input Spline: 29
• Lock Up/Overdrive: No
• Series: 3/4 Race
• Stall: 2400-2800
• Transmission: FMX
• Use with Power Adder: No
• Use with Trans-Brake: No

Application Summary:

• 518 1969 Ford Fairlane Base
• 1968-1974 Ford Galaxie 500 Base
• 1968-1972 Ford Custom Base
• 1968-1984 Ford LTD Base Landau Country Squire Brougham S Crown Victoria
• 1973-1977 Ford Custom 500 Base Ranch Wagon
• 1975-1976 Ford Elite Base
• 1974-1976 Ford F-100 Base Custom Ranger XLT Northland Ranger
• 1968-1977 Ford F-350 Base Ranger XLT Ranger Northland Custom XLT
• 1975-1976 Ford Gran Torino Squire Base Brougham Elite Sport
• 1975-1978 Ford Granada Ghia Base ESS
• 1977-1979 Ford LTD II Base S Brougham Squire Landau
• 1969-1973 Ford Mustang Base
• 1968-1976 Ford P-350 Base Custom
• 1975-1976 Ford P-400 Base Custom
• 1975-1977 Ford P-500 Custom Base
• 1969-1979 Ford Ranchero Base Squire GT 500
• 1972-1979 Ford Thunderbird Base Town Landau Diamond Jubilee Heritage
• 1969-1976 Ford Torino Base
• 1971-1974 Mercury Monterey Base
• 1971 Mercury Cyclone Base
• 1968 Mercury Montclair Base
• 1975-1981 Mercury Grand Marquis Base Colony Park
• 1969 Mercury Comet Base
• 1968-1979 Mercury Cougar Base XR-7 Brougham Villager
• 1971-1981 Mercury Marquis Base Brougham Colony Park
• 1969-1976 Mercury Montego Base MX Brougham Villager MX Brougham MX Villager
• 1975-1976 Bricklin SV-1 Base Applications

Associated Comments:

• Warning: The 3/4 Race series converters are NOT designed to be used with Nitrous Oxide or Trans-Brakes
• Note: Hays recommends an external transmission cooler for all Twister 3/4 Race Converters
• (A minimum size of 18,000 GVW or 15,000 BTU Rating.)
• Note: Stall ranges will vary depending on engine set-up, weight of vehicle, and gear ratio (Please see converter selector in tech resources for more info)
• Bolts must be 3/8-16 x 3/4 to 1 inch in length and only use Grade 8 quality.
