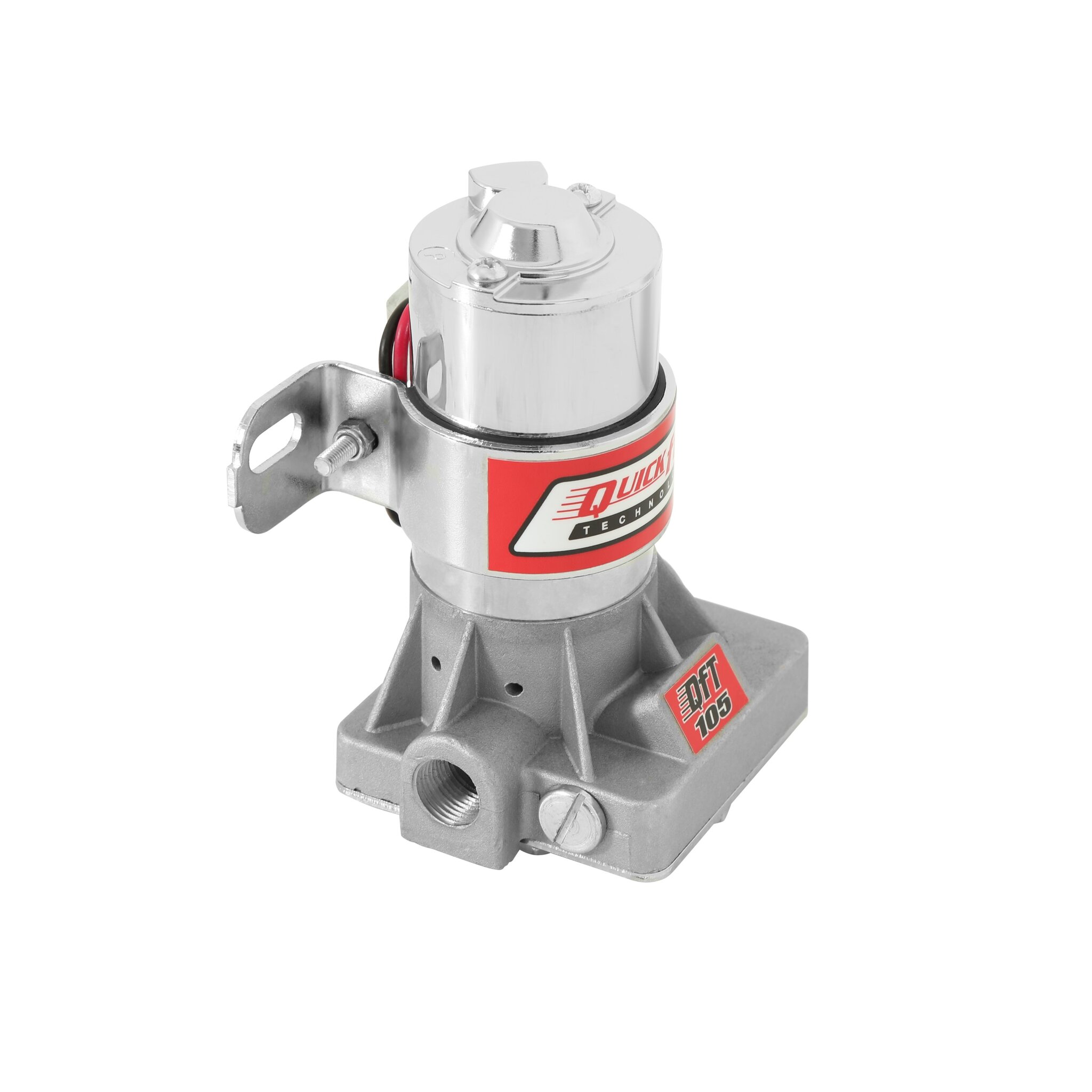

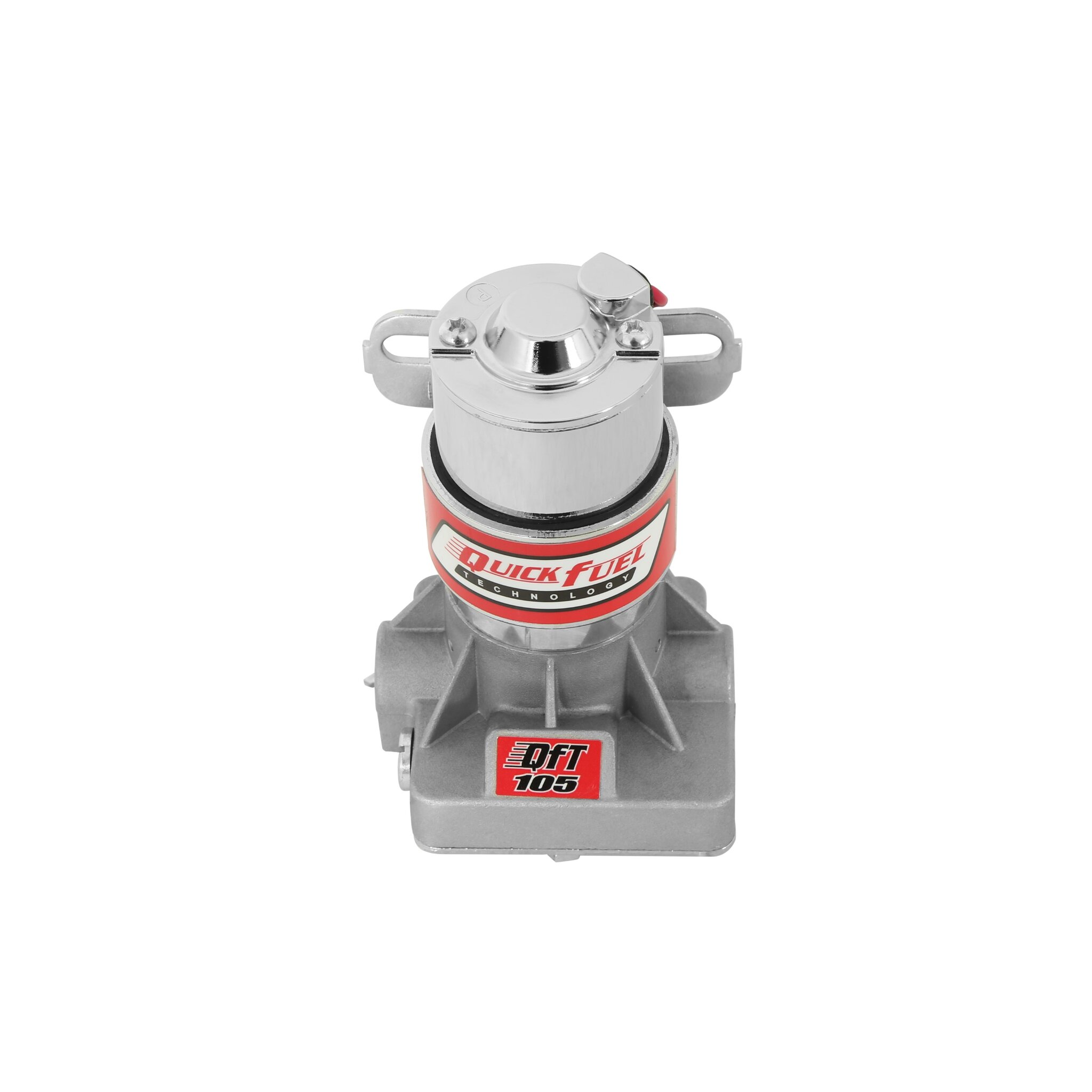

Designed for street/strip applications, the QFT 105 electric fuel pump will provide consistent performance and fuel control. This pump will flow more than enough fuel to support up to 350 HP engines.

This pump draws four amps of current and is capable of producing 7 psi of maximum pressure. All mounting hardware and brackets are included.

Features and Benefits:

• 105 GPH Flow Rate
• Constructed of Lightweight Steel and Aluminum
• 7 PSI Maximum Pressure
• Features 3/8 Inch NPT Inlets and Outlets
• Externally Accessible Pressure Relief Valve
• Draws 4 Amps or Less at Full Load
• Designed for Carbureted Applications Only
• Not compatible for Methanol or E85 Fuels

Details:

• Grade Type: Performance
• Material: Aluminum
• Color: Gold Dichromate
• Gasket Or Seal Included: Yes
• Model: Q-Series
• Finish: Zinc
• Barrel Quantity: 4
• Cubic Feet Per Minute Rating: 500
• Carburetor Use: Performance and Race
• Circuit Count: 2
• Condition: New
• Marine Approved: No
• Barrels: 2
• Billet Color: Diecast-No Billet
• Body Material: Aluminum
• Booster: Straight
• CFM Rating: 500
• Choke Type: None
• Secondary Barrel Type: None
• Supercharger Compatible: No
• Fuel System: Carbureted
• Primary Main Jet Size: 74
• Primary Pump Nozzle Size: 31
• Throttle Bore Diameter: 1-11/16 inch
• Body Finish: Plated
• Primary Power Valve: 45
• Flange Shape: Square
• Flange Type: Square/4150
• Linkage Attached: Yes
• Body Color: Gold Dichromate
• Choke: None
• Fuel Type: Gasoline
• Warranty: Manufacturer's Limited 90 Day Warranty
