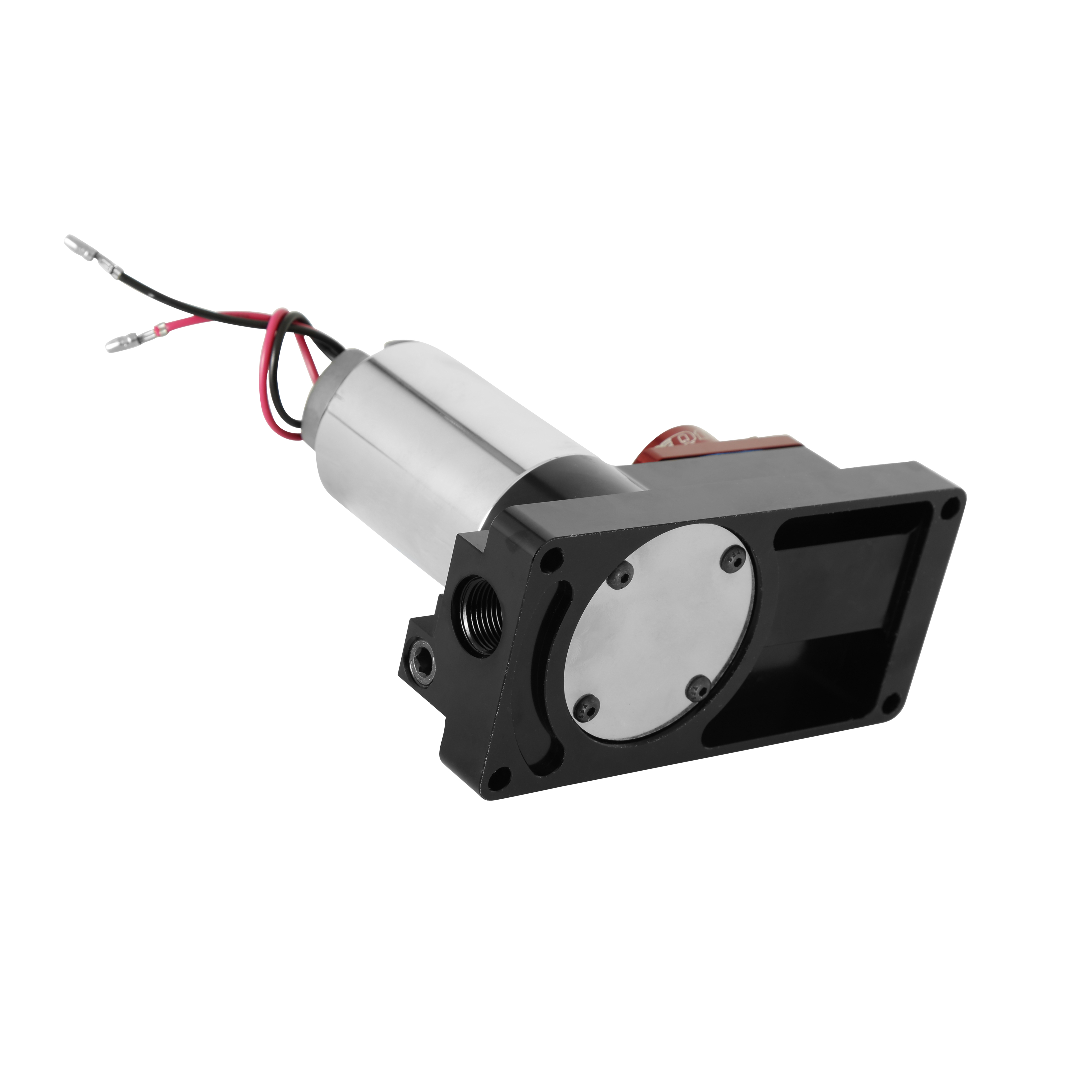

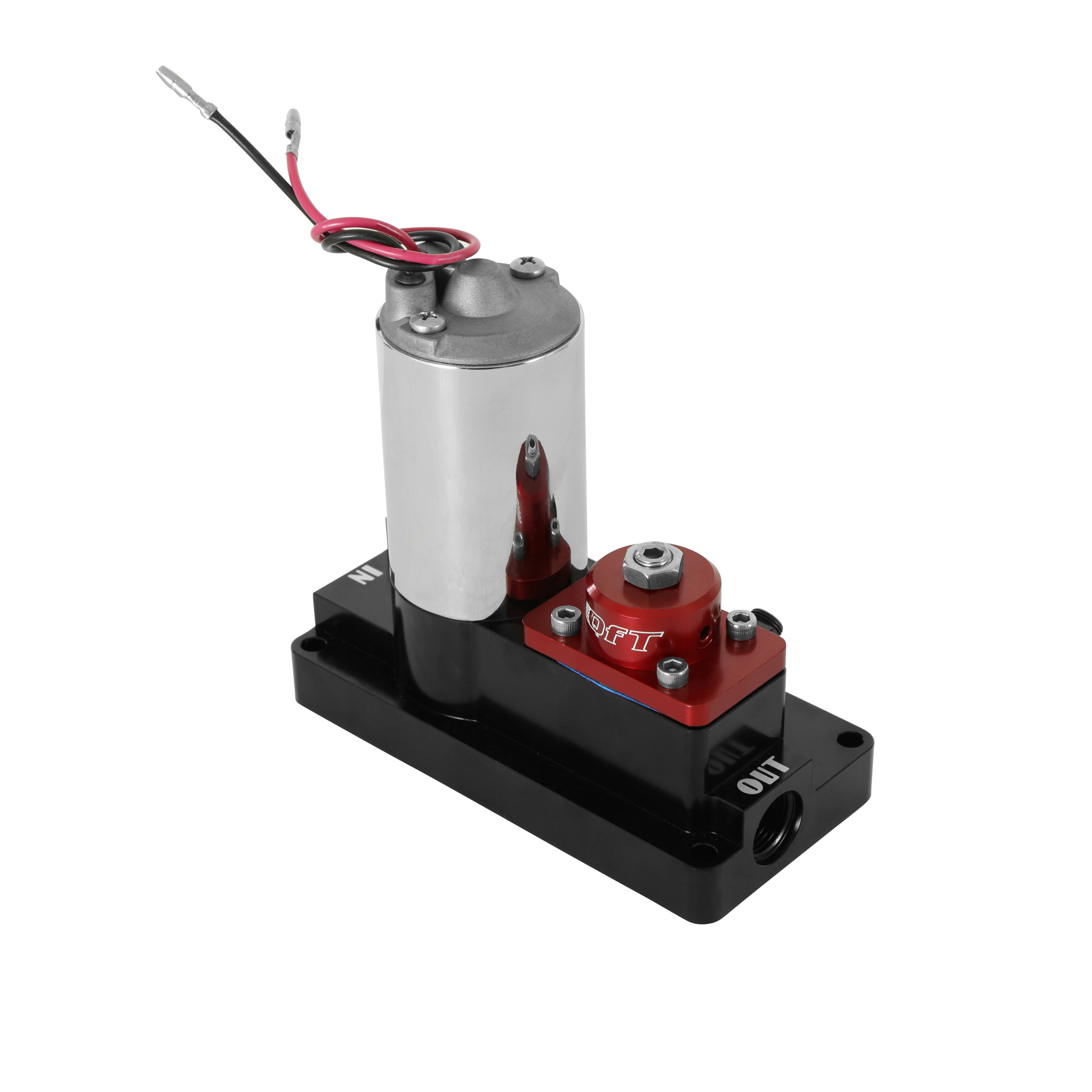

175 GPH Billet Electric Fuel Pump designed for drag racing. Features #8 AN fuel inlet and outlets, built-in fuel pressure gauge port, and internal/external adjustable bypass.

Fuel pump can be used either way, simply use the provided plug to switch bypass modes. Mounting bracket, hardware, and detailed instructions are included.

Fuel pressure gauge and fitting are not included

Features and Benefits:

• 175 GPH electric fuel pump
• Supports up to 750 HP at 18 PSI
• Constructed of billet aluminum for added durability and increased fuel control
• Features #8 AN O-ring inlet and outlet ports
• Built-in fuel pressure gauge port
• Internal and external adjustable bypass capability (Plug provided to switch bypass modes)
• Mounting bracket, hardware, and detailed instructions included

Details:

• Grade Type: Performance
• Material: Aluminum
• Color: Polished/Red
• Gasket Or Seal Included: Yes
• Model: Forced Induction
• Finish: Shiny
• Barrel Quantity: 4
• Cubic Feet Per Minute Rating: 750
• Carburetor Use: Performance and Race
• Circuit Count: 2
• Condition: New
• Marine Approved: No
• Barrels: 4
• Billet Color: Red
• Body Material: Aluminum
• Booster: Down Leg
• CFM Rating: 750
• Choke Type: None
• Secondary Barrel Type: Mechanical
• Supercharger Compatible: Yes
• Primary Main Jet Size: 74
• Primary Pump Nozzle Size: 35
• Secondary Main Jet Size: 84
• Body Finish: Polished
• Primary Power Valve: 4.5
• Flange Shape: Square
• Flange Type: Square/4150
• Linkage Attached: Yes
• Body Color: Polished Aluminum
• Choke: None
• Fuel Type: Gasoline
• System Type: Draw Thru
• Secondary Pump Nozzle Size: 35
• Warranty: Manufacturer's Limited 90 Day Warranty
