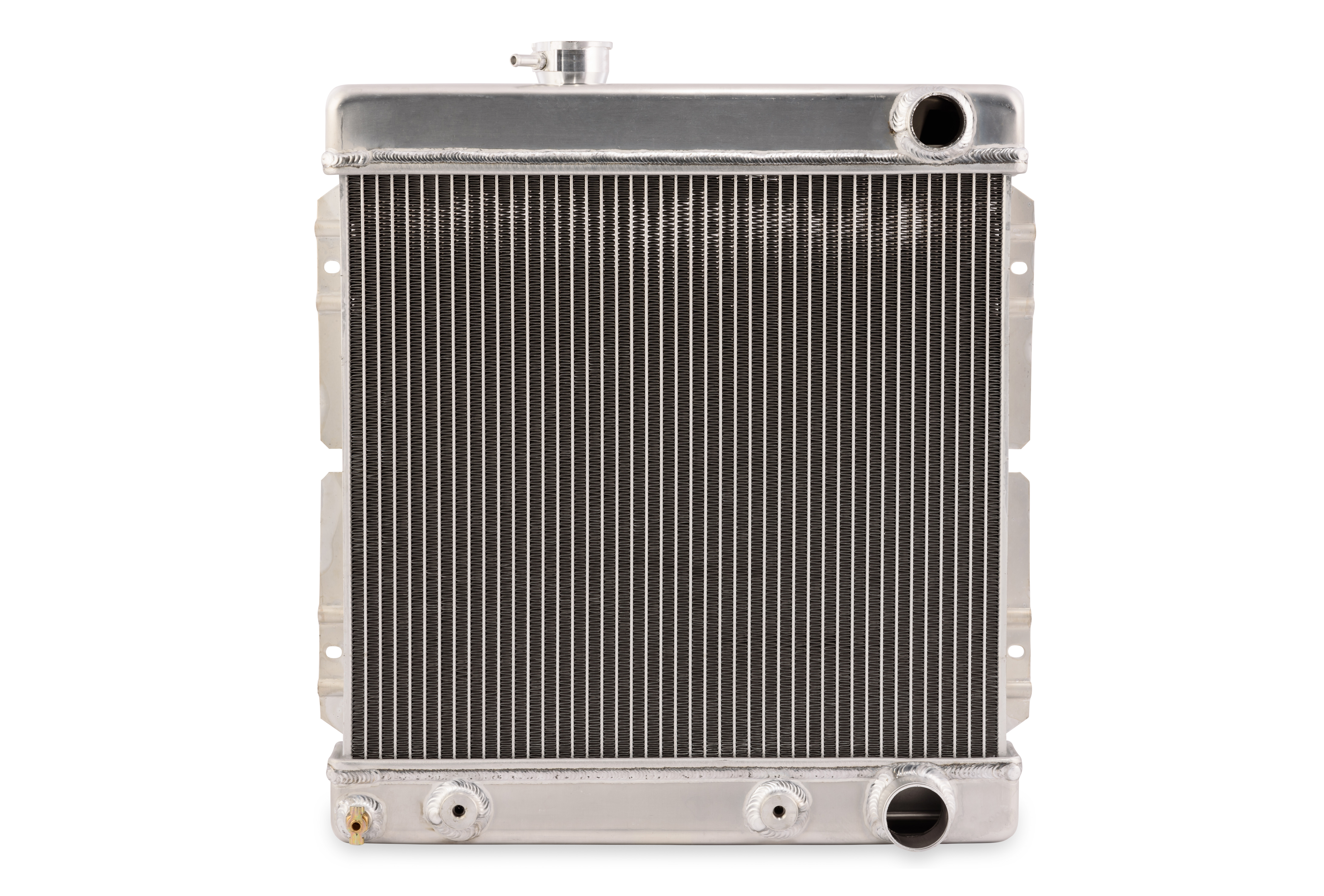

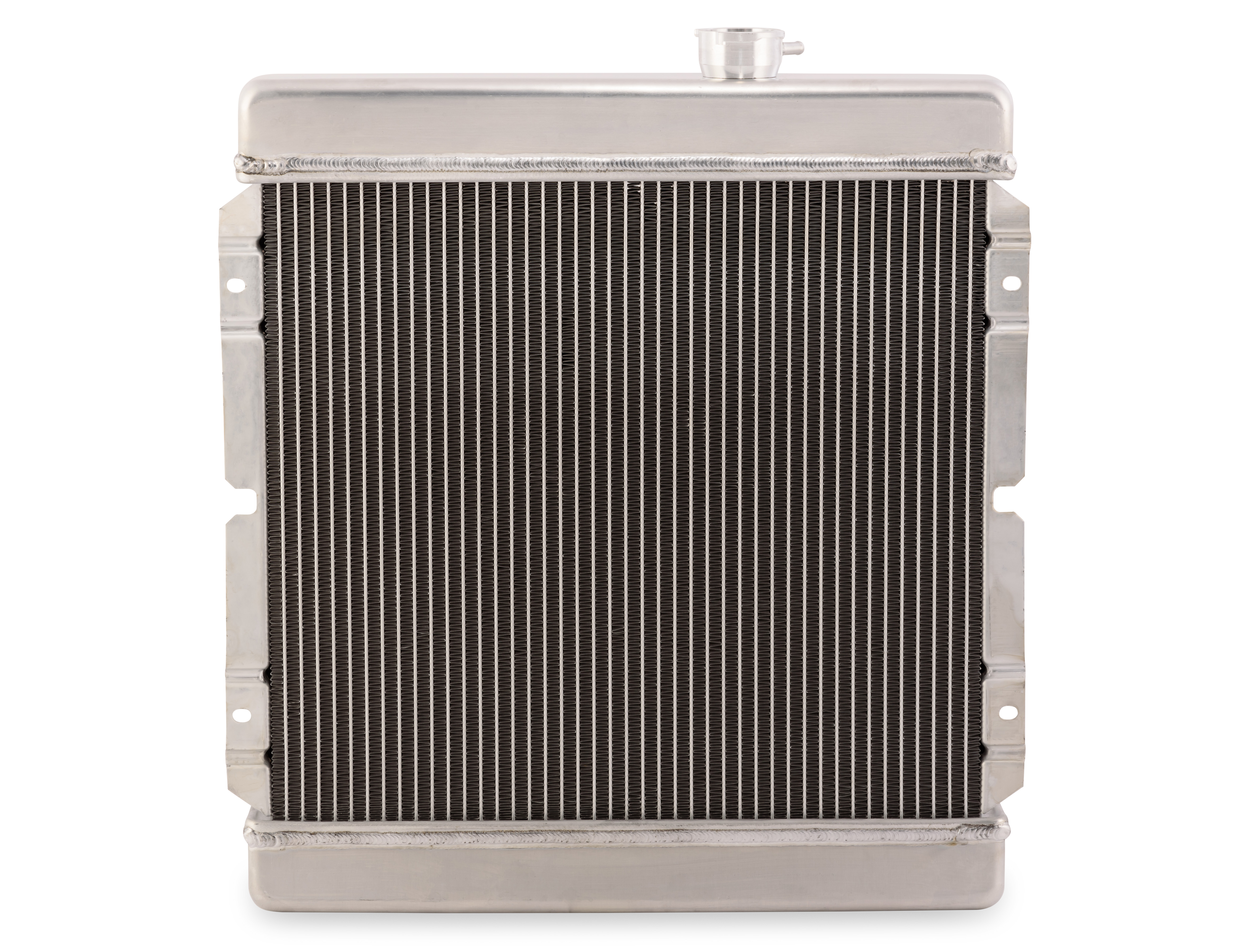

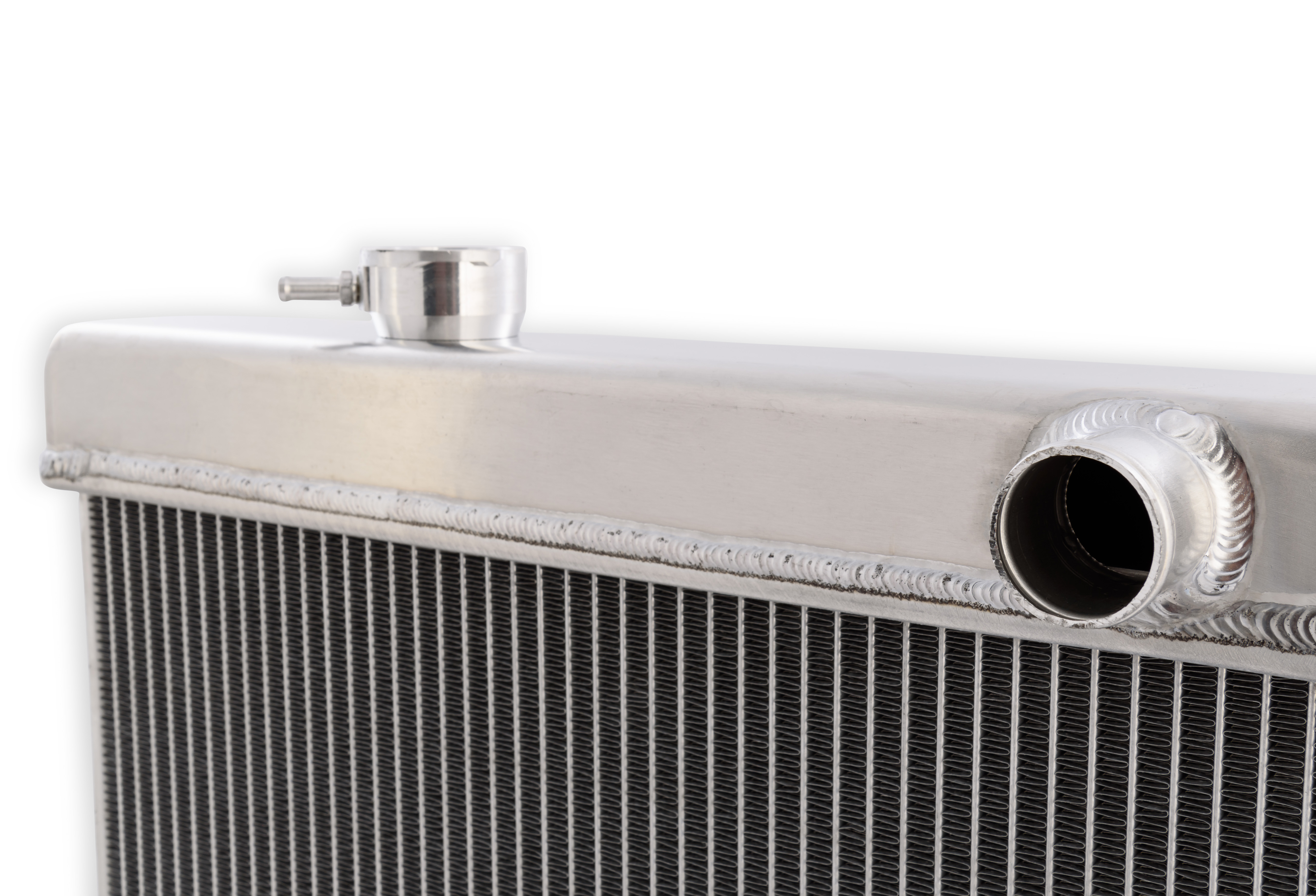

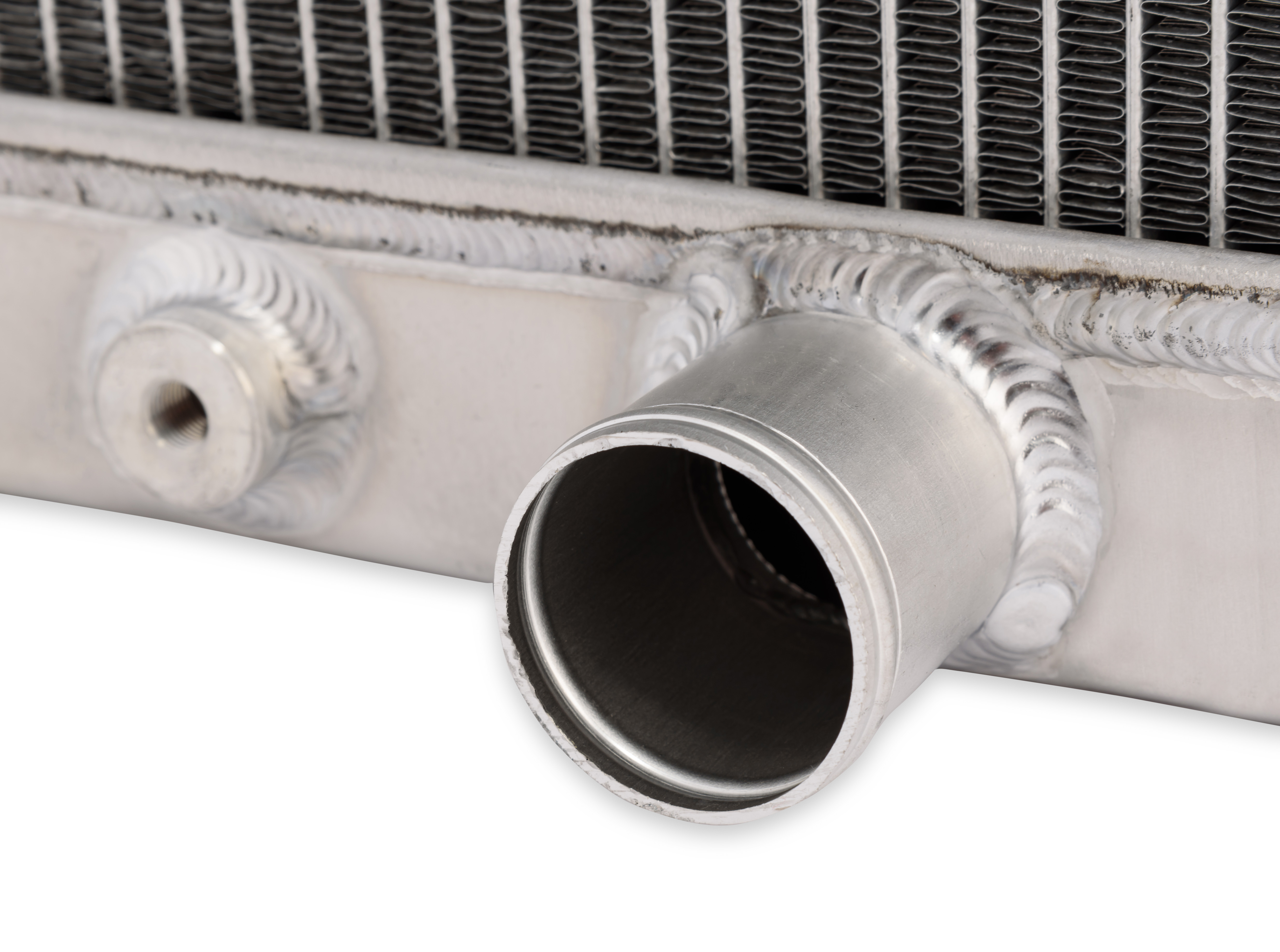

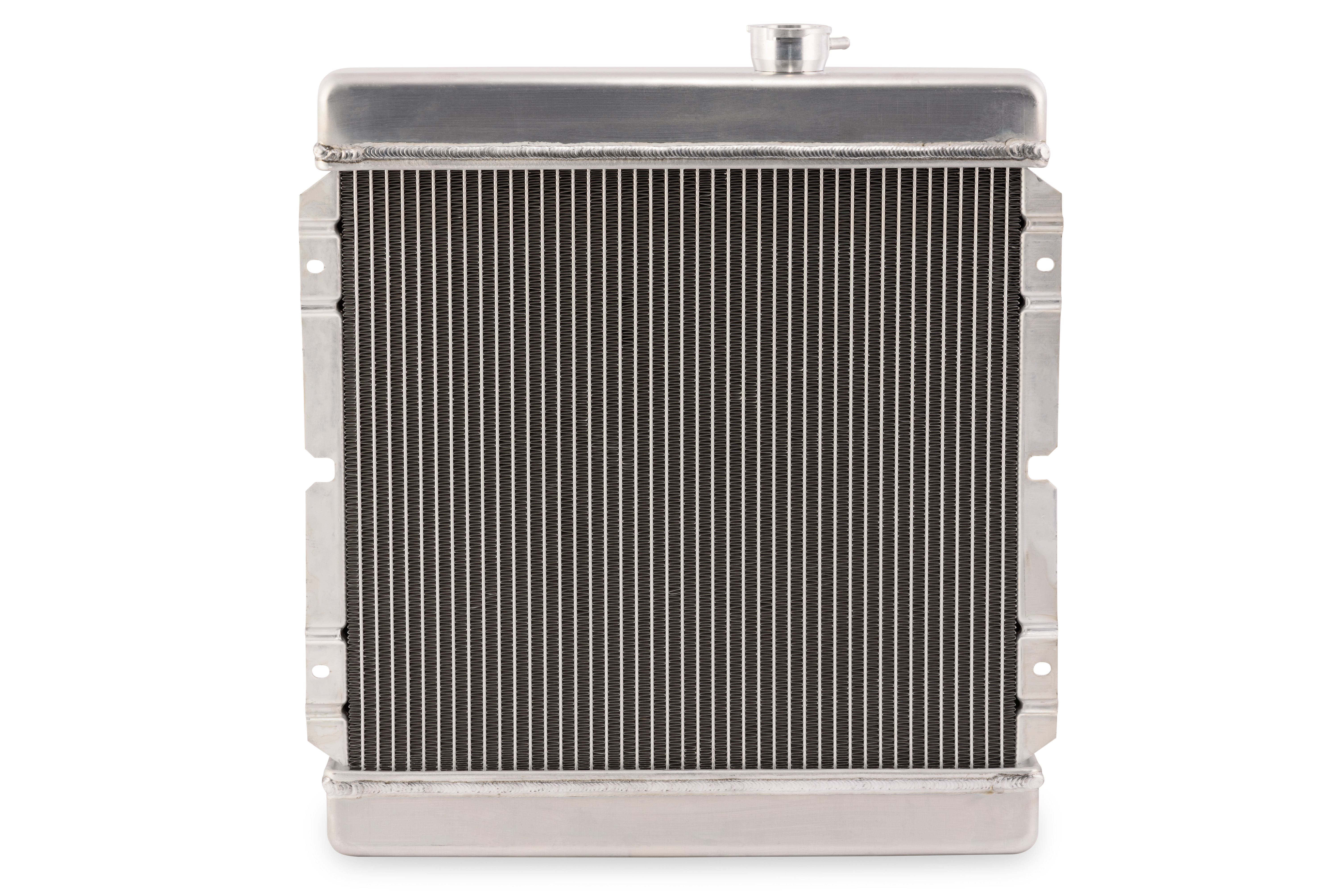

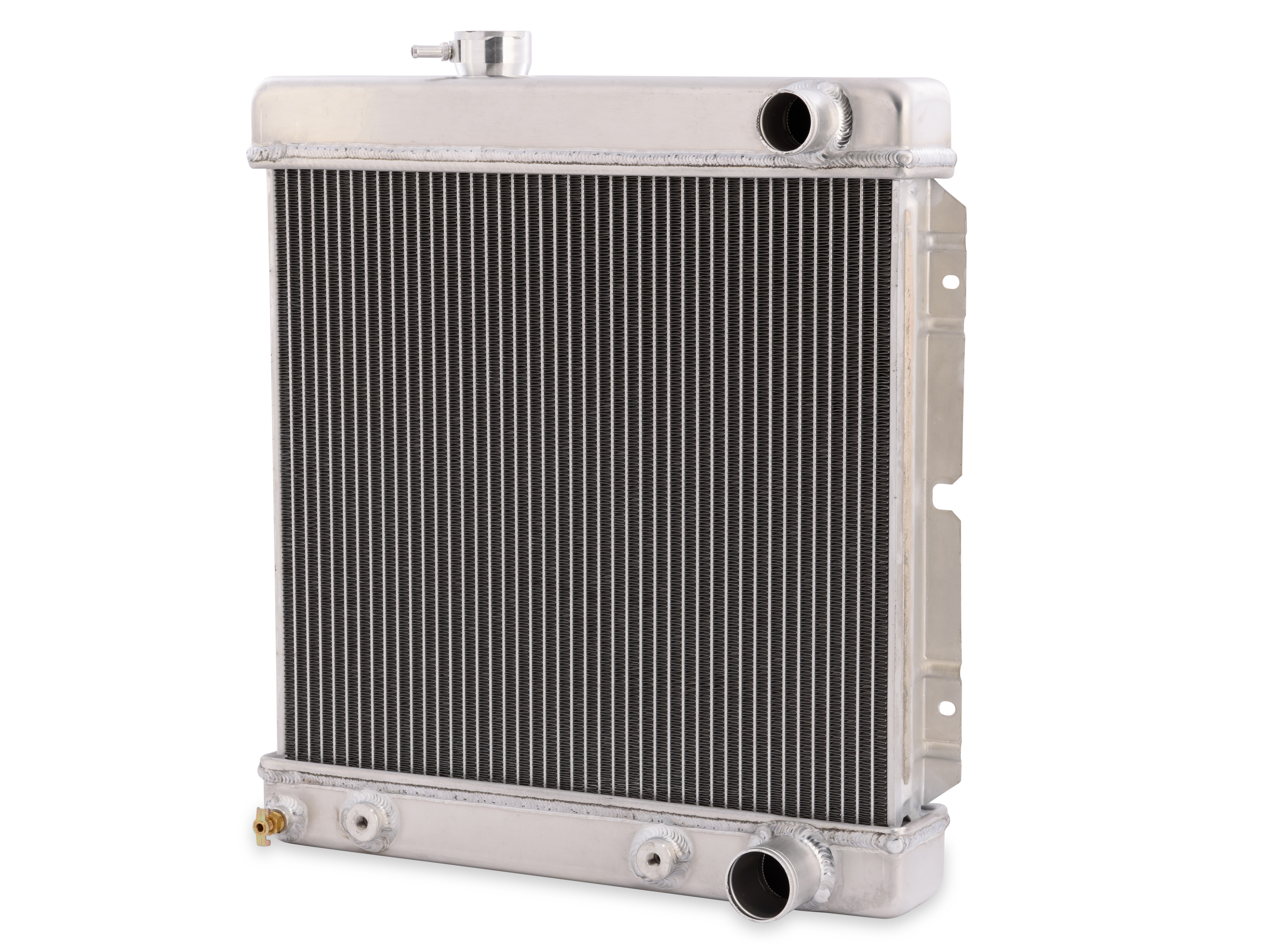

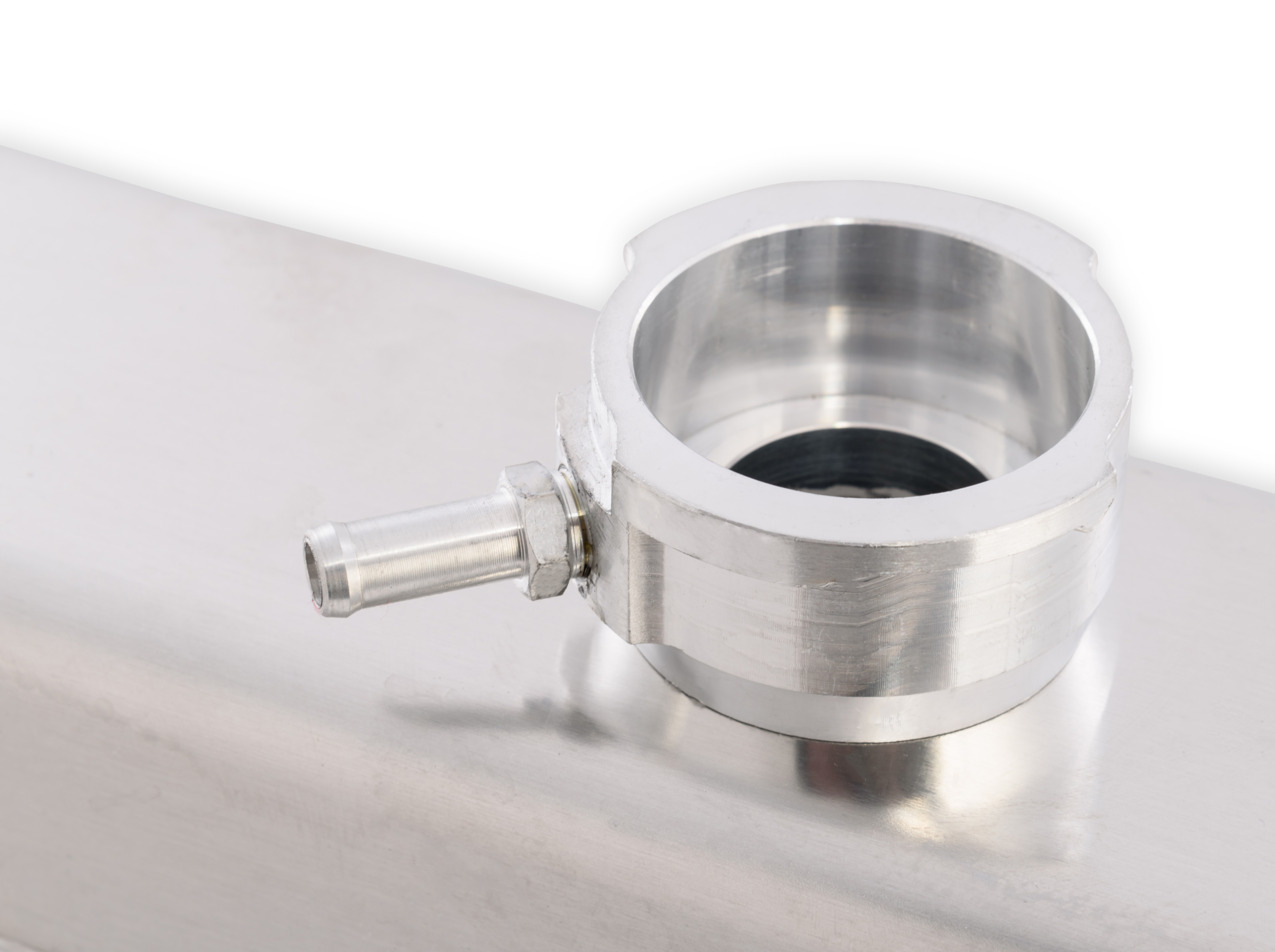

1964-1966 Ford Mustang Radiator 2-Row Aluminum V8 Automatic Transmission. Scott Drake designed this downflow aluminum radiator with an exclusive baffle at the top to help evenly distribute the flow of hot water across the upper part of the radiator. This aluminum radiator is 100 percent fully tig welded. The inlet and outlet on the radiator are located on the same side and also include a built-in petcock on the lower driver side of the radiator.

Features and Benefits:

• 2-Row Aluminum Radiator
• Exclusive Baffle Design

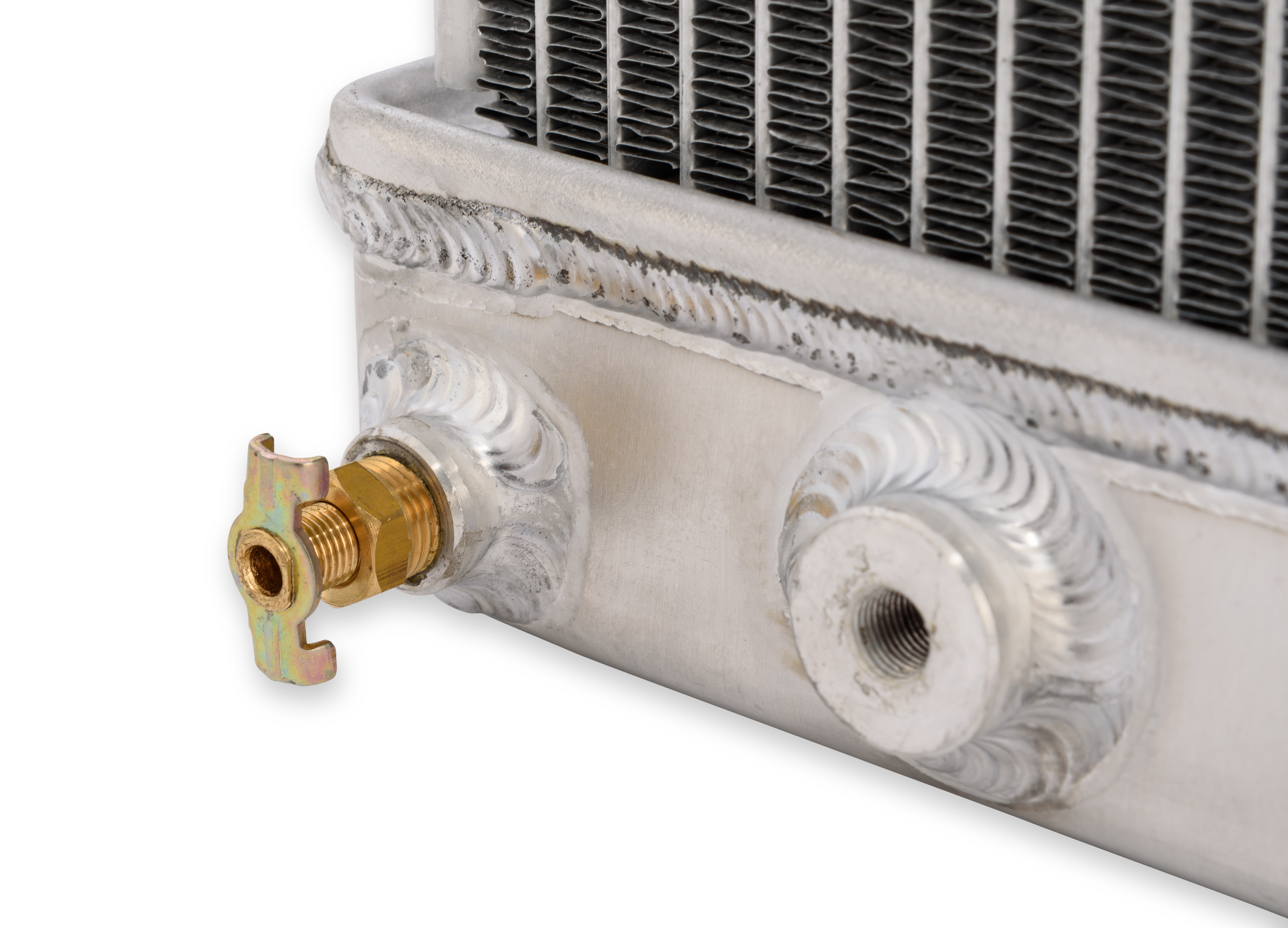

• Built in Petcock
• Automatic transmission cooler with 1/2 inchx20 inverted flare fittings.

Details:

• This aluminum radiator includes an automatic transmission cooler with 1/2 inchx20 inverted flare fittings.
• Core Height: 16.5
• Core Row Quantity: 2
• Core Thickness: 2.625
• Core Width: 17
• Down Flow Or Cross Flow Type: Down Flow
• Drain Petcock Included: Yes
• Engine Oil Cooler Included: No
• Fan Included: No
• Finish: Natural
• Hose Location Inlet: Passenger
• Hose Location Outlet: Passenger
• Inlet Diameter: 1.5
• Inlet Location: Passenger
• Material: Aluminum
• Mounting Type: Bolt On
• Outlet Diameter: 1-3/4 in.
• Outlet Location: Passenger
• Outlet Size: 1-3/4 in.
• Overall Height: 21.5
• Overall Thickness: 3
• Overall Width: 17.375
• Radiator Cap Included: No
• Transcooler Provision: Yes
• Transmission Oil Cooler Included: Yes
• Tube Quantity: 41
• Tubing Spacing: 46150
