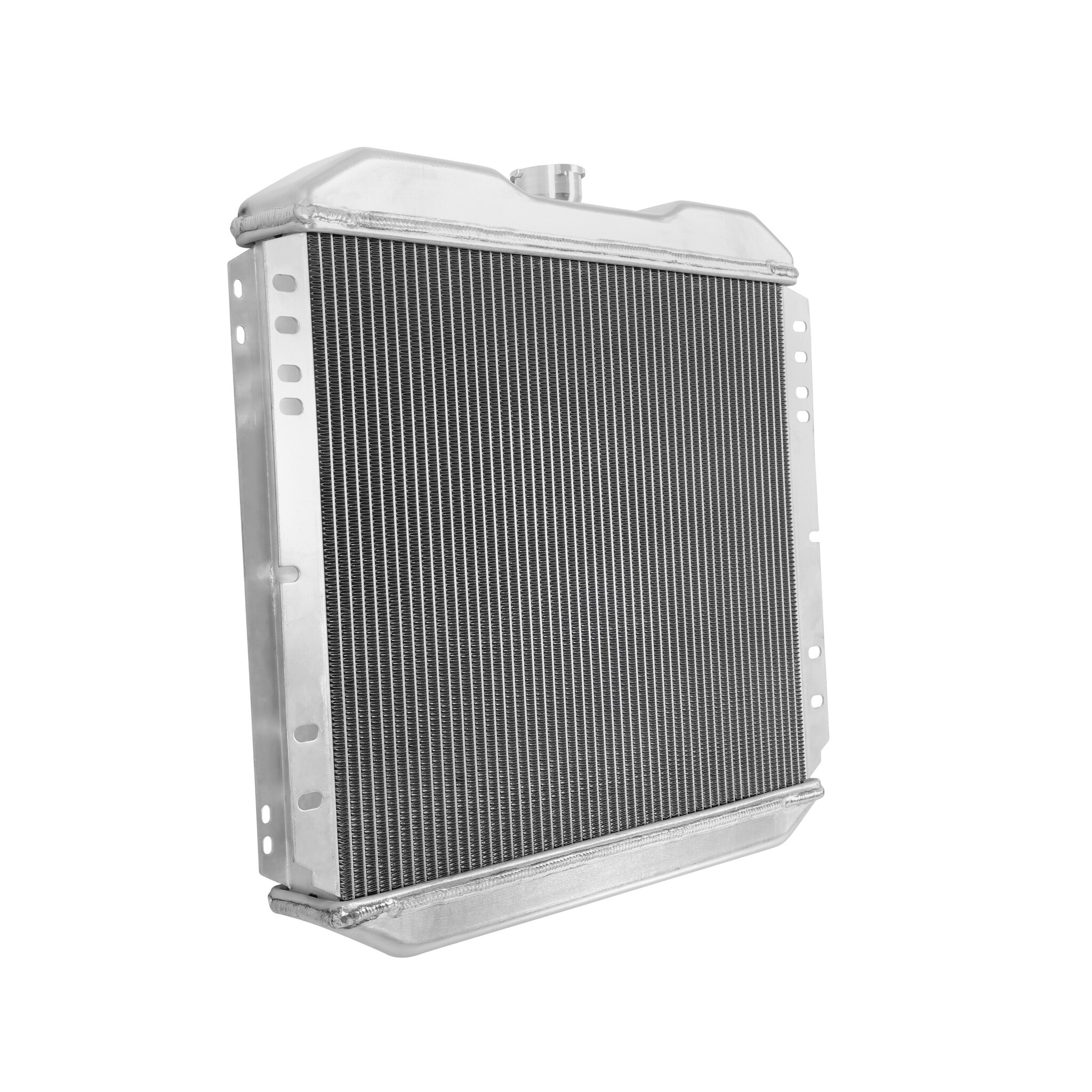

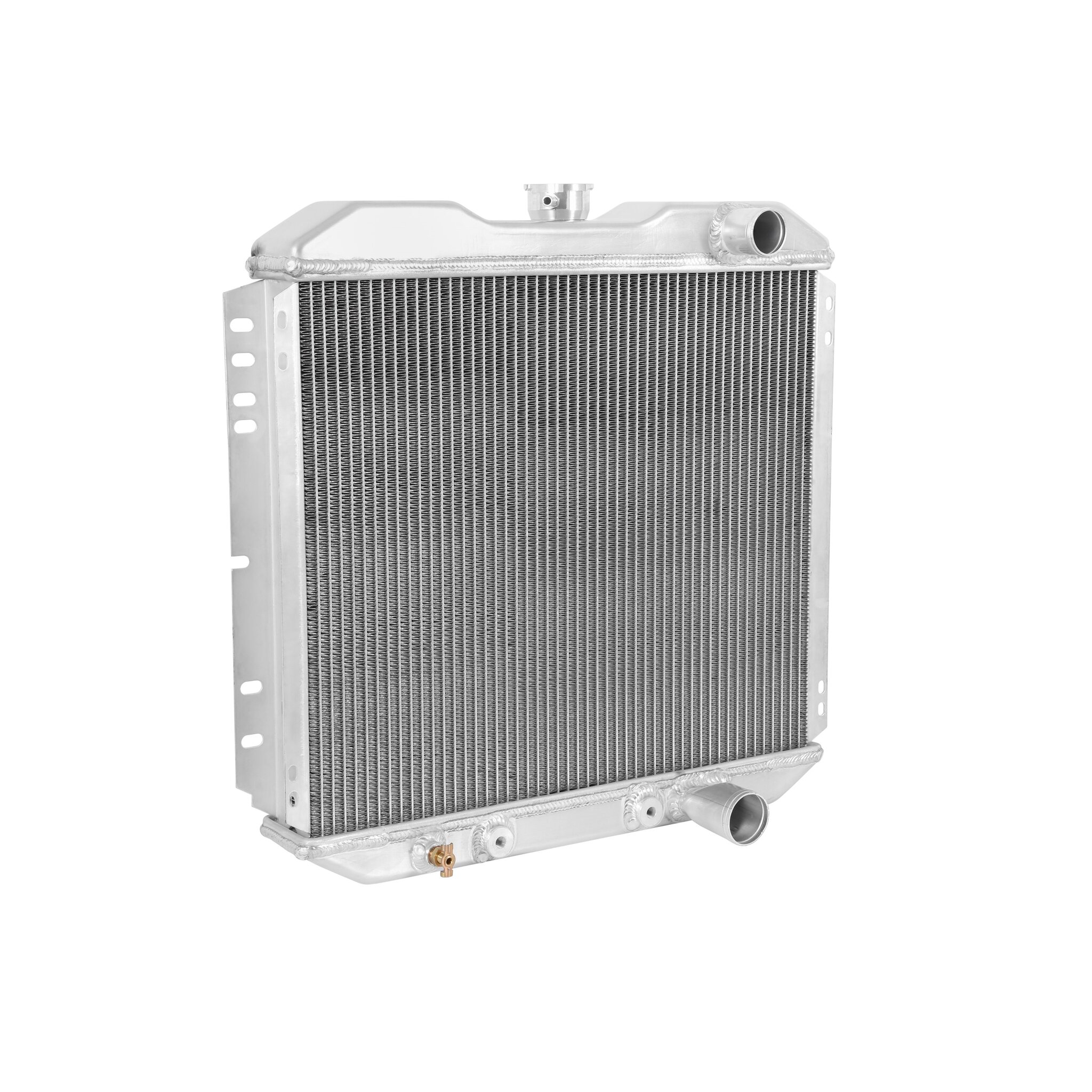

1967-1969 Ford Mustang 2 Row Down Flow Aluminum Radiator. This precisely designed aluminum downflow radiator is manufactured using 2 rows of extra-large 1 inch tubes which is equivalent to 4-row efficiency but weighing 5-7 lbs. less. Constructed using premium aluminum this radiator is built to last while providing durability for the road ahead.

Features and Benefits:

• Extra large 1 inch tubes, equals 4 row efficiency at 5-7 lbs. less weight
• Automatic transmission cooler included
• Premium aluminum construction for long lasting durability
• Direct fit install uses existing factory holes

Details:

• Will not fit late model water pumps
• Core Dimension: 16 3/8 x 20 1/4
• Core Height: 16.5
• Core Row Quantity: 2
• Core Thickness: 2.625
• Core Width: 20
• Down Flow Or Cross Flow Type: Down Flow
• Fan Included: No
• Finish: Bare
• Hose Location Inlet: Passenger
• Hose Location Outlet: Passenger
• Inlet Diameter: 1.5
• Inlet Location: Passenger
• Material: Aluminum
• Mounting Type: Flanged
• Outlet Diameter: 1-3/4 in.
• Outlet Location: Passenger
• Outlet Size: 1-3/4 in.
• Overall Height: 21.375
• Overall Thickness: 3
• Overall Width: 20.5
• Radiator Cap Included: No
• Transcooler Provision: Yes
• Transmission Oil Cooler Included: Yes
• Tube Quantity: 49
• Tubing Spacing: 46150
