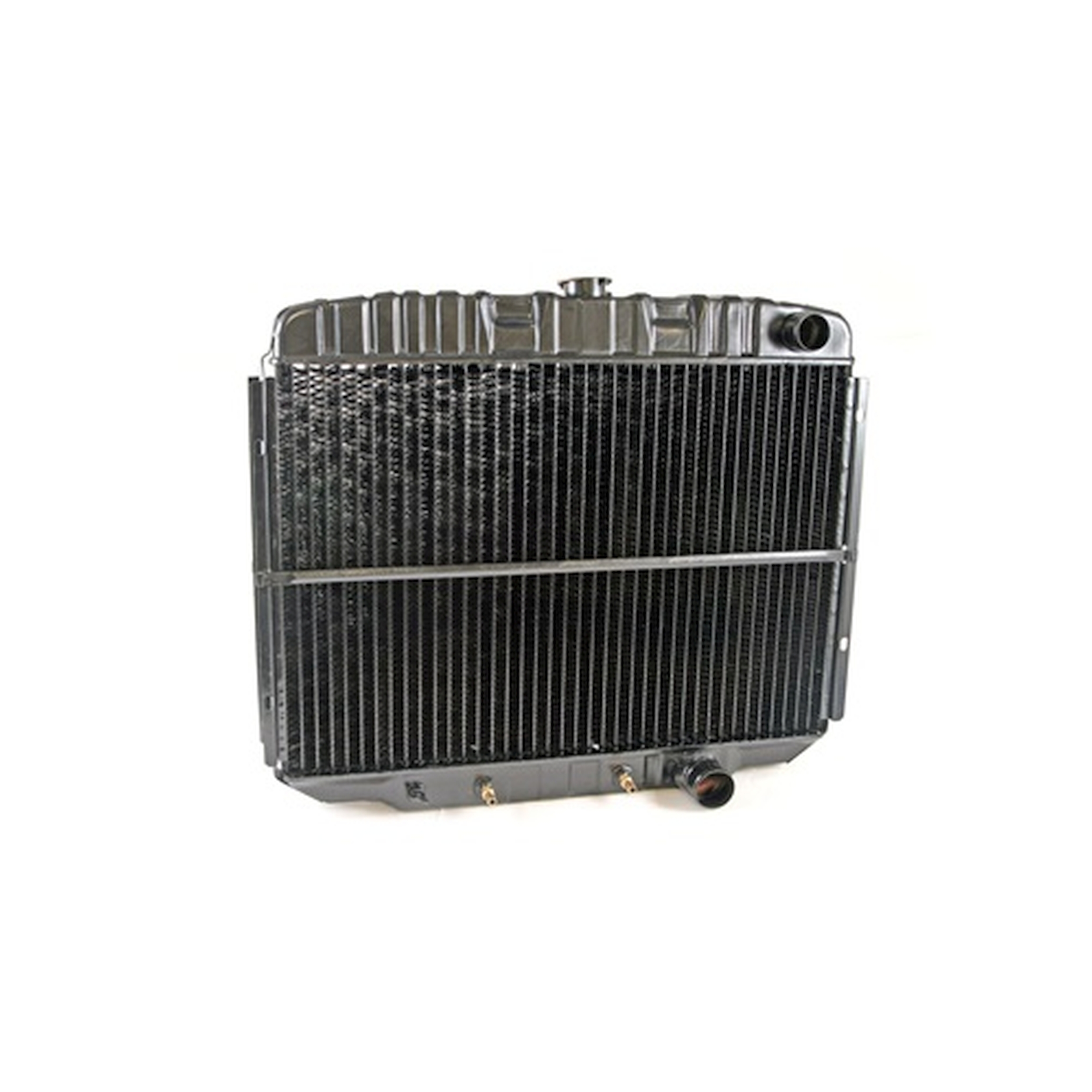

1967-1969 Ford Mustang 3-Row, Down Flow Radiator. A three-core, 24-inch high flow radiator constructed of brass/copper with large 1/2 inch tubes to prevent plugging and increases coolant flow. All radiators are pressure tested and meet or exceed original equipment specifications.

Features and Benefits:

• Brass/copper construction
• Down flow radiator with a top right inlet and bottom right outlet
• Saddle mounts are not included

Details:

• Color: Black
• Core Dimension: 16 inch x 23 1/2 inch
• Core Height: 16
• Core Row Quantity: 3
• Core Thickness: 2.5
• Core Width: 23.5
• Down Flow Or Cross Flow Type: Down Flow
• Fan Included: No
• Finish: Painted
• Hose Location Inlet: Passenger
• Hose Location Outlet: Passenger
• Inlet Diameter: 1.5
• Inlet Location: Passenger
• Material: Copper
• Meets or Exceeds Original Equipment Manufacture Specifications: Yes
• Mounting Hardware Included: No
• Mounting Type: Saddle Mount
• Outlet Diameter: 1-3/4 in.
• Outlet Location: Passenger
• Outlet Size: 1-3/4 in.
• Overall Height: 21.5
• Overall Thickness: 3
• Overall Width: 24
• Radiator Cap Included: No
• Transcooler Provision: Yes
• Transmission Oil Cooler Included: Yes
• Tube Quantity: 53
• Tubing Spacing: 11994
