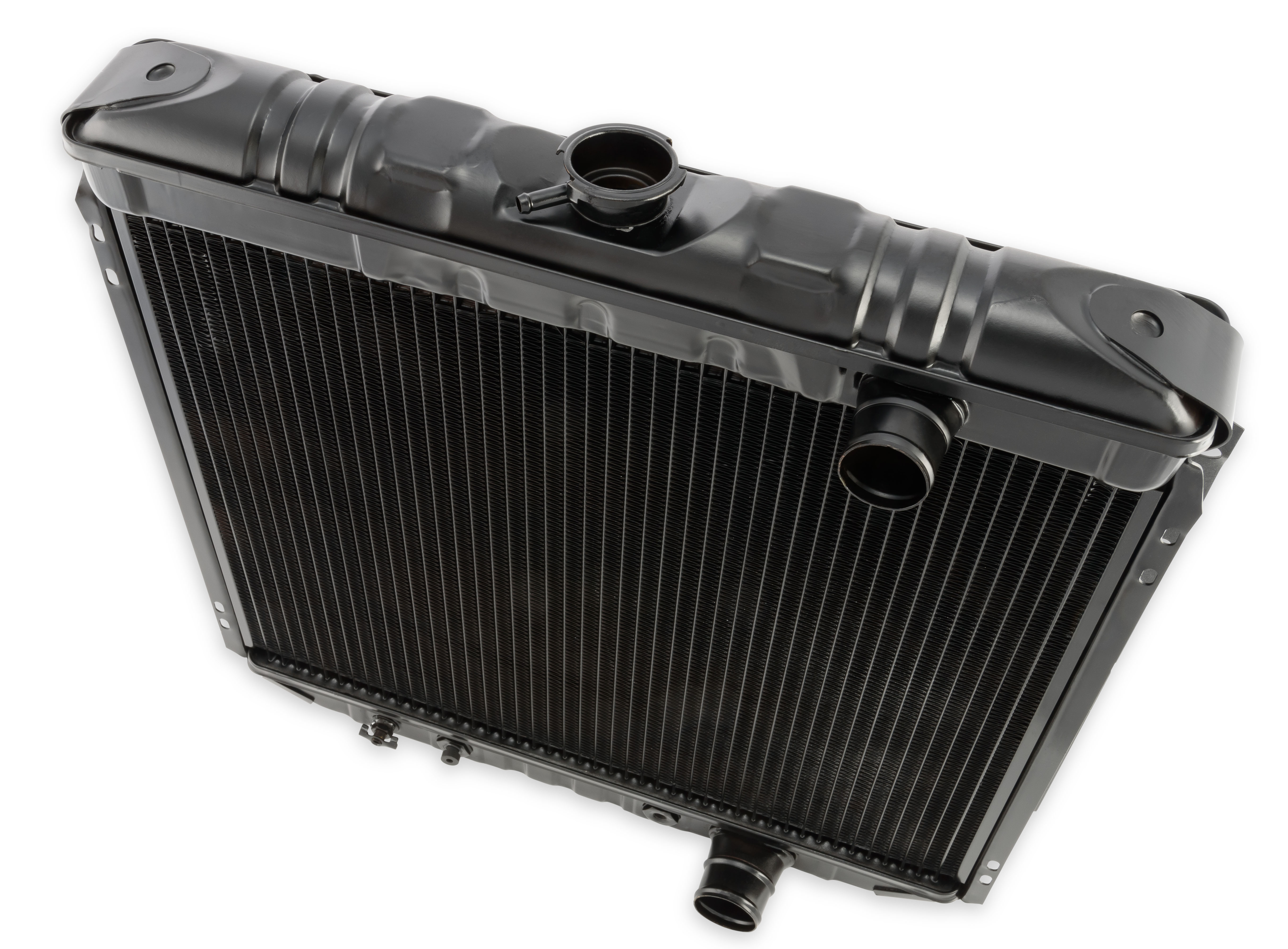

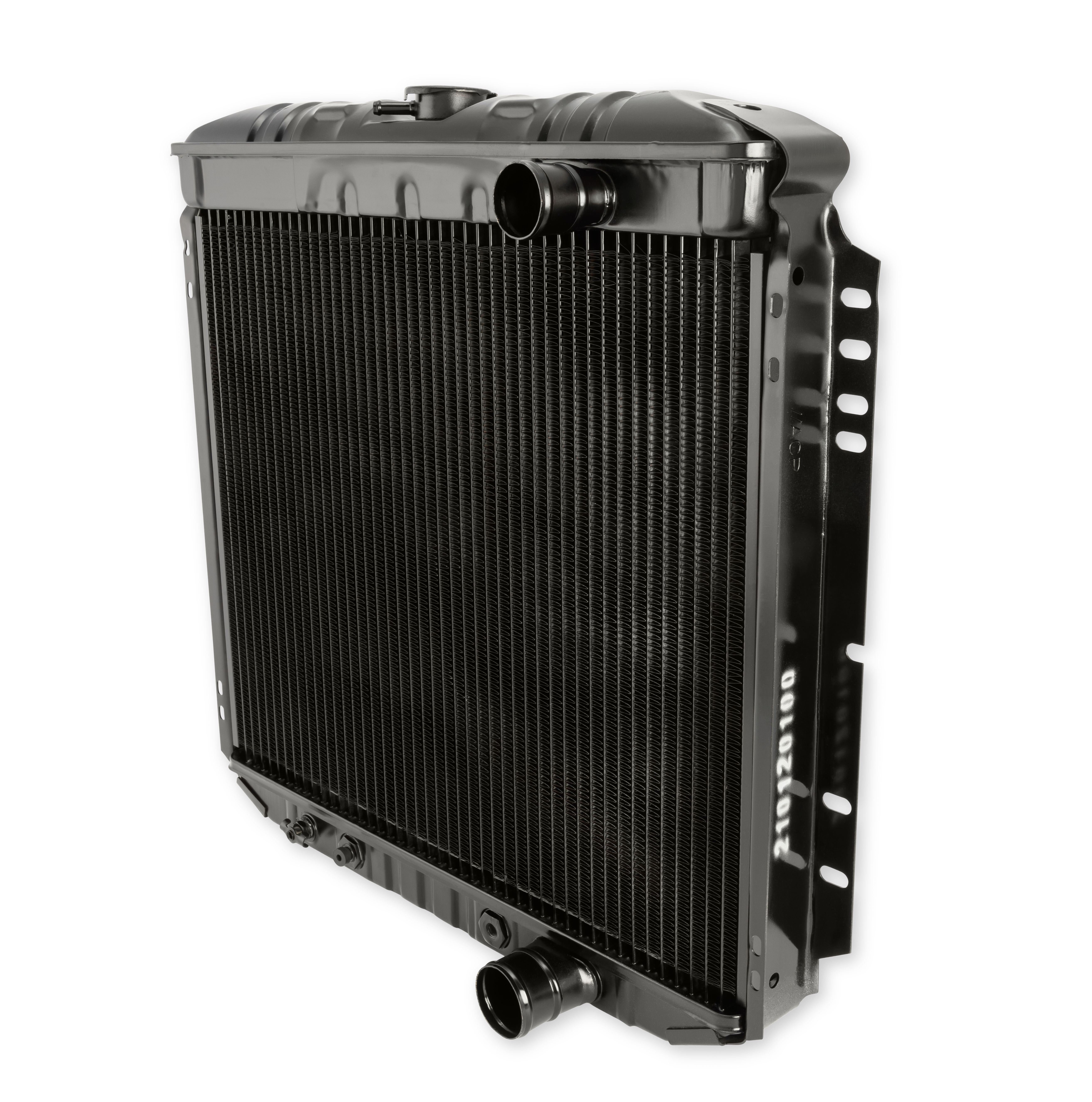

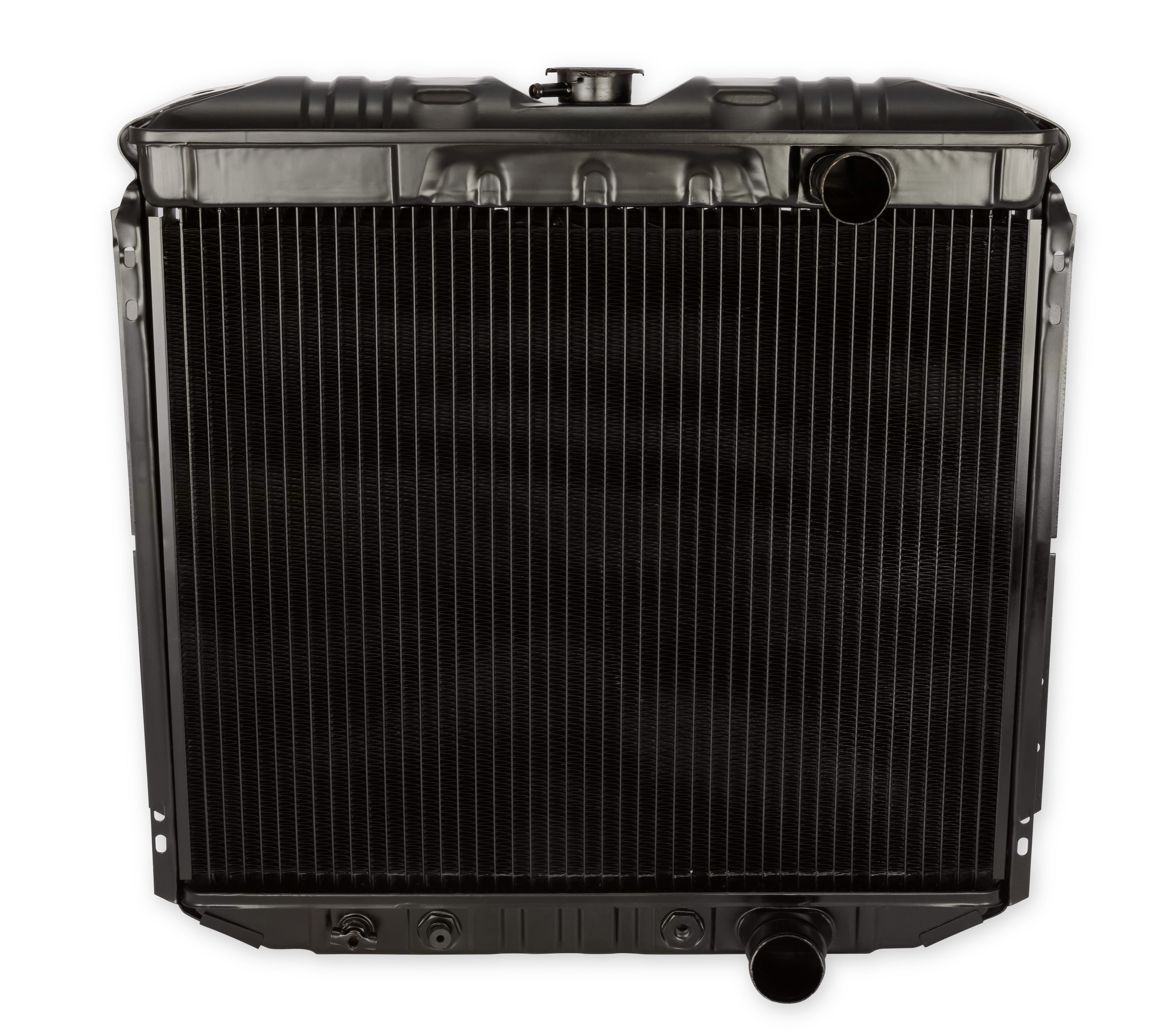

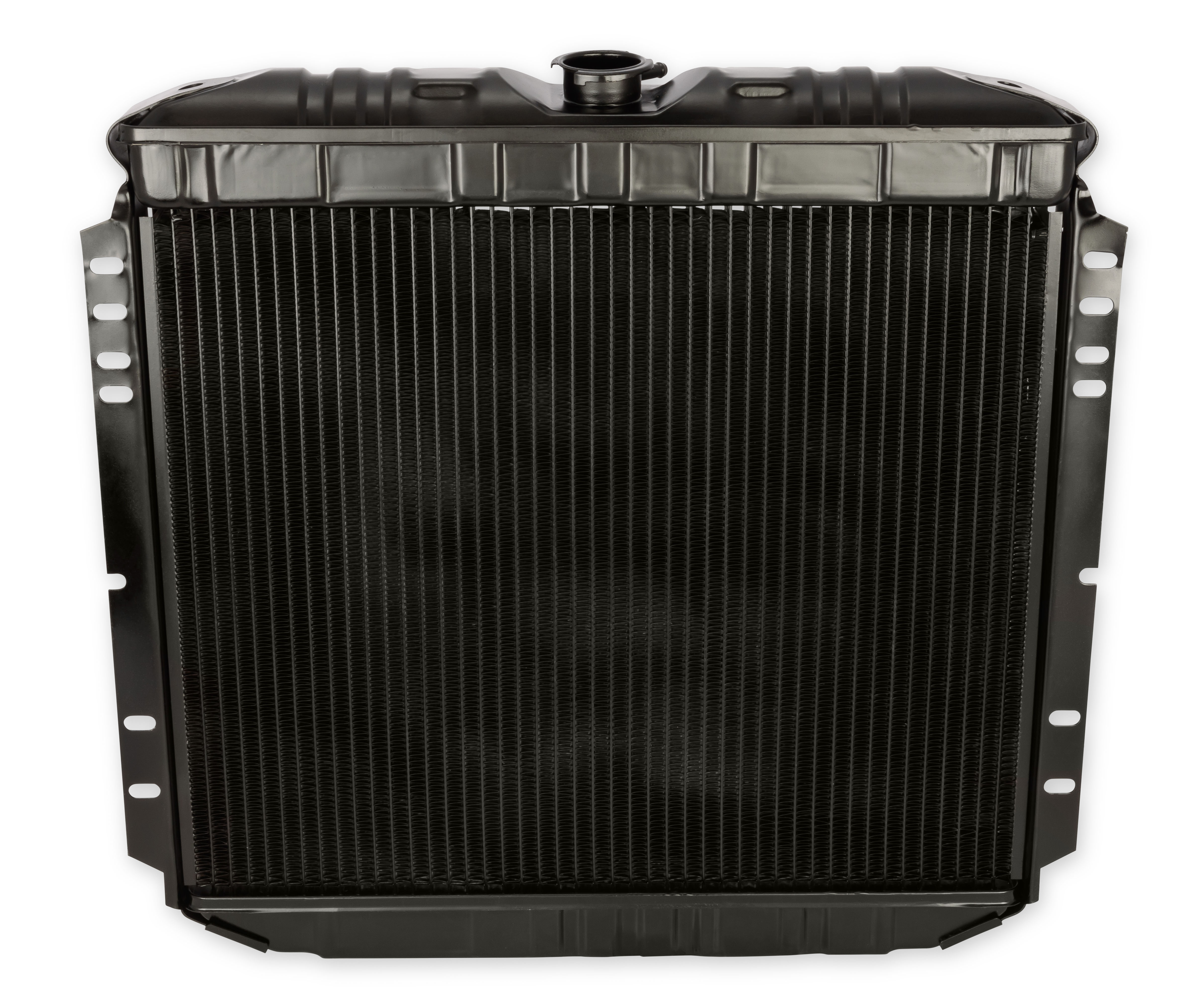

1967-1969 Ford Mustang 3 Row Hi-Flow Radiator. Copper/brass construction of this downflow radiator has 3 rows of 1/2 inch tubing is designed for maximum cooling. The larger tubing increases coolant flow while designed to prevent plugging of coolant passages. A painted black finish provides an attractive finish under the hood and the integrated transmission cooler aids in extending transmission life.

Features and Benefits:

• Copper brass construction
• 1/2 inch tubing diameter provides increased coolant flow
• Automatic transmission cooler included
• Attractive black painted finish

Details:

• Color: Black
• Core Dimension: 16 3/8 x 20 1/4
• Core Height: 16.5
• Core Row Quantity: 3
• Core Thickness: 2.5
• Core Width: 20
• Down Flow Or Cross Flow Type: Down Flow
• Fan Included: No
• Finish: Painted
• Hose Location Inlet: Passenger
• Hose Location Outlet: Passenger
• Inlet Diameter: 1.5
• Inlet Location: Passenger
• Material: Copper
• Meets or Exceeds Original Equipment Manufacture Specifications: Yes
• Mounting Hardware Included: No
• Mounting Type: Flanged
• Outlet Diameter: 1-3/4 in.
• Outlet Location: Passenger
• Outlet Size: 1-3/4 in.
• Overall Height: 21.375
• Overall Thickness: 3
• Overall Width: 20.5
• Radiator Cap Included: No
• Transcooler Provision: Yes
• Transmission Oil Cooler Included: Yes
• Tube Quantity: 44
• Tubing Spacing: 11994
