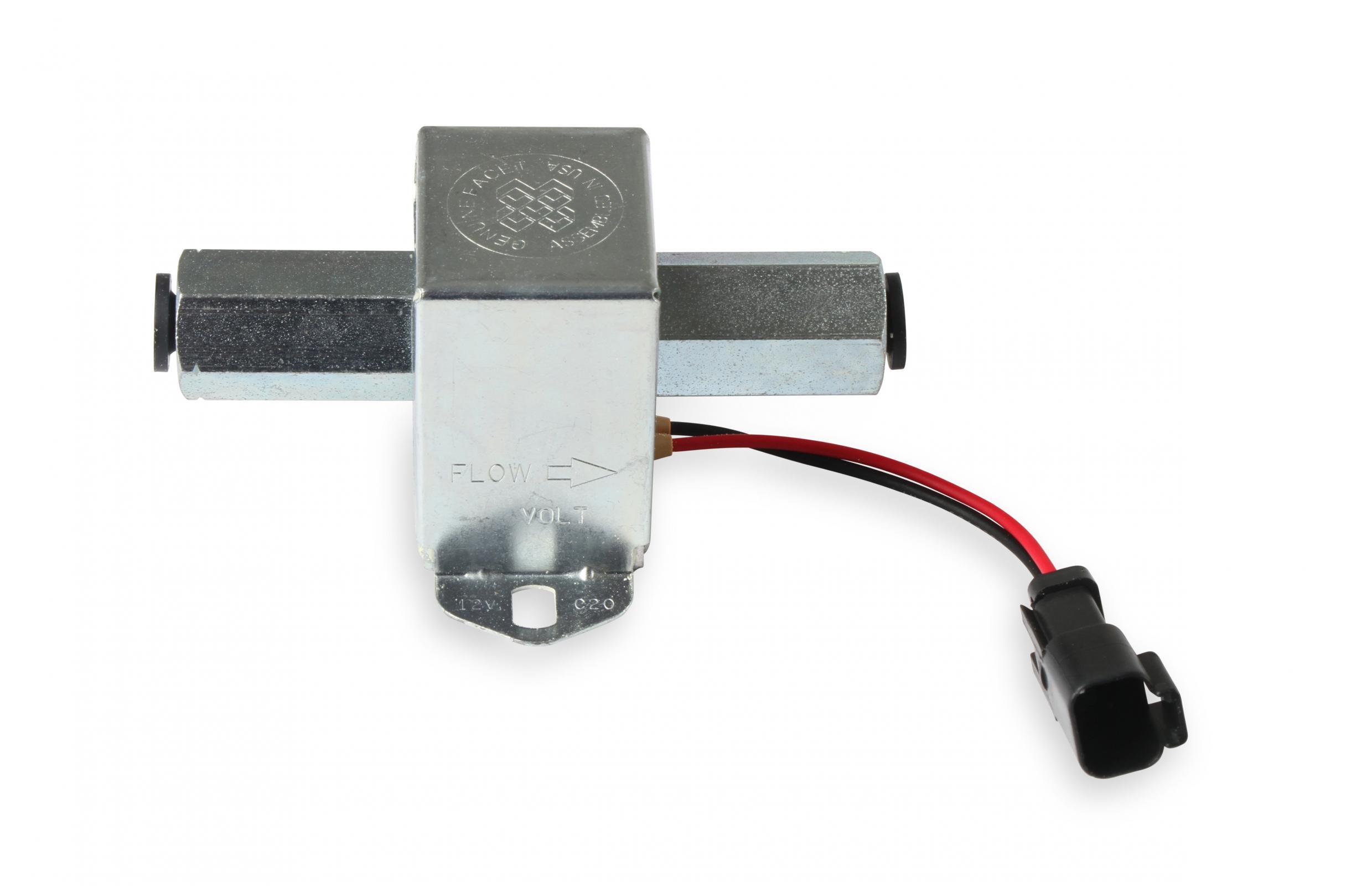

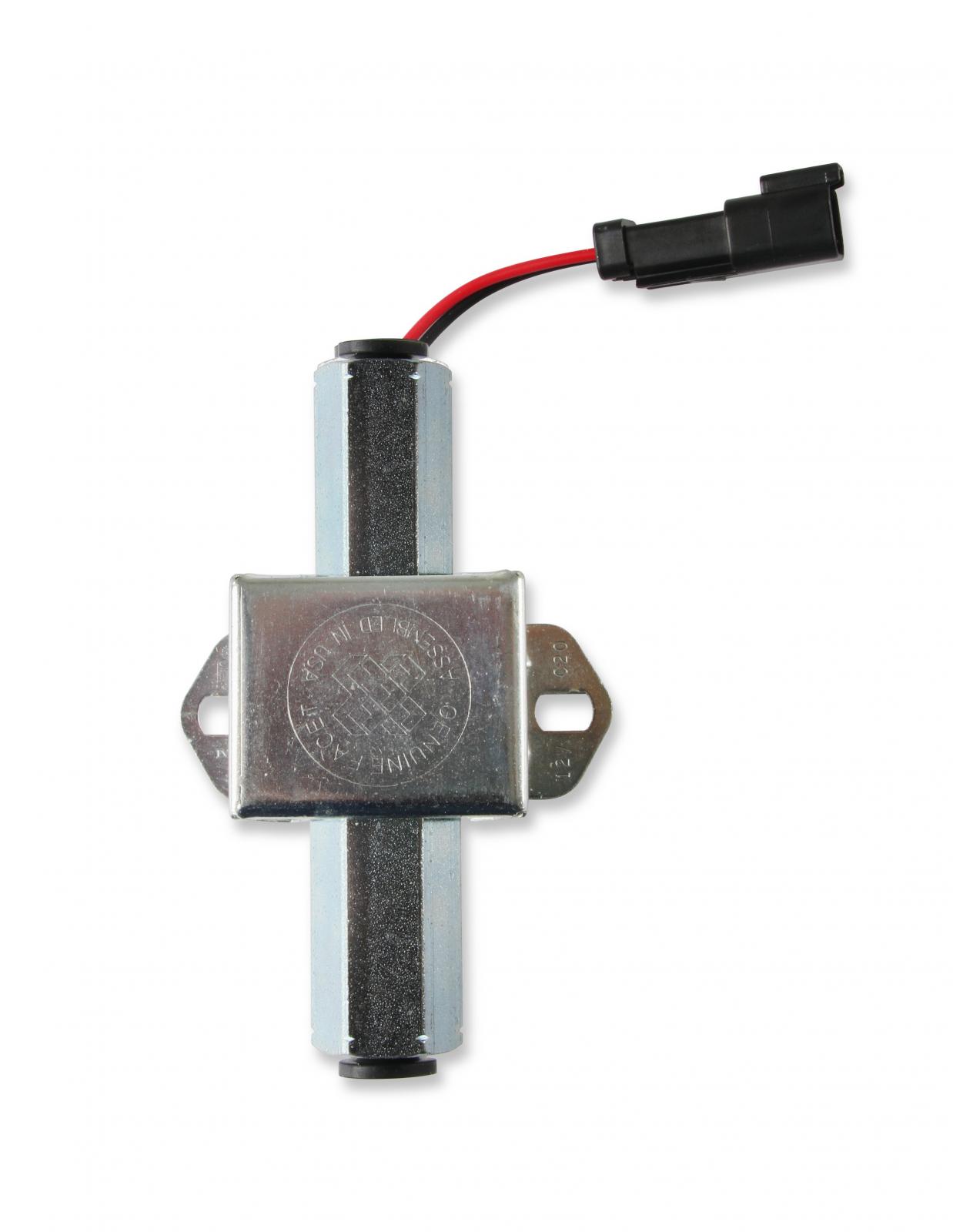

Pumps are designed for use on all low and high pressure carburetor equipped automobiles, trucks, vans, generators, agriculture, gasoline and diesel engines, marine, construction and agriculture utility equipment. The 12 volt pumps perform in a 12-15 psi range at 50 Gph.

Can be used as a lift / priming pump for most diesel engines. Compatible with all fuels and additives.

These pumps can be a perfect Oe replacement for any of your equipment. Rugged solid state design pumps are a simple two wire hook-up and made in the USA.

A regulator may be needed for carbureted applications requiring less fuel pressure. We recommend the Holley 12-803 or 12-804 fuel pressure regulator.

Overall dimensions- 4 inchx 3 inchx 3 inch

Features and Benefits:

• 60 inch Dry lift/ 12-15 PSI / 50 Gph Self-Priming and Self-Regulating Compatible with gasoline, diesel, bio diesel, E85, blended alcohol and fuel additives Operating temperature range of -40F to + 180F Ul Certified Meets Coast Guard Ignition Protection Test Requirements 33CFR183.410 and Fire and Thermo Shock Test Requirements 33CFF183.590 Corrosion resistant over 100 hours of salt spray

Associated Comments:

• Pump must be properly fused with a 3- to 5-Amp automotive-type fuse.

Details:

• Application: Universal
• Color: Silver
• Free Flow Gph: 50
• Fuel Type: Diesel | E85 | Gasoline
• Fuel Delivery Type: Carburetor
• Fuel Sending Unit Included: No
• Fuel System: Carbureted
• Gasket Or Seal Included: No
• Grade Type: Performance
• Inlet Fitting Thread Size: 1/8 Inch
• Inlet Thread: 1/8 Inch NPT
• Inlet Type: NPT
• Internal Or External: External
• Material: Steel
• Maximum Flow Rating: 50 U.S. Gallons per hour
• Maximum Pressure: 15 Pounds per Square Inch
• Mounting Hardware Included: No
• Negative Ground: Yes
• Outlet Fitting Thread Size: 1/8 Inch
• Outlet Quantity: 1
• Outlet Thread: 1/8 Inch NPT
• Outlet Type: NPT
• Regulator Included: No
• Strainer Included: No
• Universal Or Specific Fit: Universal
• Voltage: 12 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 2.0
• Wiring Harness Included: No
