500lph Universal In-Tank Brushless Fuel Pump Kit

Installation Features

Includes everything needed to install a brushless high flow fuel pump in an OE module
Requires the use of a bypass style regulator and return line
Some modifications required

Pulse Width Modulation Compatibility (PWM)

Compatible with most aftermarket ECU's with PWM output frequency
Compatible from 100Hz to 2500Hz

• AEM
• ECU Masters
• Fueltech
• Haltech
• Holley
• Link Engine Management
• Megasquirt

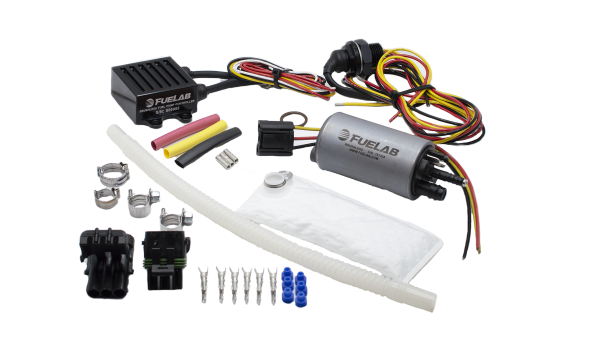

Complete Kit Includes

• 49614 500lph Brushless Pump with 9mm Barb Outlet/6mm Barb Siphon
• 72002 PWM Brushless Pump Controller
• 74101 3 Wire Hermetic Bulkhead Feed Thru
• Pre-Filter
• Wire Lead Harness
• 2 Sets Weatherpak Connectors
• Convoluted Tubing
• Clamps
• Butt Splices
• Heat Shrink Tube
