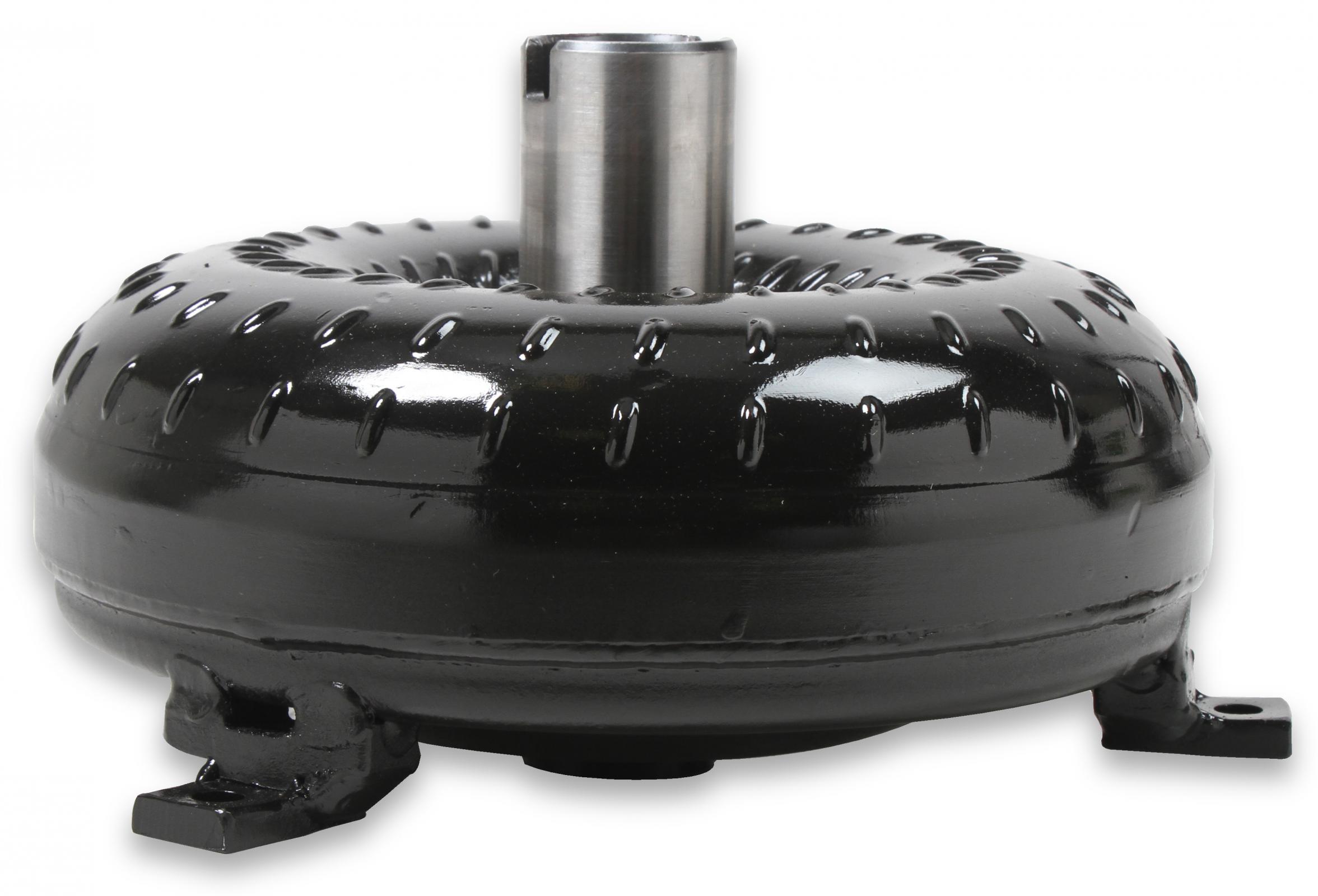

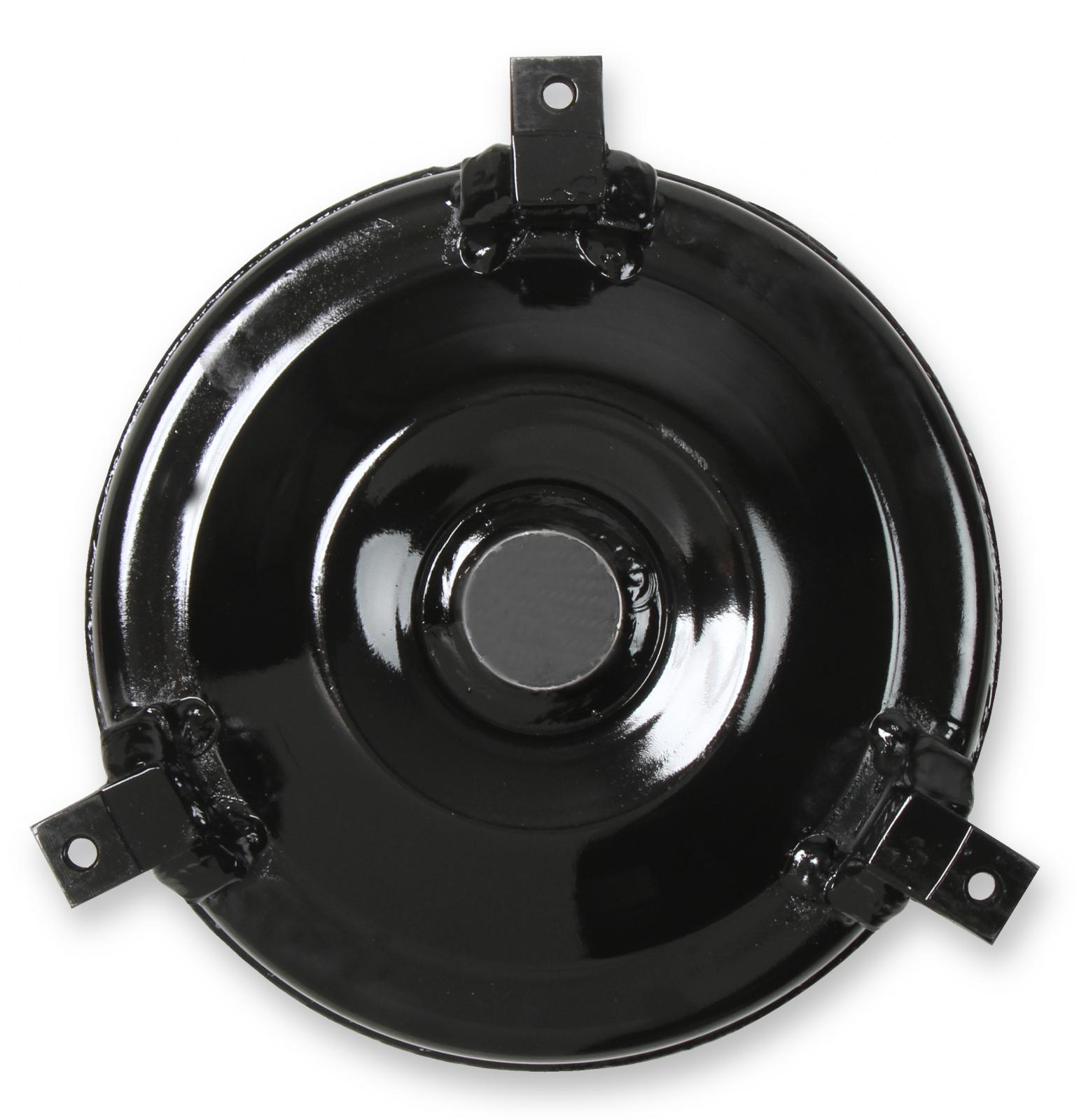

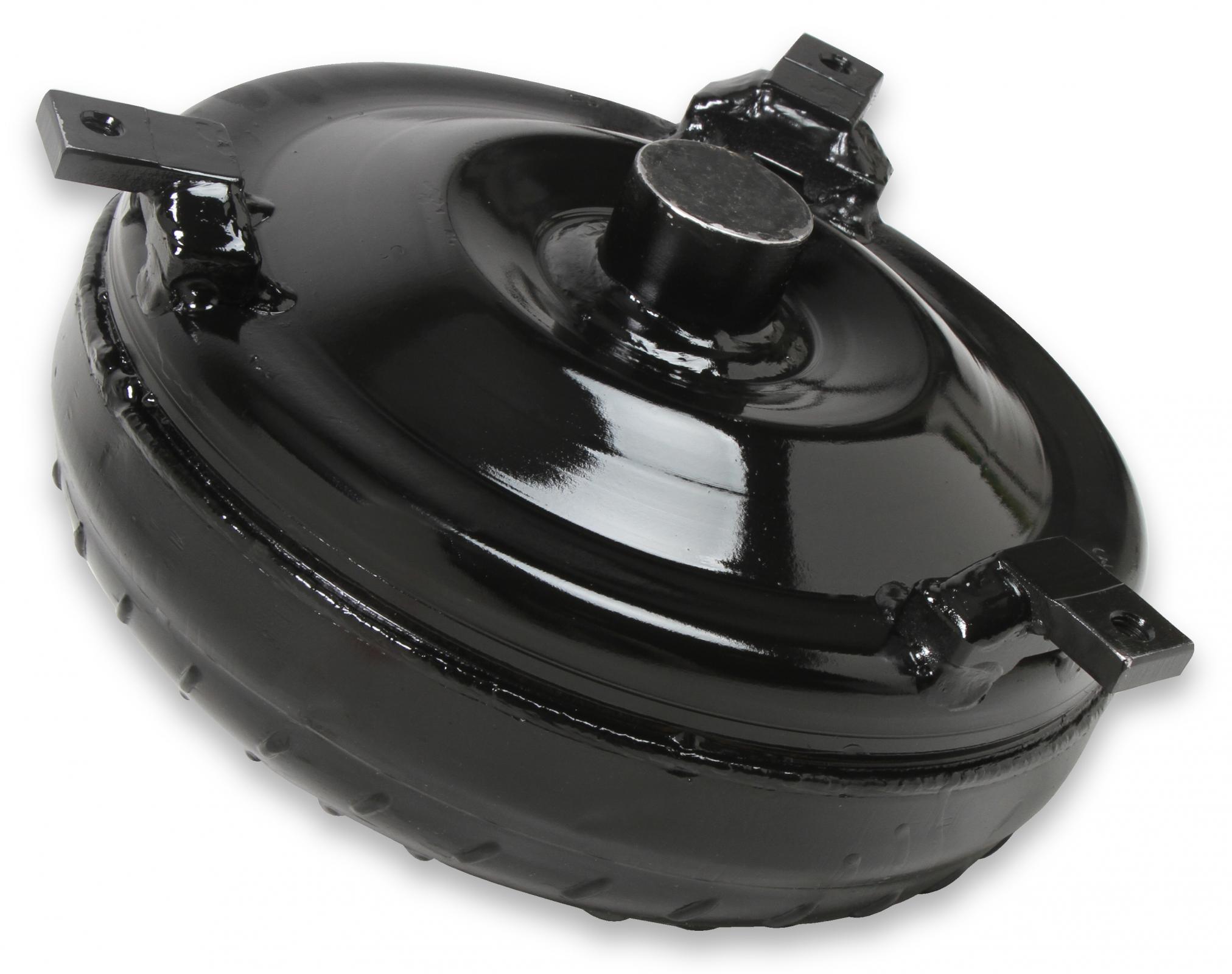

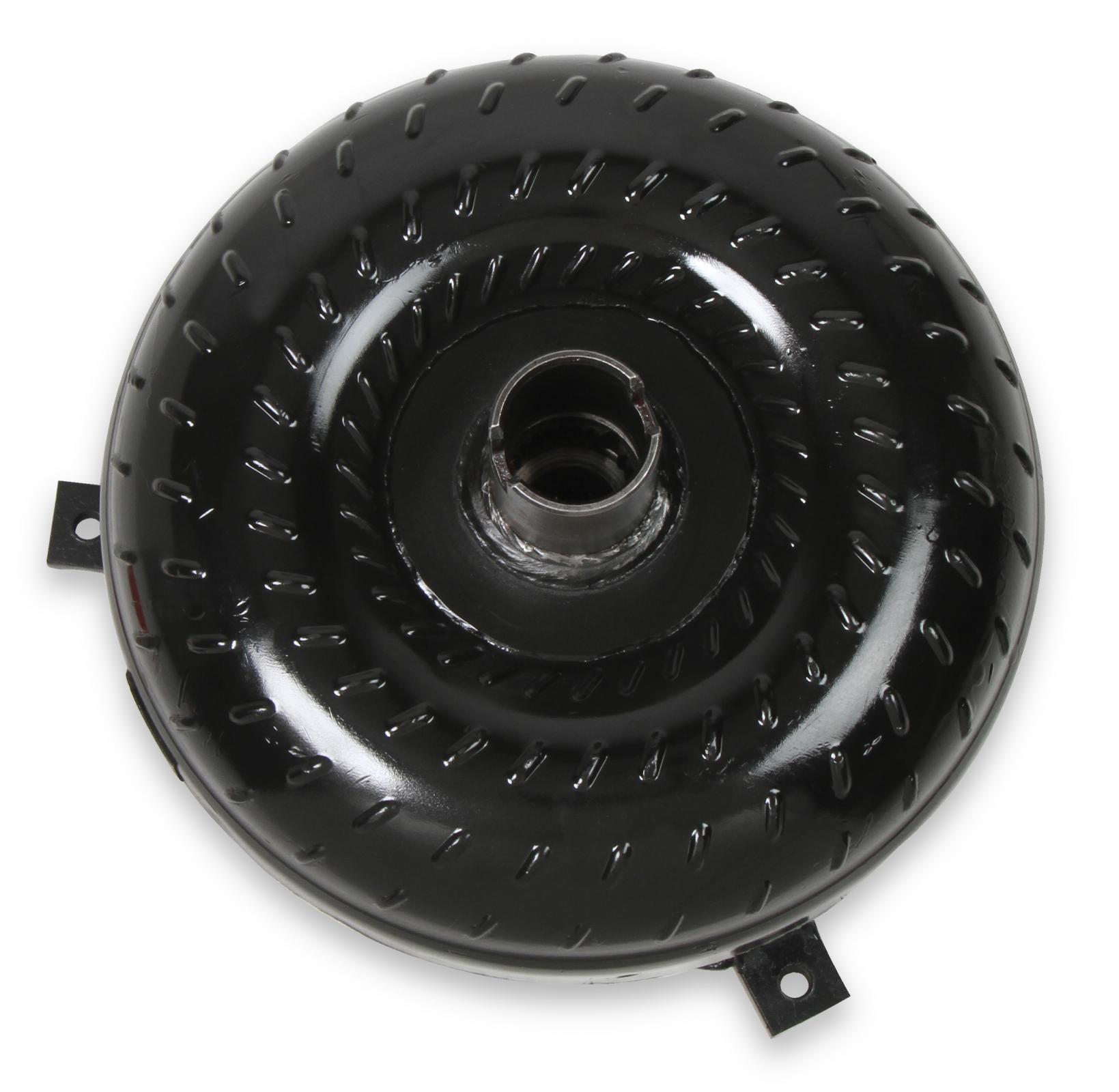

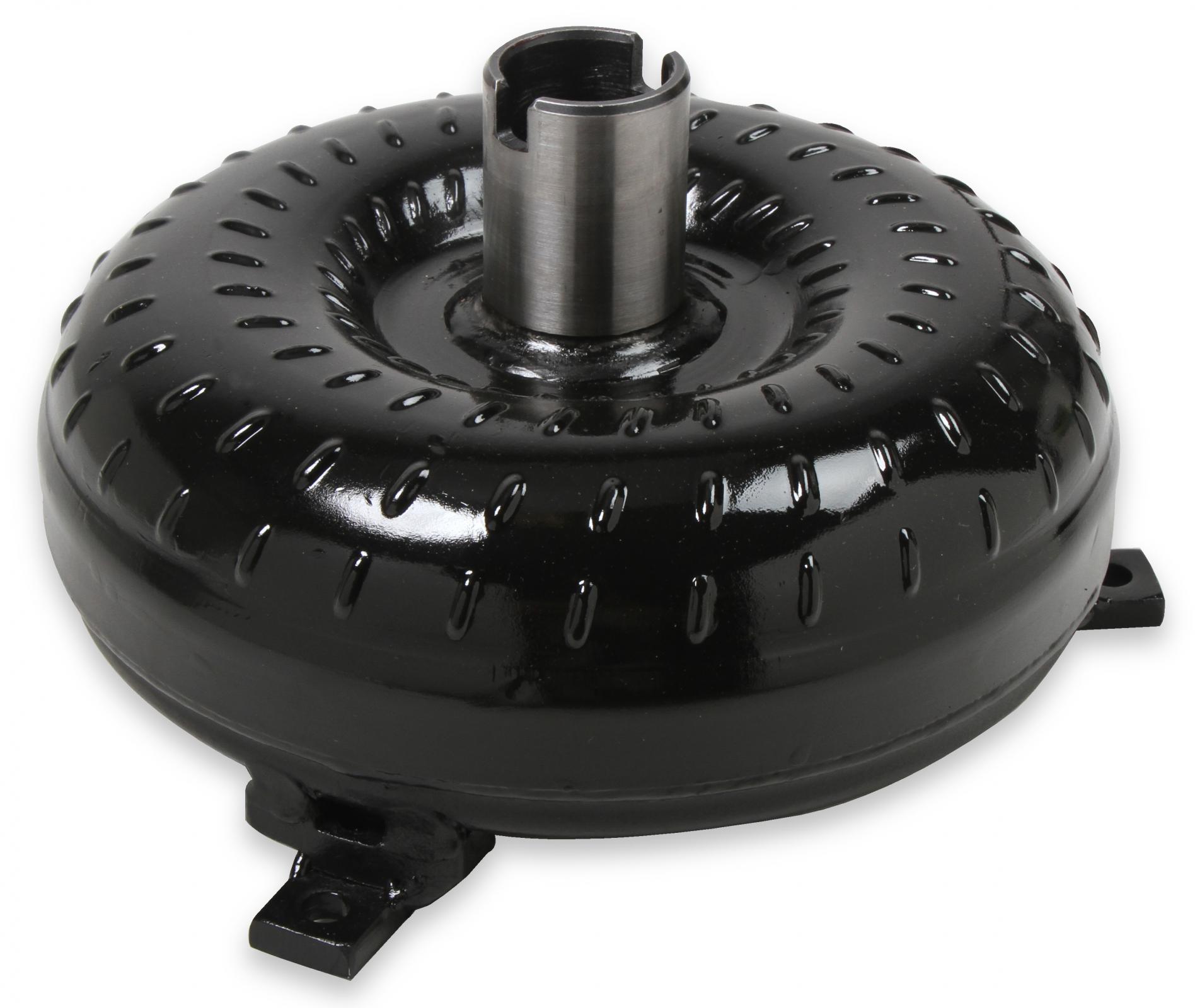

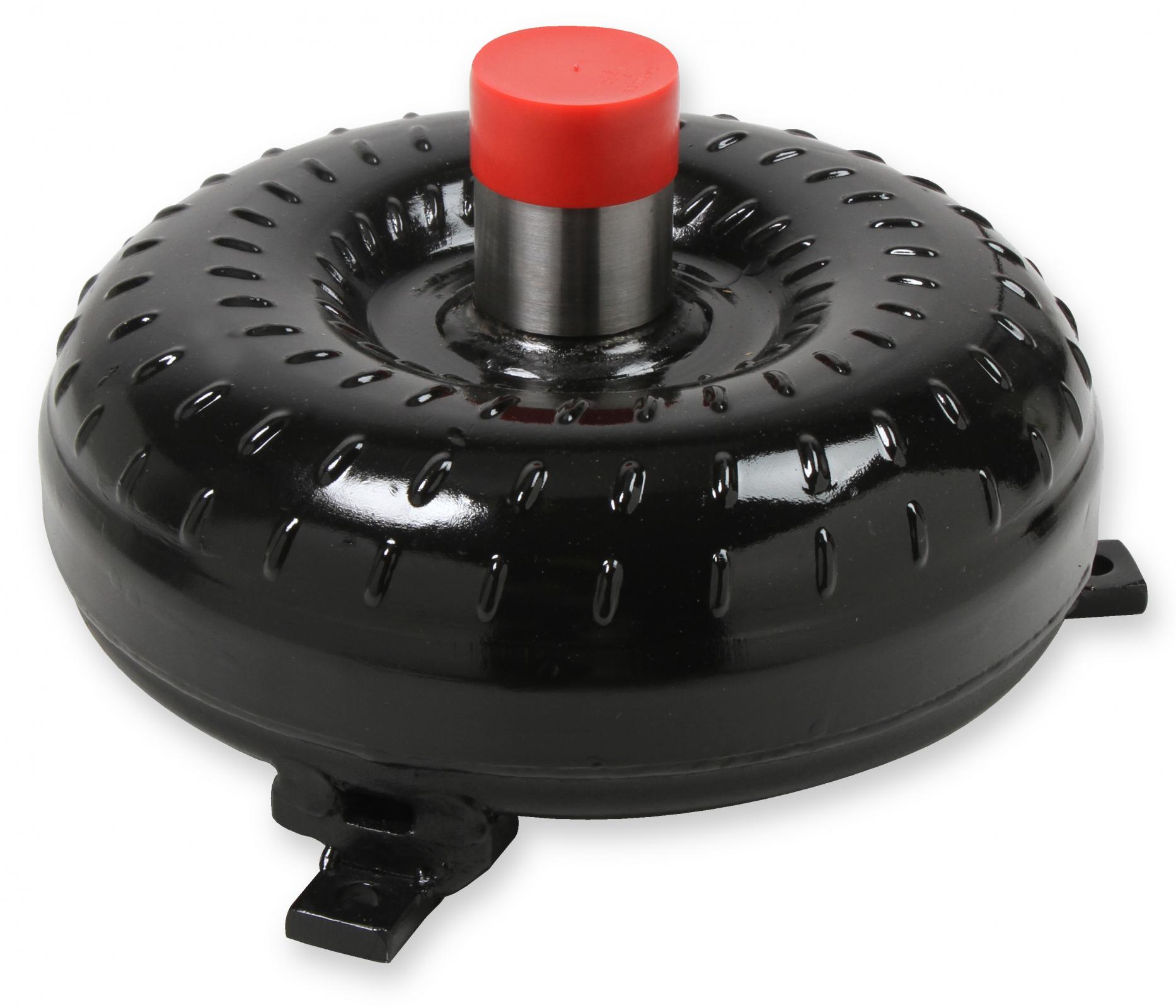

Hays Twister Full Race Torque Converters feature a custom-designed anti-balloon plate to stop any converter ballooning and swelling in racing situations. These torque converters are designed for use with a trans-brake and are great for power adders such as nitrous, superchargers, and turbos.

They are available with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss.

Features and Benefits:

• All Full Race series converters are built, tested, and proven to support up to 1,000 horsepower
• Features a custom anti-balloon plate designed to stop potential torque converter ballooning
• Designed to handle the extreme shock and abuse of trans-brakes, nitrous oxide, superchargers, and turbochargers
• State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
• Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality

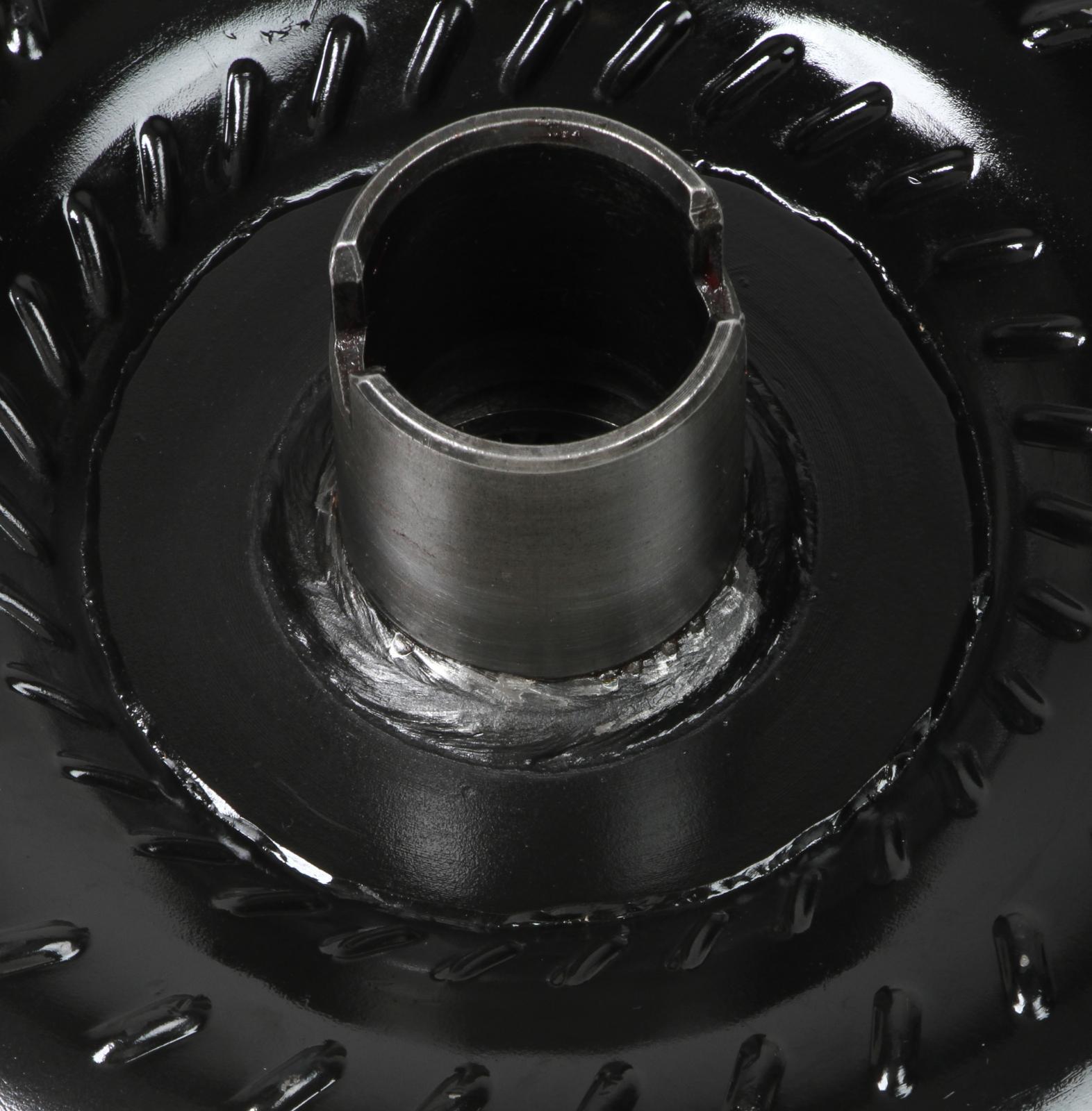

• All Hays torque converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
• Heavy duty Torrington bearings are used for greater strength and durability
• Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
• Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
• Full Race series torque converters are offered in several different stall speeds for popular automatic transmissions
• Industry leading Tech Support Team is available to provide assistance with stall speed selection

Details:

• Anti-Balloon Plate: Yes
• Balanced: Yes
• Bolt Circle: 10.75 Inch
• Crank Pilot Diameter: 1.703 Inch
• Diameter: 9.6 Inch
• Emission Code: 5

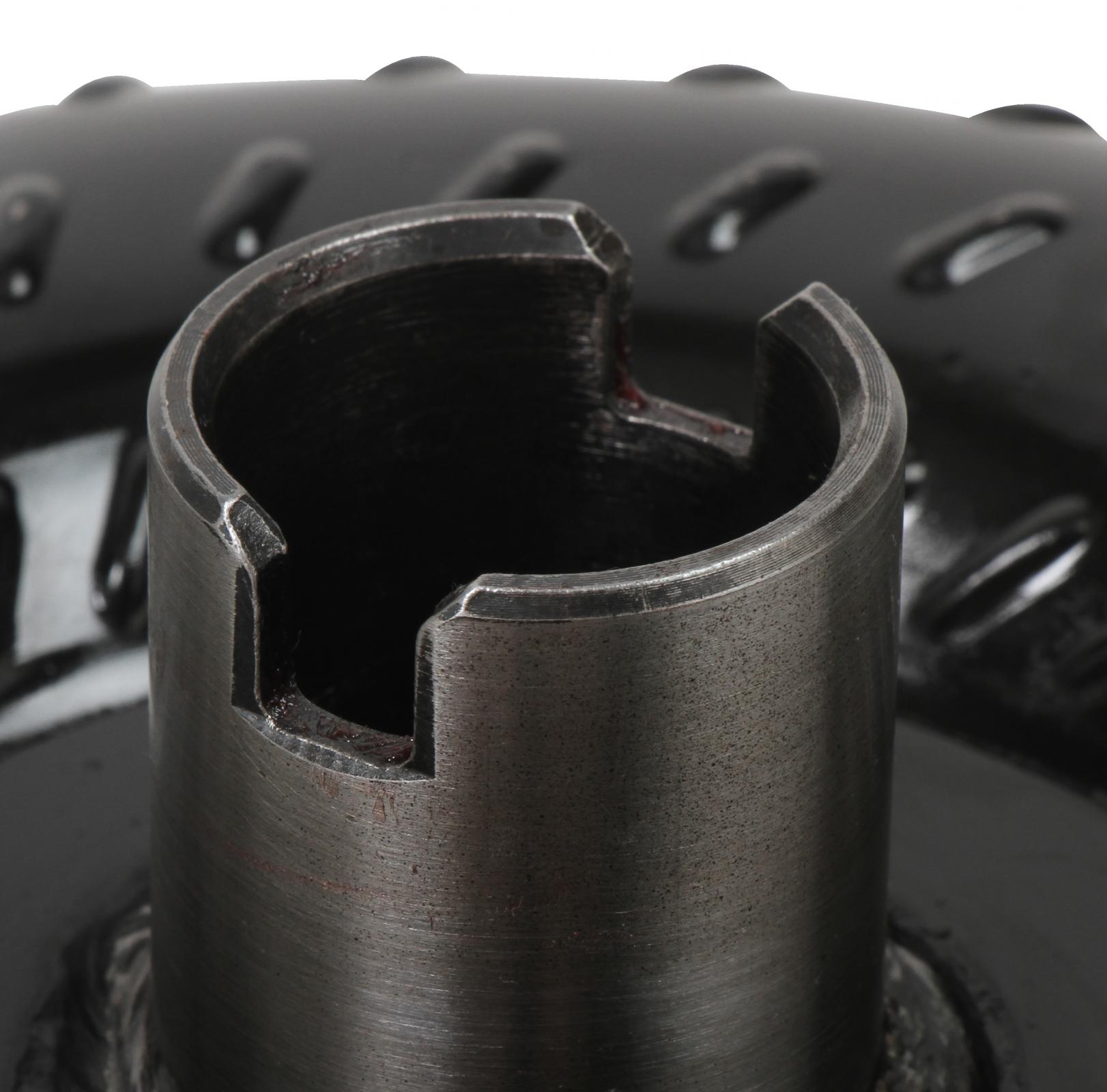

• Input Spline: 17
• Lock Up/Overdrive: No
• Series: Full Race
• Stall: 3600-4200
• Transmission: Powerglide
• Use with Power Adder: Yes
• Use with Trans-Brake: Yes

Application Summary:

• 768 1962-1972 Chevrolet Biscayne Base
• 1969-1972 Chevrolet Brookwood Base
• 1962-1967 Chevrolet Chevy II Base
• 1962-1967 Chevrolet Corvair Base
• 1969-1972 Chevrolet Kingswood Base
• 1962-1967 Chevrolet P10 Series Base
• 1962-1967 Chevrolet P20 Series Base
• 1962-1967 Chevrolet P30 Series Base
• 1969-1972 Chevrolet Townsman Base
• 1962-1964 Chevrolet Corvair Truck 95
• 1970-1972 Chevrolet Chevelle Base Malibu
• 1967-1973 Chevrolet G20 Van Base
• 1962-1973 Chevrolet Bel Air Base
• 1969-1973 Chevrolet Blazer Base
• 1967-1973 Chevrolet C10 Suburban Base
• 1967-1971 Chevrolet C20 Suburban Base
• 1967-1972 Chevrolet Camaro RS Base SS
• 1966-1972 Chevrolet Caprice Base
• 1962-1971 Chevrolet Corvette Base
• 1964-1973 Chevrolet El Camino Base
• 1962-1973 Chevrolet Impala Base
• 1967-1972 Chevrolet K10 Suburban Base
• 1967-1973 Chevrolet K20 Suburban Base
• 1970-1973 Chevrolet Monte Carlo Base
• 1969-1973 Chevrolet Nova Base
• 1962-1965 GMC 1000 Series Base
• 1962-1965 GMC 1500 Series Base
• 1967 GMC C15/C1500 Suburban Base
• 1967-1973 GMC C25/C2500 Pickup Base
• 1967-1971 GMC C25/C2500 Suburban Base
• 1967-1971 GMC C35/C3500 Pickup Base
• 1966-1973 GMC K15/K1500 Pickup Base
• 1967-1972 GMC K15/K1500 Suburban Base
• 1967-1973 GMC K25/K2500 Pickup Base
• 1967-1971 GMC K25/K2500 Suburban Base
• 1970-1973 GMC K35/K3500 Pickup Base
• 1970-1973 GMC Jimmy Base
• 1962-1967 Pontiac Acadian Base
• 1970-1972 Pontiac Firebird Base
• 1968-1972 Pontiac LeMans Base Safari
• 1971-1972 Pontiac Ventura Base
• 1962-1970 Pontiac Tempest Safari Base Applications

Associated Comments:

• Note: The Full Race series converters are designed to be used with Trans-brakes and power adders such as Nitrous Oxide, Superchargers, or Turbos.
• Warning: Stall ranges will vary depending on Engine set-up, Weight of vehicle, and Gear Ratio.
