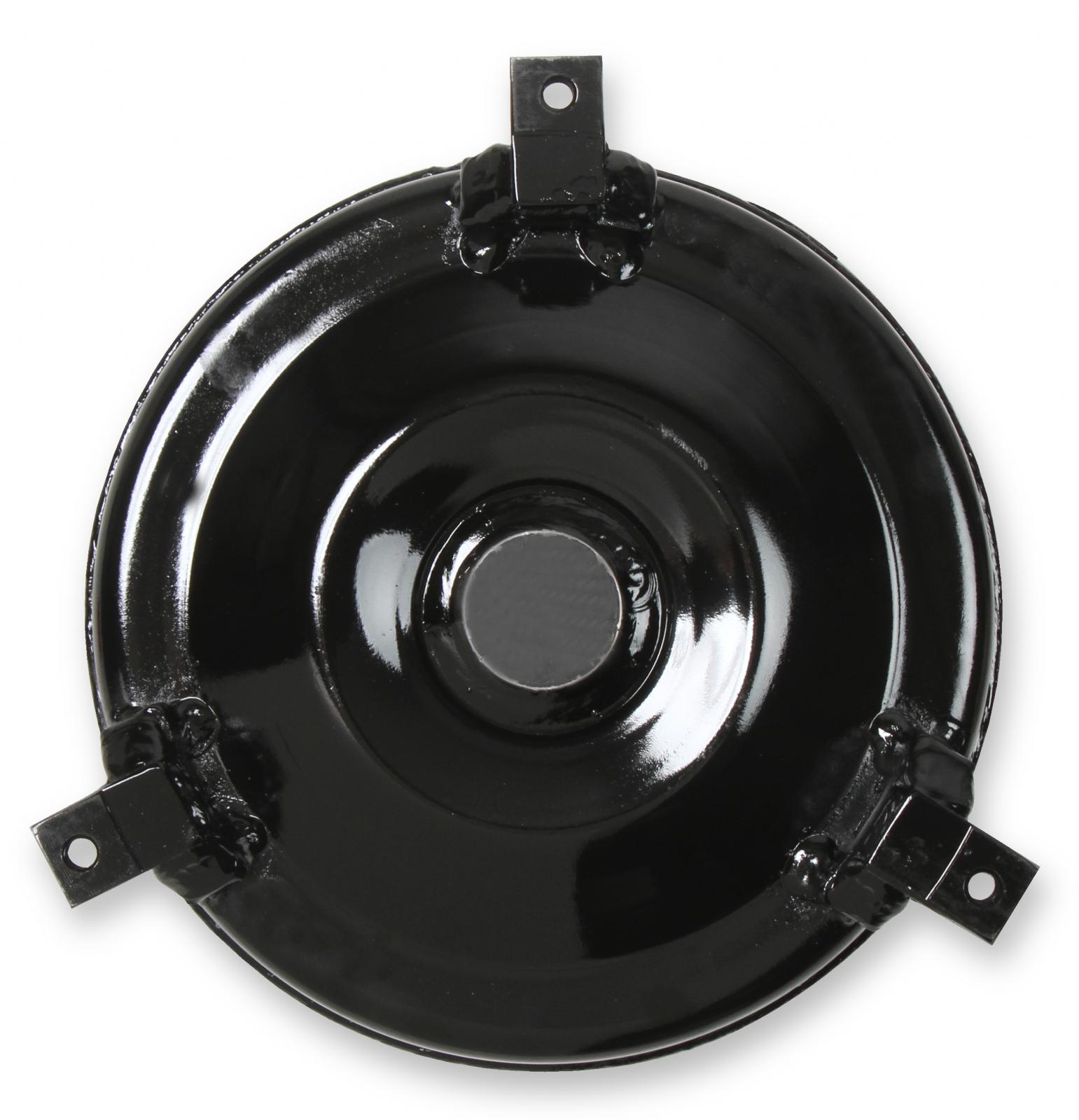

Hays Twister Full Race Torque Converters feature a custom designed anti-balloon plate to stop any converter ballooning and swelling in racing situations. These torque converters are designed for use with a trans-brake and great for power adders such as nitrous, superchargers, and turbos.

They are available with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss.

Features and Benefits:

• All Full Race series converters are built, tested, and proven to support up to 1,000 horsepower
• Features a custom anti-balloon plate designed to stop potential torque converter ballooning
• Designed to handle the extreme shock and abuse of trans-brakes, nitrous oxide, superchargers, and turbochargers
• State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
• Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality

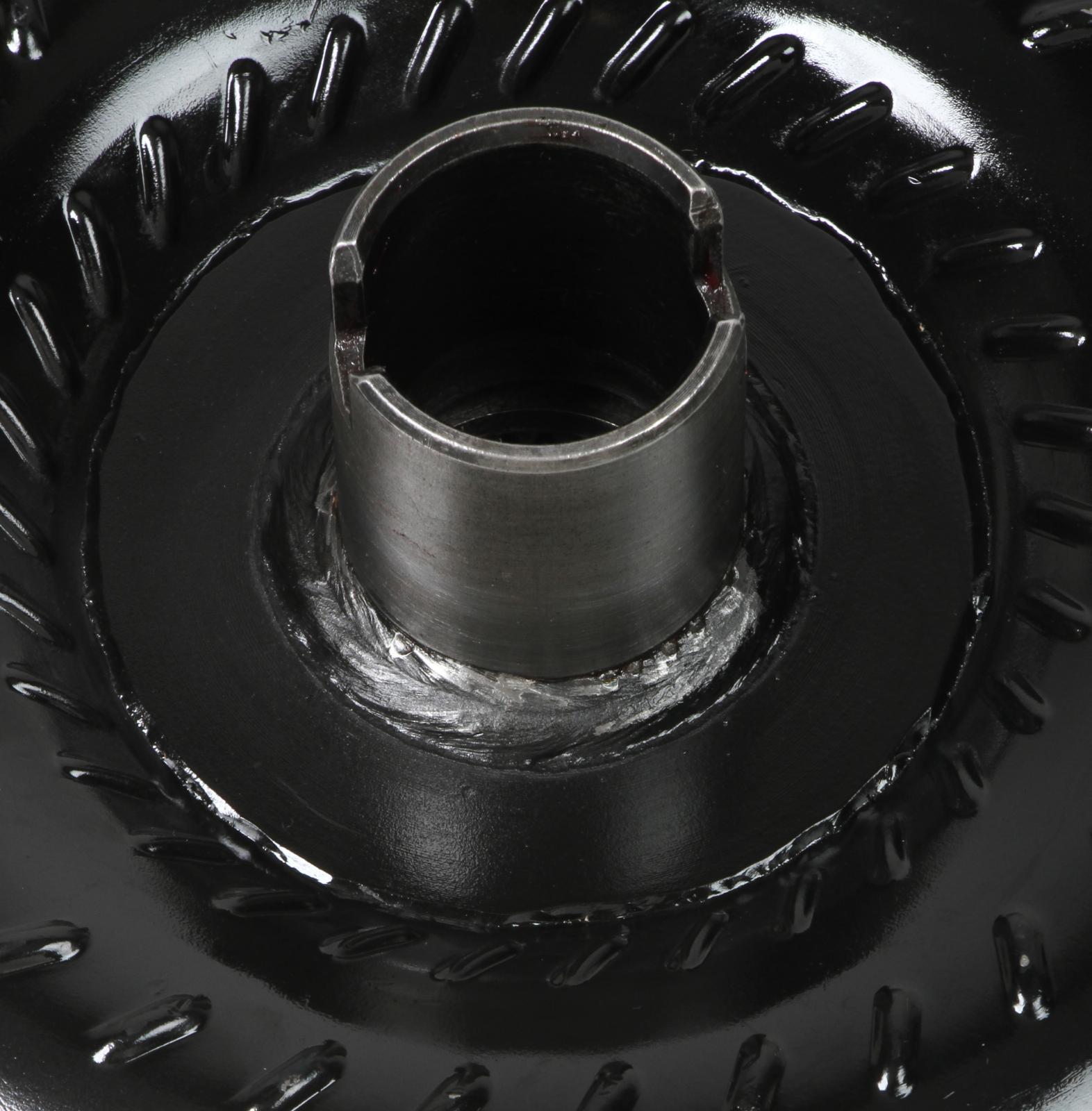

• All Hays torque converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
• Heavy duty Torrington bearings are used for greater strength and durability
• Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
• Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
• Full Race series torque converters are offered in several different stall speeds for popular automatic transmissions
• Industry leading Tech Support Team is available to provide assistance with stall speed selection

Details:

• Anti-Balloon Plate: Yes
• Balanced: Yes
• Bolt Circle: 11-1/8 Inch
• Crank Pilot Diameter: 1.703 Inch
• Diameter: 9.6 Inch
• Emission Code: 5
• Input Spline: 30
• Lock Up/Overdrive: No
• Series: Full Race
• Stall: 3200-3600
• Transmission: 4L60E|4L65E|4L60E|4L65E
• Use with Power Adder: Yes
• Use with Trans-Brake: Yes

Application Summary:

• 1302 2003-2008 Isuzu Ascender LS Limited Base S
• 1996-2000 Isuzu Hombre XS S
• 2006 Isuzu i-280 Base
• 2006 Isuzu i-350 Base
• 2007-2008 Isuzu i-290 S LS
• 2007-2008 Isuzu i-370 LS
• 2004-2007 Buick Rainier CXL CXL Plus
• 1994-1996 Buick Roadmaster Base Estate Wagon Limited Estate Wagon Collector's Edition Limited Collector's Edition Collector's Edition
• 1994-1996 Buick Commercial Chassis Base
• 2003-2006 Cadillac Escalade ESV Base
• 2002-2006 Cadillac Escalade EXT Base
• 1994-1996 Cadillac Commercial Chassis Brougham Base
• 1994-1996 Cadillac Fleetwood Brougham Base
• 1999-2006 Cadillac Escalade Base
• 2009-2014 Chevrolet Express Cargo Base LS
• 2009-2015 Chevrolet Express Pasajeros Base
• 2002-2006 Chevrolet Trailblazer EXT LT North Face LS
• 2003-2006 Chevrolet SSR Base
• 2004-2012 Chevrolet Colorado Sport LS Z71 Z71 LS Z85 LS Sport Z85 LS Base LT WT
• 2007 Chevrolet Silverado 1500 Classic LS LT WT Hybrid SS
• 2007-2008 Chevrolet Avalanche Base LT LTZ LS
• 1993-2005 Chevrolet Astro Base LT CL CS LS
• 2002-2006 Chevrolet Avalanche 1500 Base Z71 On Road Edition North Face LS LT WBH Z66
• 1993-2005 Chevrolet Blazer Silverado Silverado Sport Base LT LS Trailblazer Xtreme ZR2
• 1993-1999 Chevrolet C1500 WT Silverado Cheyenne Base LS
• 1993-1999 Chevrolet C1500 Suburban Base Silverado LS LT
• 1993-1999 Chevrolet C2500 Cheyenne Silverado Base WT LS
• 1993-1996 Chevrolet C2500 Suburban Base Silverado LS LT
• 1994-2002 Chevrolet Camaro Z28 Base RS Z28 SS
• 1994-1996 Chevrolet Caprice Classic Classic LS
• 1994-2005 Chevrolet Corvette Base Indianapolis 500 Pace Car Collector's Edition Grand Sport 50th Anniversary Edition 50th Anniversary Edition Pace Car
• 1996-2014 Chevrolet Express 1500 Base LS LT
• 1993-1995 Chevrolet G10 Beauville Sportvan Chevy Van
• 1996-2009 Chevrolet Express 2500 Base LS LT
• 1993-1995 Chevrolet G20 Chevy Van Sportvan Beauville
• 2006-2009 Chevrolet Express 3500 Base
• 1993-1995 Chevrolet G30 Sportvan Hi-Cube Chevy Van Beauville
• 1994-1996 Chevrolet Impala SS
• 1993-1999 Chevrolet...

Associated Comments:

• Note: The Full Race series converters are designed to be used with Trans-brakes and power adders such as Nitrous Oxide, Superchargers, or Turbos.
• Warning: Stall ranges will vary depending on Engine set-up, Weight of vehicle, and Gear Ratio.
