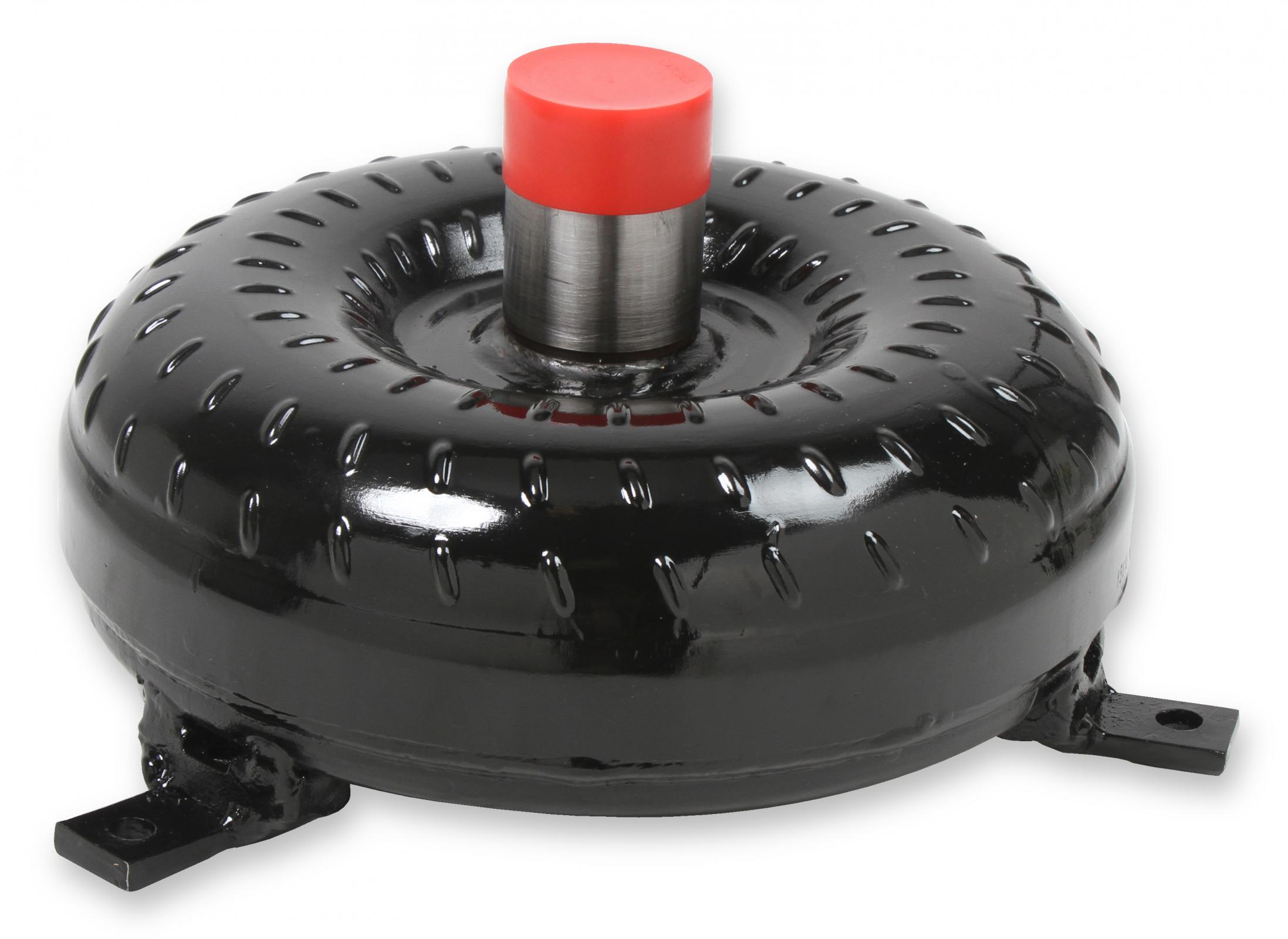

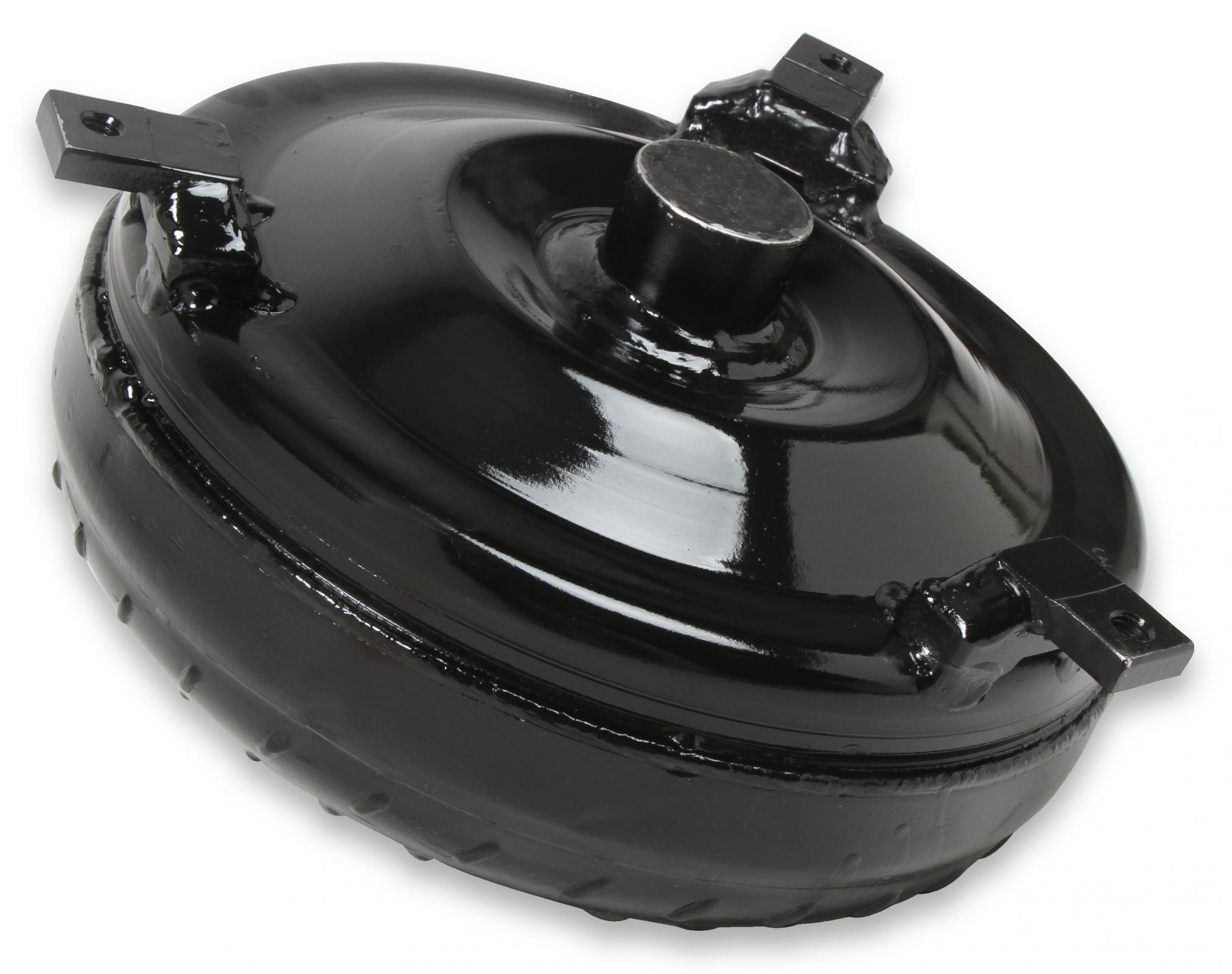

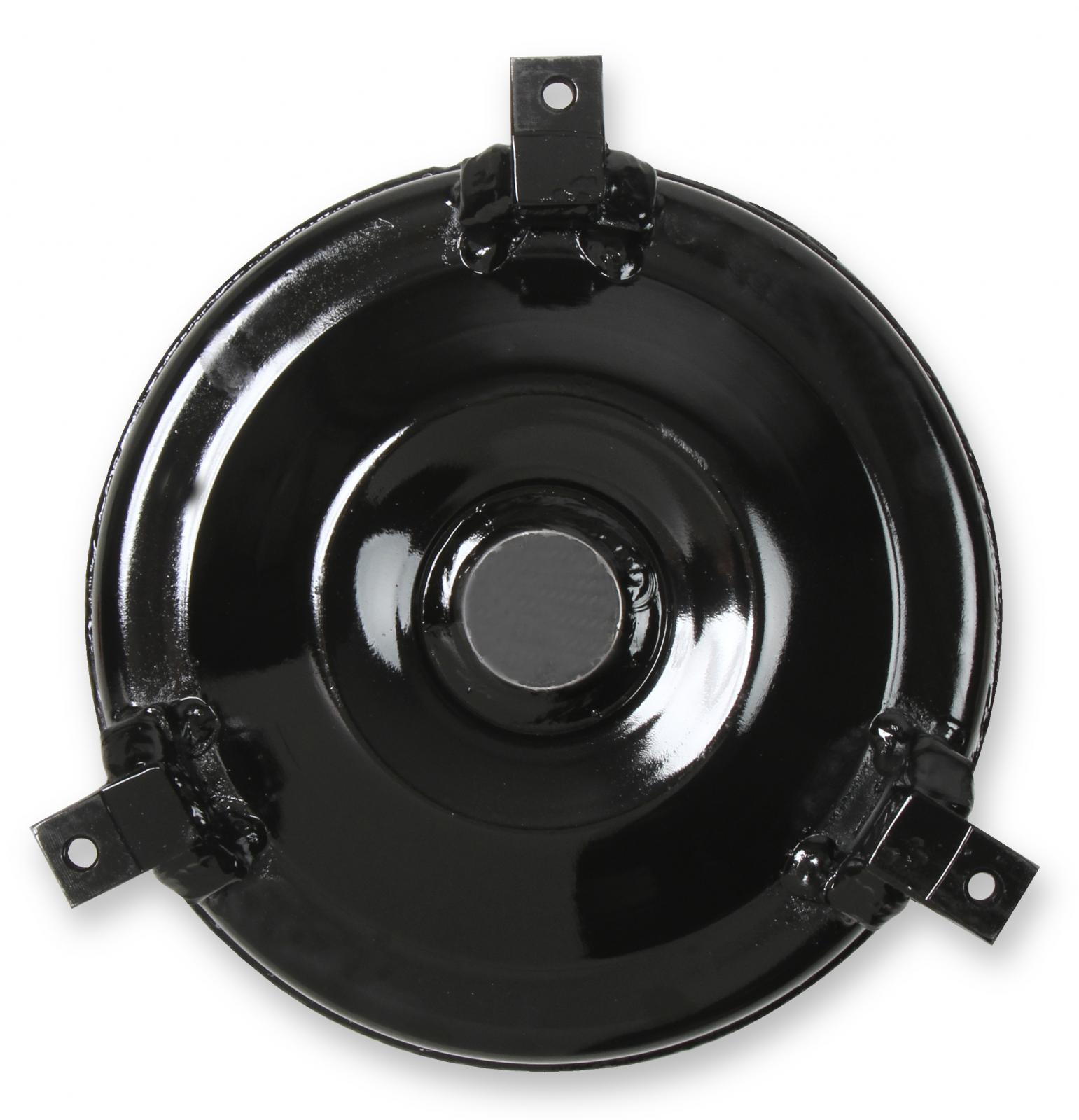

Hays Twister Full Race Torque Converters feature a custom designed anti-balloon plate to stop any converter ballooning and swelling in racing situations. These torque converters are designed for use with a trans-brake and great for power adders such as nitrous, superchargers, and turbos.

They are available with various RPM stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss.

Features and Benefits:

• All Full Race series converters are built, tested, and proven to support up to 1,000 horsepower
• Features a custom anti-balloon plate designed to stop potential torque converter ballooning
• Designed to handle the extreme shock and abuse of trans-brakes, nitrous oxide, superchargers, and turbochargers
• State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
• Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality
• All Hays torque converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
• Heavy duty Torrington bearings are used for greater strength and durability
• Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
• Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
• Full Race series torque converters are offered in several different stall speeds for popular automatic transmissions
• Industry leading Tech Support Team is available to provide assistance with stall speed selection

Details:

• Anti-Balloon Plate: Yes
• Balanced: Yes
• Bolt Circle: 11-1/2 Inch
• Crank Pilot Diameter: 1.703 Inch
• Diameter: 9.6 Inch
• Emission Code: 5

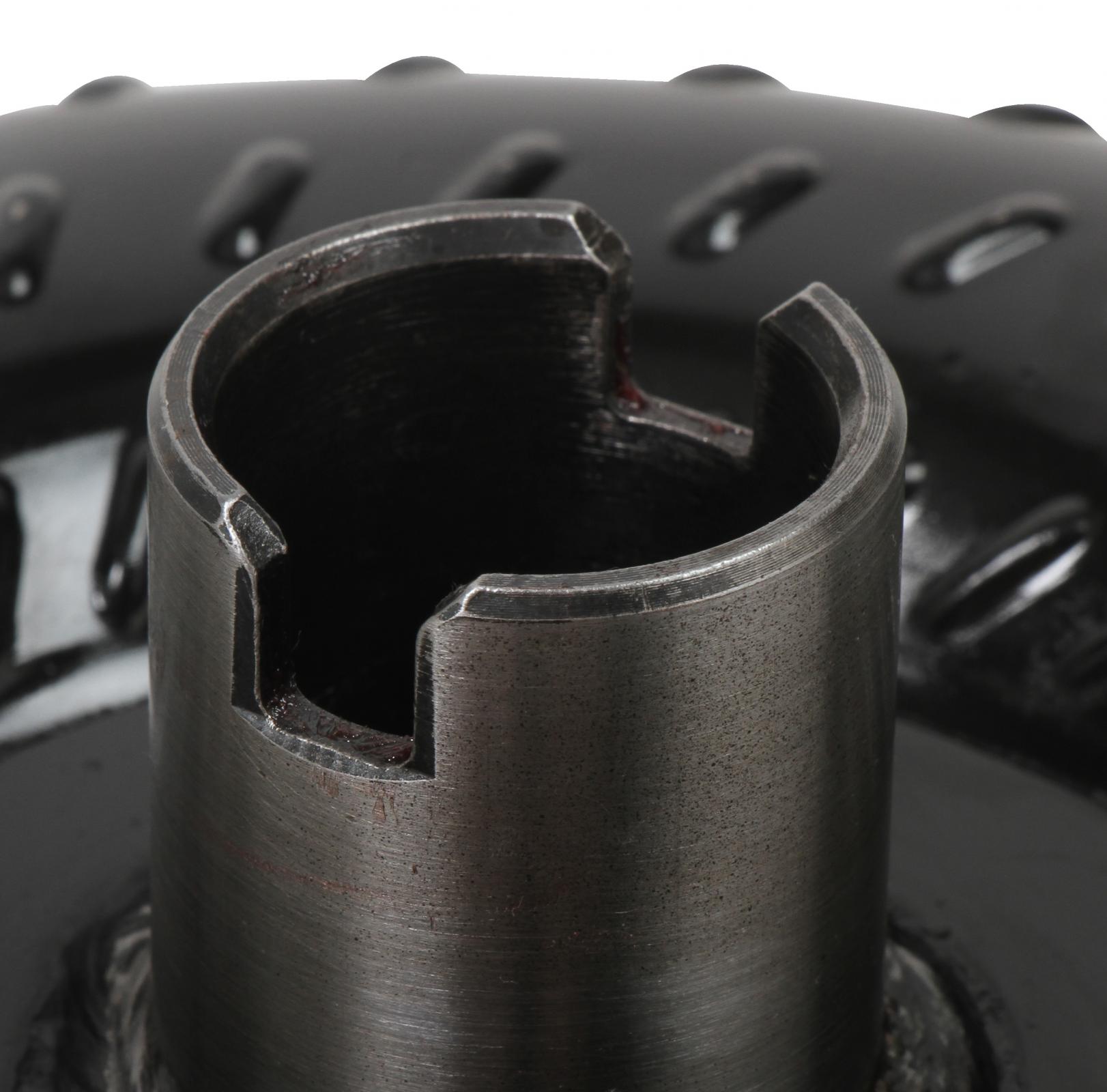

• Input Spline: 30
• Lock Up/Overdrive: No
• Series: Full Race
• Stall: 4200-4500
• Transmission: TH400
• Use with Power Adder: Yes
• Use with Trans-Brake: Yes

Application Summary:

• 1892 1971-1973 Buick Centurion Base
• 1970-1972 Buick GS Base
• 1965-1969 Buick Wildcat Base
• 1965-1967 Buick Gran Sport Base
• 1973-1977 Buick Century Base Custom Luxus Special Indianapolis 500 Pace Car
• 1965-1981 Buick Electra Base Limited Custom 225 Park Avenue Estate Wagon
• 1970-1981 Buick Estate Wagon Base
• 1965-1981 Buick LeSabre Base Custom Custom Sport Sport Limited
• 1973-1977 Buick Regal Base SR
• 1965-1978 Buick Riviera Base GS Sport SR Lxxv Anniversary Edition
• 1978 Buick Skyhawk S Base
• 1965-1969 Buick Skylark Base
• 1965-1967 Buick Special Base
• 1966-1969 Buick Sportwagon Base
• 1965-1983 Cadillac Commercial Chassis Base
• 1965-1976 Cadillac Calais Base
• 1965-1981 Cadillac DeVille Base d'Elegance Cabriolet Phaeton
• 1965-1979 Cadillac Eldorado Base Biarritz Bicentenial Edition Cabriolet
• 1965-1984 Cadillac Fleetwood 75 60 Special Base 60 Special Brougham Brougham Brougham d'Elegance Brougham Talisman Formal 75 Formal
• 1987-1990 Cadillac Brougham d'Elegance Base
• 1976-1978 Cadillac Seville Base Opera Elegante
• 1965-1972 Chevrolet Biscayne Base
• 1969-1972 Chevrolet Brookwood Base
• 1966-1967 Chevrolet Chevy II Base
• 1969-1972 Chevrolet Kingswood Base Estate
• 1965-1967 Chevrolet P10 Series Base
• 1965-1967 Chevrolet P20 Series Base
• 1965-1967 Chevrolet P30 Series Base
• 1969-1972 Chevrolet Townsman Base
• 1970-1972 Chevrolet Chevelle Base
• 1970-1974 Chevrolet G20 Van Base
• 1965-1975 Chevrolet Bel Air Base
• 1969-1990 Chevrolet Blazer Base Silverado Custom Deluxe Scottsdale
• 1977-1986 Chevrolet K5 Blazer Cheyenne Custom Deluxe Silverado Custom Deluxe Scottsdale
• 1975-1986 Chevrolet C10 Silverado Scottsdale Cheyenne Custom Deluxe Big Ten Custom Deluxe
• 1967-1984 Chevrolet C10 Suburban Base Silverado Scottsdale Custom Deluxe Custom Deluxe
• 1988-1990 Chevrolet C1500 Scottsdale Cheyenne Silverado WT 454 SS
• 1975-1986 Chevrolet C20 Silverado Scottsdale Cheyenne Custom Deluxe Custom Deluxe
• 1967-1986 Chevrolet C20 Suburban Base Scottsdale Custom Deluxe Silverado Custom...

Associated Comments:

• Note: The Full Race series converters are designed to be used with Trans-brakes and power adders such as Nitrous Oxide, Superchargers, or Turbos.
• Warning: Stall ranges will vary depending on Engine set-up, Weight of vehicle, and Gear Ratio.
