Hays Twister 3/4 Race Torque Converters Good names never go away, and neither should good terms!

Features and Benefits:

• 3/4 Race series converters are built, tested, and proven to support up to 650 HP.
• State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
• Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality

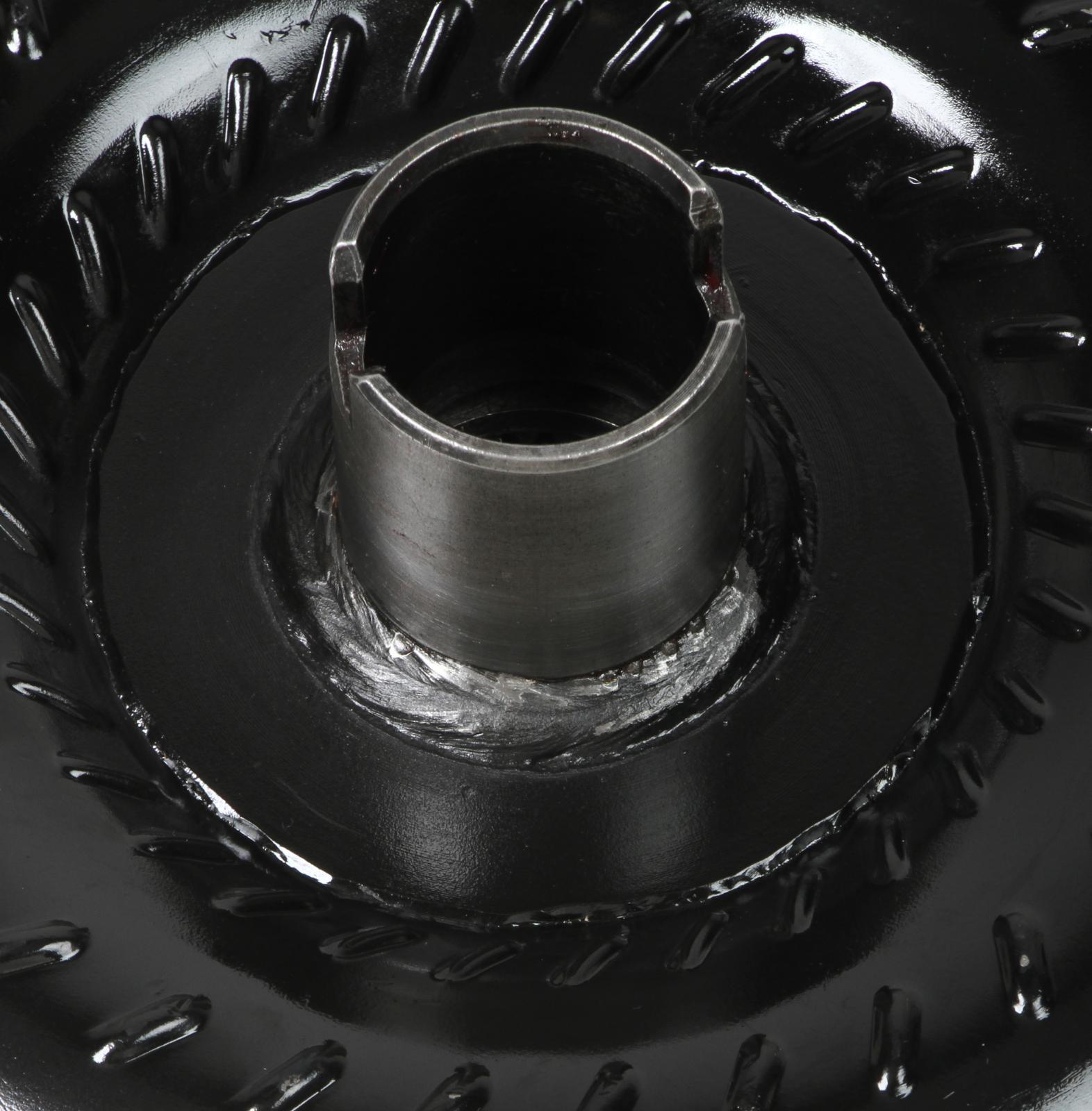

• All Hays converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
• Heavy duty Torrington bearings are used for greater strength and durability
• Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
• Increased horsepower and acceleration due to a weight saving, one application design. Almost all Hays converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
• 3/4 Race series converters are offered in several different stall speeds for GM, Ford, and Chrysler transmissions
• Industry leading Tech Support Team is available to provide assistance with stall speed selection

Details:

• Anti-Balloon Plate: No
• Balanced: Yes
• Bolt Circle: 10.75 Inch
• Crank Pilot Diameter: 1.703 Inch
• Diameter: 9.6 Inch
• Emission Code: 5
• Input Spline: 30
• Lock Up/Overdrive: Yes
• Series: 3/4 Race
• Stall: 2800-3200
• Transmission: 700R4
• Use with Power Adder: No
• Use with Trans-Brake: No

Application Summary:

• 1166 1991 Isuzu Pickup S LS
• 1988-1989 Buick Electra Estate Wagon
• 1988 Buick LeSabre Estate Wagon
• 1984 Buick Regal Limited Base T-Type Grand National
• 1991 Buick Roadmaster Estate Wagon
• 1991 Buick Commercial Chassis Base
• 1990-1991 Cadillac Brougham d'Elegance Base
• 1985-1991 Chevrolet Astro Base CS CL LT
• 1987-1991 Chevrolet Blazer Silverado Custom Deluxe Scottsdale
• 1984-1986 Chevrolet K5 Blazer Custom Silverado Scottsdale
• 1984-1986 Chevrolet C10 Scottsdale Custom Silverado
• 1984-1986 Chevrolet C10 Suburban Scottsdale Custom Silverado
• 1988-1991 Chevrolet C1500 Scottsdale Cheyenne Silverado WT
• 1984-1986 Chevrolet C20 Scottsdale Custom Silverado
• 1984-1986 Chevrolet C20 Suburban Silverado Scottsdale Custom
• 1988-1991 Chevrolet C2500 Cheyenne Silverado Scottsdale
• 1984-1986 Chevrolet C30 Silverado Custom Scottsdale
• 1988-1990 Chevrolet C3500 Scottsdale Cheyenne Silverado
• 1984-1991 Chevrolet Camaro Z28 Sport Berlinetta Iroc-Z LT Base RS
• 1984-1991 Chevrolet Caprice Classic Base Classic Brougham Classic LS Brougham Classic LTZ
• 1984-1991 Chevrolet Corvette Base Indianapolis 500 Pace Car 35th Anniversary Edition
• 1984-1987 Chevrolet El Camino Base SS Conquista
• 1984-1991 Chevrolet G10 Beauville Sportvan Chevy Van Bonaventure
• 1984-1991 Chevrolet G20 Sportvan Beauville Chevy Van Bonaventure
• 1984-1991 Chevrolet G30 Sportvan Beauville Hi-Cube Chevy Van Bonaventure
• 1984-1985 Chevrolet Impala Base
• 1984-1986 Chevrolet K10 Silverado Scottsdale Custom
• 1984-1986 Chevrolet K10 Suburban Scottsdale Custom Silverado
• 1988-1991 Chevrolet K1500 Silverado Scottsdale Cheyenne WT Sport
• 1984-1986 Chevrolet K20 Scottsdale Custom Silverado
• 1984-1986 Chevrolet K20 Suburban Scottsdale Custom Silverado
• 1988-1991 Chevrolet K2500 Cheyenne Scottsdale Silverado
• 1984-1986 Chevrolet K30 Custom Silverado Scottsdale
• 1988-1989 Chevrolet K3500 Cheyenne Silverado Scottsdale
• 1984-1988 Chevrolet Monte Carlo SS Base LS
• 1987 Chevrolet R10 Silverado Scottsdale Custom Deluxe
• 1987-1988...

Associated Comments:

• Warning: The 3/4 Race series converters are NOT designed to be used with Nitrous Oxide or Trans-Brakes
• Note: Hays recommends an external transmission cooler for all Twister 3/4 Race Converters
• (A minimum size of 18,000 GVW or 15,000 BTU Rating.)
• Note: Stall ranges will vary depending on engine set-up, weight of vehicle, and gear ratio (Please see converter selector in tech resources for more info)
