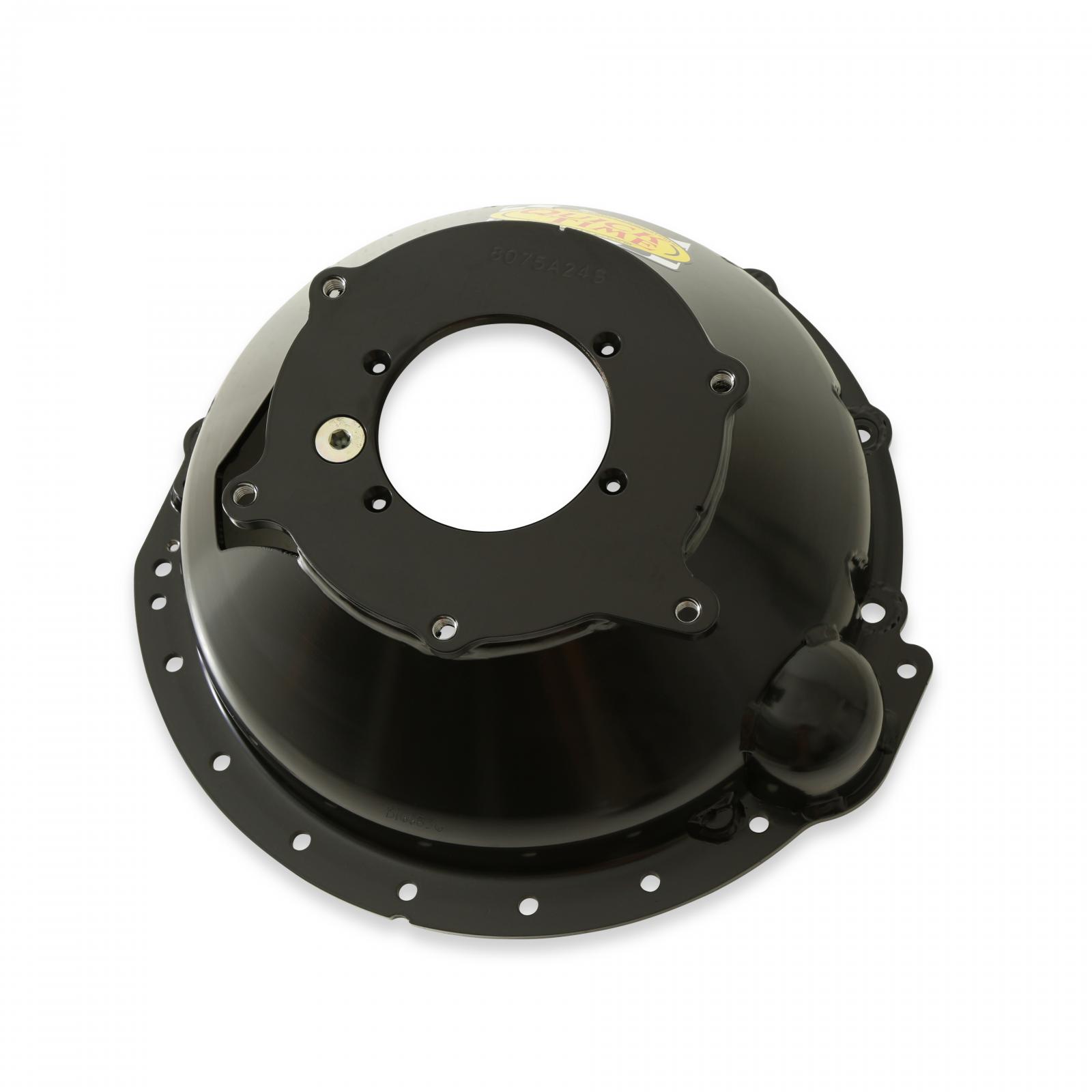

Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 164 Tooth
• Part Type: Transmission Bell Housing
• SFI Approved: Yes
• Transmission: Richmond, Jerico, Bert Racing, Falcon, Muncie, TKX GM, T5 GM, Brinn Racing, TKO 500/600 GM, Saginaw, T10 GM
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic or GM Mechanical
• Engine: AMC V8
• Engine Make: American Motors
• Make: American Motors
• Clutch: 11
• Clutch Diameter: 11 inch
• Engine Plate: RM-8075-C
• Height: 6.300 inch
• SFI Certification: 6.1
• Trans Bore: 4.687
• Trans. Bore Diameter: 4.687 inch
• Included Hardware: Full Engine Plate, Pivot Ball and Grade 8 Bolts
• SFI: 6.1
