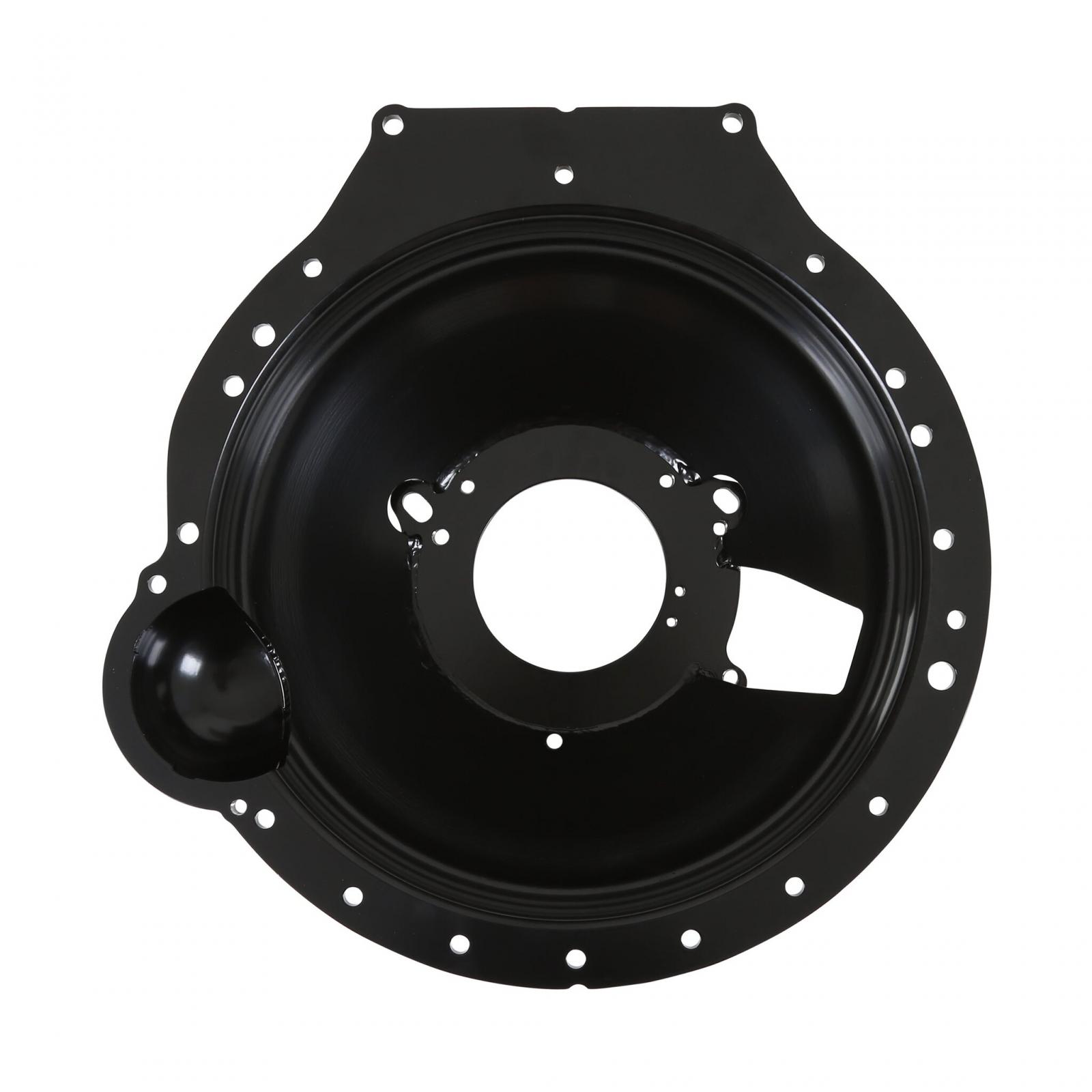

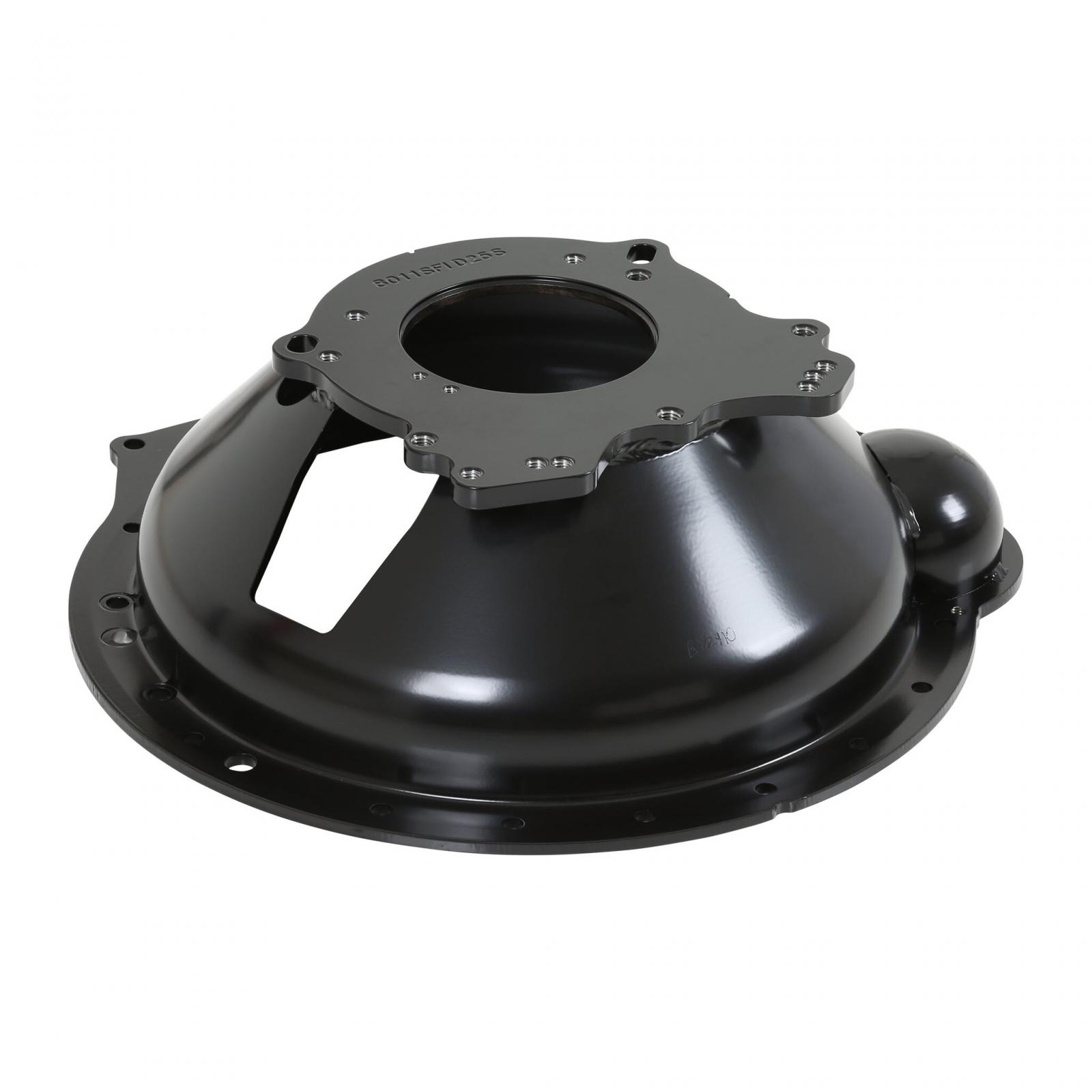

Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.

Features and Benefits:

• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 176 Tooth
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: T10, TKO 500/600 Ford - Short Shaft, Ford Toploader
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Ford 400, Ford 460, Ford Big Block, Ford 351M, Ford 429
• Engine Make: Ford
• Make: Ford

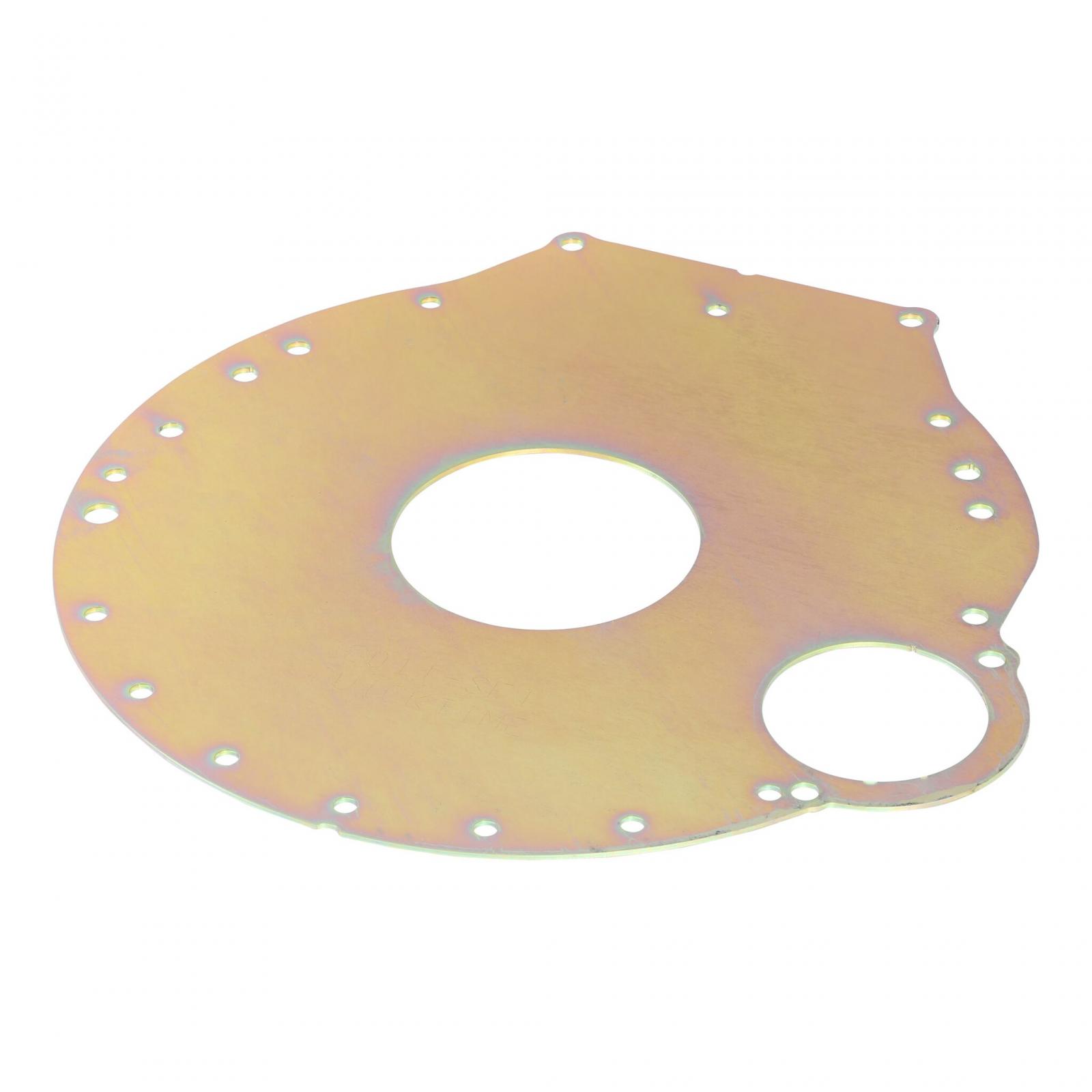

• Engine Plate: RM-8011-SFI-C
• Height: 6.450 inch
• SFI Certification: 6.1
• Trans Bore: 4.685 / 4.85 / 4.91 / 5.12
• Trans. Bore Diameter: 4.685 / 4.85 / 4.91 / 5.12 inch
• Weight (lb): 23

Application Summary:

1900 Car Ford Big Block Ford (Aspiration: Naturally Aspirated & Cylinder Head: OHV & Liter: 7.5, 5.9, 6.4, 7, 6.1, 6.7, 6.6 & Engine(cc): 6392, 7539, 6391, 7030, 5917, 6997, 7014, 6654 & Engine(ci): 460, 360, 390, 429, 428, 427, 370, 406, 361 & Cylinder: 8 & Block: V & Bore(in): 4.36, 4, 4.05, 4.23, 4.13 & Bore(mm): 110.7, 101.6, 102.9, 107.5, 104.9, 105 & Stroke(in): 3.85, 3.58, 3.78, 3.5, 3.59, 3.98 & Stroke(mm): 97.8, 90.9, 96.4, 88.8, 96, 91.2, 88.9, 101.2 & Engine VIN: G, Y, H, J, C, A, M, L, R, Q, K, S, 7, N, X, W, P, Z, 9, B & Valves: 16 & Ignition: Distributor-Breakerless & Fuel: GAS, LPG & Fuel Delivery: FI, Carb & Fuel Delivery SubType: MFI, 2BBL, 4BBL, 3x2BBL, 2x4BBL & Fuel Delivery Sytem Control: Electronic, Mechanical & Fuel Delivery Sytem: EFI, Motorcraft & Engine Version: HO, GT, Hi-Perf., Cobra Jet/Super CJ, Police, Boss)
