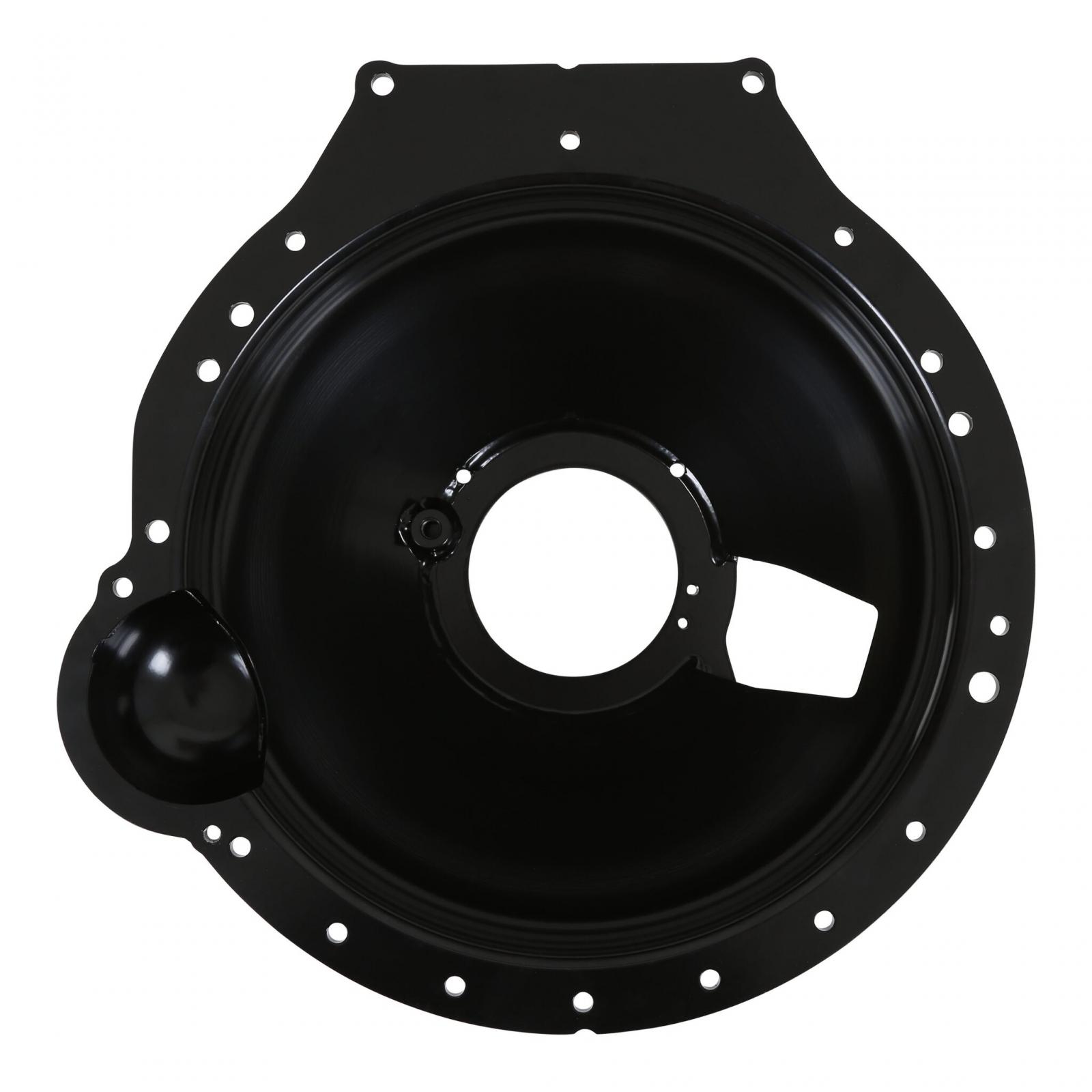

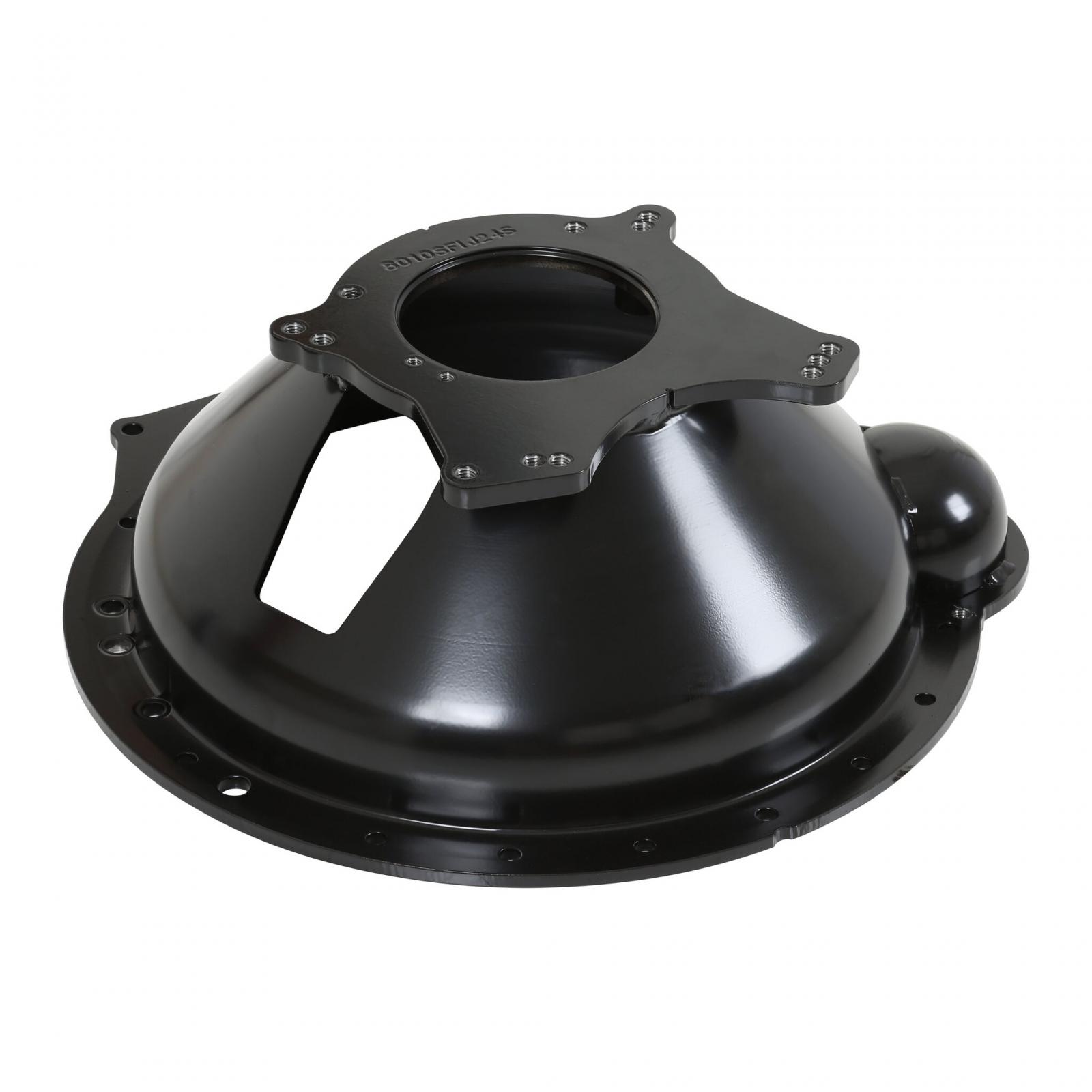

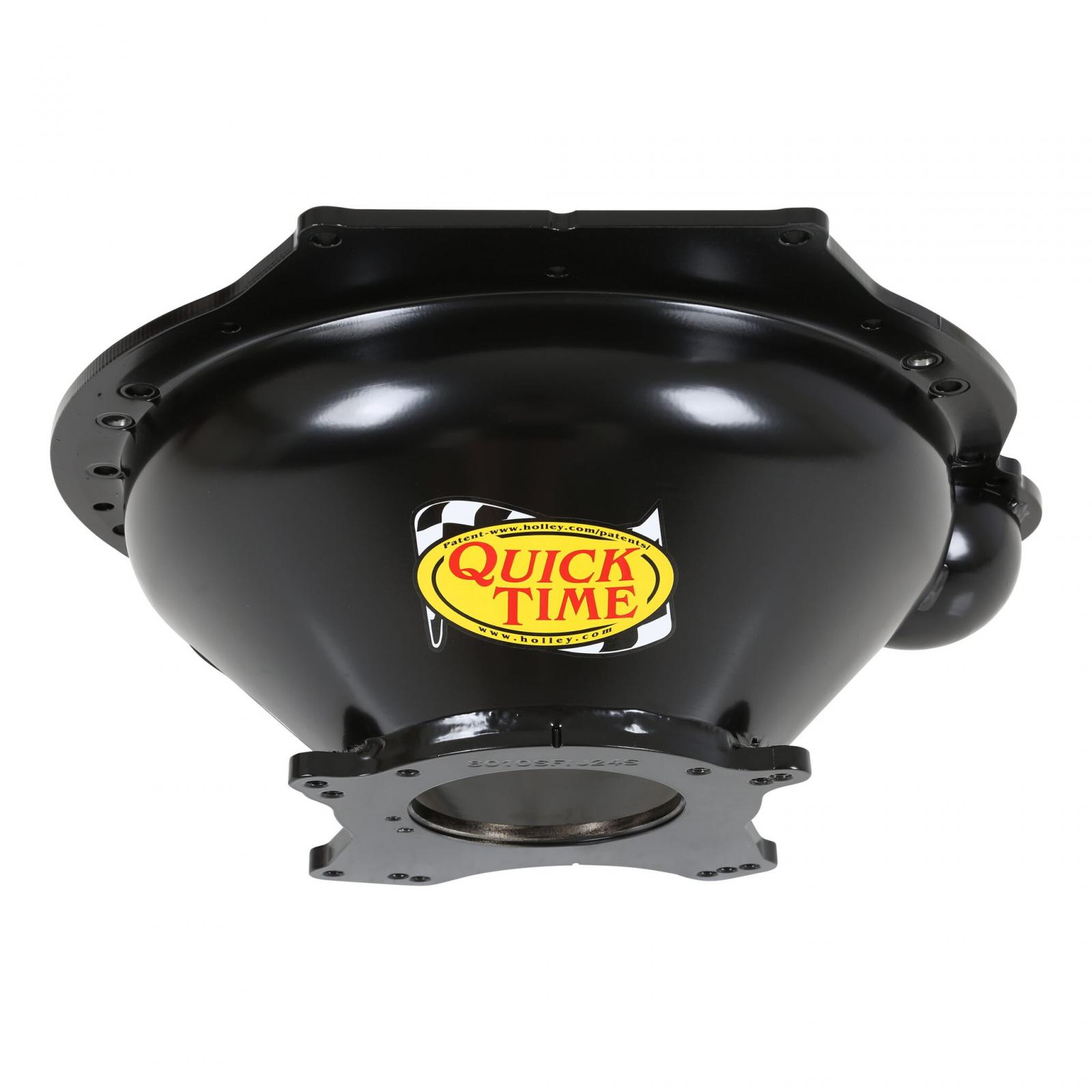

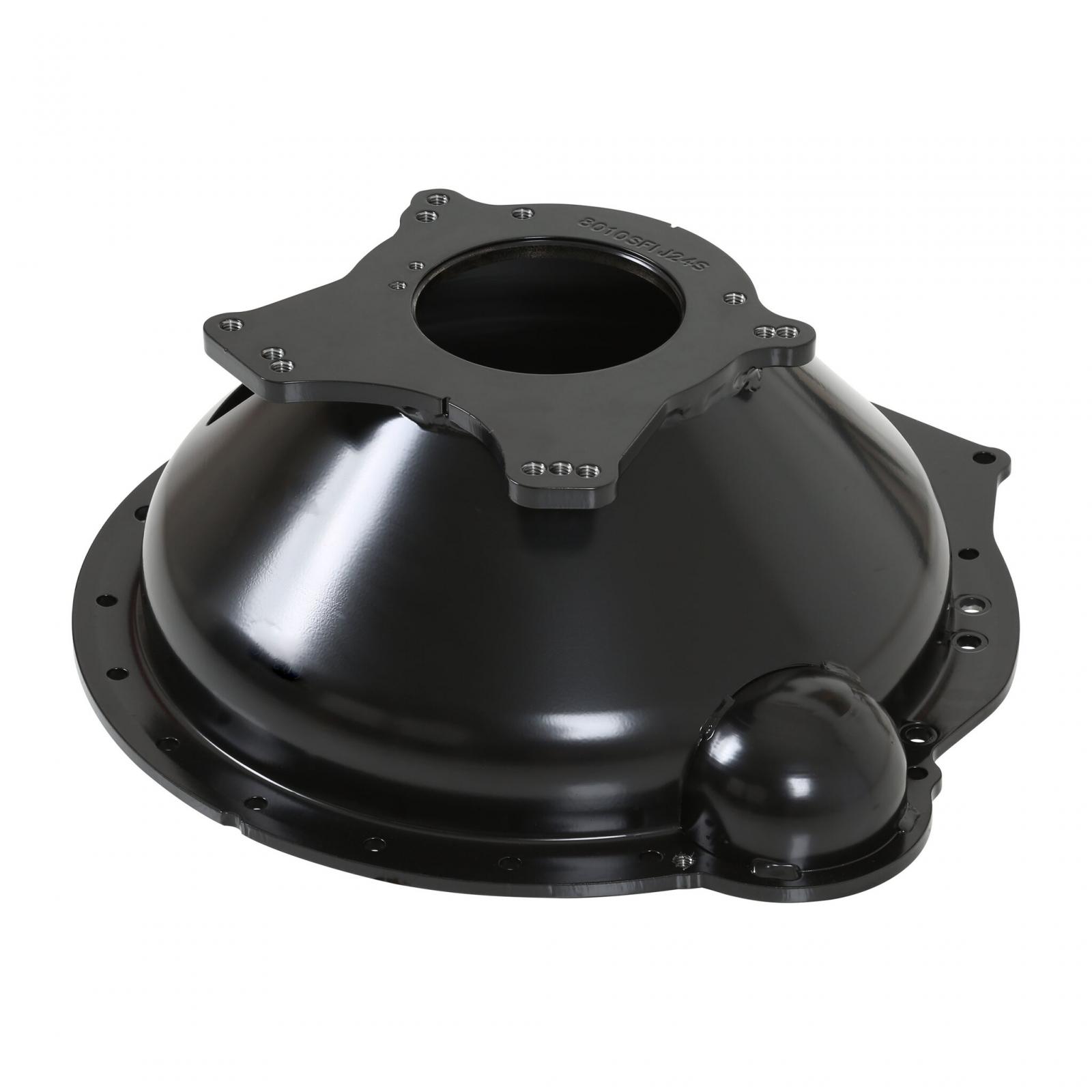

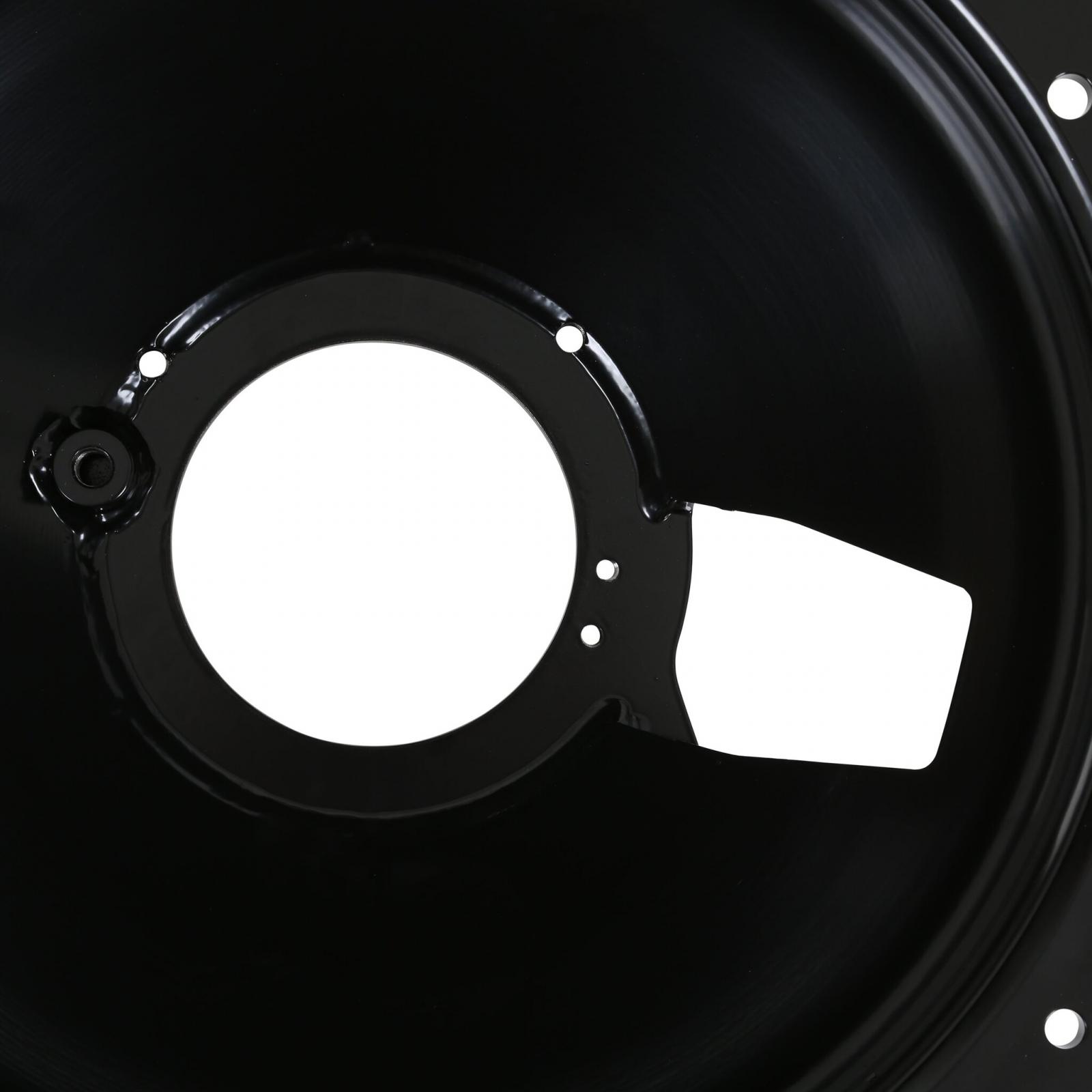

This bellhousing is designed for circle track, strip or street application. Will fit Ford 351M, 400, 429 , to Ford T5 Tremec transmission, built from high grade steel, the cone is spun not stamped or rolled making this bellhousing the most dimensionally stable and accurate on the market today.

It's 7.05 inch deep bellhousing will clear a 176 tooth flywheel and a 12 inch clutch assembly. Transmission bore is universal at 4.685 - 4.910 inch and is set up for adjustable pivot.

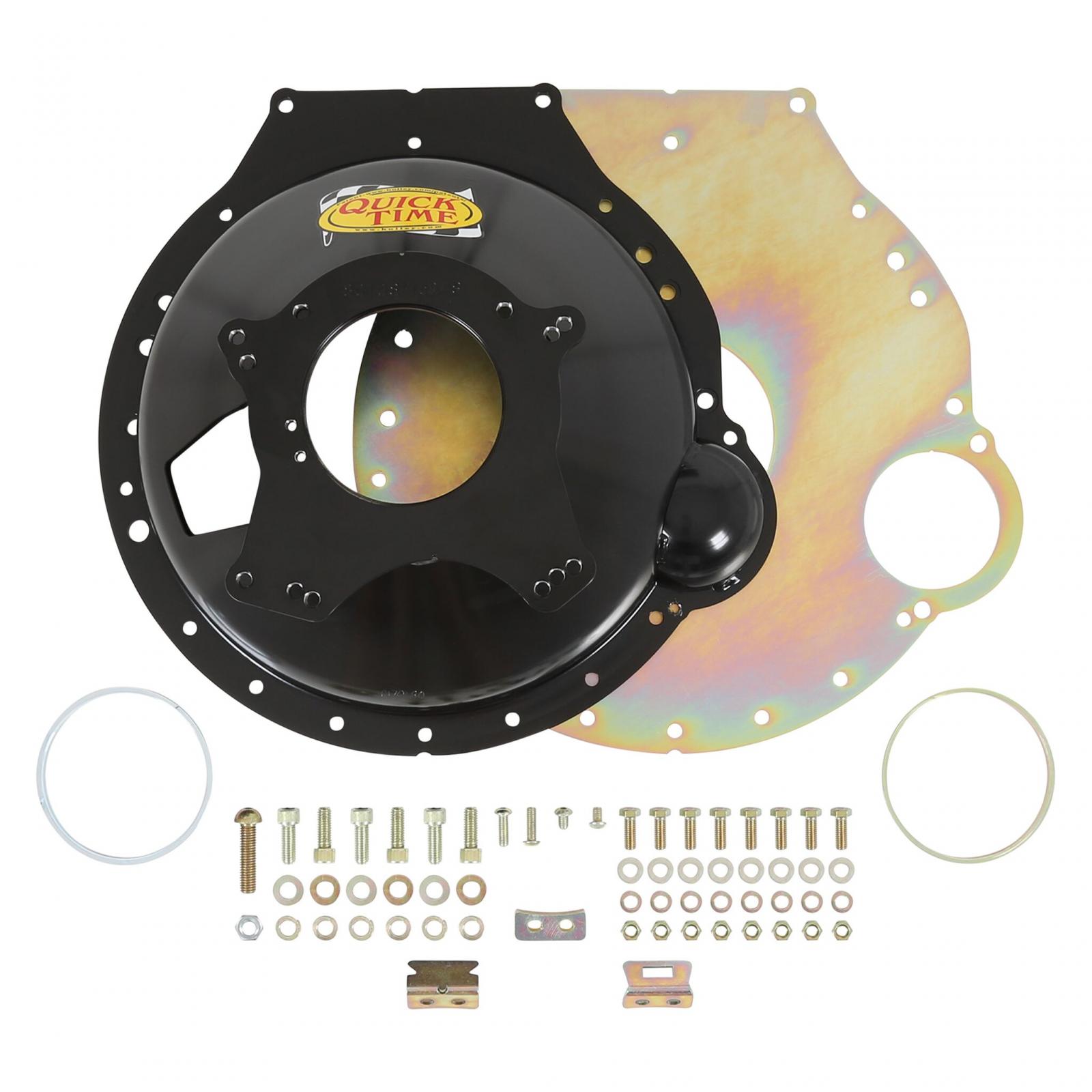

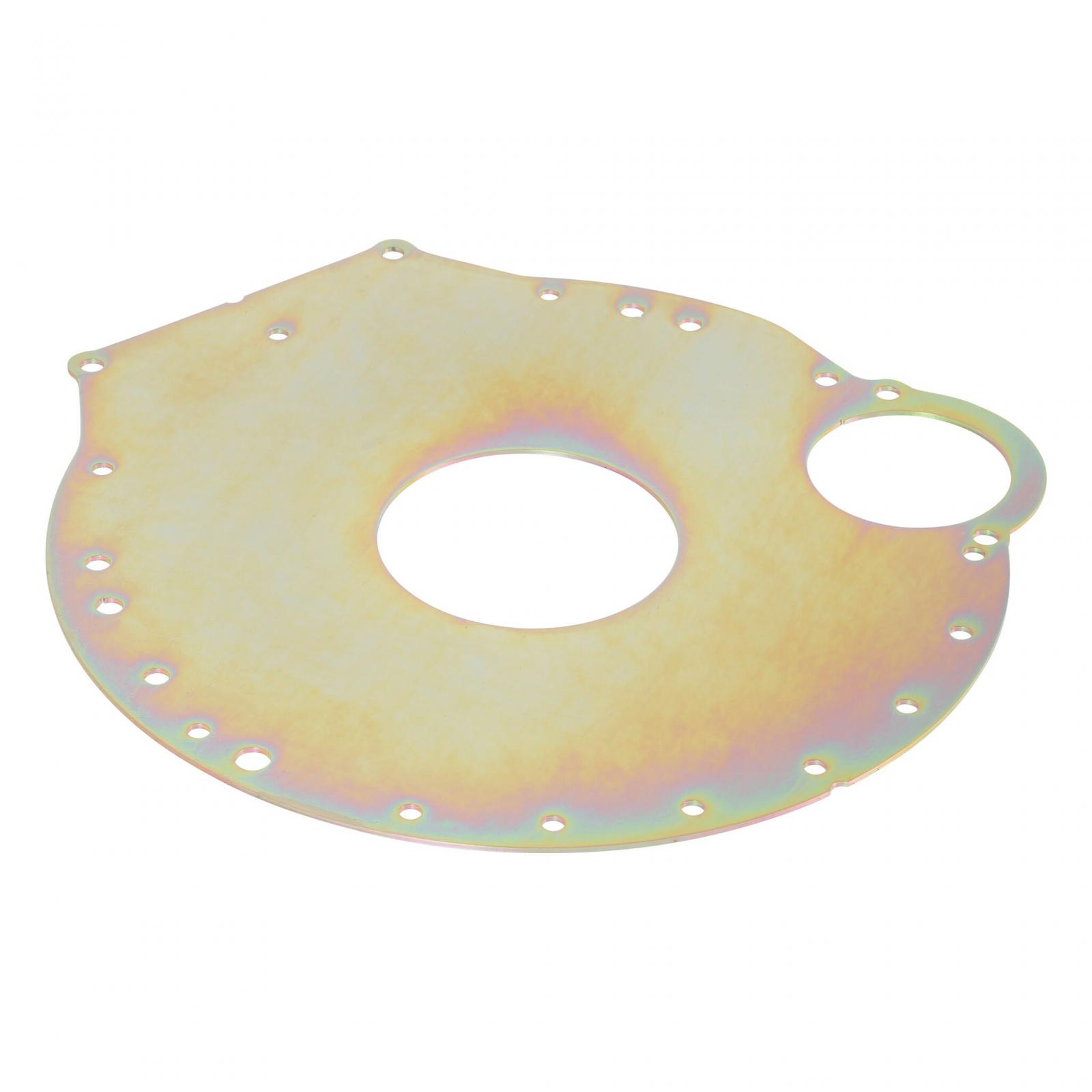

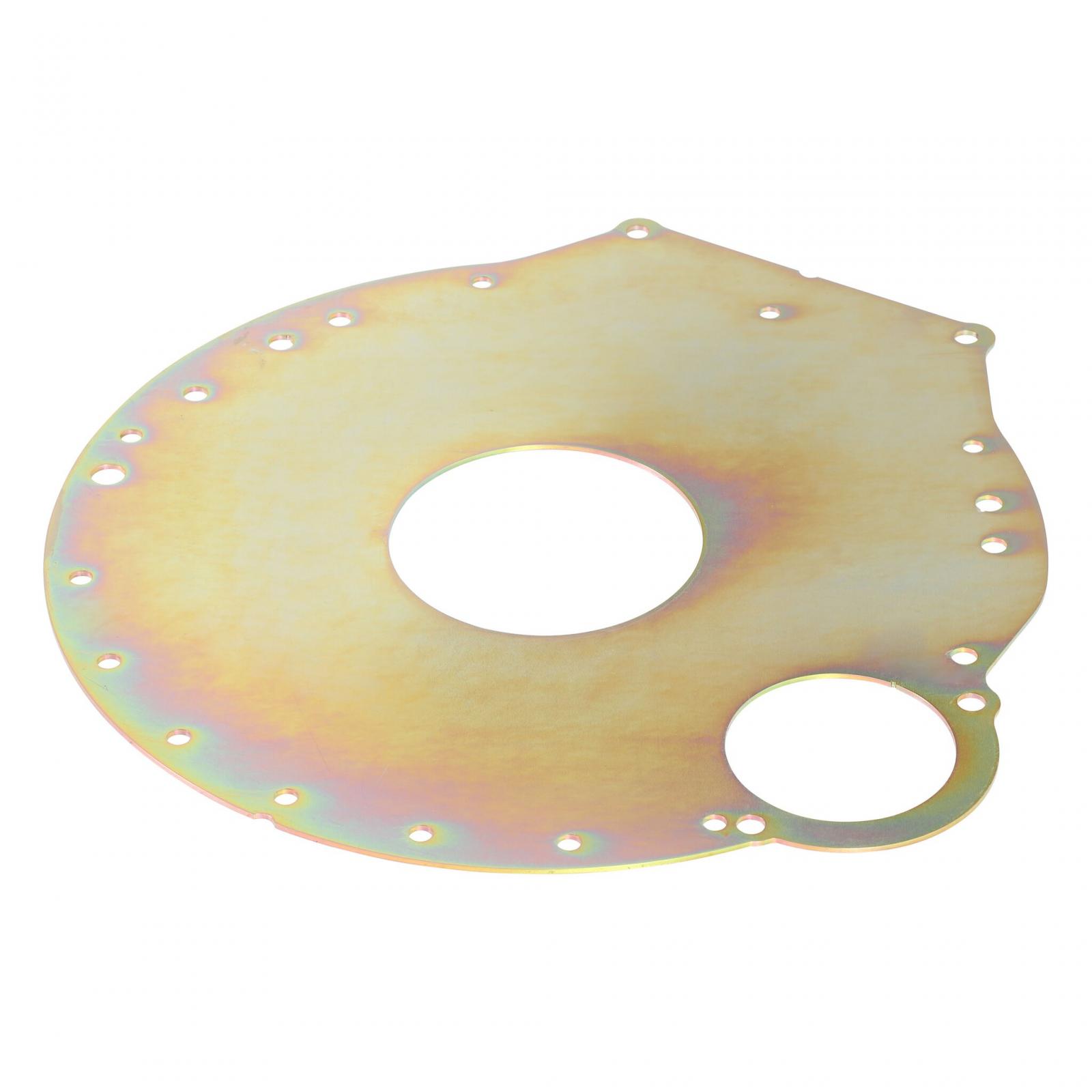

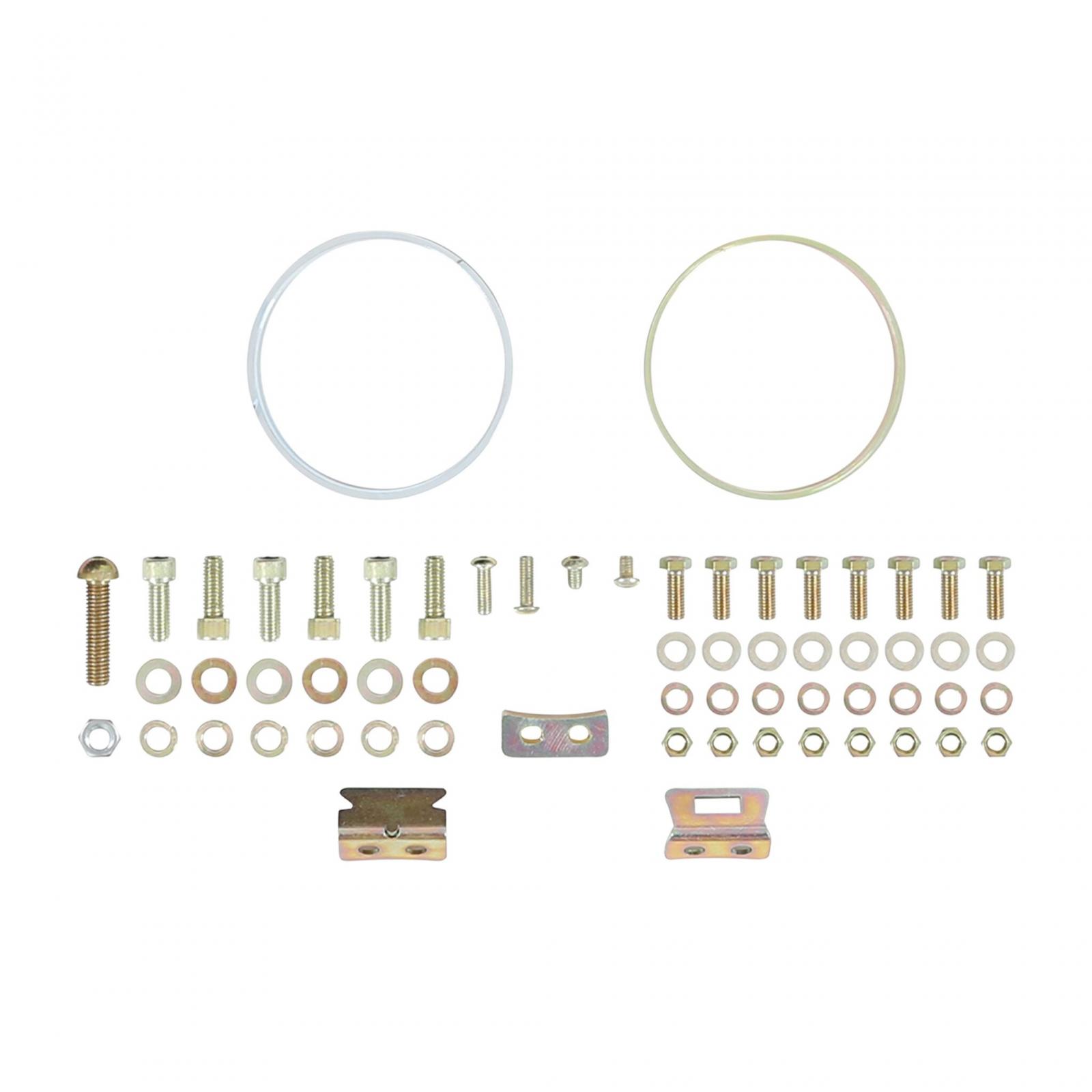

Weighs 22 pounds, block plate and grade 8 hardware included in the kit. S.

F. I. approved

Features and Benefits:

Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 176 Tooth
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: TKX Ford, T5 Ford 1983-1993, TKO 500/600 Ford, TR3550
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Ford 400, Ford Big Block, Ford 351M, Ford 460, Ford 429
• Engine Make: Ford
• Make: Ford
• Weight: 23#
• Clutch: 12 Clutch Disc
• Engine Plate: RM-8010-SFI-C
• Height: 7.150 inch
• SFI Certification: 6.1
• Trans Bore: 4.85 / 4.91 / 5.12
• Trans. Bore Diameter: 4.85 / 4.91 / 5.12 inch
• Weight (lb): 23

Application Summary:

1900 Car Ford Big Block Ford (Aspiration: Naturally Aspirated & Cylinder Head: OHV & Liter: 7.5, 5.9, 6.4, 7, 6.1, 6.7, 6.6 & Engine(cc): 6392, 7539, 6391, 7030, 5917, 6997, 7014, 6654 & Engine(ci): 460, 360, 390, 429, 428, 427, 370, 406, 361 & Cylinder: 8 & Block: V & Bore(in): 4.36, 4, 4.05, 4.23, 4.13 & Bore(mm): 110.7, 101.6, 102.9, 107.5, 104.9, 105 & Stroke(in): 3.85, 3.58, 3.78, 3.5, 3.59, 3.98 & Stroke(mm): 97.8, 90.9, 96.4, 88.8, 96, 91.2, 88.9, 101.2 & Engine VIN: G, Y, H, J, C, A, M, L, R, Q, K, S, 7, N, X, W, P, Z, 9, B & Valves: 16 & Ignition: Distributor-Breakerless & Fuel: GAS, LPG & Fuel Delivery: FI, Carb & Fuel Delivery SubType: MFI, 2BBL, 4BBL, 3x2BBL, 2x4BBL & Fuel Delivery Sytem Control: Electronic, Mechanical & Fuel Delivery Sytem: EFI, Motorcraft & Engine Version: HO, GT, Hi-Perf., Cobra Jet/Super CJ, Police, Boss)
