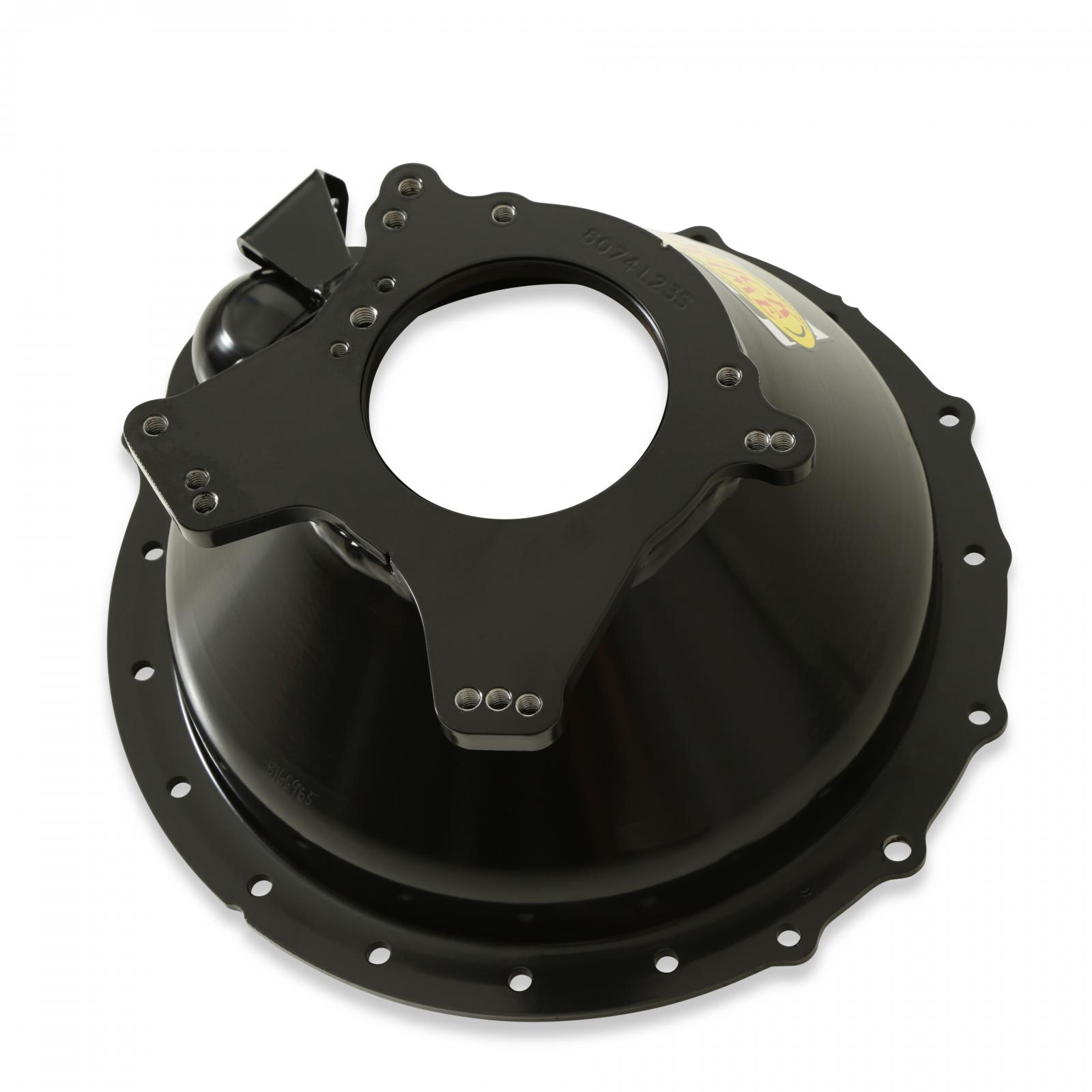

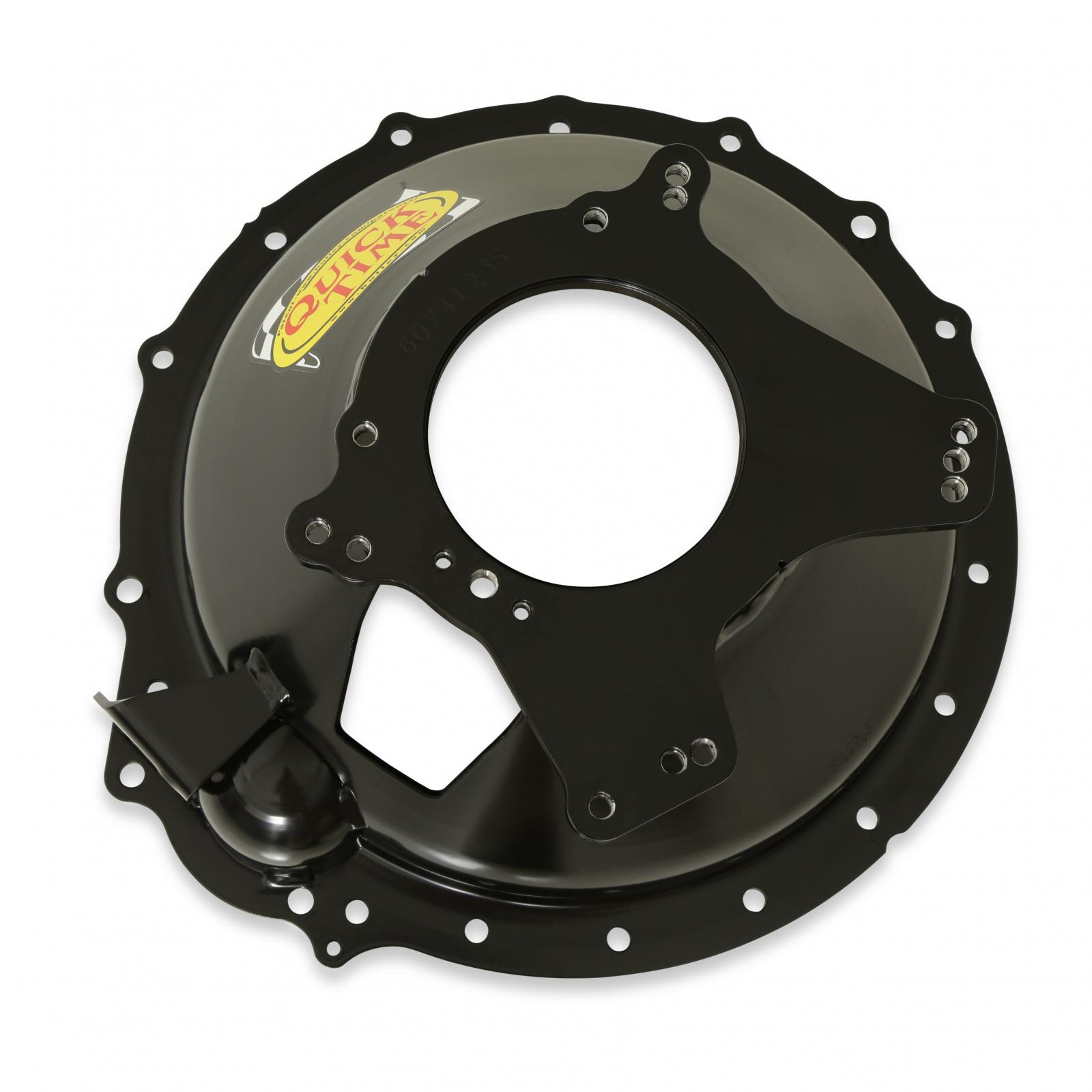

The Quick Time RM-6074 bellhousing connects Mopar big block engines (383, 413, 426 wedge, 426 Hemi, and 440) to Ford TKO 500-600, TXK, TR3550, and T5 Mustang transmissions. This bellhousing is S.

F. I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material.

This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Semi-gloss
• Flywheel: 130 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: TKX Ford, TKO 500/600 Ford, T5 Ford 1983-1993, TR3550
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Chrysler Hemi (Gen II), Chrysler Big Block
• Engine Make: Mopar
• Make: Mopar
• Weight: 22#
• Engine Plate: RM-6074-C
• Height: 7.270 inch
• SFI Certification: 6.1
• Trans Bore: 4.85 / 4.91 / 5.12
• Trans. Bore Diameter: 4.85 / 4.91 / 5.12 inch
• Weight (lb): 22

Associated Comments:

Note: Transmission Mounting Bolts Not Included
