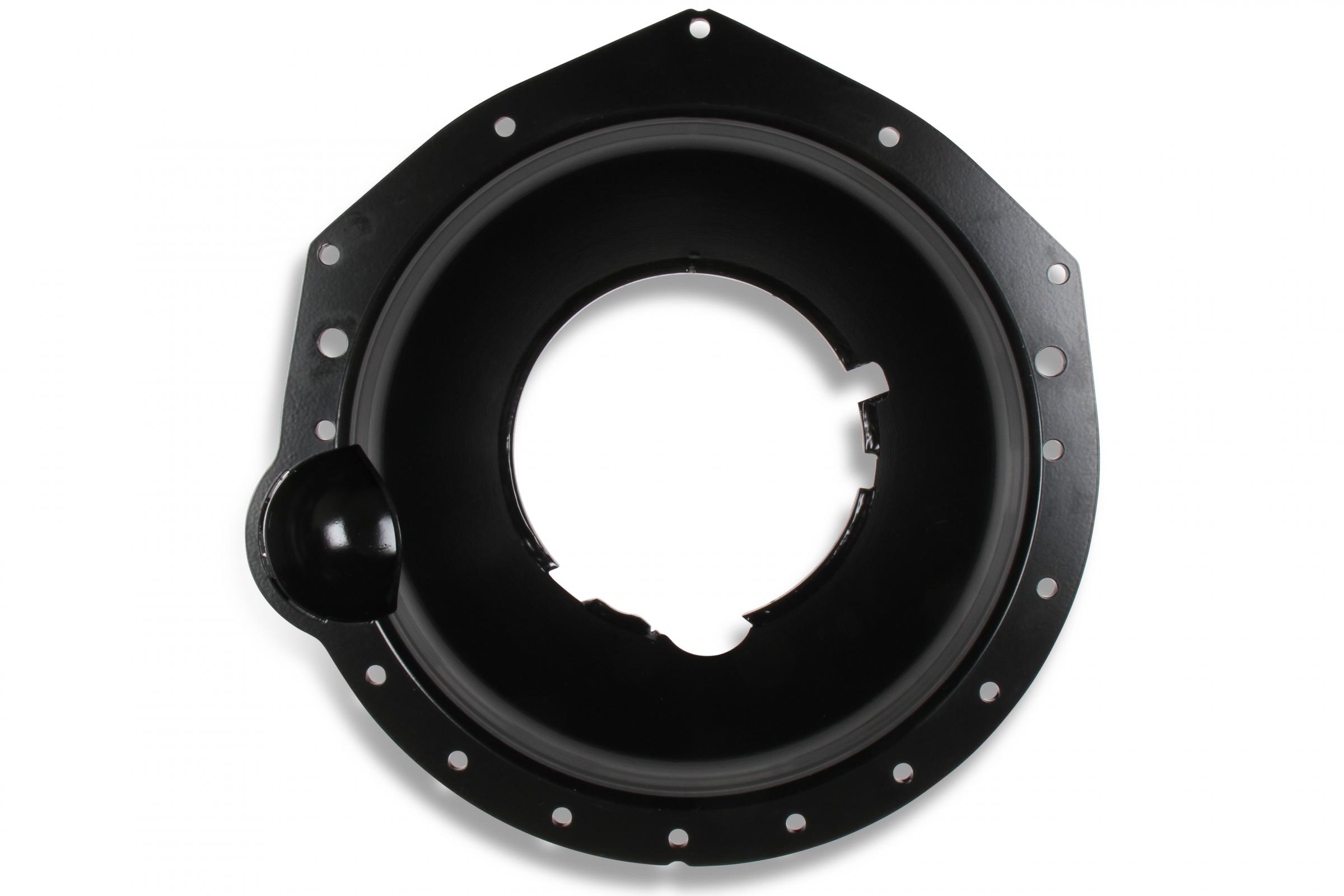

The Quick Time RM-6023 bellhousing connects a small-block or big-block Chevy engine to a GM T56, T-56 Magnum, or T-56 Magnum XL transmission. This bellhousing is S.

F. I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material.

This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included) Designed for Hydraulic Release Bearing only and we recommend Hays #82-120 or Holley #319-100.

They use the same base part, but the Hays comes with AN fittings for the pressure and bleed ports. OEM starters are recommended for ease of fitment.

It is very important that the tooth count (153 or 168) of the starter match the tooth count of the flywheel to ensure proper engagement. Two primary options: a 12 3/4-inch flywheel (153 teeth) where the nose cone will have two attachment bolt holes across from each other (inline) and a 14-inch flywheel (168 teeth) where the attachment bolt holes will be offset (diagonal).

This applies mainly to factory GM starters on passenger cars/light trucks and does not apply to later model versions (w/ gear reduction) or aftermarket and mini starters. Be sure to match your clutch to your flywheel as well.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Semi-gloss
• Flywheel: 153/168 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: T56 Magnum, T56 GM
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: GM Big Block, Chevrolet Small Block Gen I
• Engine Make: Chevrolet
• Make: Chevrolet
• Weight: 22#
• Clutch: 11 inch
• Clutch Diameter: 11
• Engine Plate: RM-6023-C
• Height: 5.950 inch
• SFI Certification: 6.1
• Weight (lb): 22
• Flexplate: 153/168 Tooth
• Included Hardware: Engine plate and grade 8 bolts
• Bolt Hole Quantity To Engine: 14
• Bolt Hole Quantity To Transmission: 6
• Grade Type: Performance

Application Summary:

• 514 1900 Car Chevrolet Small Block Chevy
• 1900 Car Chevrolet Big Block Chevy Applications

Associated Comments:

Hydraulic Release Bearing Only
