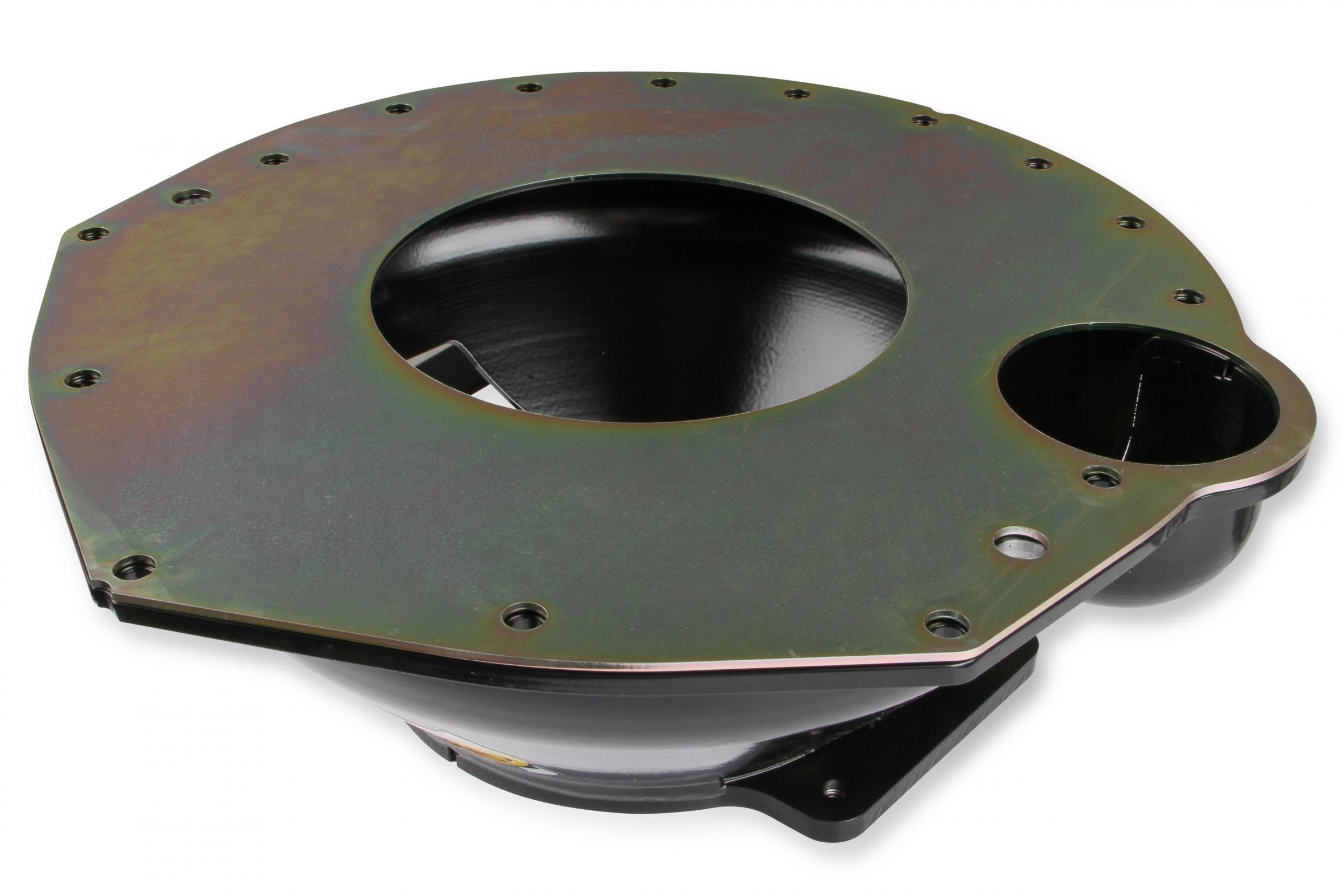

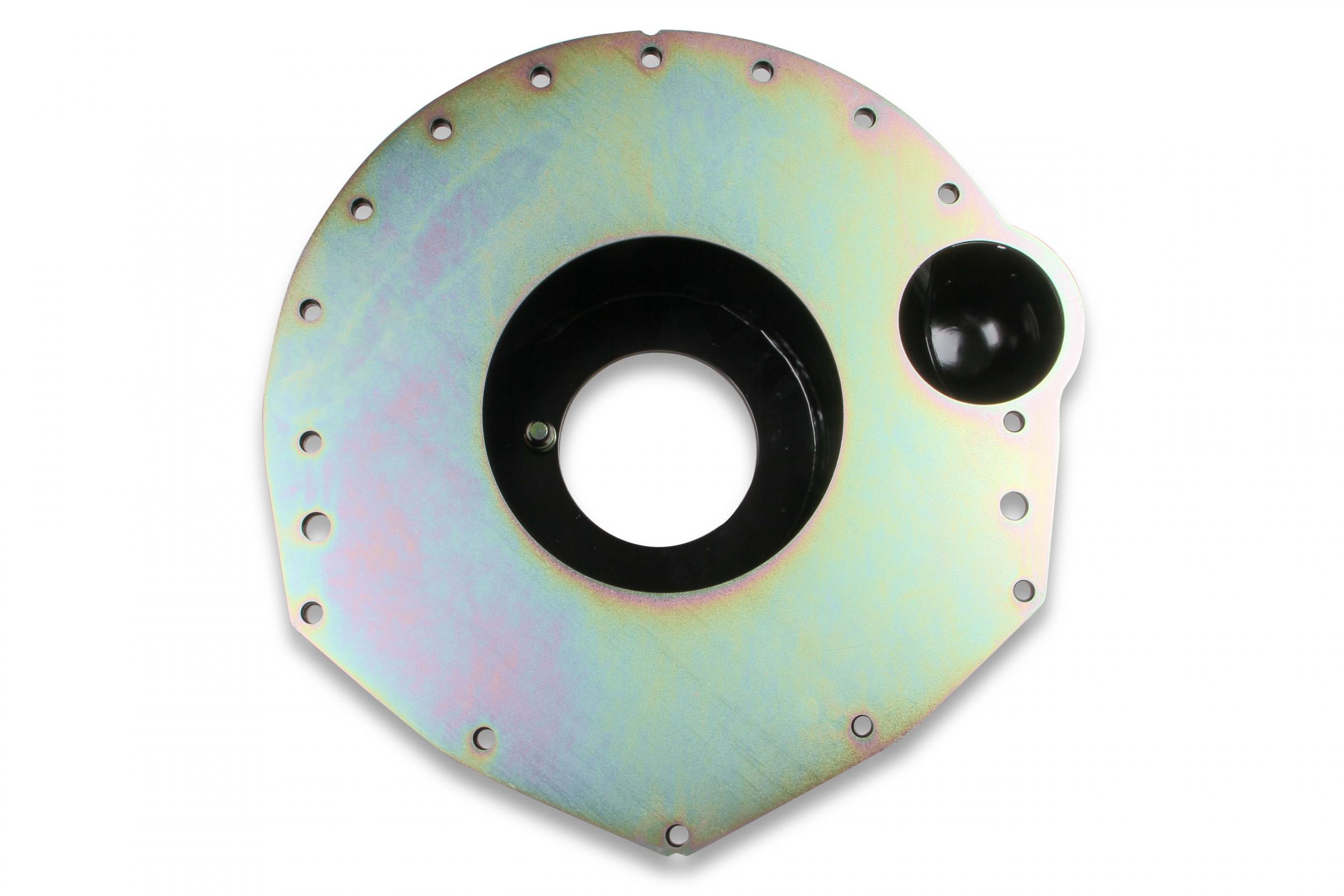

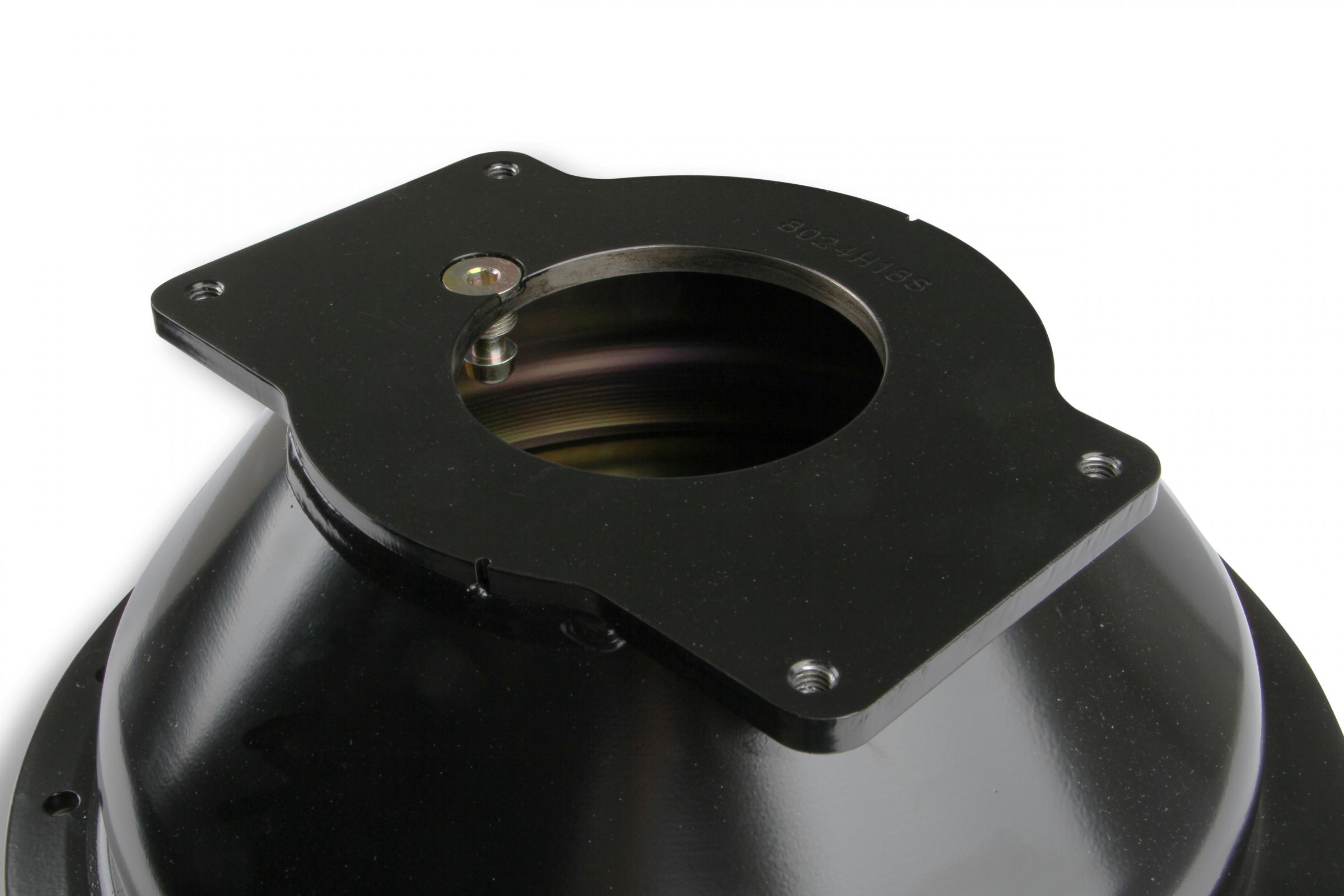

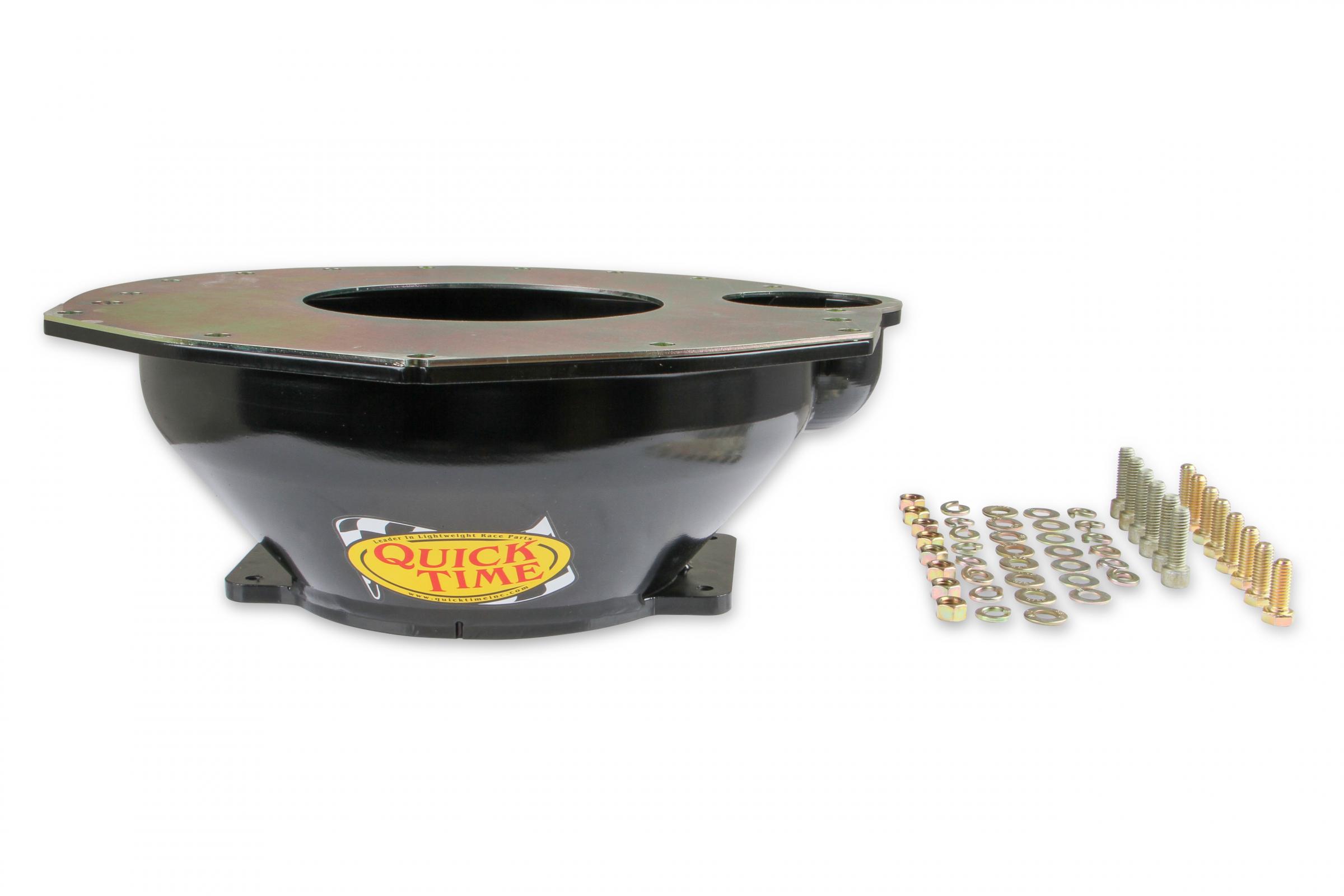

The Quick Time RM-8024 bellhousing connects small block and big block Chevy engines to GM NV-4500 transmission. This bellhousing is S.

F. I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material.

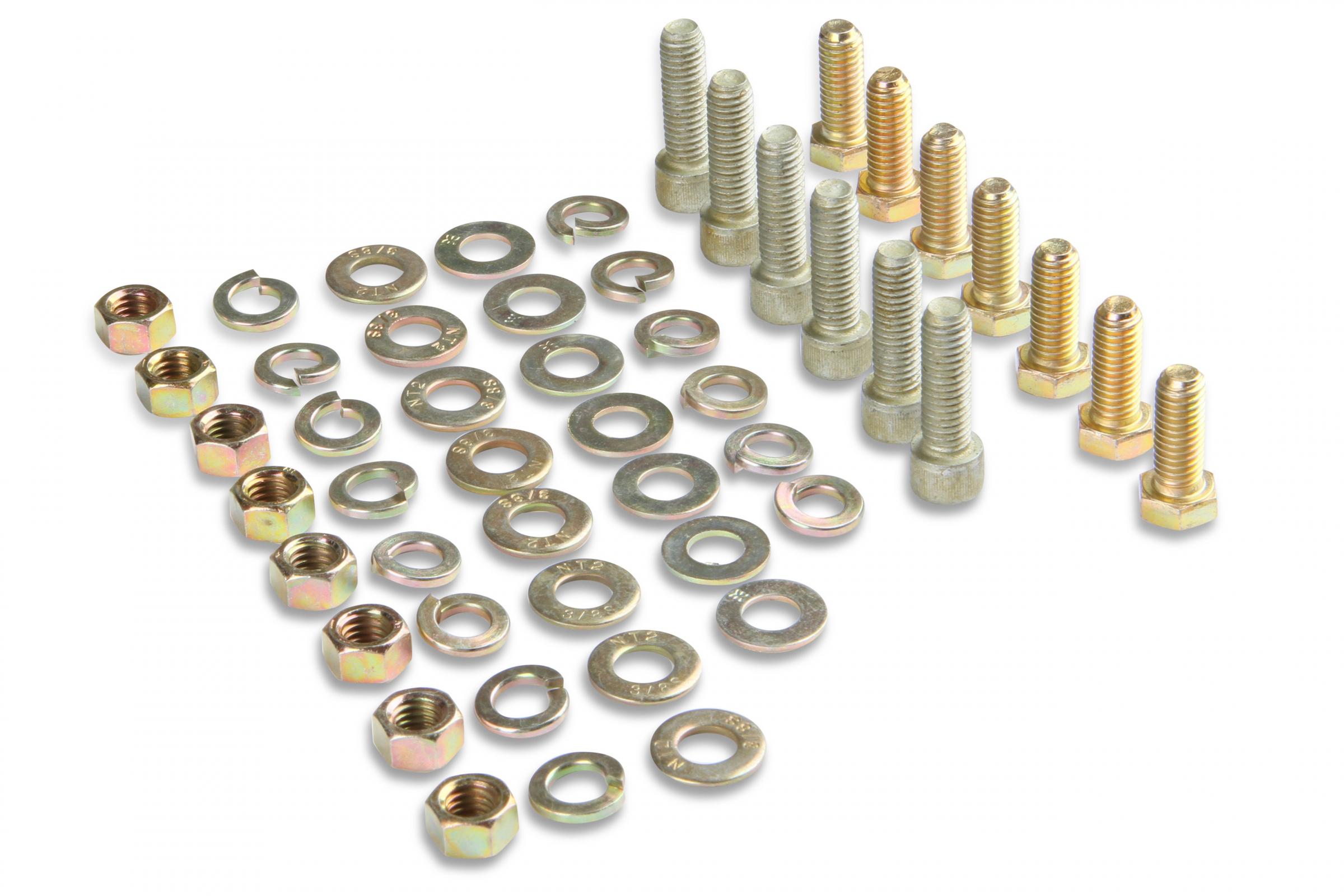

This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features and Benefits:

Precision manufacturing method permits Lakewood bellhousings to be the most dimensionally stable bellhousing available,permits less drive-train wear.

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: GM-NV4500
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Mechanical
• Engine: Chevrolet Big Block Mark IV
• Engine Make: Chevrolet
• Make: Chevrolet
• Weight: 22 lbs
• Clutch: 10.5 or 11 Clutch Disc
• Height: 6.4 inch
• SFI Certification: 6.1
• Trans Bore: 5.12
• Trans. Bore Diameter: 9 inch, 5.120 inch
• Flywheel Or Flexplate: 168 Tooth

Application Summary:

1900 Car Chevrolet Big Block Chevy (Aspiration: Naturally Aspirated & Engine Designation: LR0, L19, LS0, L86, L43 & Cylinder Head: OHV & Liter: 7, 7.4, 6.6, 6, 6.5 & Engine(cc): 6998, 7441, 6588, 6489, 5999, 7439 & Engine(ci): 427, 454, 402, 366, 396 & Cylinder: 8 & Block: V & Bore(in): 4.25, 4.13, 4.09, 3.9375 & Bore(mm): 108, 104.8, 104.3, 100 & Stroke(in): 3.77, 4, 3.76, 3.7656 & Stroke(mm): 95.7, 101.6, 95.5 & Engine VIN: M, W, Y, E, L, Z, V, U, S, X, N, P, B, K & Valves: 16 & Ignition: Distributorless, Distributor-Breakerless, Distributor-Breaker & Fuel: GAS, LPG & Fuel Delivery: FI, Carb & Fuel Delivery SubType: MFI, 4BBL, TBI, 2BBL, 3x2BBL & Fuel Delivery Sytem Control: Electronic, Mechanical & Fuel Delivery Sytem: SFI, Rochester, TBI & Engine Version: Chevrolet)
