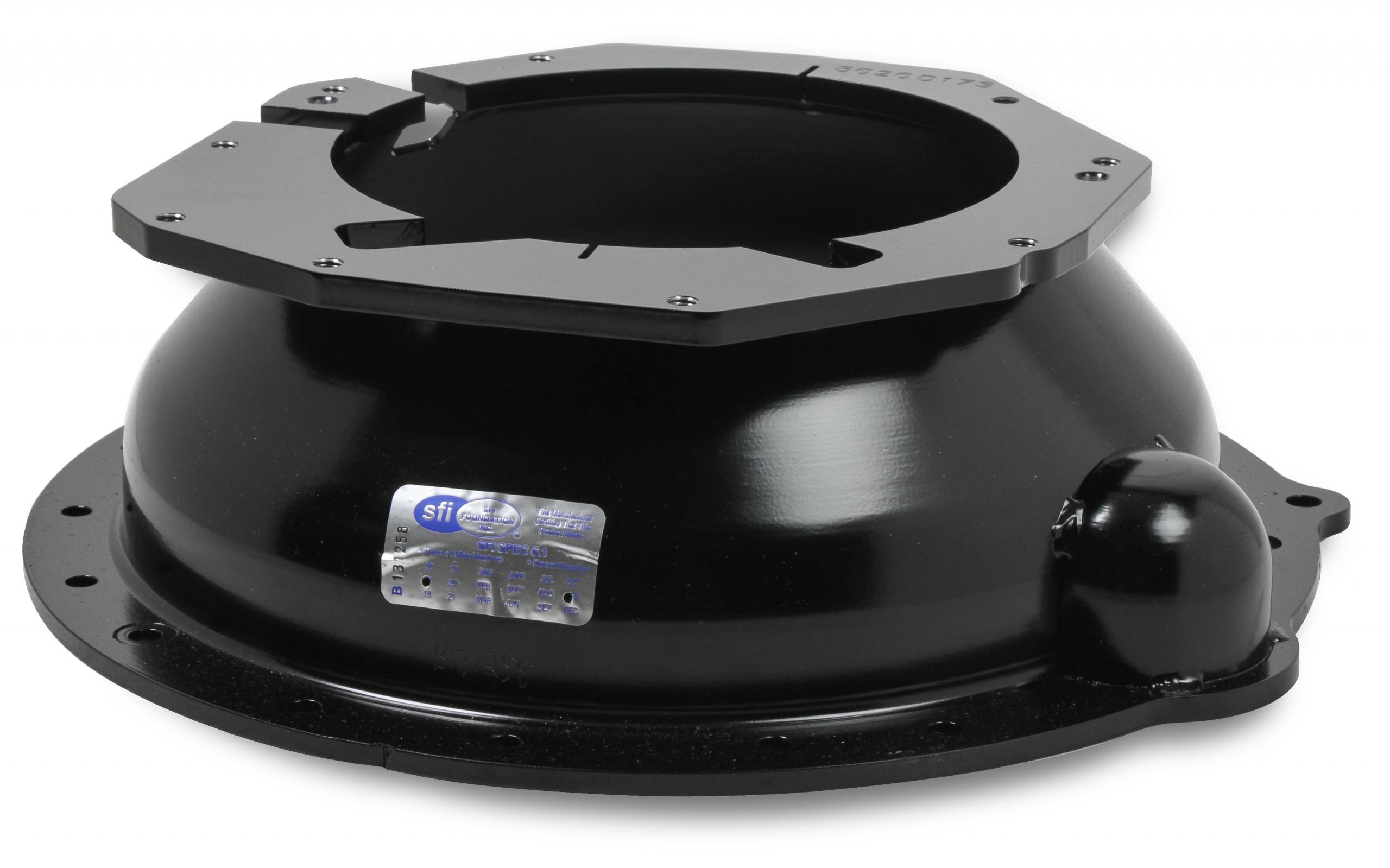

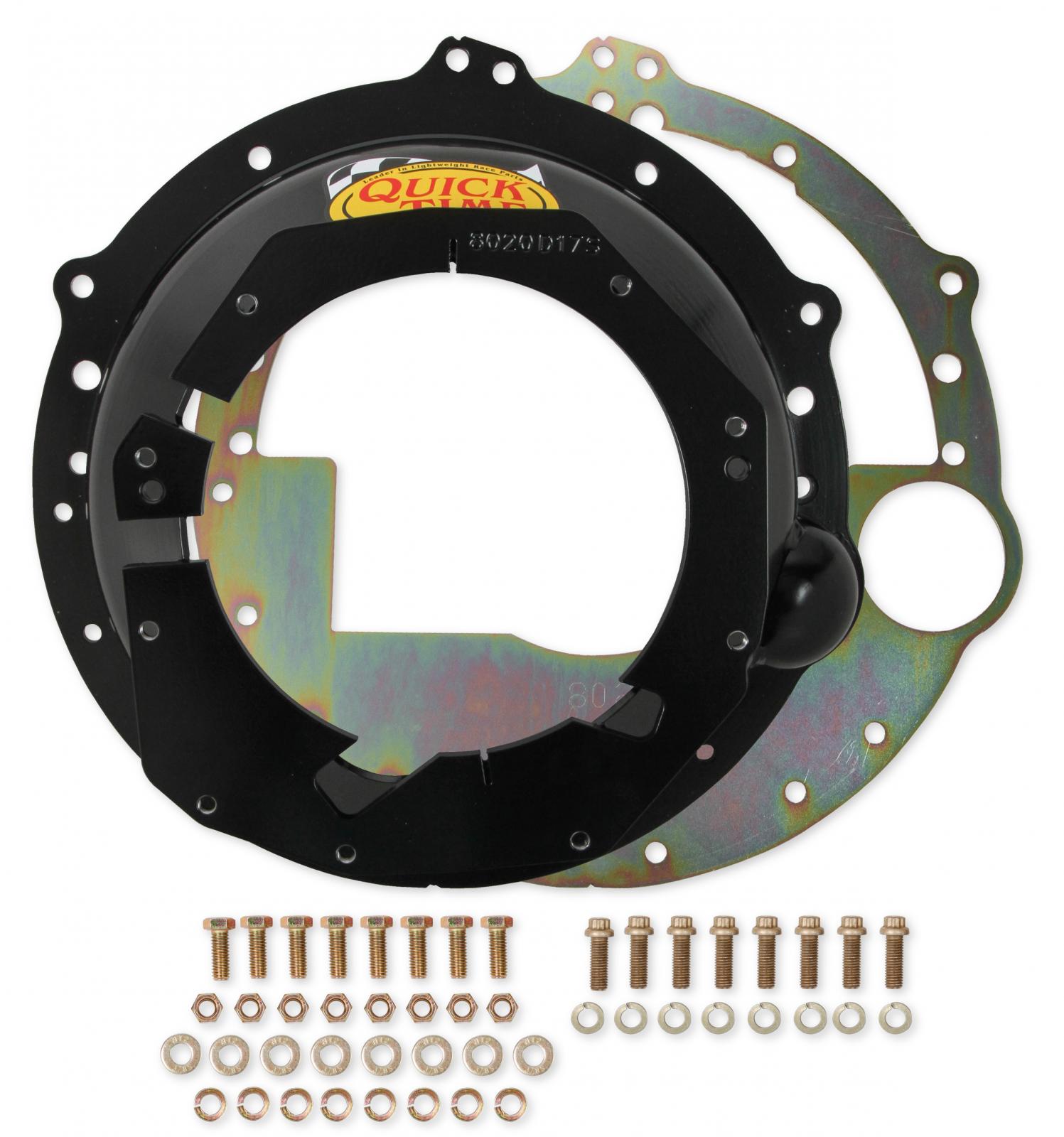

The Quick Time RM-8020 bellhousing connects Gen 3 and 4 LS and Late Model LT1/4 (2014 - Current) engines to T-56 Chevy LS, and T56 Magnum transmissions. This bellhousing is S.

F. I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material.

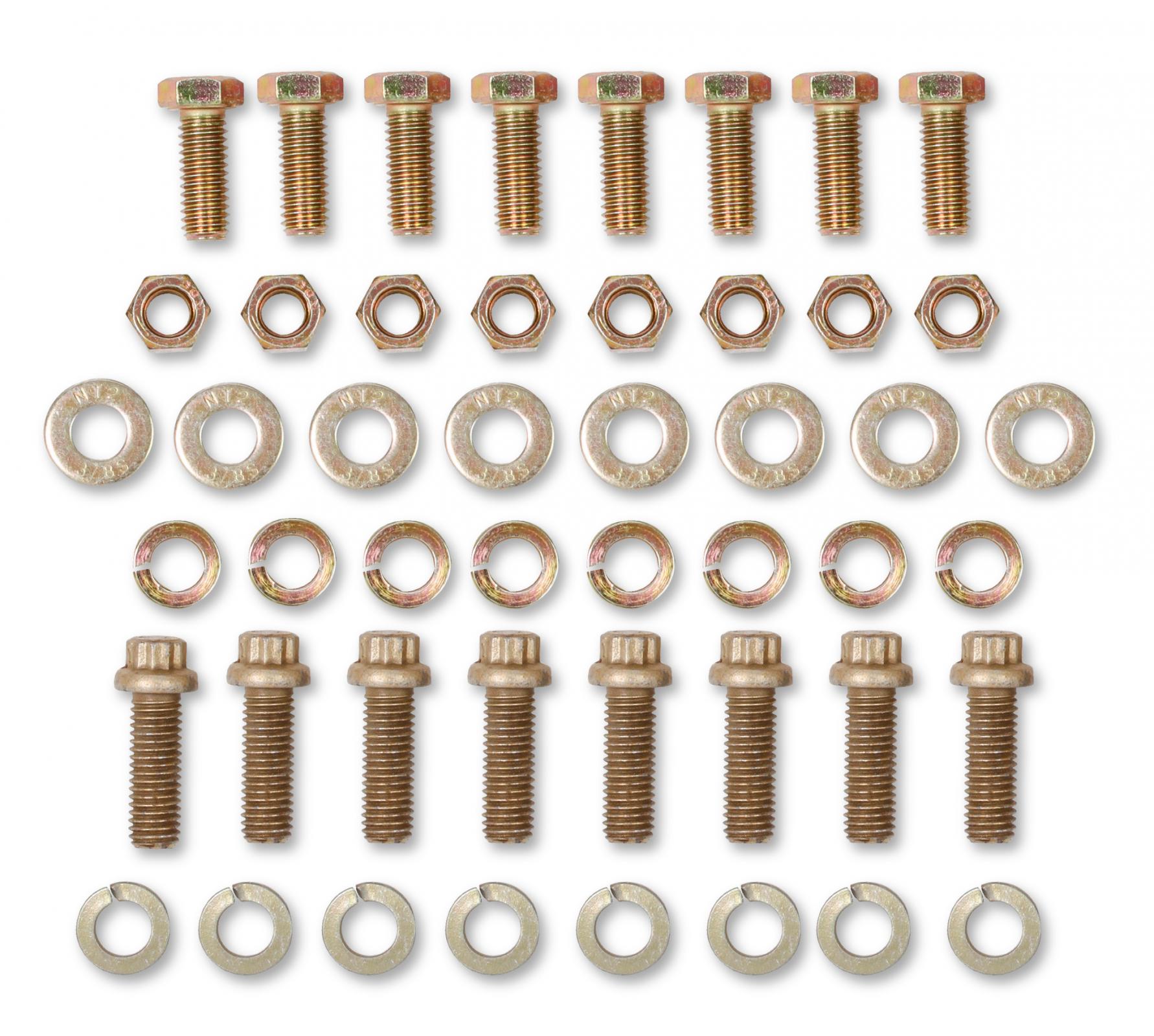

This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Semi-gloss
• Flywheel: 168 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: T56 Magnum, T56 GM
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Chevy LT4, GM Gen III/IV (LS), Chevy LT1
• Engine Make: Chevrolet
• Make: Chevrolet
• Weight: 20#

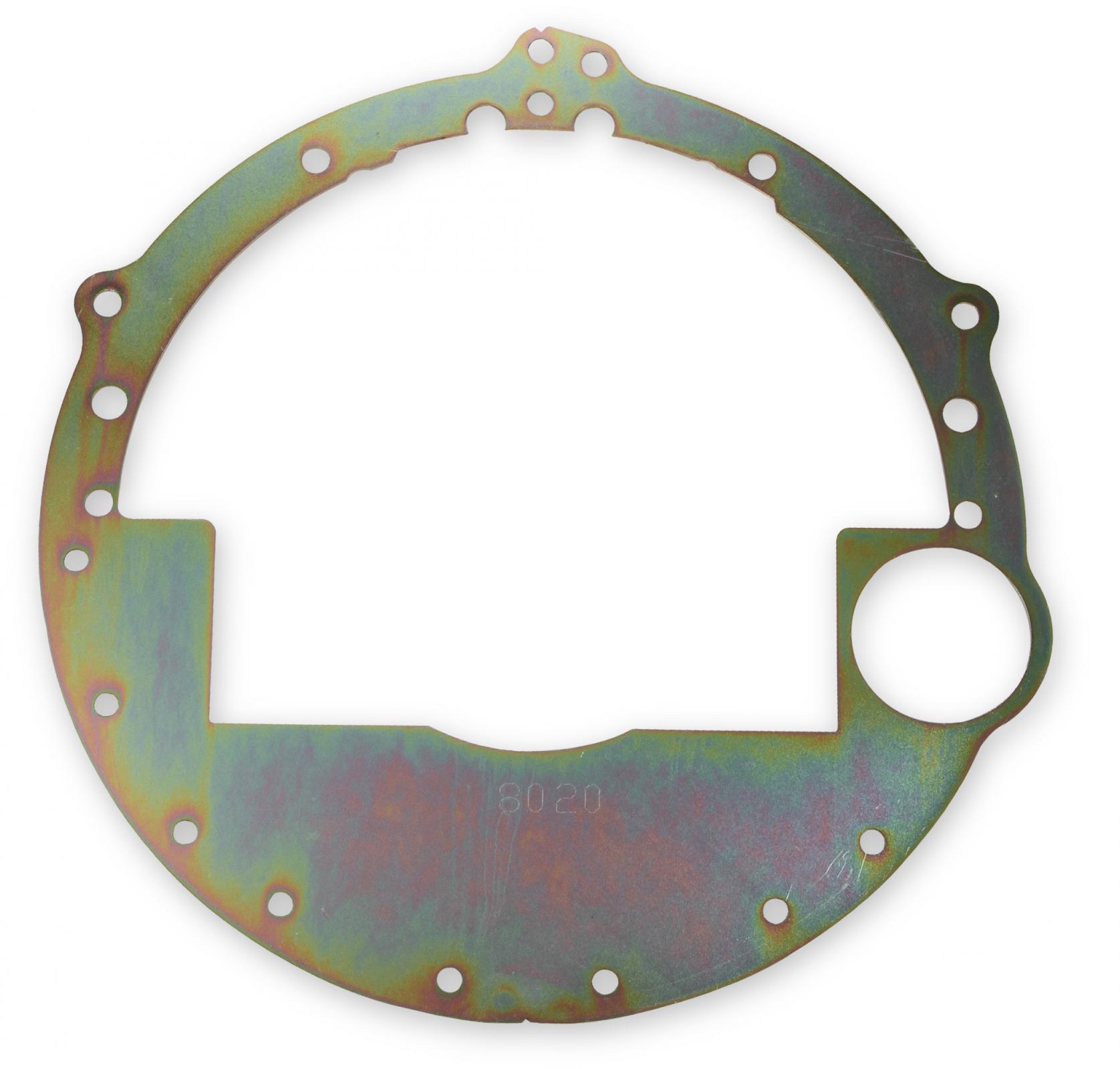

• Engine Plate: RM-8020-C
• Height: 5.5
• SFI Certification: 6.1
• Weight (lb): 20

Application Summary:

• 224 1900 Car GM GM LS
• 1900 Car GM GM LT Applications

Associated Comments:

Tested with GM #323-1637 starter
