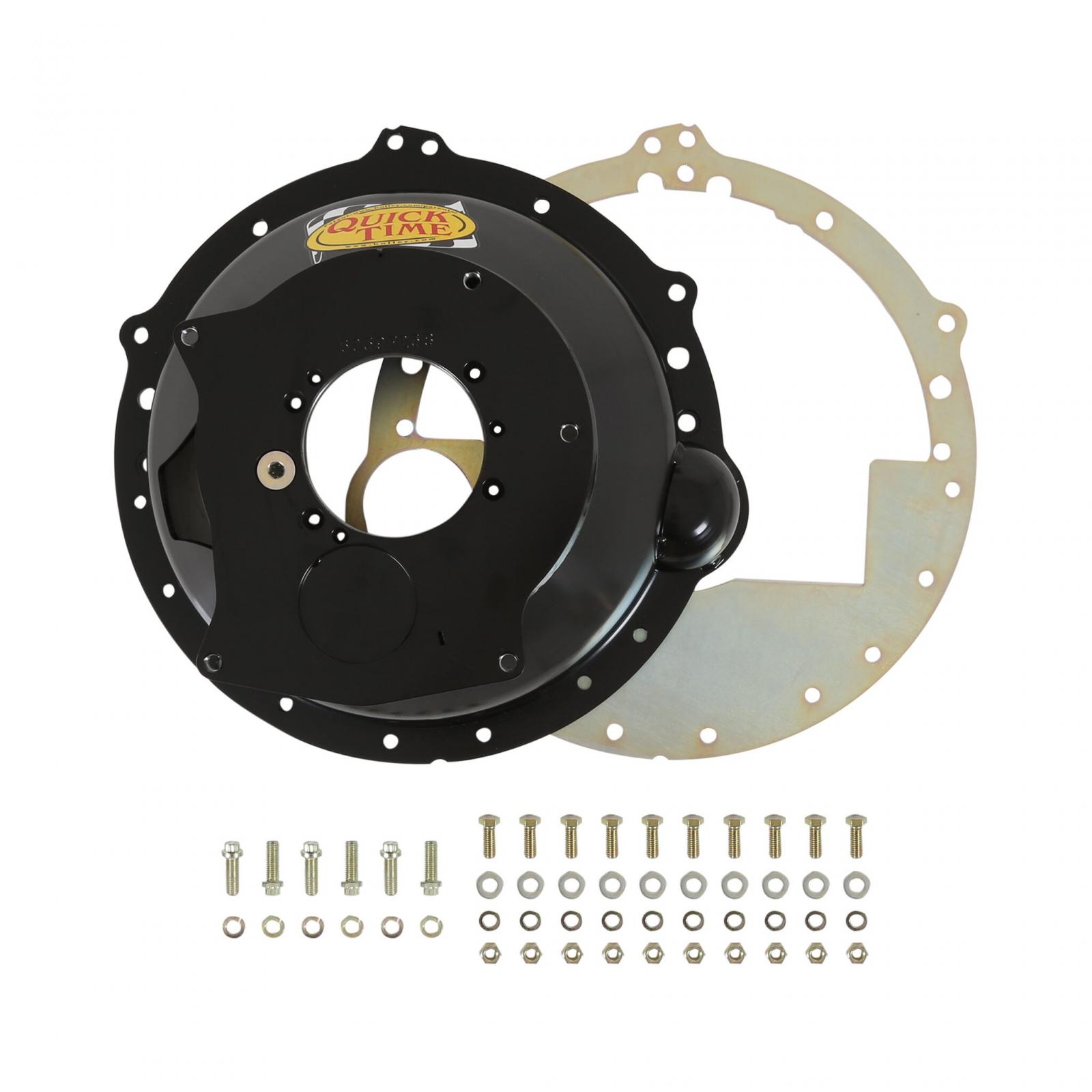

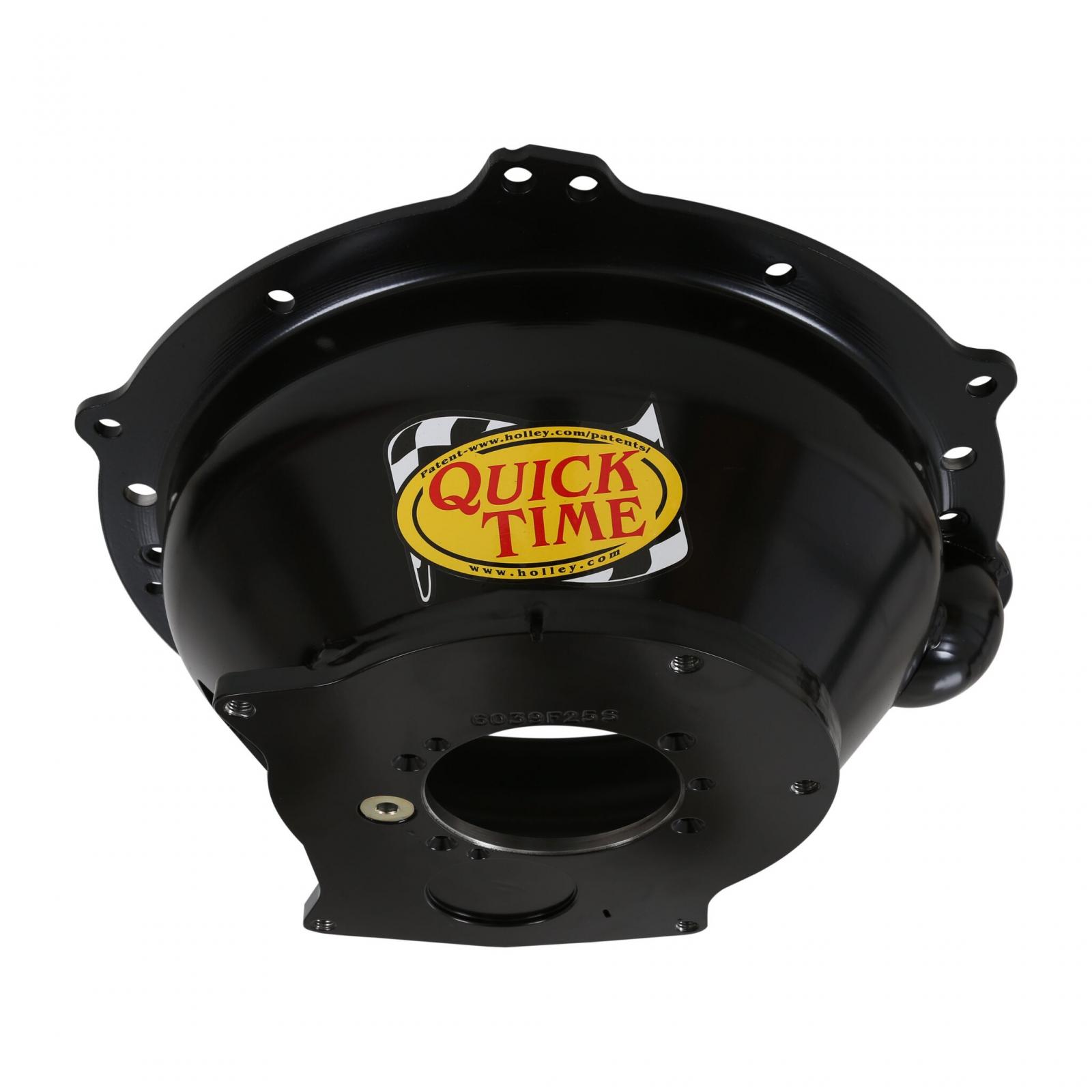

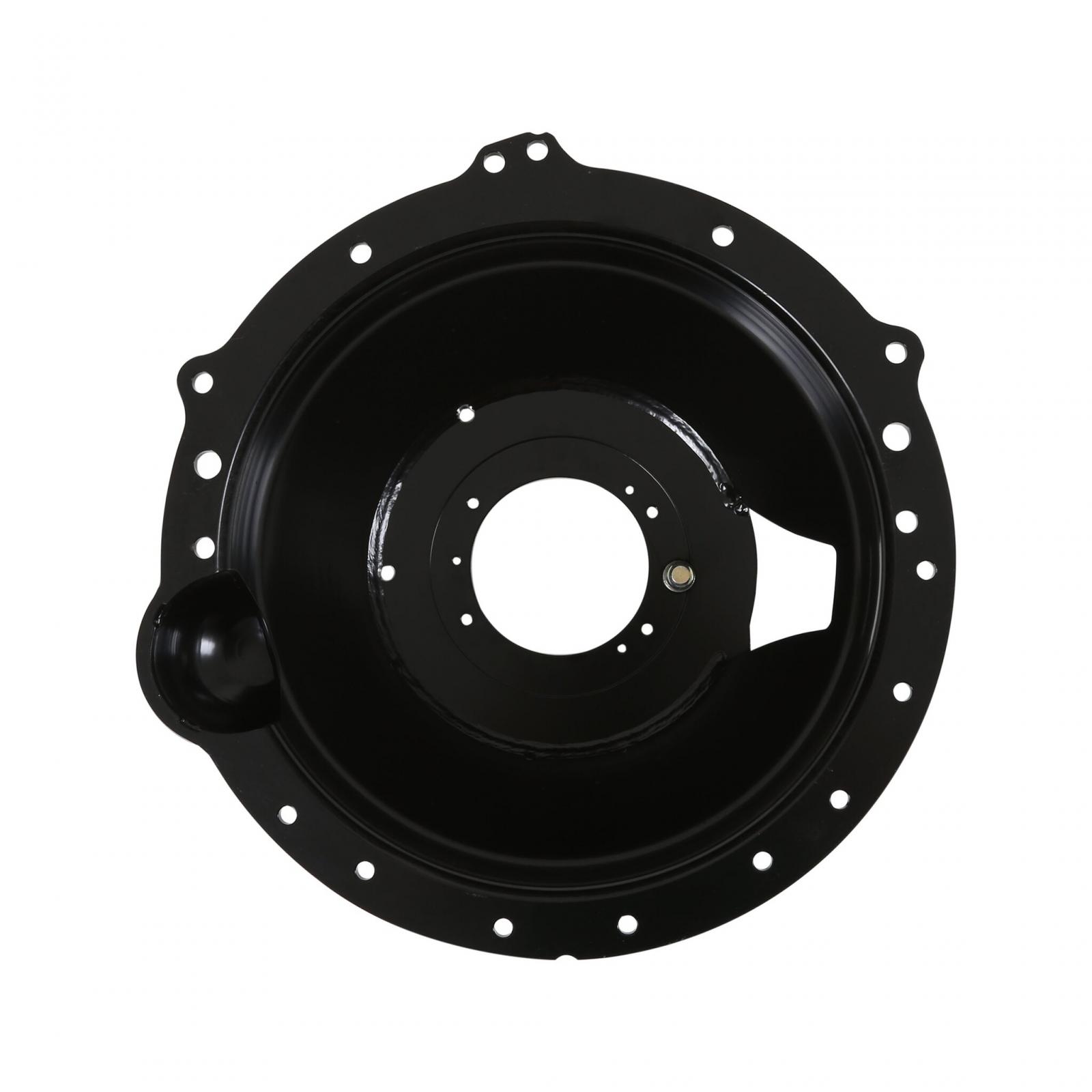

Perfect fit for Chevy LS engines with late-model Corvette ZF 6-speed transmissions. It can also be used with late model LT1 and LT4 engines Built from high-grade steel - Work hardens to over 80,000 PSI strength.

Over 2 times the strength of any other steel bellhousing.

Features and Benefits:

QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 153/168 Tooth
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: ZF
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: GM Gen III/IV (LS)
• Engine Make: Chevrolet
• Make: Chevrolet
• Weight: 22#
• Clutch Diameter: 11 inch

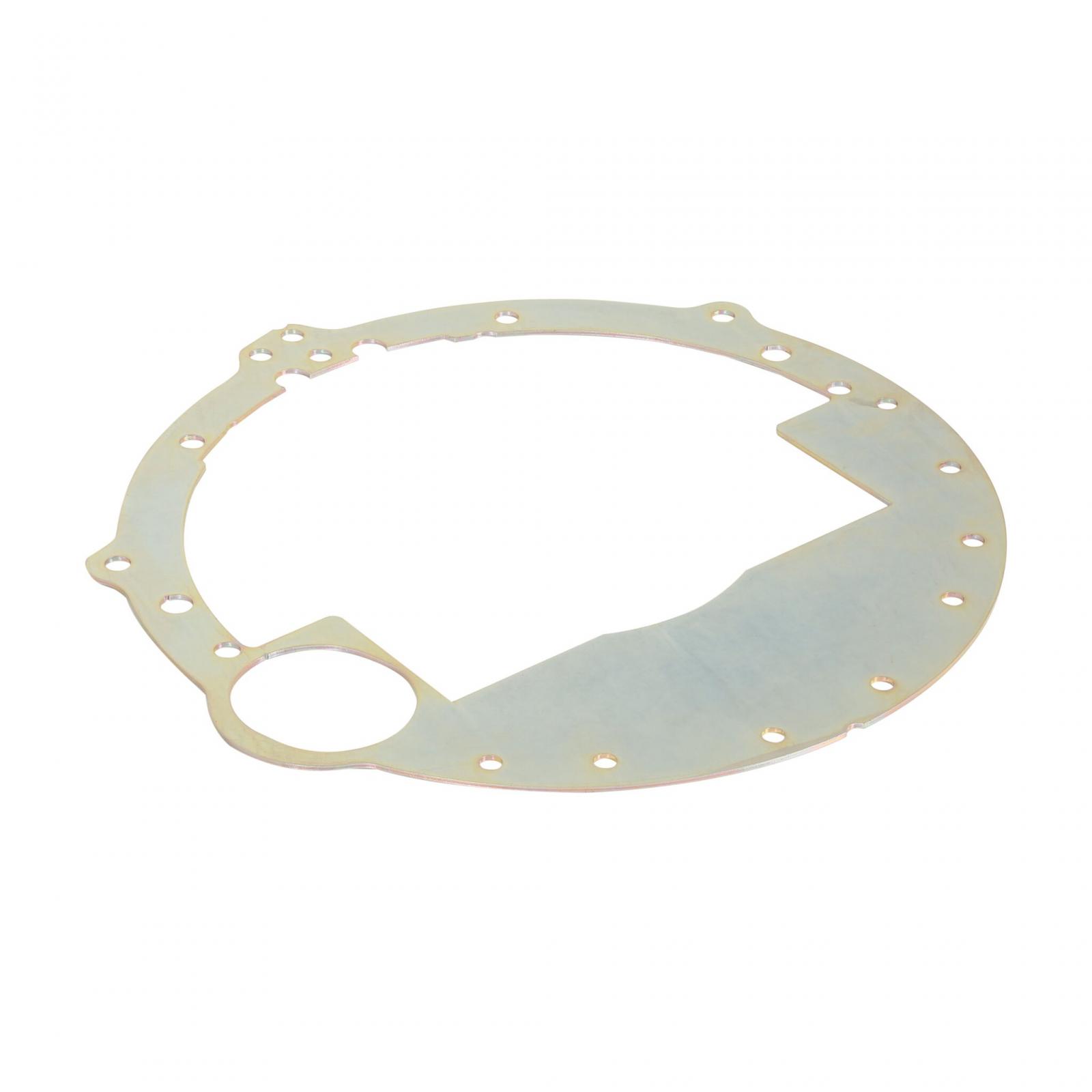

• Engine Plate: RM-8020-C
• Height: 5.774
• SFI Certification: 6.1
• Trans Bore: 4.56
• Trans. Bore Diameter: 4.56 inch
• Weight (lb): 22
• Starter: OE

Application Summary:

• 224 1900 Car GM GM LS
• 1900 Car GM GM LT Applications

Associated Comments:

Std LH Fork or Hyd. Bearing
