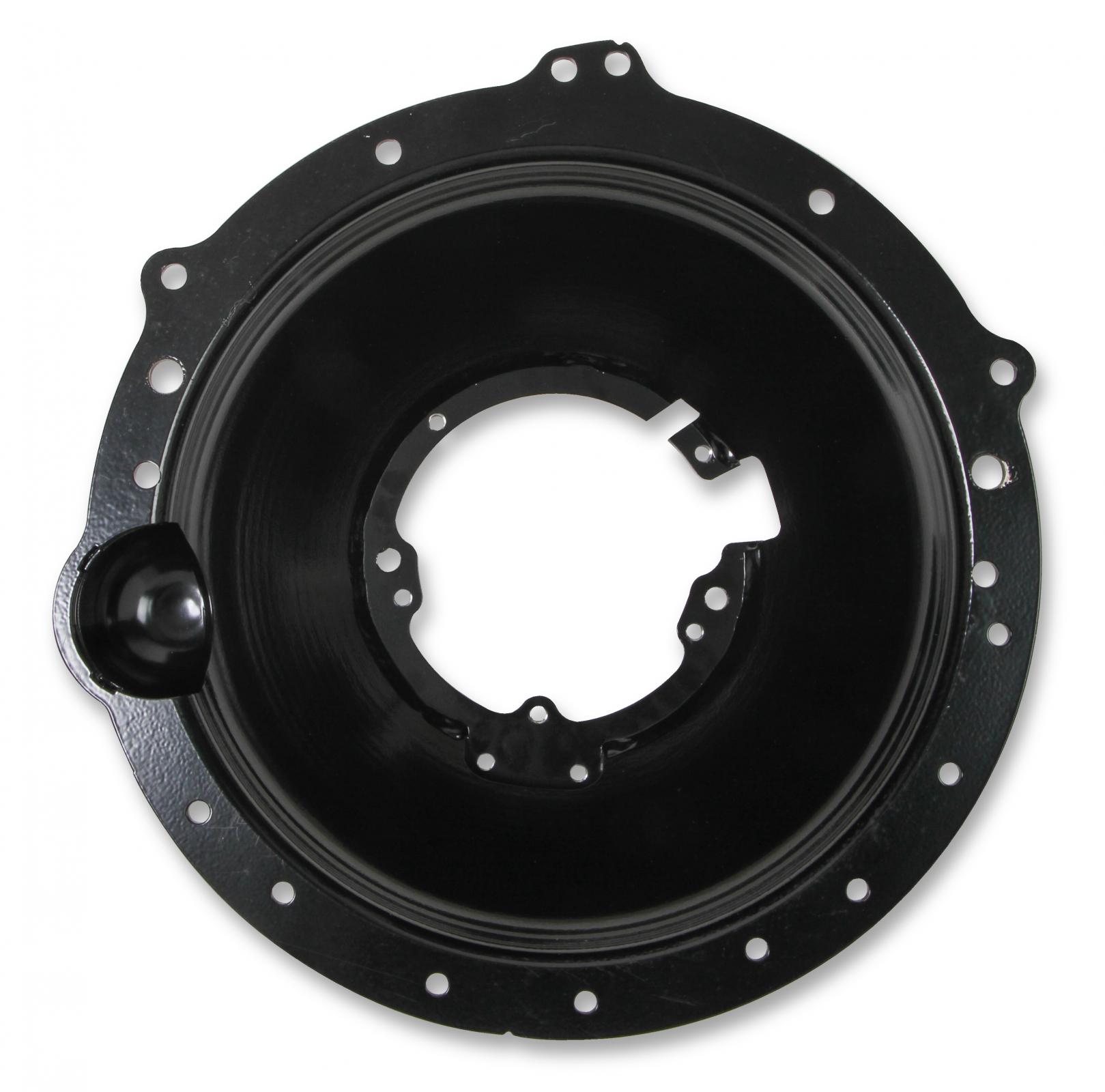

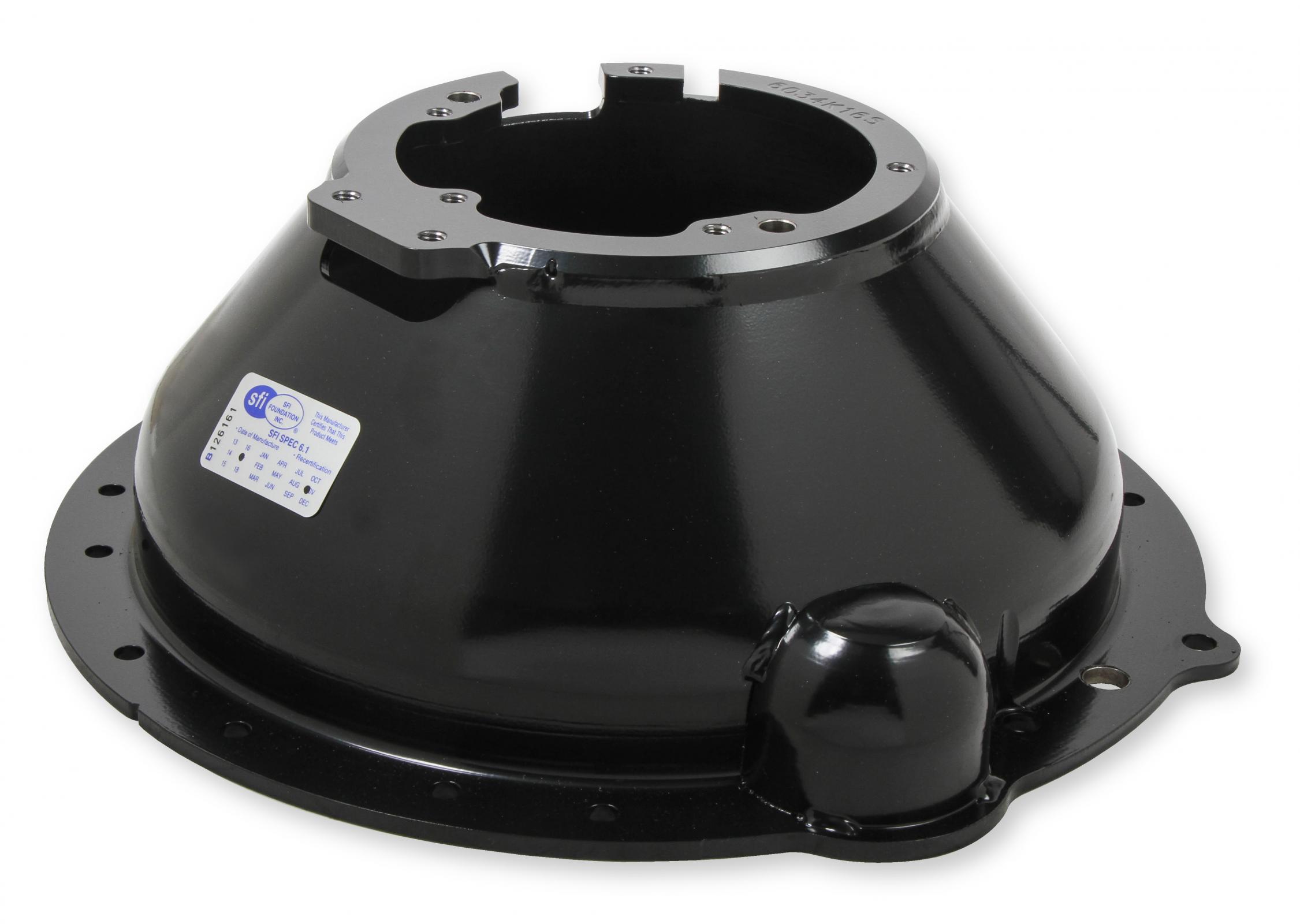

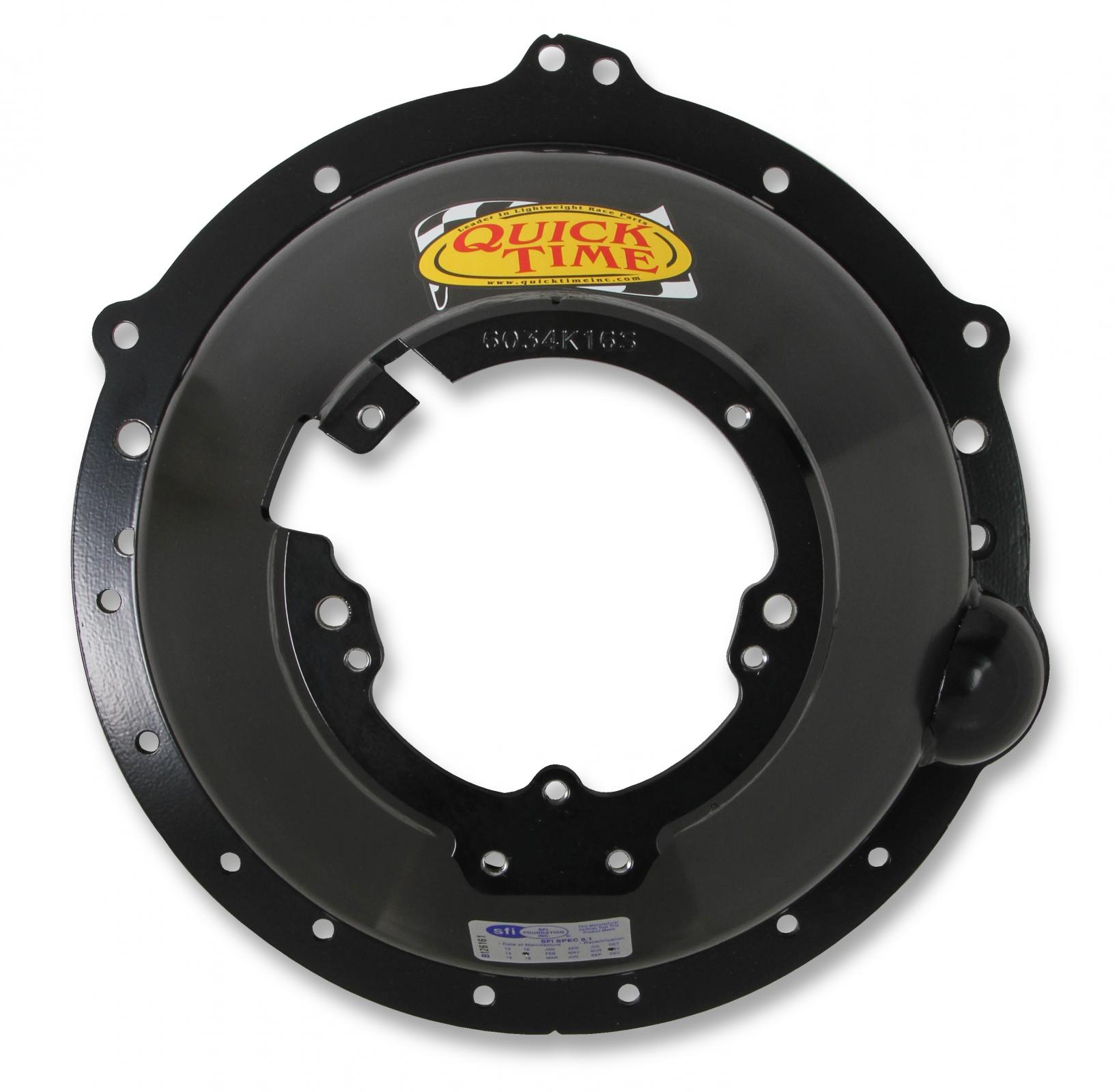

Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
Bellhousing Chevy Perfect fit for Chevy LS engines with 2005 2013 C6 Corvette manual transmissions, can also be used with late model LT1 and LT4 engines Quick Time
SKU
RM-6034-GCHT
List price
$1,325.95
Price
$1,177.95

Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.

Features and Benefits:

  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100 percent built in the USA
  • Patent on 16 points of Bellhousing Design & Process

Details:

  • Emission Code: 5
  • Material: Steel
  • Color: Black
  • Flywheel: 153/168 Tooth
  • Part Type: Transmission Bell Housing
  • Patented: yes
  • SFI Approved: Yes
  • Transmission: C6 Manual 05-13 Corvette
  • Transmission Type: Manual
  • Certification: 6.1 SFI
  • Clutch Operation: Hydraulic
  • Engine: Chevy LT4, GM Gen III/IV (LS), Chevy LT1
  • Engine Make: Chevrolet
  • Make: Chevrolet
  • Weight: 21#
  • Clutch Diameter: 11 inch
  • Engine Plate: RM-8020-C
  • Height: 6.425 inch
  • SFI Certification: 6.1
  • Weight (lb): 21

Application Summary:

  • 240 2005-2013 Chevrolet Corvette Base Z06 427 Limited Edition Z06 ZR1 Grand Sport Z06 Carbon 427
  • 1900 Car GM GM LS
  • 1900 Car GM GM LT Applications

Associated Comments:

Hyd. Bearing Only

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
2005-2013 Chevrolet Corvette
2006-2013 Chevrolet Corvette Z06
2008 Chevrolet Corvette 427 Limited Edition Z06
2009-2013 Chevrolet Corvette ZR1
2010-2013 Chevrolet Corvette Grand Sport
2011 Chevrolet Corvette Z06 Carbon
2013 Chevrolet Corvette 427
Brand
Quick Time
Category
Drivetrain & Differentials
Transmission
Transmission Bell Housing
Color
Black
Material
Steel
Specs
Country of Origin: US
Sold As: Each
UPC: 84041028995
Availability: Available
Universal: No
Clutch Type: Hydraulic
Harmonized Tariff Code: 8708937500
Vehicle Type
Car
Transmission Type
Manual
Core Charge
$0.00
