This S. F.

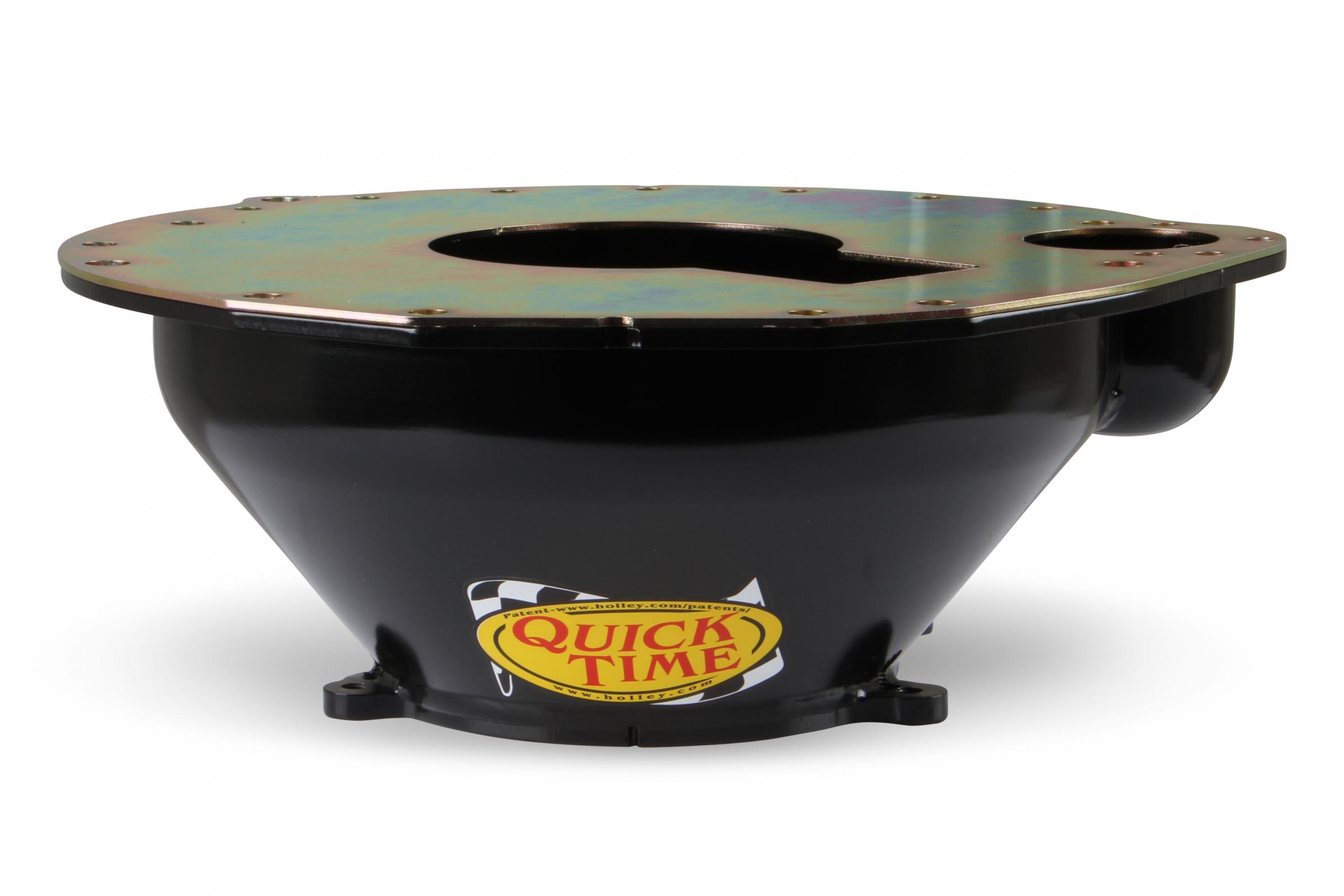

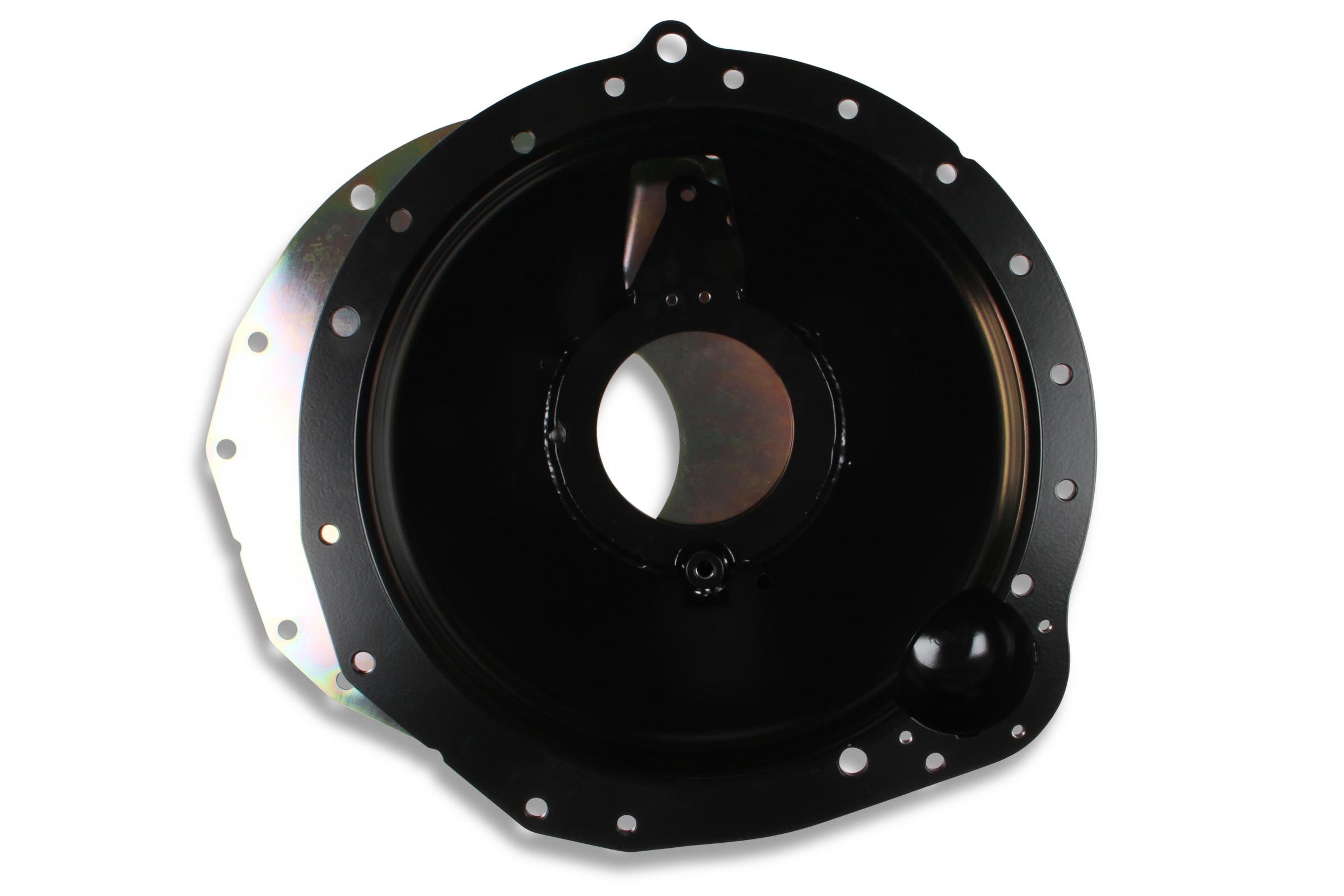

I. 6.1 Bellhousing is designed for circle track, strip or street application. This bellhousing fits 4.6/5.0/5.4/5.8/6.2L Ford Modular and 7.3L Godzilla Engines to many Ford Style 5-speed Tremec transmissions.

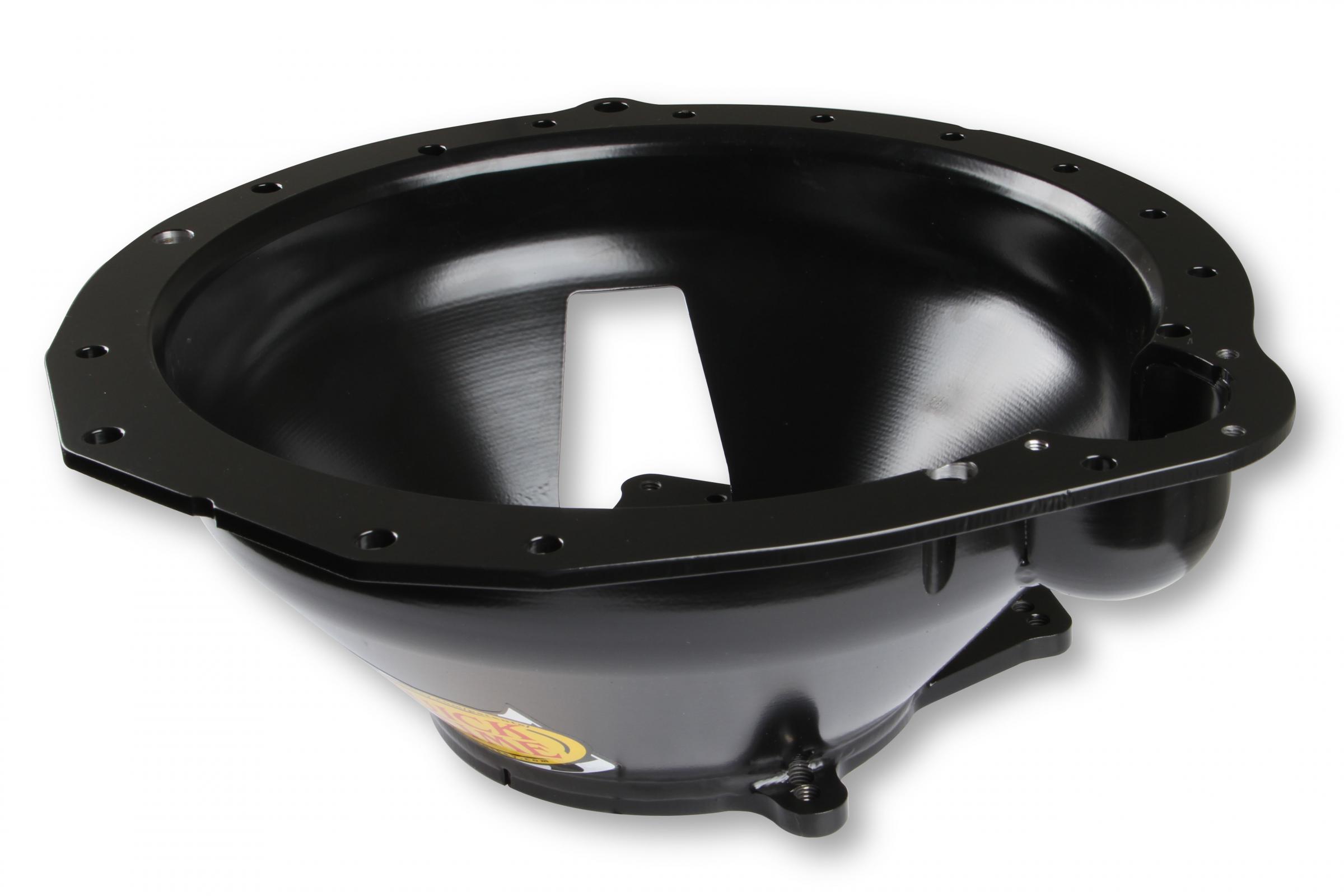

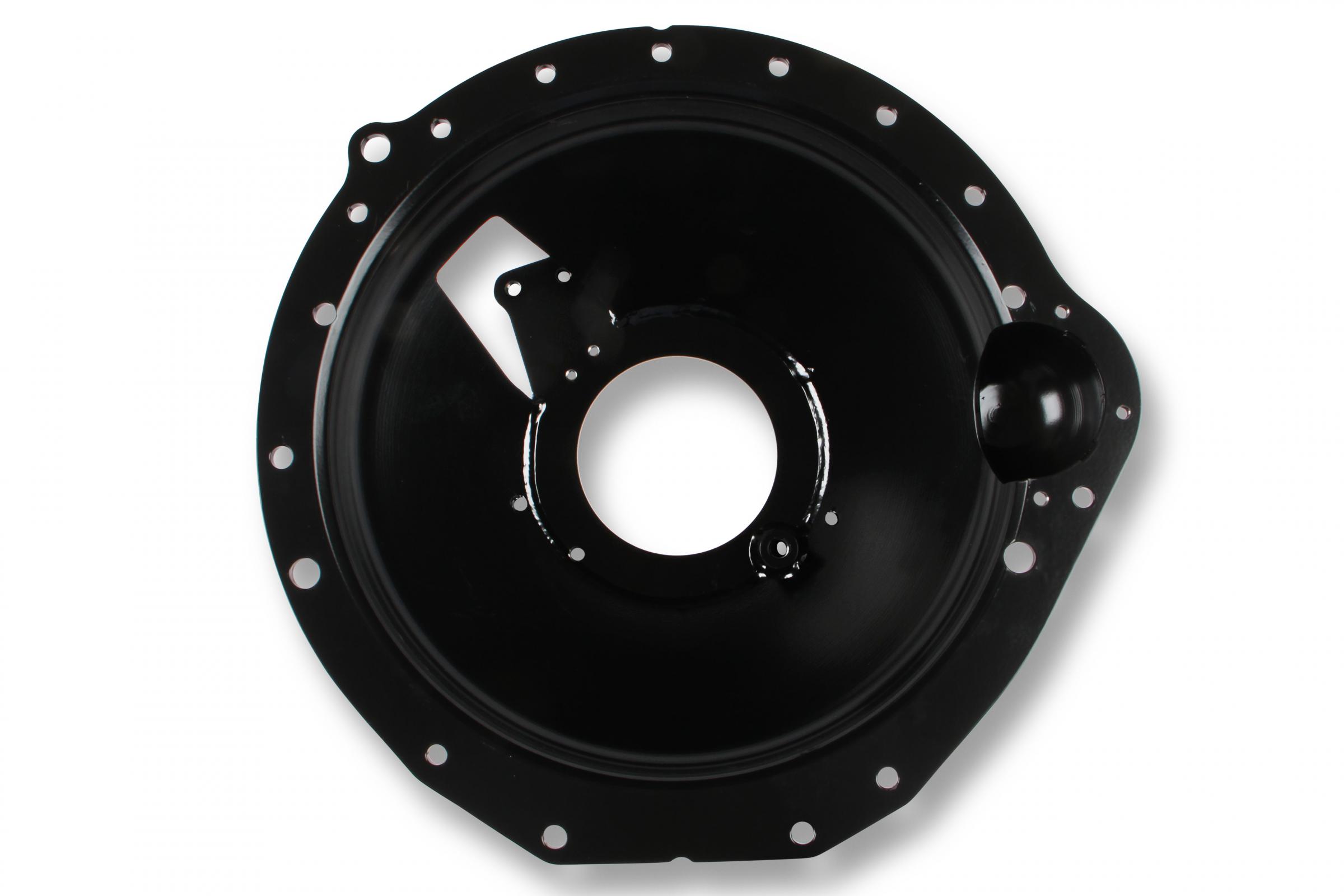

Built from high-grade steel, the cone is spun not stamped or rolled making this bellhousing the most dimensionally stable and accurate on the market today. This 6.925-inch deep bellhousing will clear a 157 or 164-tooth flywheel and 11-inch clutch assembly.

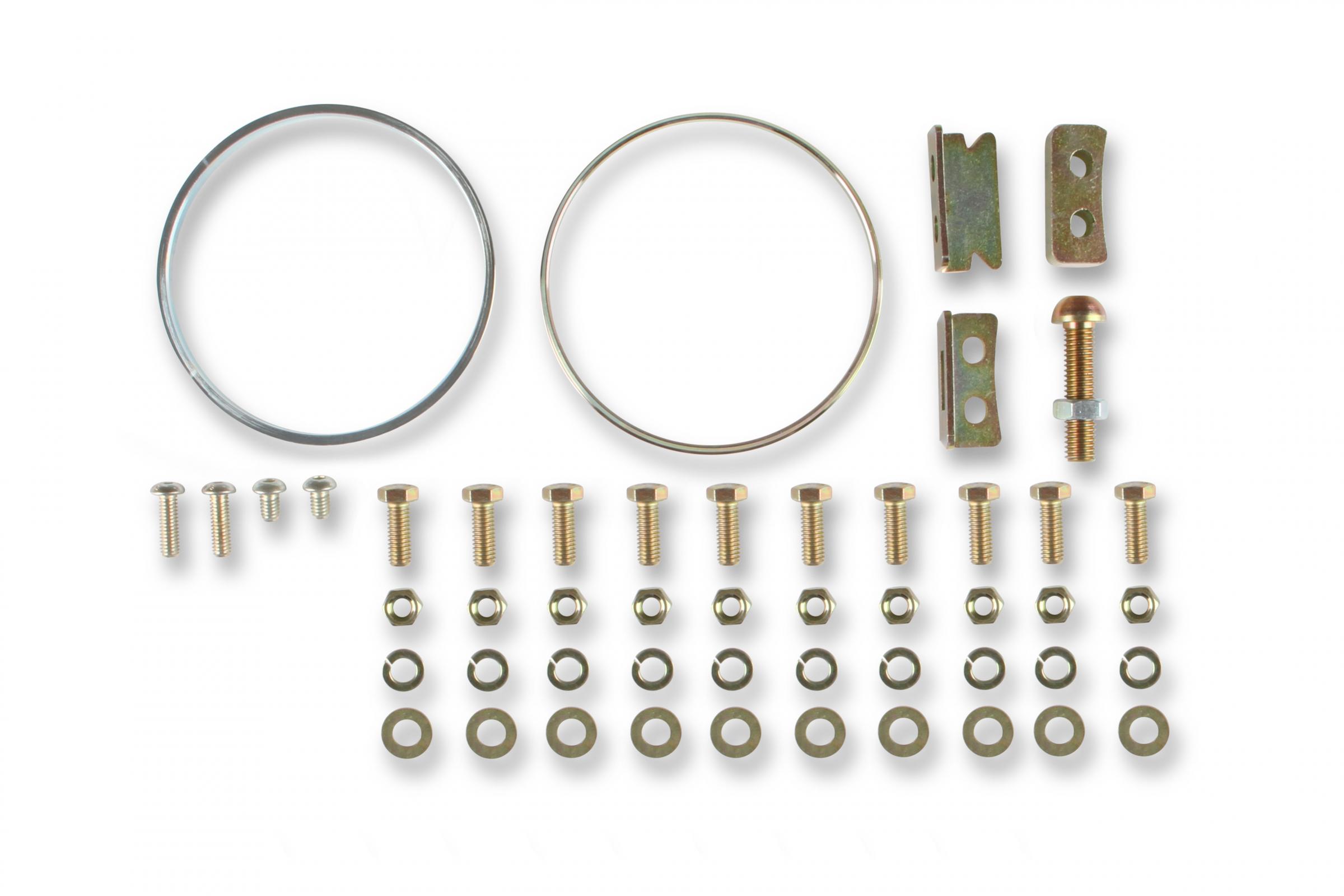

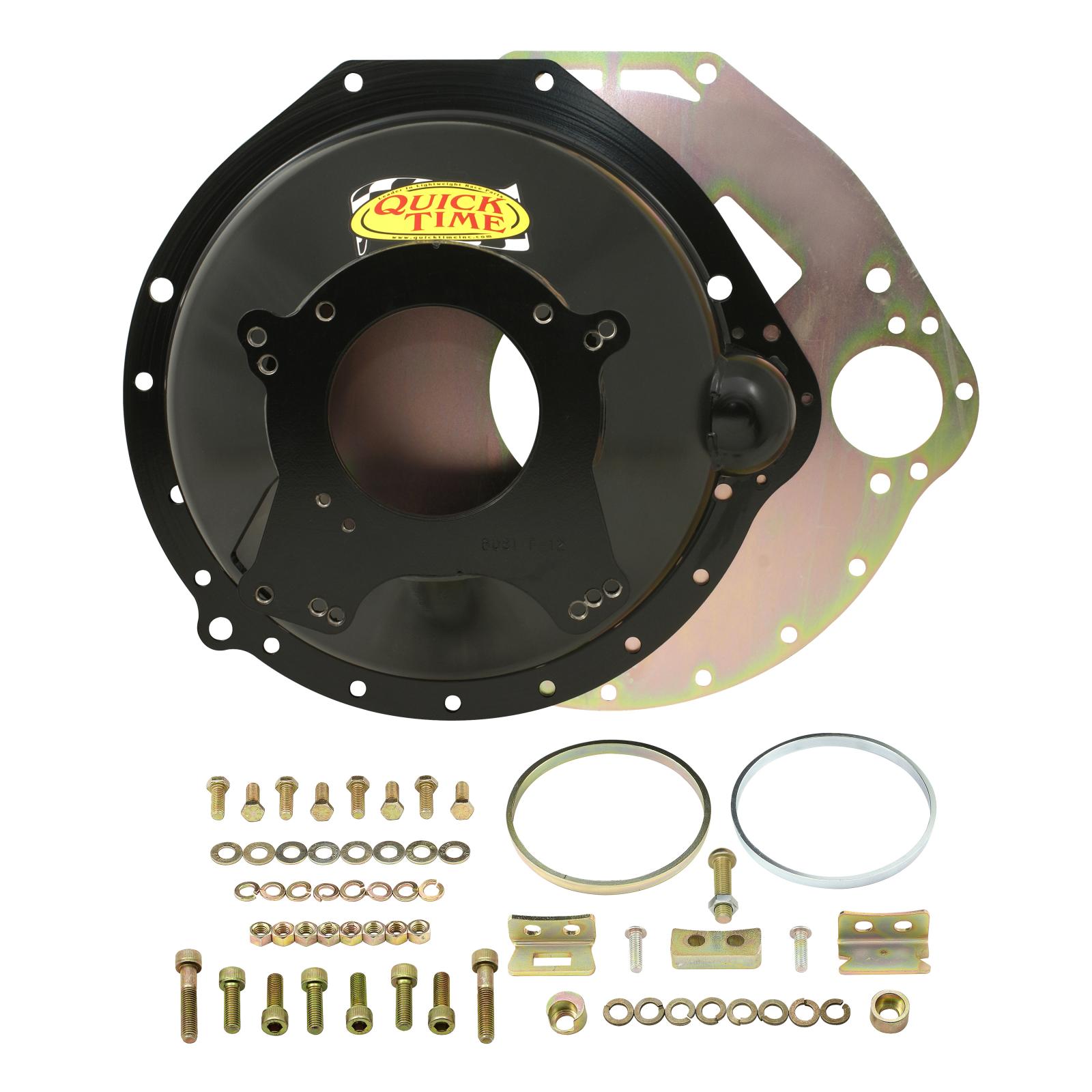

Transmission bore is universal at 4.685 - 4.910 inch. Kit comes complete with pivot ball, block plate, and Grade 8 hardware.

Features and Benefits:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes

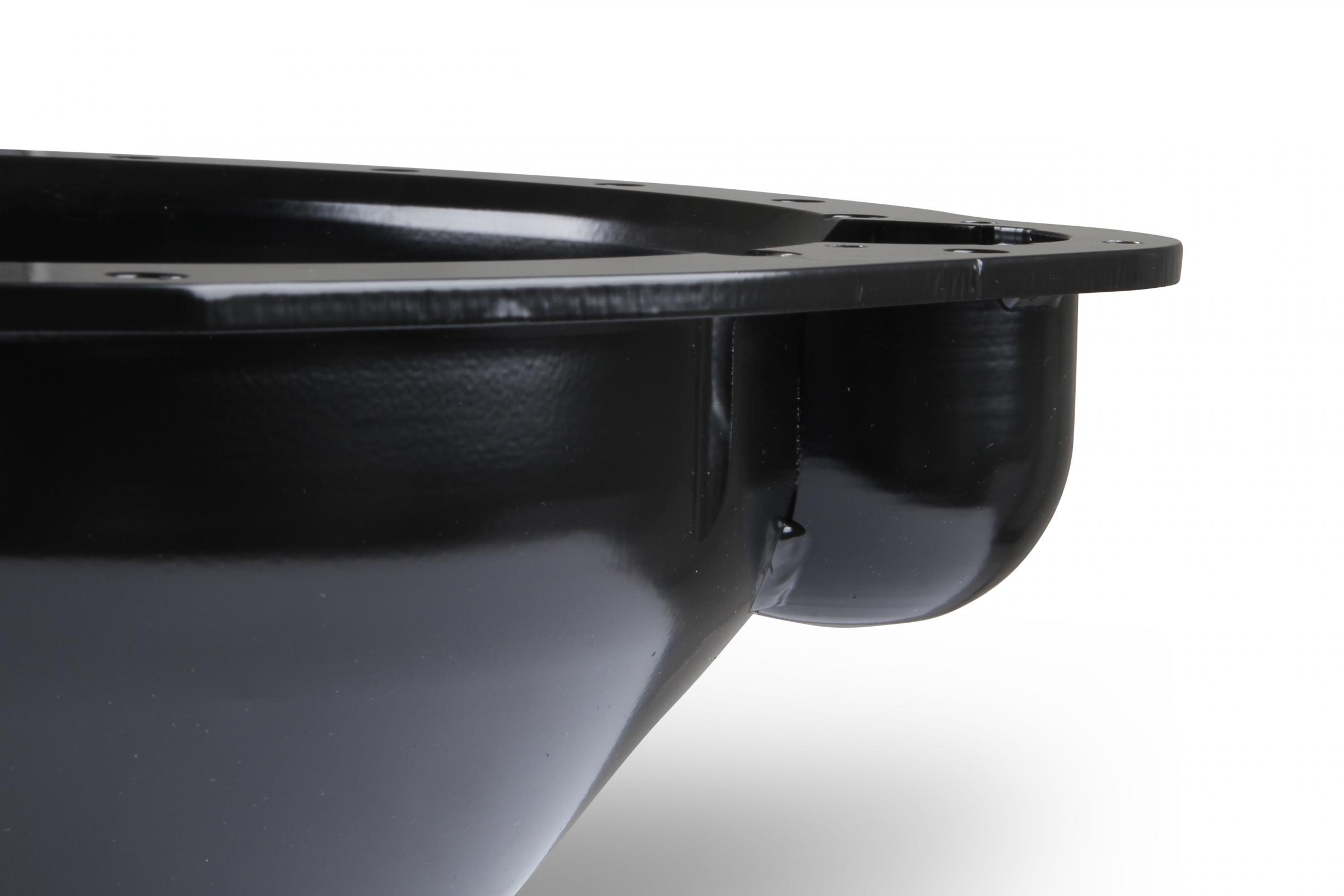

• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Semi-gloss
• Flywheel: 157/164 Tooth
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: TKX Ford, TR3550, TKO 500/600 Ford, T5 Ford 1983-1993
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Ford 5.4 Modular, Ford 7.3L Godzilla, Ford Mod Motor, Ford 5.8 Modular, Ford 5.0L Coyote
• Engine Make: Ford
• Make: Ford
• Weight: 22#

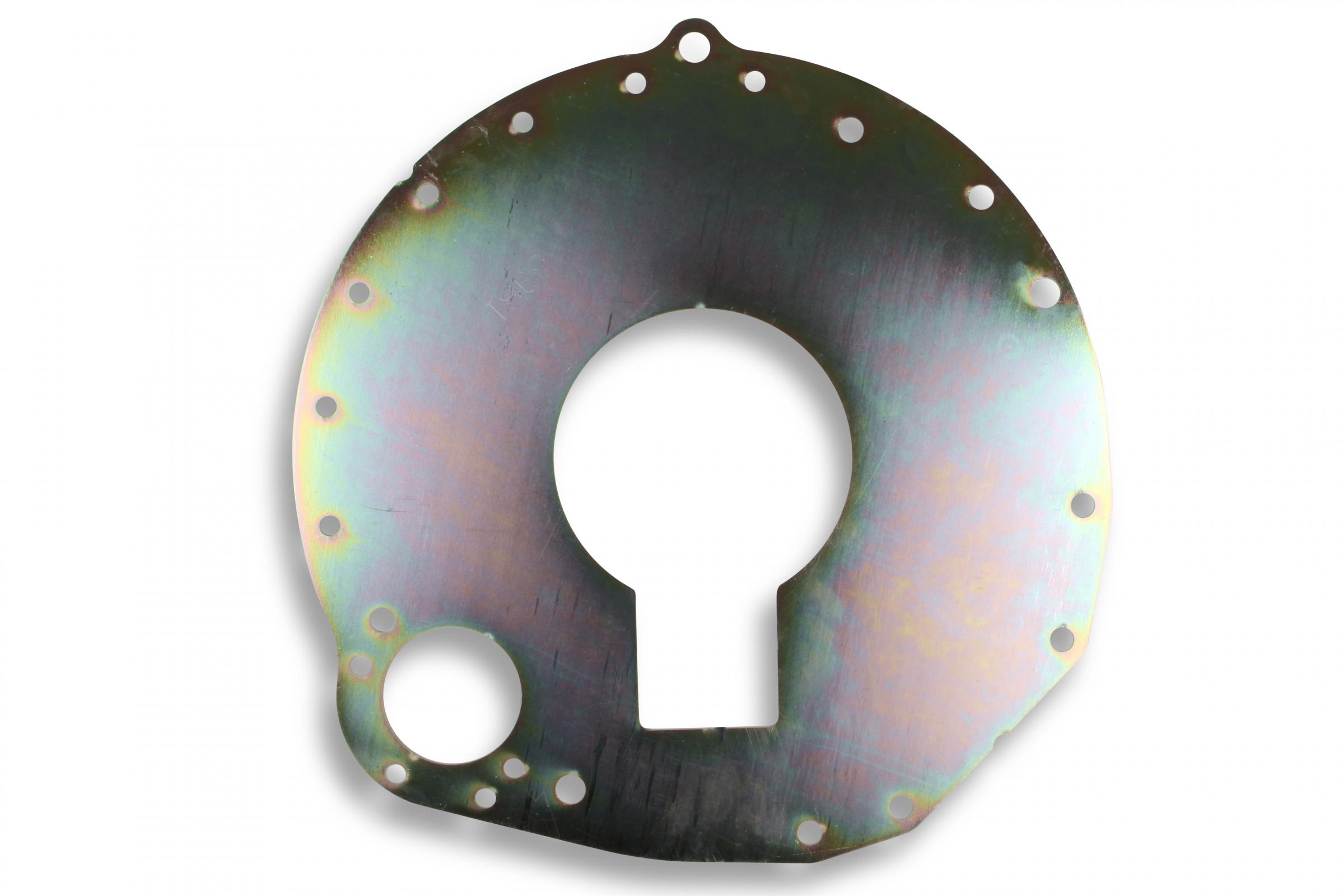

• Engine Plate: RM-6081-C
• Height: 6.925 inch
• SFI Certification: 6.1
• Trans Bore: 4.85 / 4.91 / 5.12
• Trans. Bore Diameter: 4.85 / 4.91 / 5.12 inch
• Weight (lb): 22

Application Summary:

1900 Car Ford Ford Mod (Aspiration: Naturally Aspirated, Supercharged & Cylinder Head: Dohc, Sohc & Liter: 4.6, 5.4 & Engine(ci): 281, 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54, 4.17 & Stroke(mm): 90, 105.7 & Engine VIN: V, Y, R, W, 9, H, S, L, A, M, 6, 5, X, Z, 3, 8 & Valves: 32, 16, 24 & Ignition: Distributorless & Fuel: GAS, CNG, LPG, Flex, BI-Fuel & Fuel Delivery: FI & Fuel Delivery SubType: MFI & Fuel Delivery Sytem Control: Electronic & Fuel Delivery Sytem: SFI & Engine Version: InTech, Triton, Triton (Romeo), Triton (Windsor))
