Built from high-grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.

Features and Benefits:

Patent on 16 points of Bellhousing Design & Process

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 164 Tooth

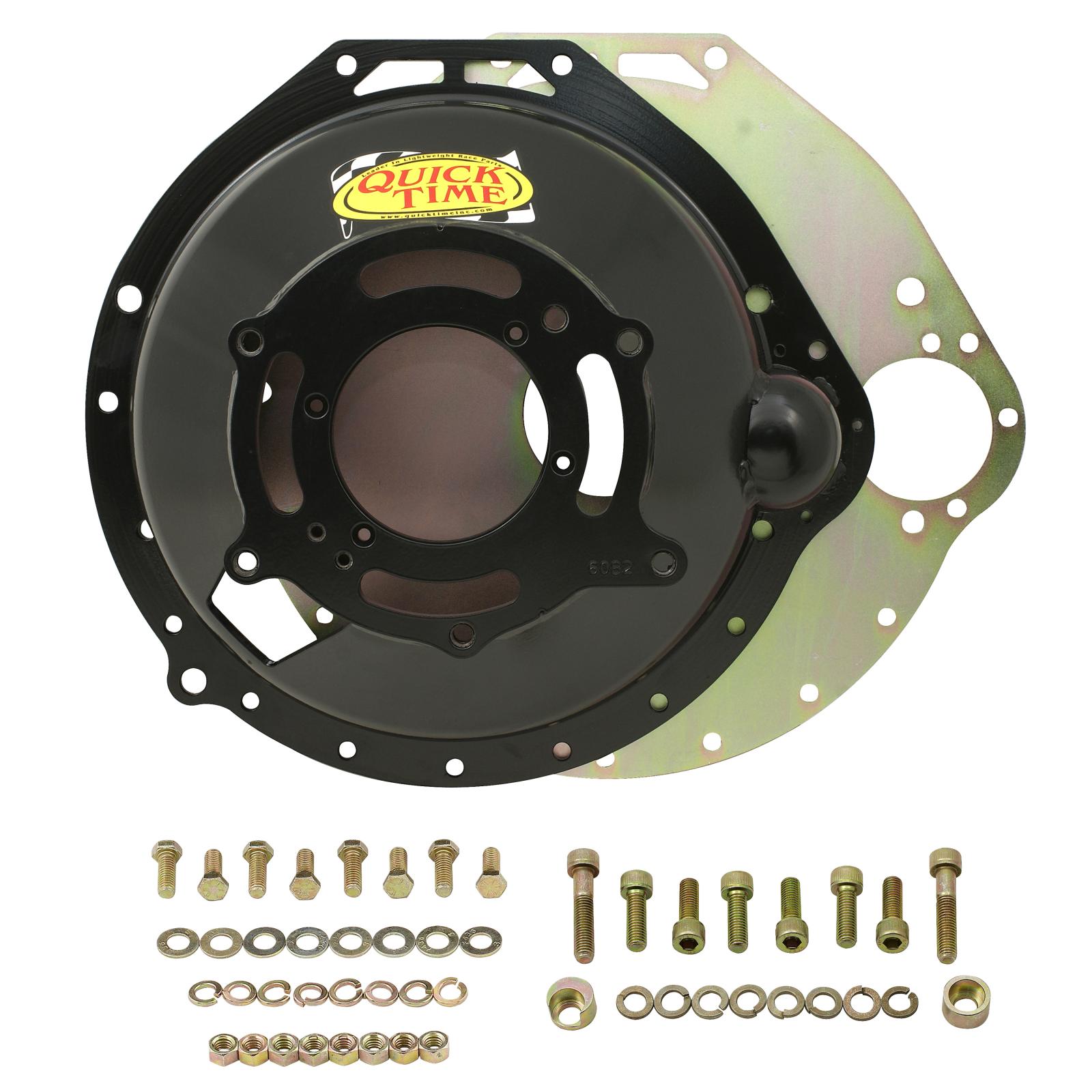

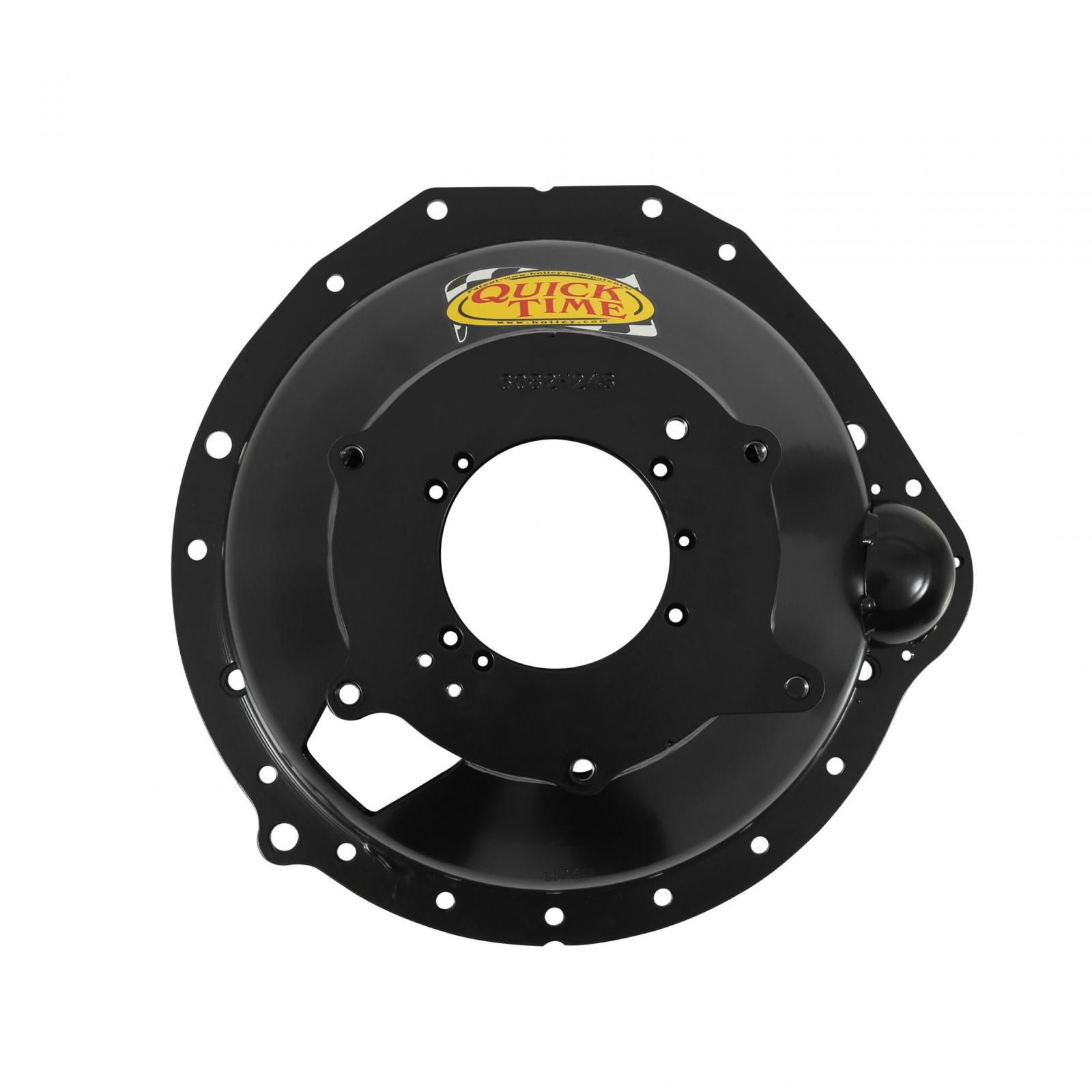

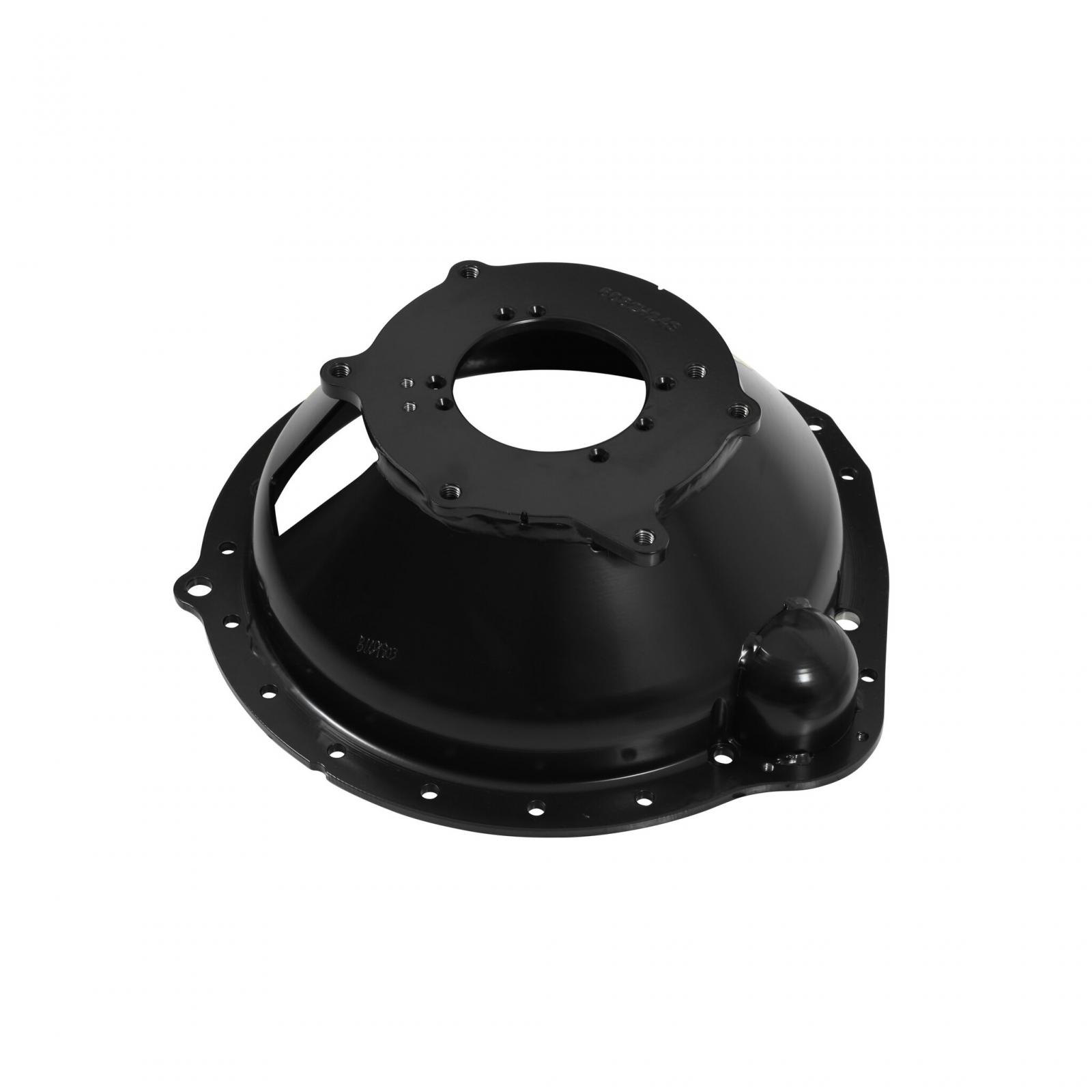

• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: TKX GM, Bert Racing, Jerico, Richmond, T10, Muncie, Brinn Racing, T5 GM, Falcon, Saginaw, TKO 500/600 GM
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Ford 5.4 Modular, Ford 5.8 Modular, Ford Mod Motor, Ford 5.0L Coyote, Ford 7.3L Godzilla
• Engine Make: Ford
• Make: Ford
• Weight: 22#
• Clutch Diameter: 11 inch

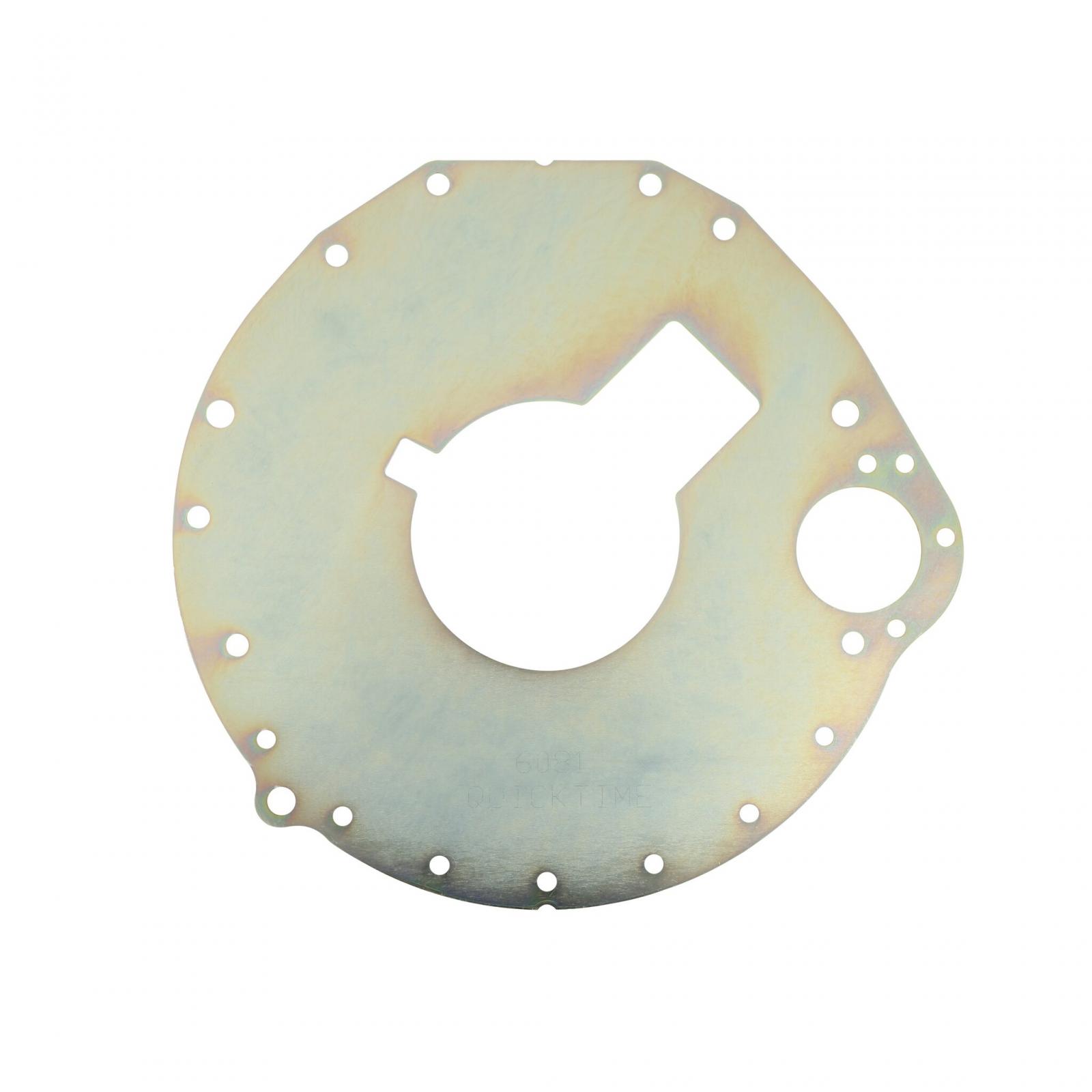

• Engine Plate: RM-6081-C
• Height: 6.300 inch
• SFI Certification: 6.1
• Trans Bore: 4.687
• Trans. Bore Diameter: 4.687 inch
• Weight (lb): 22
• SFI: 6.1

Application Summary:

1900 Car Ford Ford Mod (Aspiration: Naturally Aspirated, Supercharged & Cylinder Head: Dohc, Sohc & Liter: 4.6, 5.4 & Engine(ci): 281, 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 3.54, 4.17 & Stroke(mm): 90, 105.7 & Engine VIN: V, Y, R, W, 9, H, S, L, A, M, 6, 5, X, Z, 3, 8 & Valves: 32, 16, 24 & Ignition: Distributorless & Fuel: GAS, CNG, LPG, Flex, BI-Fuel & Fuel Delivery: FI & Fuel Delivery SubType: MFI & Fuel Delivery Sytem Control: Electronic & Fuel Delivery Sytem: SFI & Engine Version: InTech, Triton, Triton (Romeo), Triton (Windsor))
