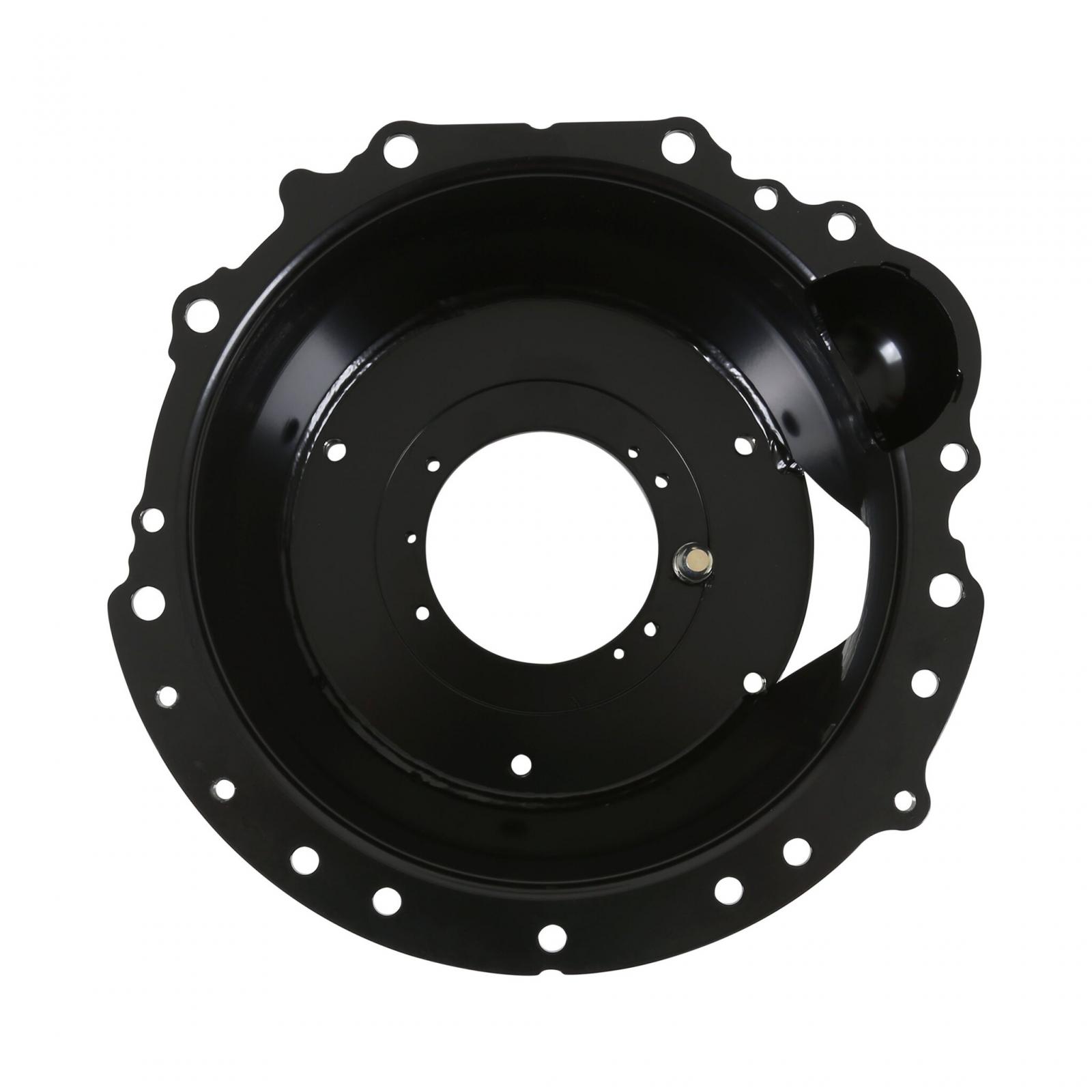

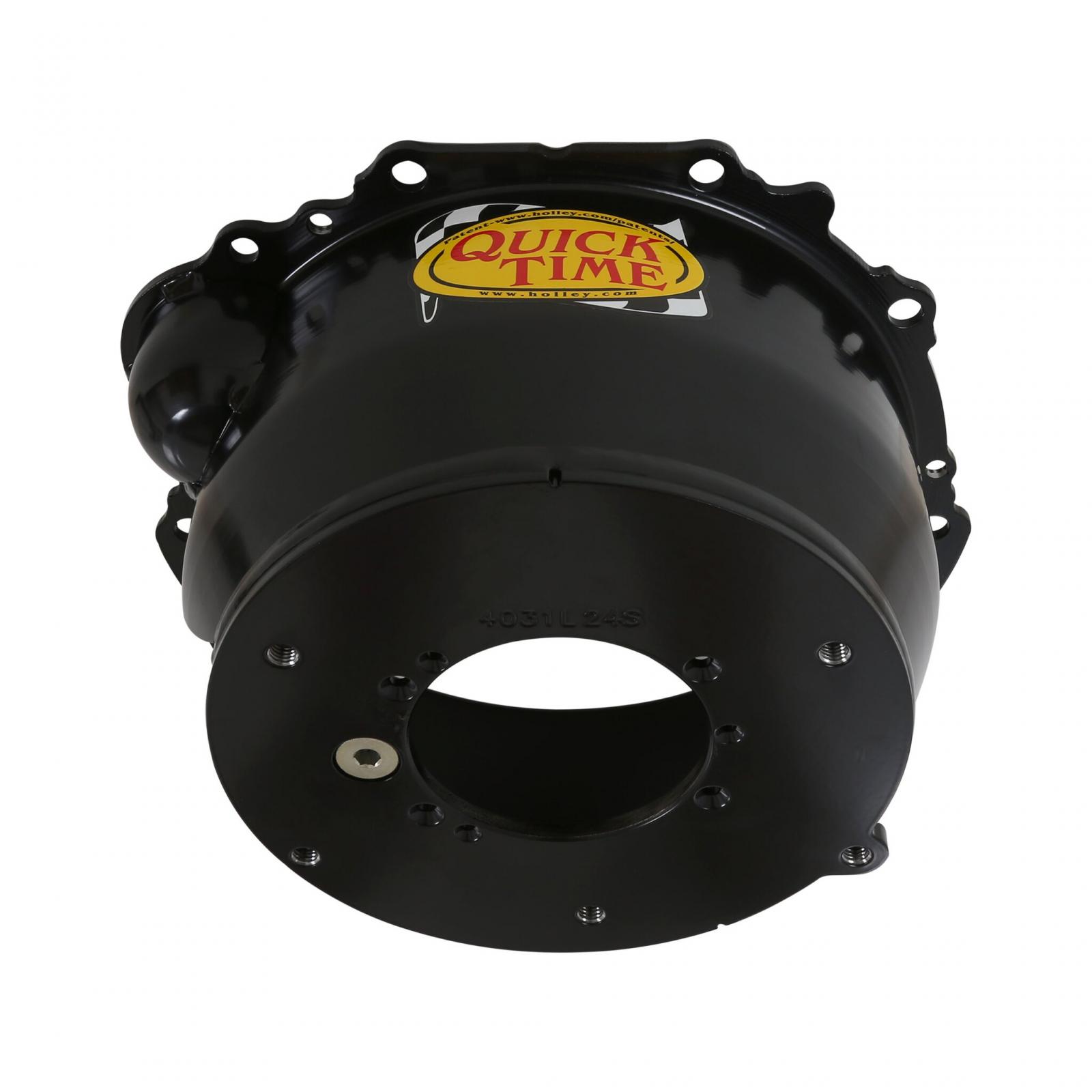

This Quick Time lightweight steel bellhousing fits Toyota 1JZ or 2JZ to Muncie / Jerico transmission. Transmission: Falcon, Muncie, Jerico, Saginaw, Richmond, Bert Racing, Brinn Racing, T10, TKO 500/600, TKX

Features and Benefits:

• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• 100 percent built in the USA
• Patent on 16 points of Bellhousing Design & Process
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Installation Note: RM-4031 needs a pilot bearing installed in the flywheel, as opposed to the crankshaft

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Finish: Powdercoated
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: Falcon, TKO 500/600 GM, Saginaw, TKX GM, T10, Bert Racing, Brinn Racing, Jerico, Muncie, Richmond
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Toyota 1JZ, Toyota 2JZ
• Engine Make: Toyota
• Make: Toyota
• Weight: 22#

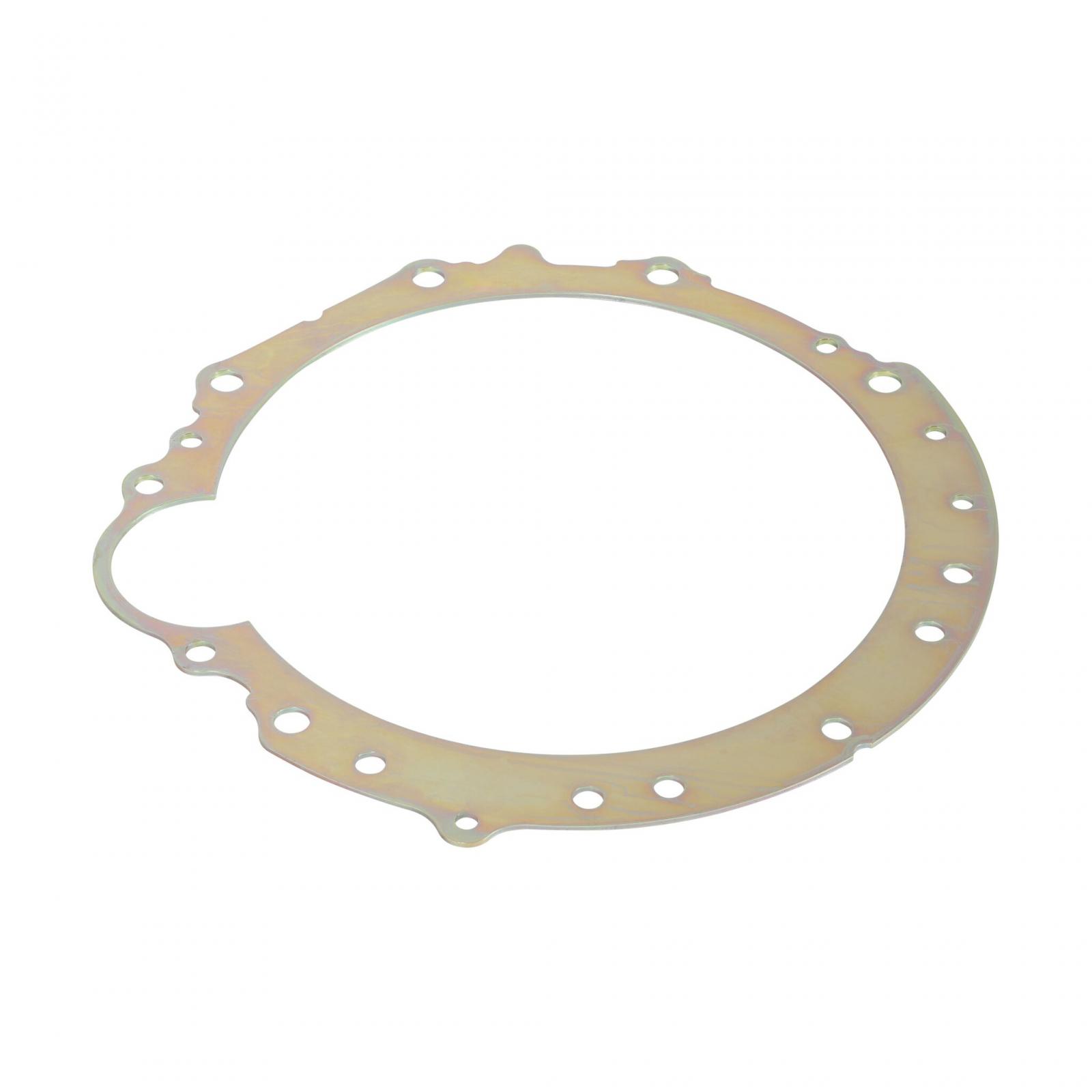

• Engine Plate: RM-4031-C
• Height: 6.400 inch
• SFI Certification: 6.1
• Trans Bore: 4.688
• Trans. Bore Diameter: 4.685 inch
• Weight (lb): 22

Associated Comments:

Installation Note: RM-4031 requires a flywheel with a pilot bearing included, as opposed to located on the crankshaft
