Description
When we developed our Transmission Fluid Change Kits over 10 years ago, the MT82 Transmission Fluid Kit was the first kit released. We have offered the Tremec Kit for almost as long. We have combined our BG Syncro Shift Kit with your choice of BG Ultra-Guard Differential Fluid which allows you to perform a complete driveline service with 1 kit for your Tremec TR6060 equipped Mustang.
Improves the shift performance of the Tremec 6060 6 speed manual transmission used in the Ford Mustang GT500, or any Mustang that has been converted to the TR6060 Transmission The OEM Automatic Transmission Fluid (ATF) Fill does not stand up to the heat and loads generated when these vehicles are driven hard in a Road Course environment.
Automatic transmission fluids (ATFs) and other light lubricants are often recommended for use in transfer case, manual transmission, and transaxle applications. Due to their light viscosity and low film strength these fluids do not fully protect all components. Manual transmissions and transaxles in particular, induce severe fluid shearing, greatly sacrificing wear protection.
We recommend Following Ford's Guidelines and using the 75W-140LS Fluid in all Solid Axle 8.8" Mustangs.
BG Ultra-Guard® LS Heavy Duty Full Synthetic Gear Lubricant is a full synthetic API GL-5 rated gear lubricant blended to SAE 75W-140 viscosity specifically for heavy-duty and commercial vehicles. It provides the ultimate protection for driveline components. It withstands the punishing effects of extreme heat and arctic conditions.
BG Ultra-Guard® LS Heavy Duty is recommended for use in applications requiring Ford WSL-M2C-192-A gear lubricant. Excellent for use in conventional and limited-slip applications.
For High Power or Track Driven Mustangs we recommend 75W-140LS Ultra-Guard Heavy Duty. Customer Feedback has shown the 75W-140 Viscosity delays the Differential Over Temperature Warning Experienced on a Road Course. This fluid operates similarly to 75W-90 at low temperatures.
BG Ultra-Guard® LS Heavy Duty Full Synthetic Gear Lubricant is a full synthetic API GL-5 rated gear lubricant blended to SAE 75W-140 viscosity specifically for heavy-duty and commercial vehicles. It provides the ultimate protection for driveline components. It withstands the punishing effects of extreme heat and arctic conditions.
BG Ultra-Guard® LS Heavy Duty is recommended for use in applications requiring Ford WSL-M2C-192-A gear lubricant. Excellent for use in conventional and limited-slip applications.
BG Syncro Shift® II provides exceptional thermal stability along with outstanding extreme pressure characteristics. The special additive chemistry contained in BG Syncro Shift® II does not sacrifice any performance characteristics as does ATF or other low viscosity fluids.
BG Syncro Shift® II was the foundational chemistry we rely upon. We have shipped thousands of quarts of this product to every corner of the world.
BG Syncro Shift® II Full Synthetic Gear Lubricant is specially formulated for manual transmissions, transaxles, transfer cases, and Haldex units. It is a full synthetic API GL-4 gear lubricant that provides unmatched film strength and wear protection. It provides exceptional resistance to mechanical shearing, has excellent low-temperature fluidity, and is safe for all steel, brass, and copper alloys.
BG Syncro Shift® II is an API GL-4 gear lubricant blended to SAE 75W-75 viscosity and may be effectively used in all vehicles where engine oil, ATF, or GL-4 gear oil is specified as “service fill” for manual transmissions.
Compatible and suitable for use where the following are specified:
Ford XT-11-QDC (Spec. WSS-M2C200-D2)
GM Auto Trak I and II
GM Versa Trak
GM Synchromesh
GM PN 12345349 (specification 9985648)
GM Transfer Case Fluid PN 88861950
Mopar PN 04874464, PN 05016796AB, PN 05016796AC, PN 05170055AB, PN 05179014AA, PN 68001758AA, PN 68089195AA, PN 68092630AA
Motorcraft XL-12
We include 4 - 32oz (Quarts) of Syncro Shift II, 6oz of MGC Additive, a fluid pump, 3 - 32oz (Quarts) of Ultra-Guard, a pump, dipstick, teflon sealant tape and Color Instructions.
Video
Fitment
Fits all 2007-2014 GT500 Mustangs with the Tremec TR6060 6 Speed Manual Transmission. Kit is designed for 8.8" Axles equipped with a drain plug.
Installation
Specs
Specifications: BG Ultra-Guard LS 75W-140
| Test | ASTM Test Method | Typical Test Results |
| API Gravity @ 15.6°C (60°F) | D4052 | 28.6 |
| Specific Gravity @ 15.6°C (60°F) | D4052 | 0.8837 |
| Density, U.S. lb./gal. @ 15.6°C (60°F) | D4052 | 7.375 |
| Pour Point | D6749 | –40°C (–40°F) |
| Viscosity, cSt @ 40°C (104°F) | D445 | 184.97 |
| Viscosity, cP @ –40°C (–40°F) | D2983 | 111,400 |
| Viscosity, cSt @ 100°C (212°F) | D445 | 26.84 |
| Viscosity Index | D2270 | 182 |
| Flash Point, Grabner | D7094 | 143°C (289°F) |
| Color | D1500 | L2.0 |

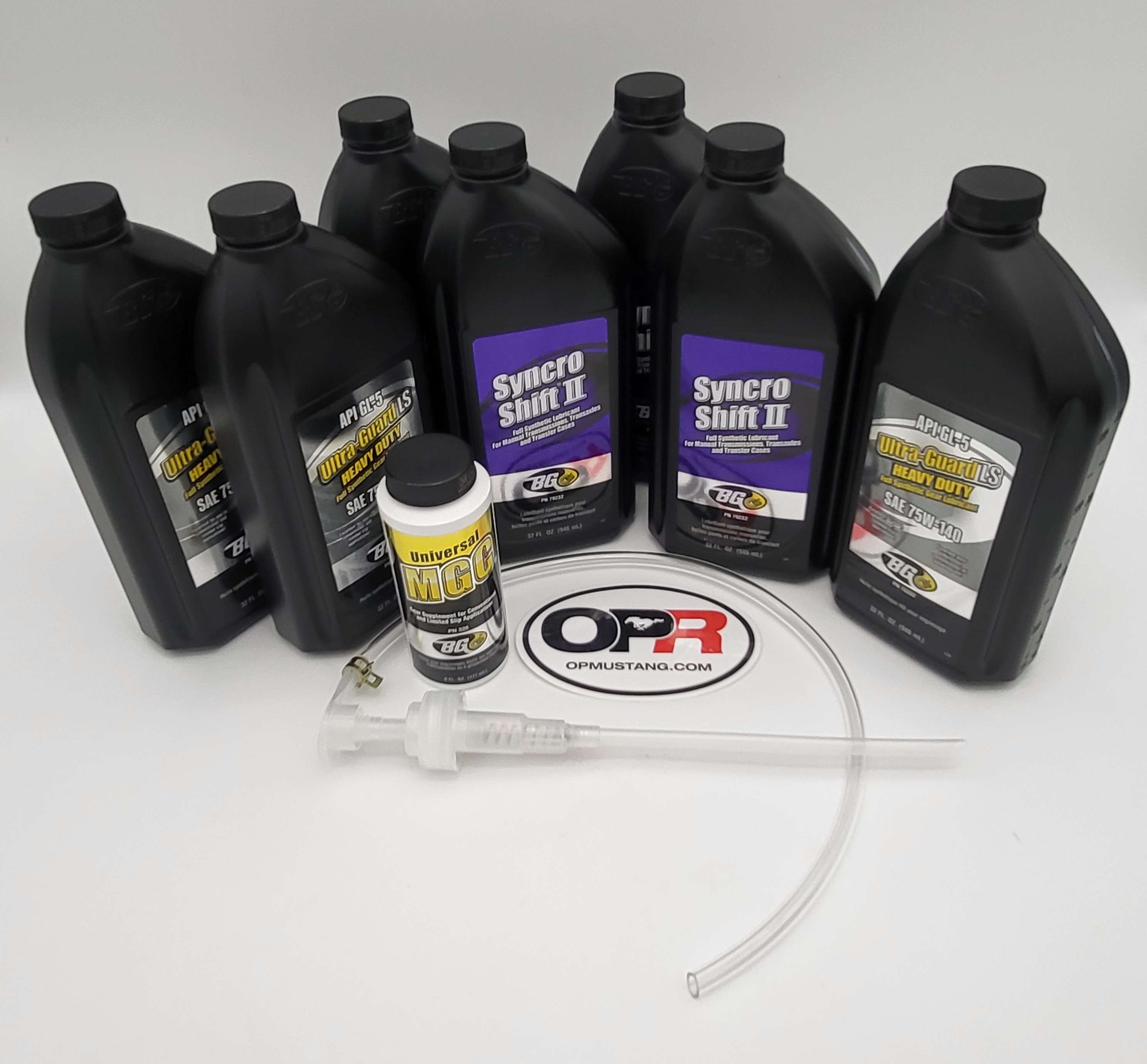

Kit Components
4 - 32oz Bottles of BG Syncro Shift II
1 - 6oz Bottle of MGC
3 - 32oz Bottles of BG Ultra-Guard 75W-140LS
2 - Gear Oil Pumps
1 - Dipstick
1 - Roll of Teflon Sealant Tape
1 - Color Printed Instructions
