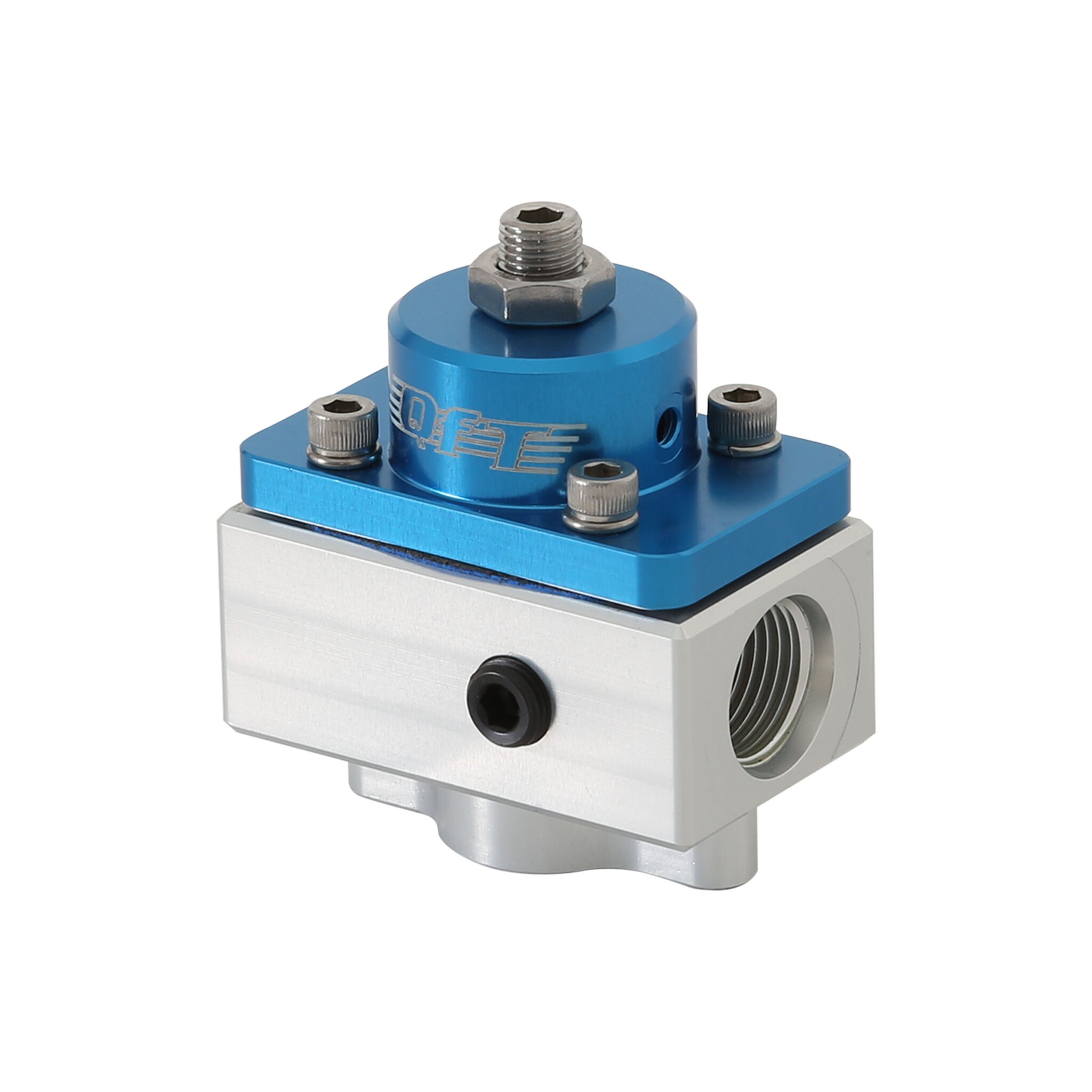

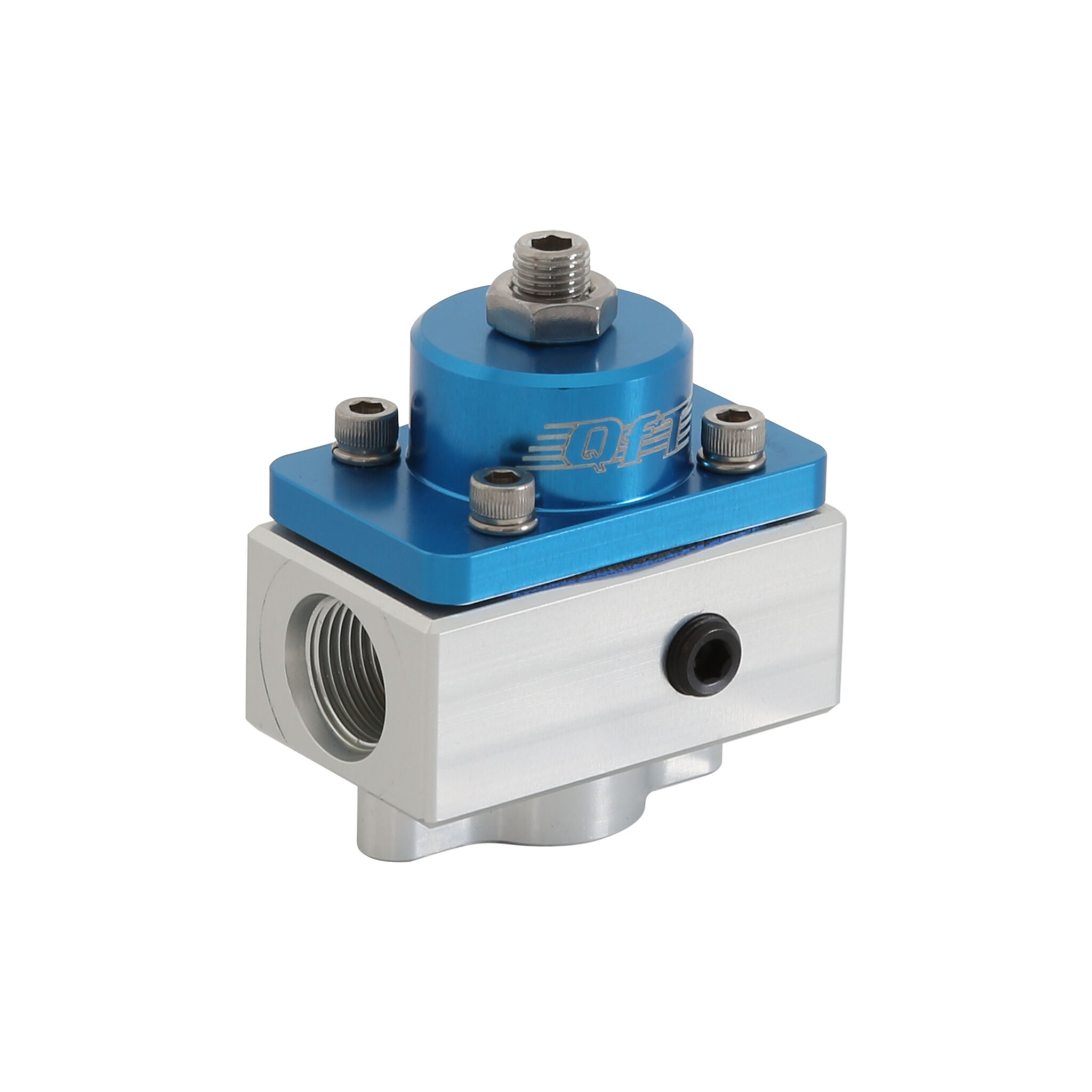

Billet Bypass Regulator W/Jet - Designed for use with a mechanical fuel pump where fuel pressure is variable. By-Pass feature is restricted with a jet that can be adjusted to set your desired low-side fuel pressure.

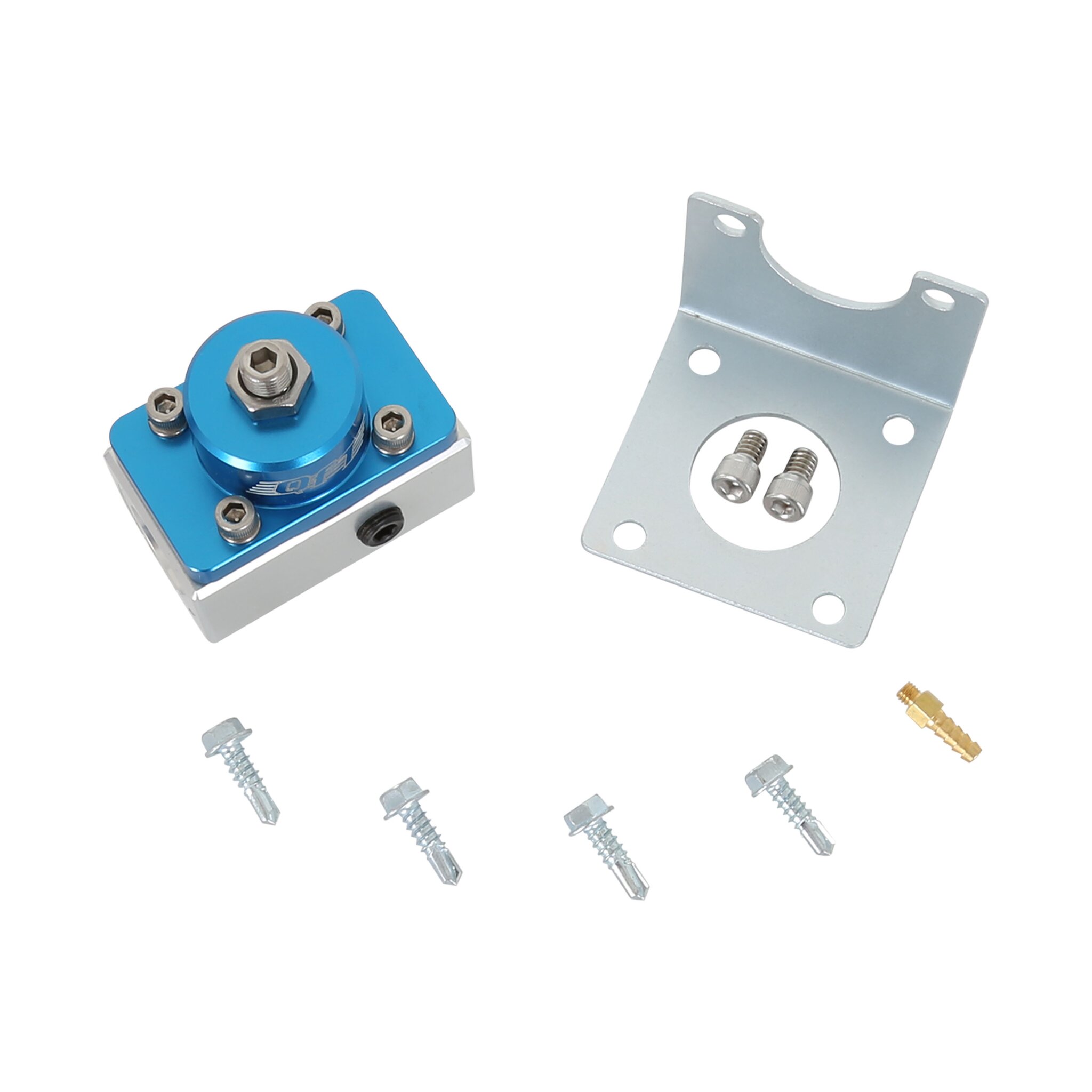

Blue anodized top has a fitting for boost referenced applications, comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required.

Features and Benefits:

• Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI
• .350 Inch (7/20 Inch) restriction
• Designed for use with alcohol fuel
• Compatible with QFT billet fuel pressure regulator logs
• Boost Reference 1-1
• Includes an 1/8 Inch NPT port for manifold reference

Details:

• Grade Type: Performance
• Fuel Type: Gasoline
• Adjustable: Yes
• Inlet Type: 8 AN ORB
• Outlet Type: 8 AN ORB
• Maximum Pressure: 9 Pounds per Square Inch
• Mounting Bracket Included: Yes
• Gauge Included: No
• Minimum Pressure: 4.5 Pounds per Square Inch
• Gauge Port Included: Yes
• Rebuildable: Yes
• Vacuum Port Quantity: 1
• Warranty: Manufacturer's Limited 90 Day Warranty
