Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems.

Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory so there is no guesswork when first installing the regulator.

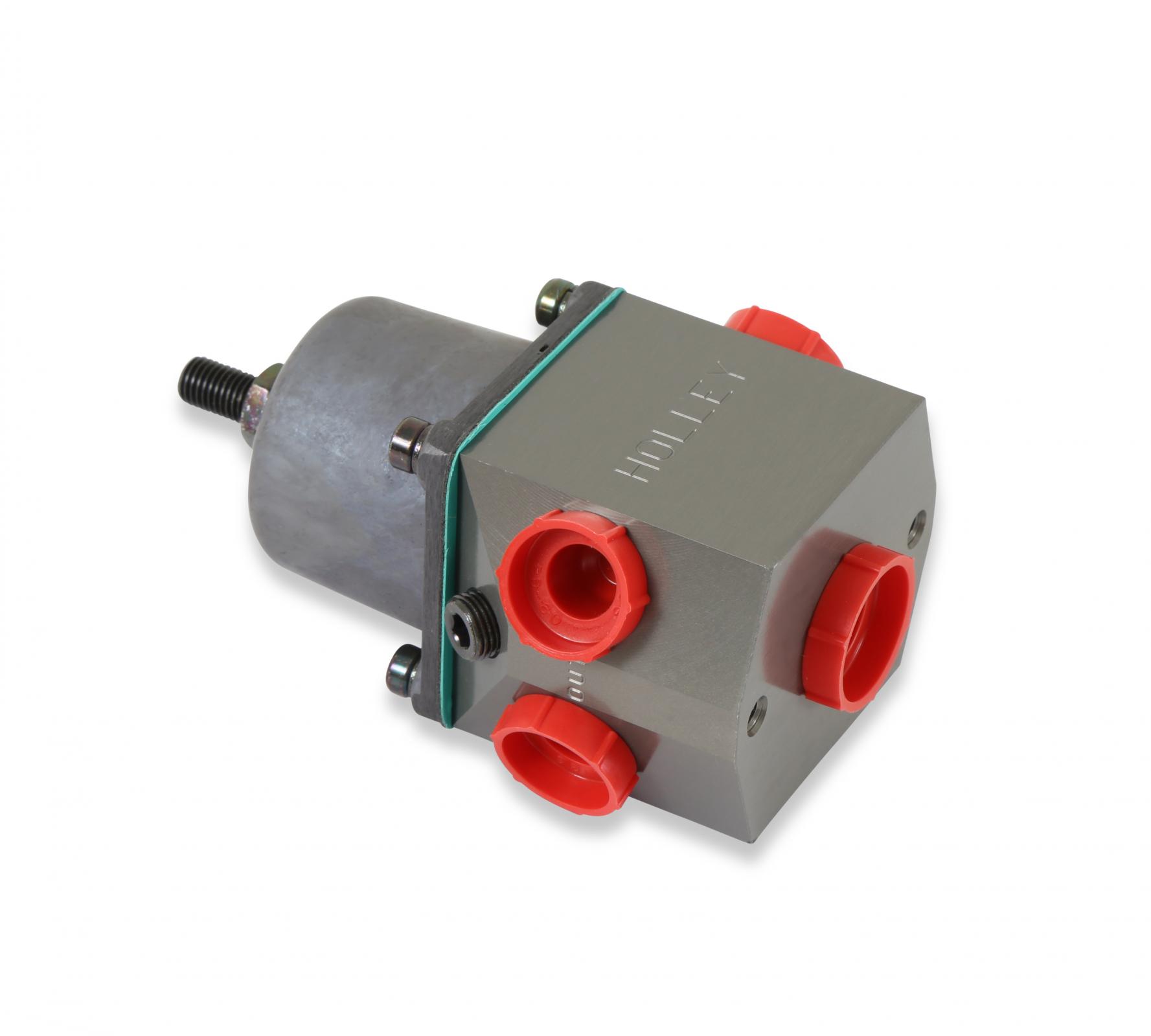

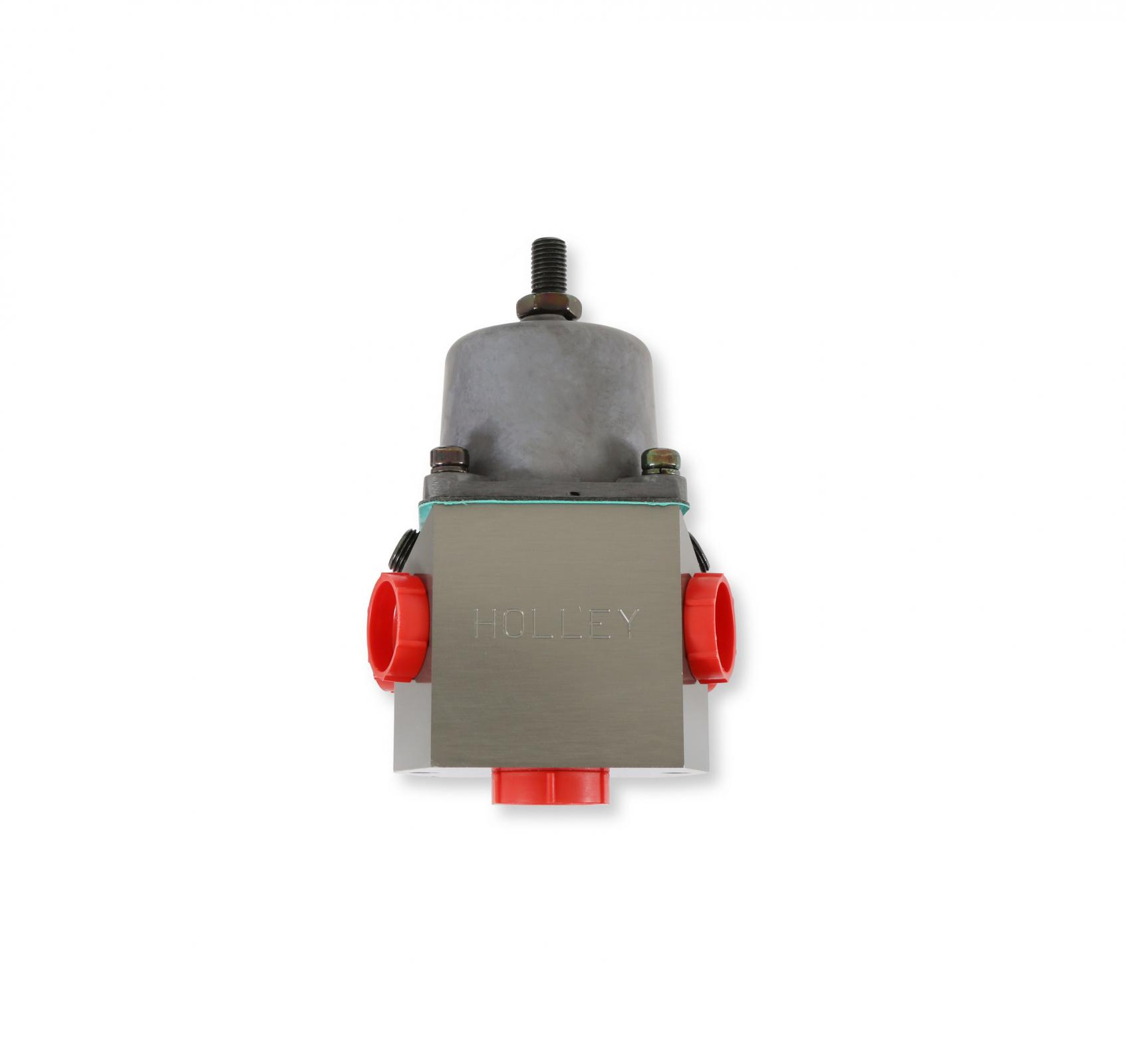

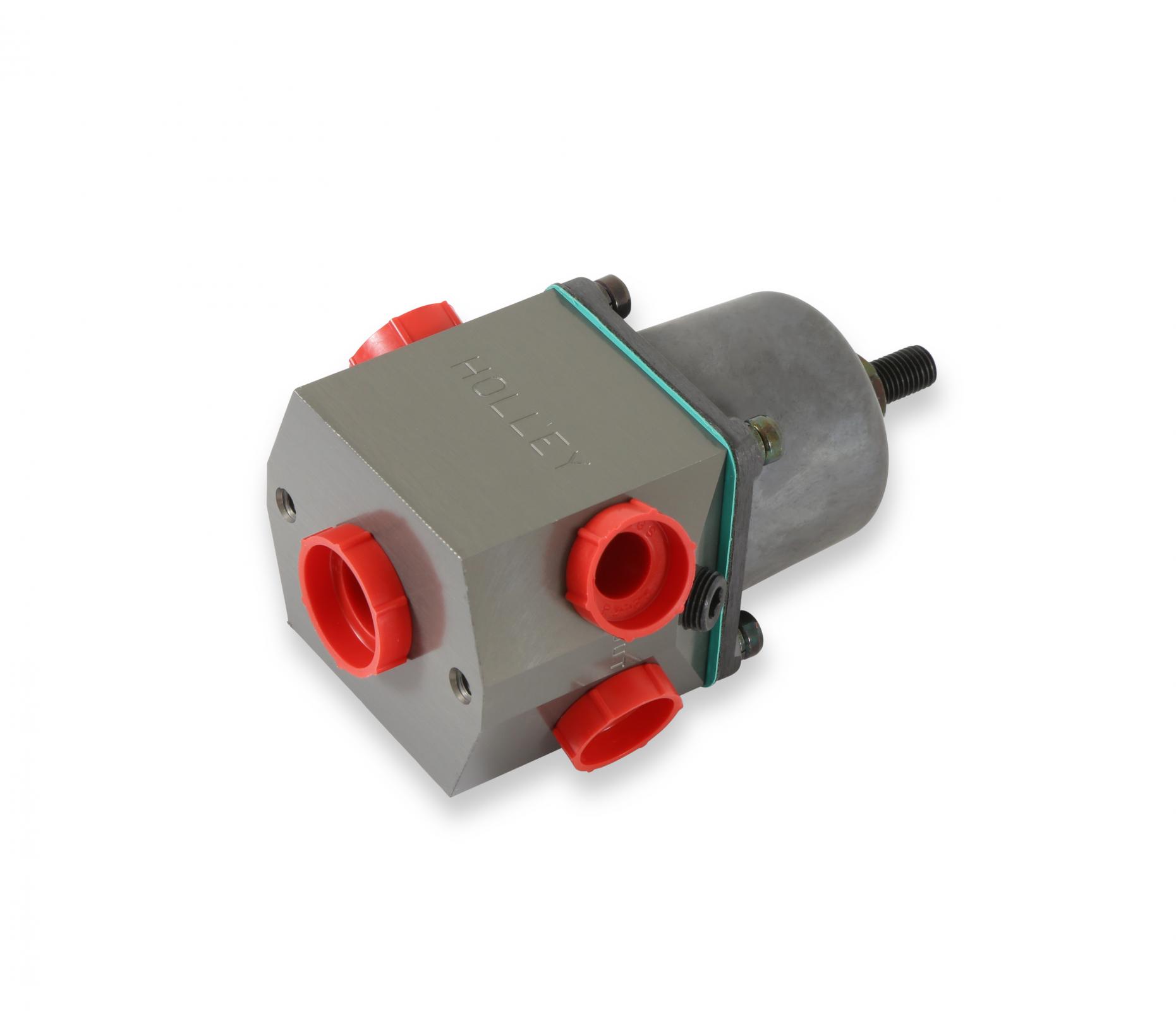

The Holley 12-707 fuel pressure regulator features 1 -8 inlet & 4 -6 outlet ports.

Features and Benefits:

• Adjustable fuel regulation from 4-1/2 to 9 psi One -8 inlet port and four -6 outlet ports .437 inch (7/16 inch) restriction Aluminum billet body and top casting cover are hard coat anodized for corrosion resistance Three fuel pressure gauge mounting options (fuel pressure gauge not included) Includes mounting hardware and An fittings Compatible for use with gasoline and methanol/alcohol

Associated Comments:

• Regulator is compatible with Diesel #1 and Diesel #2.

Details:

• Adjustable: Yes
• Color: Hard Coat Anodized
• Fuel Type: Diesel | Gasoline
• Fuel System: Gasoline
• Gauge Included: Yes
• Gauge Port Included: Yes
• Grade Type: Performance
• Inlet Gender: Male
• Inlet Port Diameter: 8 An
• Inlet Port Quantity: 1.0
• Inlet Size: 8 An O-Ring
• Inlet Type: 8 An
• Material: Aluminum
• Maximum Pressure: 9 Pounds per Square Inch
• Minimum Pressure: 4.5 Pounds per Square Inch
• Mounting Type: Inline
• Outlet Gender: Male
• Outlet Port Diameter: 6 An
• Outlet Port Quantity: 4.0
• Outlet Size: 6 An O-Ring
• Outlet Type: 6 An
• Port Quantity: 5.0
• Pressure Range: 4.5-9 PSI
• Rebuildable: Yes
• Style: Non-Return
• Warranty: Manufacturer's Limited 90 Day Warranty
