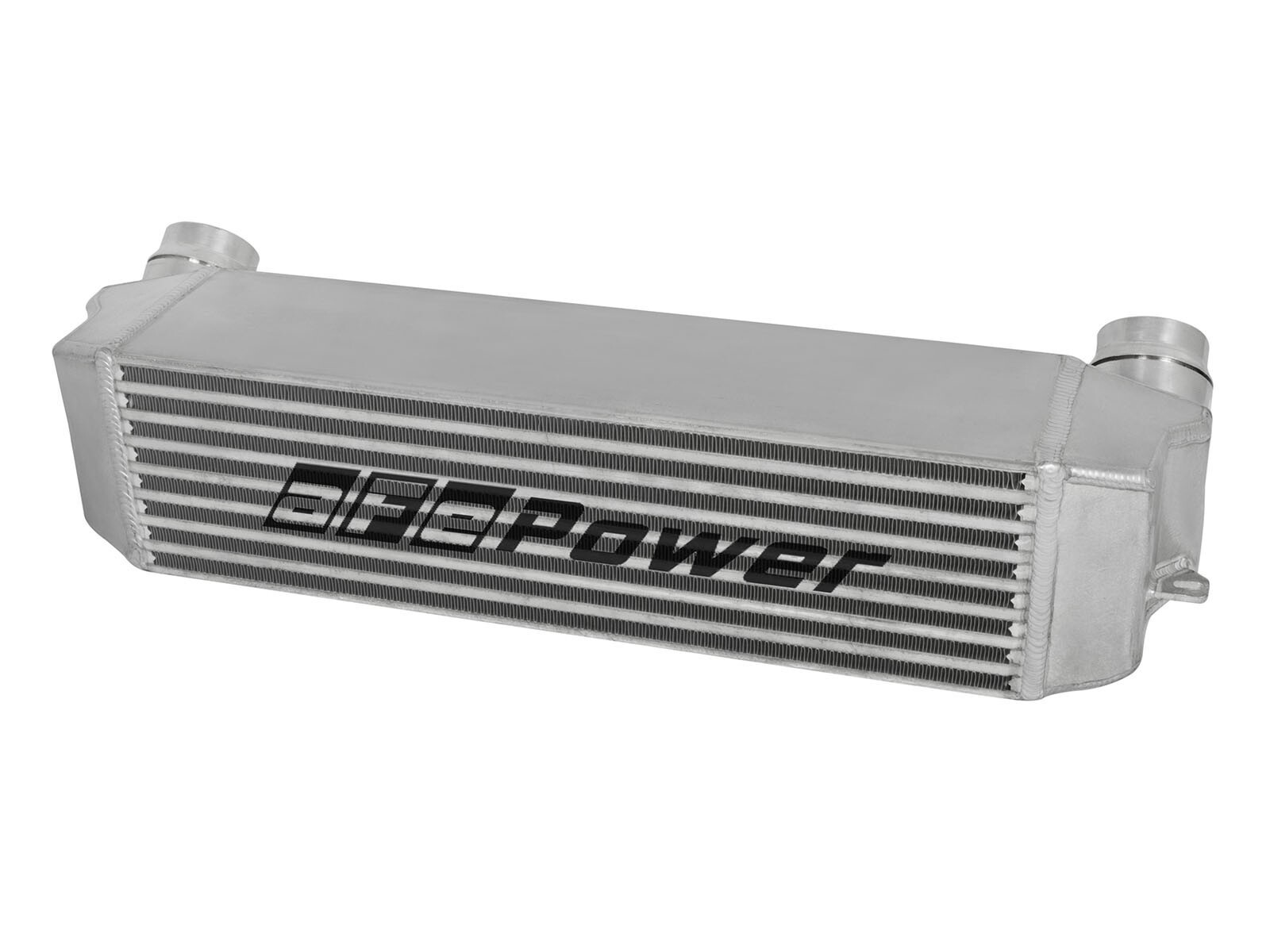

This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2012-2016 BMW 328i (F3X) 12-16 L4-2.0L (t) with the N20 engine, this BladeRunner intercooler utilizes a 5 Inch bar and plate core design. This design outflows the factory fin core design, while the 3/16 Inch Tig-Welded end tanks offer superior strength and durability.

In testing, this intercooler showed flow gains up to 17 percent and lowered the intake air temperatures. End Tanks: The unique BladeRunner end tanks are constructed out of 3/16 Inch thick aluminum plates and include two 1/8 Inch Npt ports for sensors or water-methanol injection. 5 Inch Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.

Tig-Welded: 100 percent Tig-Welded inside and out by a certified craftsmen for strength and durability. Tig-Welding provides the strongest welds while reducing stress cracks. Pressure Tested: The BladeRunner Intercooler is test pressure rated at 200psi.

Perfect Fit: Utilizes the factory mounting locations for a hassle-free installation. The intercooler and tubes utilize billet factory style quick connects to assure a leak-free connection.

Features and Benefits:

• Outflows Factory Intercooler By 17 percent
• Lowers Manifold Intake Air Temperature
• 2.5 Inch Billet Aluminum Intake/Outlet
• Incorporates Factory Style Quick Connections For Tubes
• 5 Inch Bar And Core Design 29 percent Larger than Stock
• 100 percent Tig Welded
• 1/8 Inch Npt Ports On Intercooler And Tube
• No Cutting Or Modifications Are Needed

Details:

• Emission Code: 1
• Engine Designation: N20B20A, N26B20A, N20B20U0
• Fuel Type: Gas
• Intake Pipe Material: Aluminum
• Liter: 2.0 Liter
• Series: BladeRunner GT Series
• Warranty: 2 Year

Applications:

• BMW 328i (F30) 12-18 L4-2.0L (t) N20
