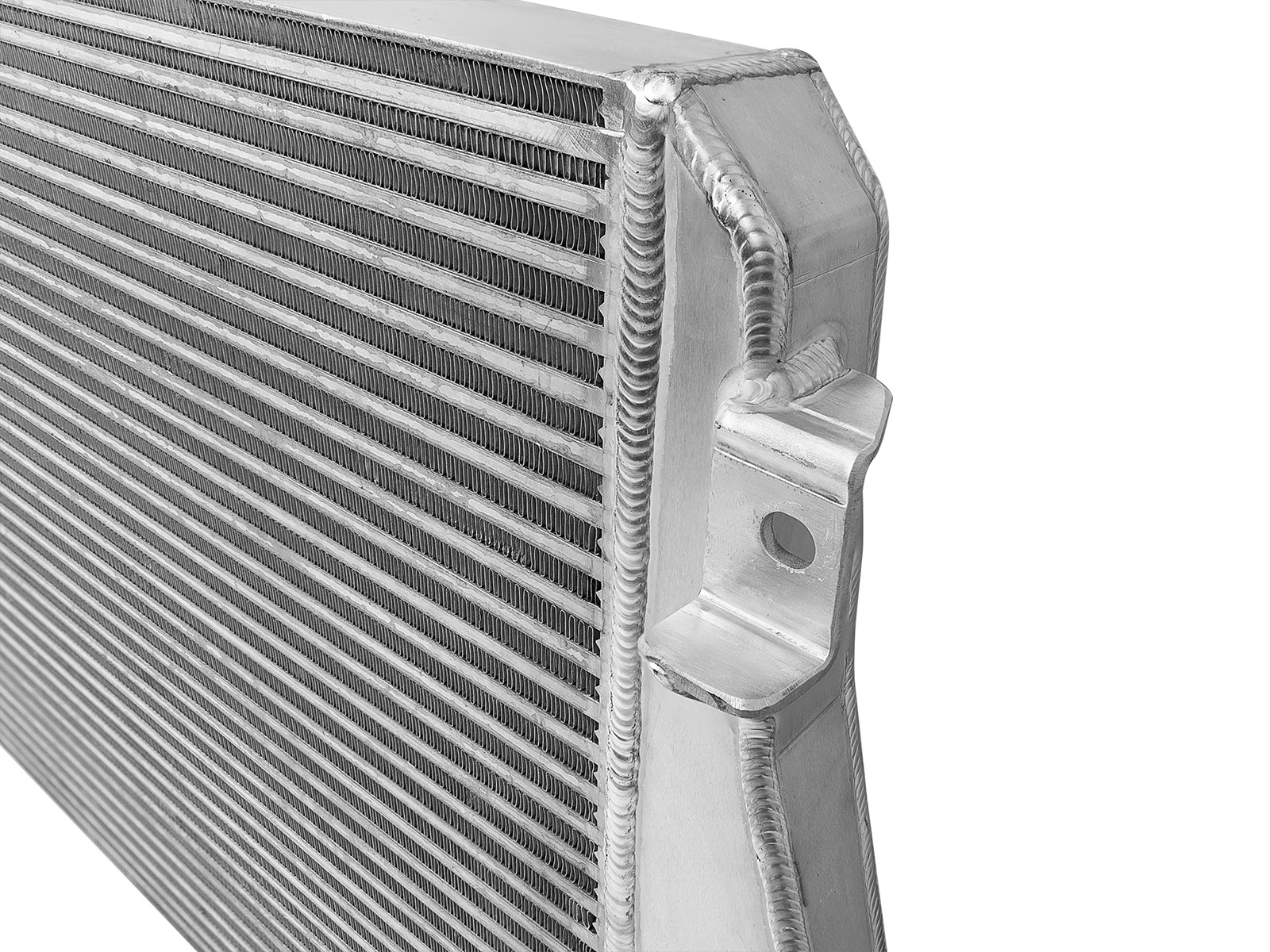

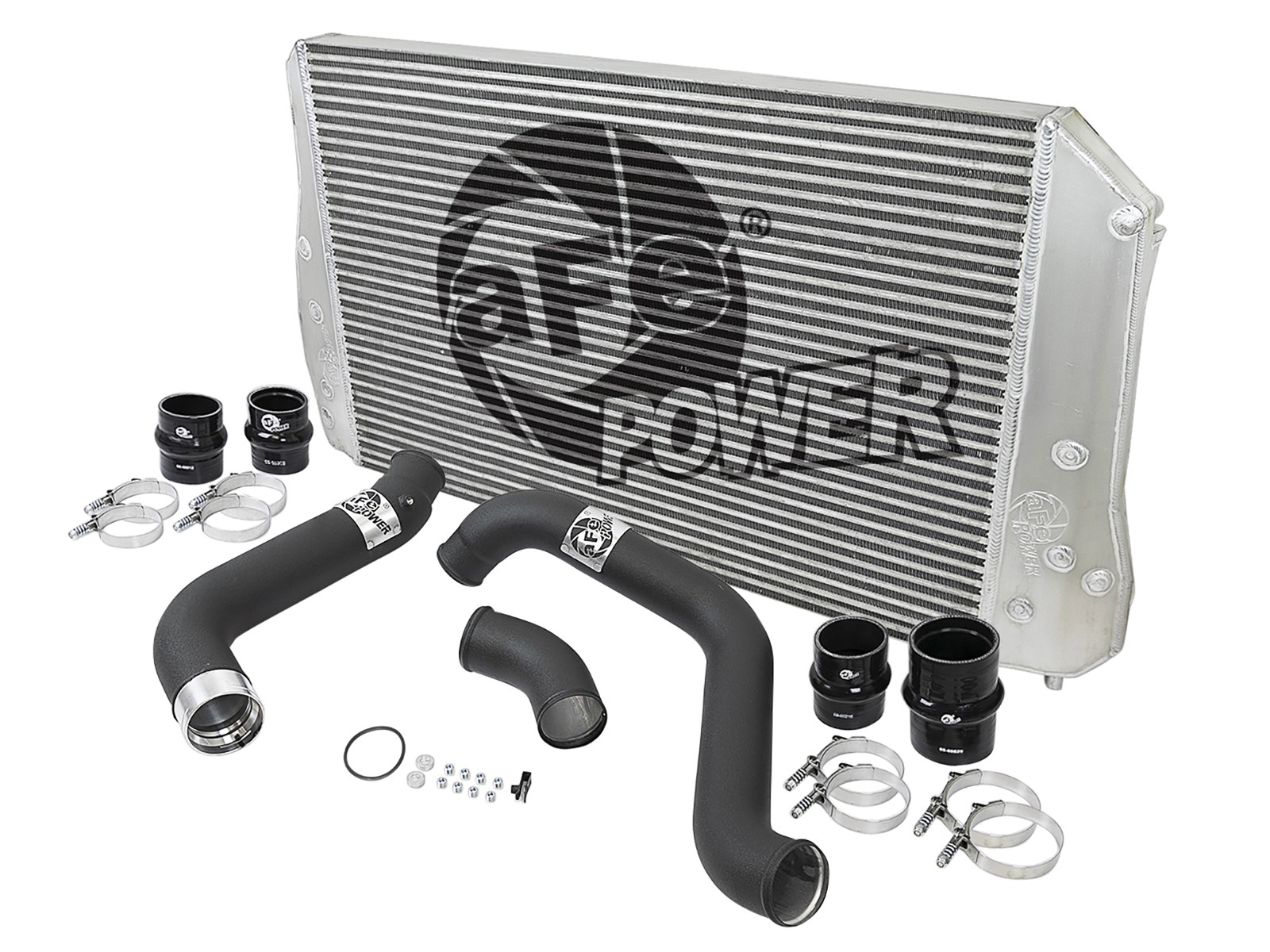

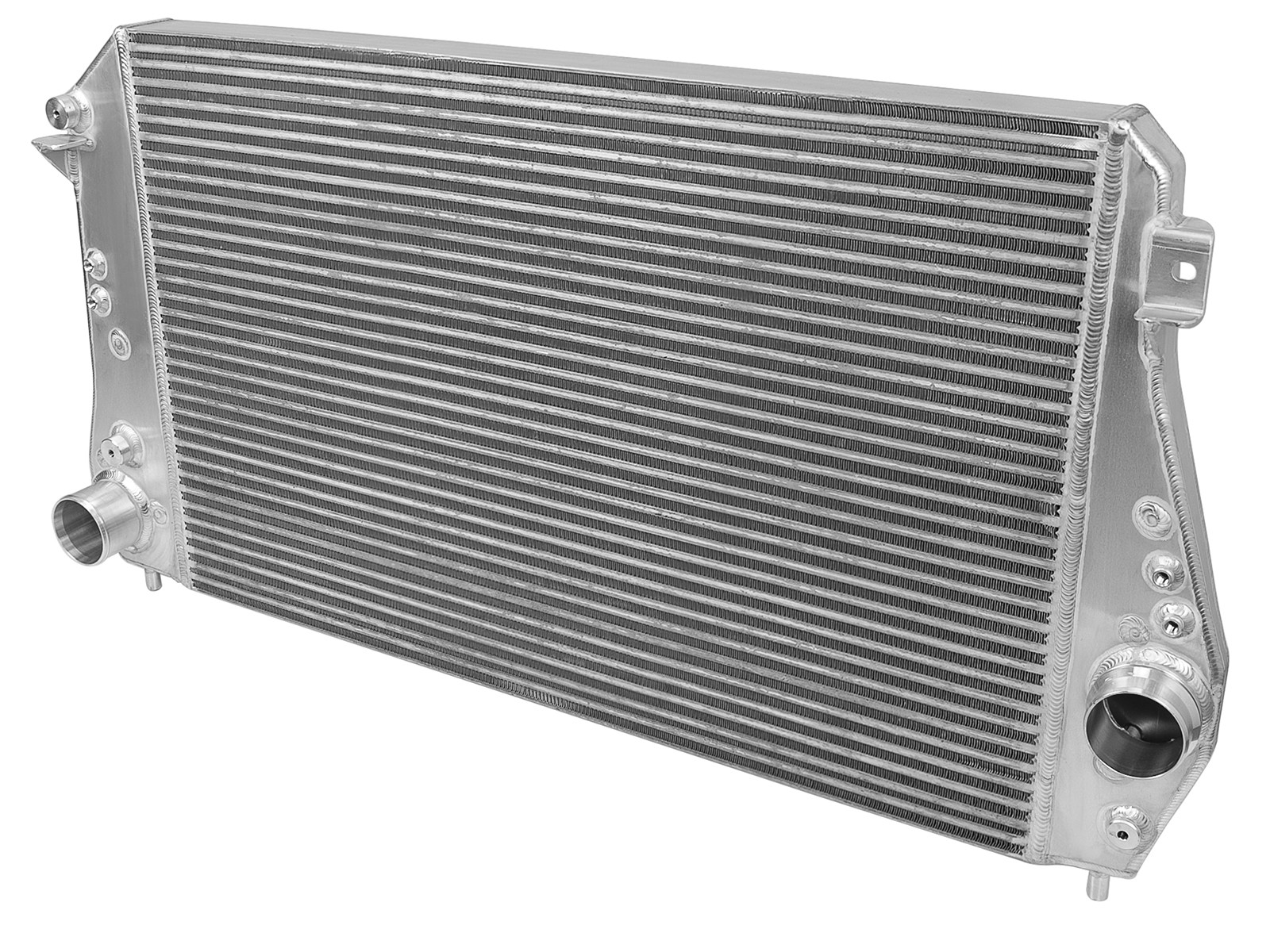

This BladeRunner GT Series Intercooler with tubes represents the next generation of intercoolers by utilizing a 2-5/8in bar and plate core design and larger tubes to outflow stock by 10 percent. End Tanks: The unique BladeRunner end tanks are constructed out of 3/16in Tig-Welded aluminum plates. 2-5/8in Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the stock tube and fin design.

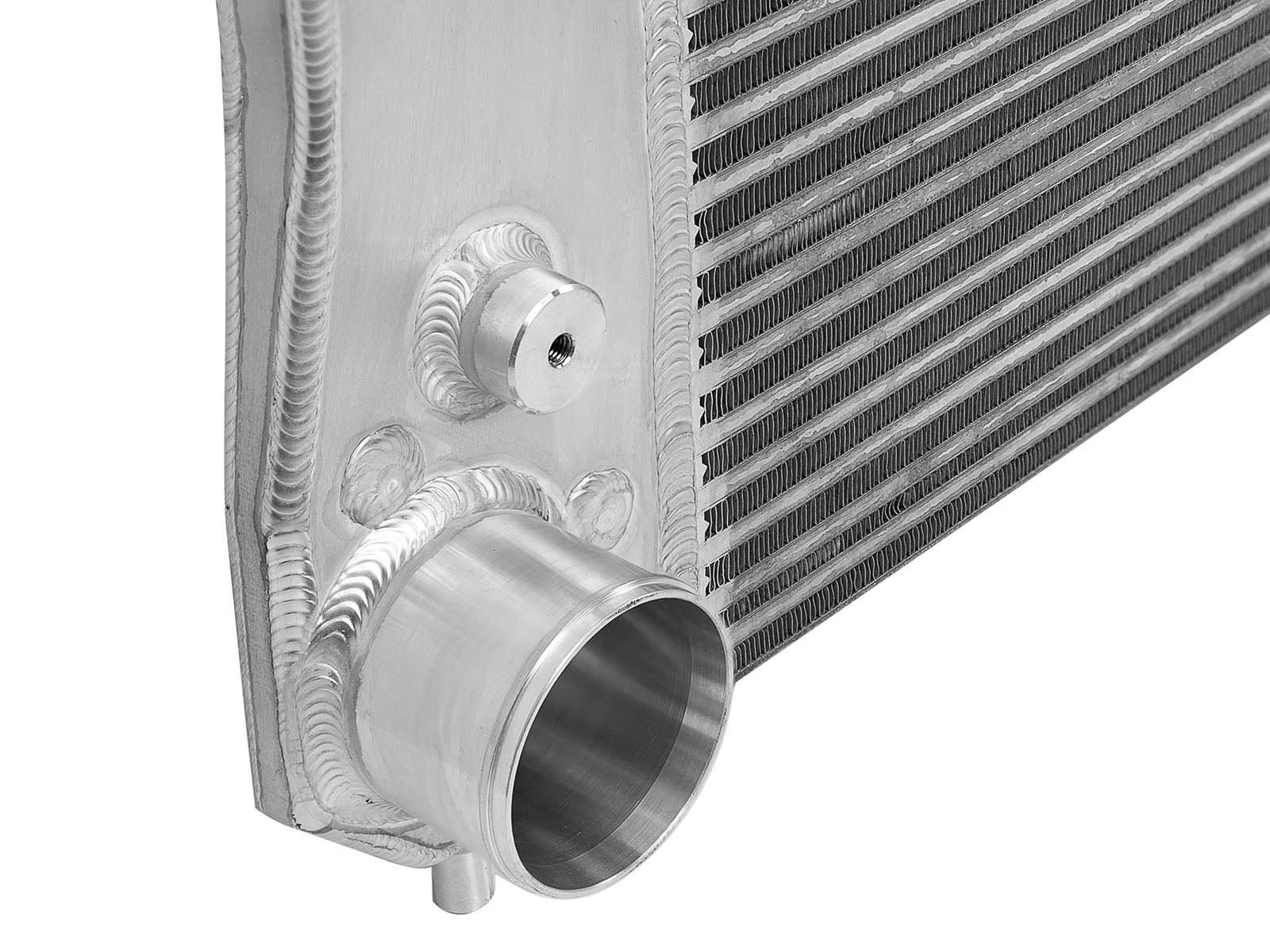

Billet Aluminum Inlet/Outlet: This BladeRunner Intercooler uses billet aluminum inlet and outlet for superior strength and durability. Tig-Welded: 100 percent Tig-Welded by certified craftsmen for race proven strength and durability. Flow and Performance: aFe Power's BladeRunner intercooler tubes are constructed from 3in hot side and 3-1/2in cold side mandrel-bent aluminum tubing for maximum flow.

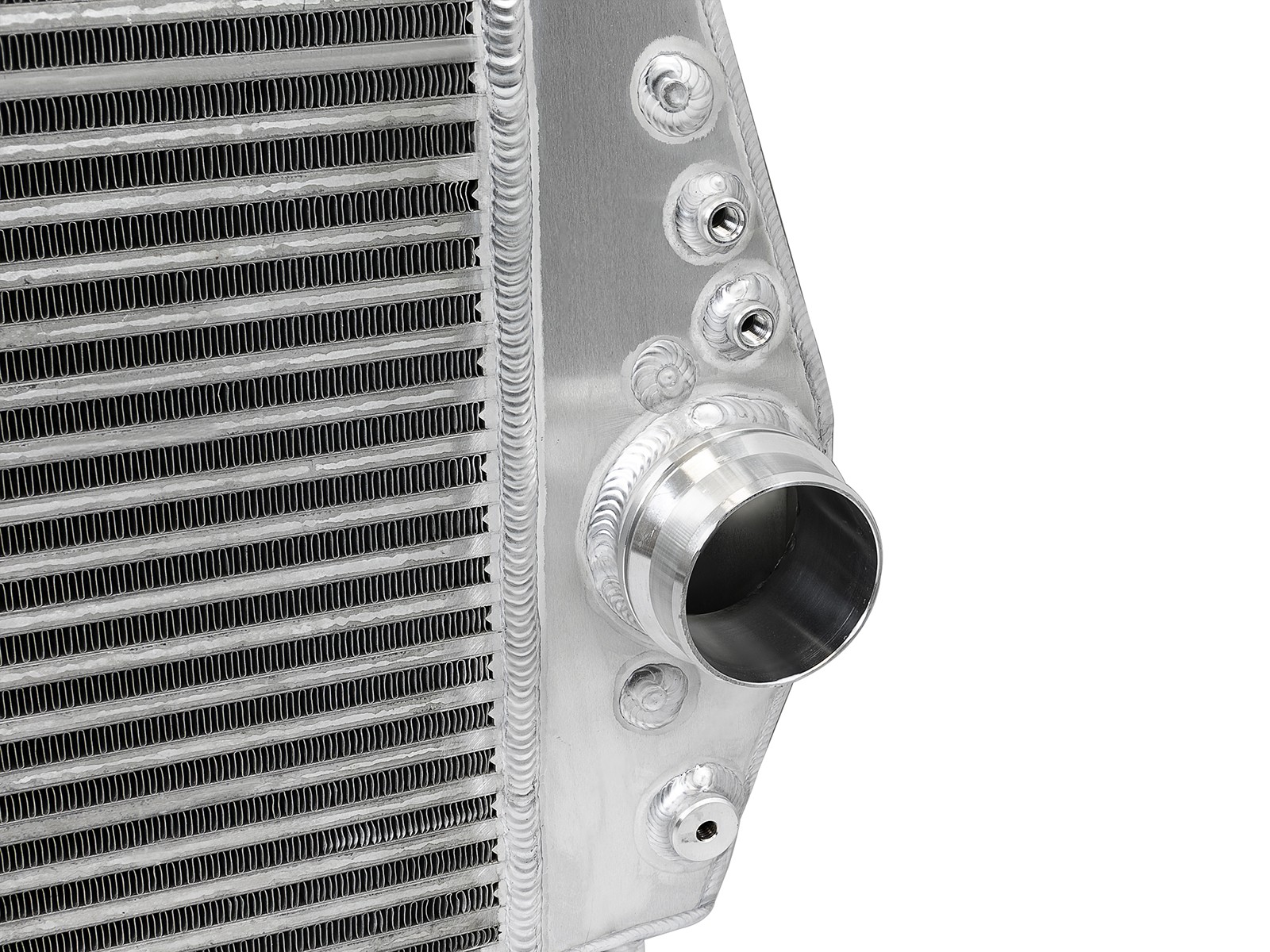

The high-temp wrinkle-black powder-coat insulates the tubes from engine heat and protects them from corrosion. Smooth transition bends decrease turbulence and minimize pressure loss, increasing horsepower, torque and lowering Egt's. Auxiliary Ports: This intercooler features four (4) 1/8 Inch Npt ports on the back side of the intercooler for sensors or water methanol injection and two (2) 1/8 Inch Npt ports on the bottom for draining condensation or oil build up.

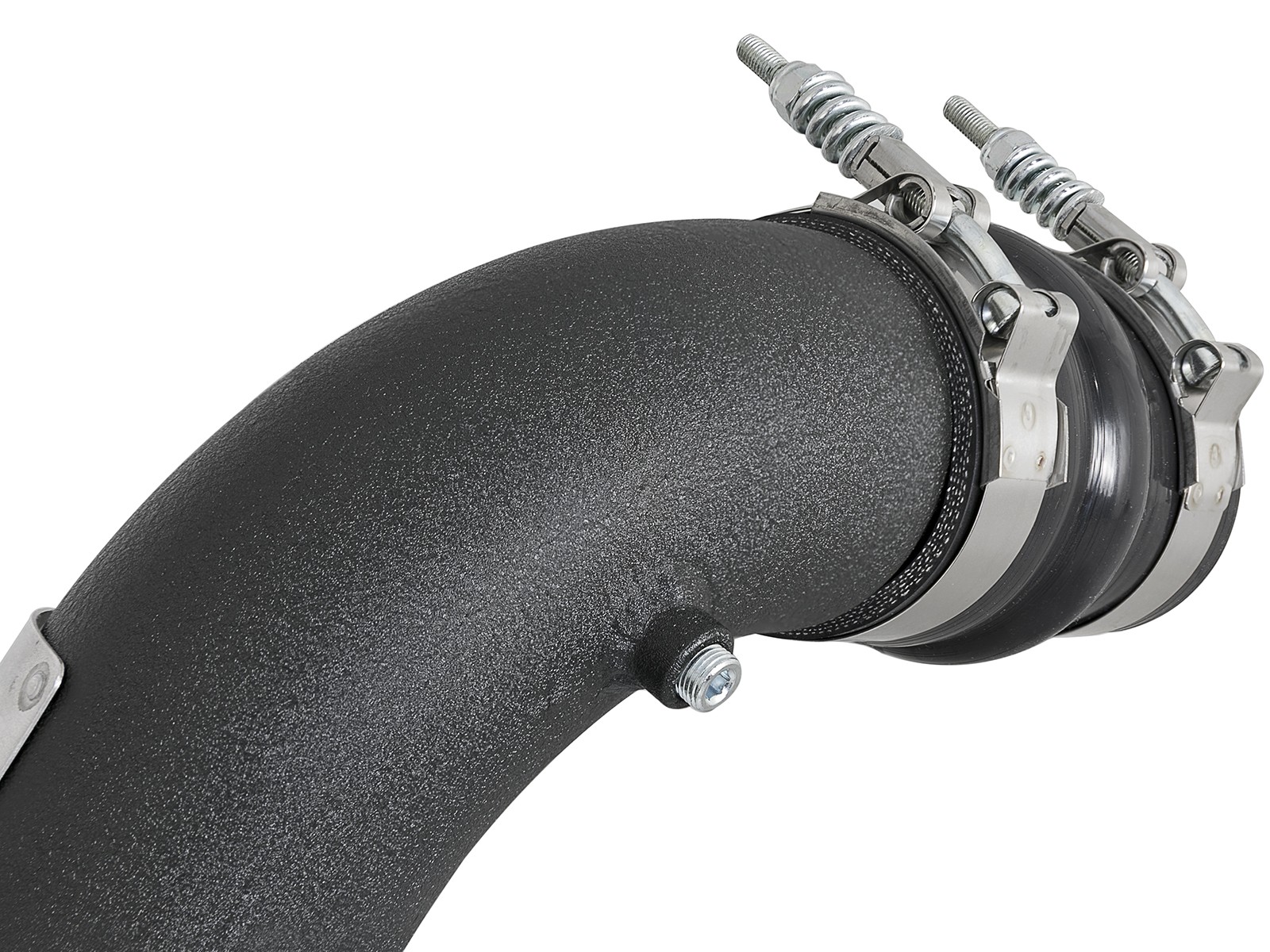

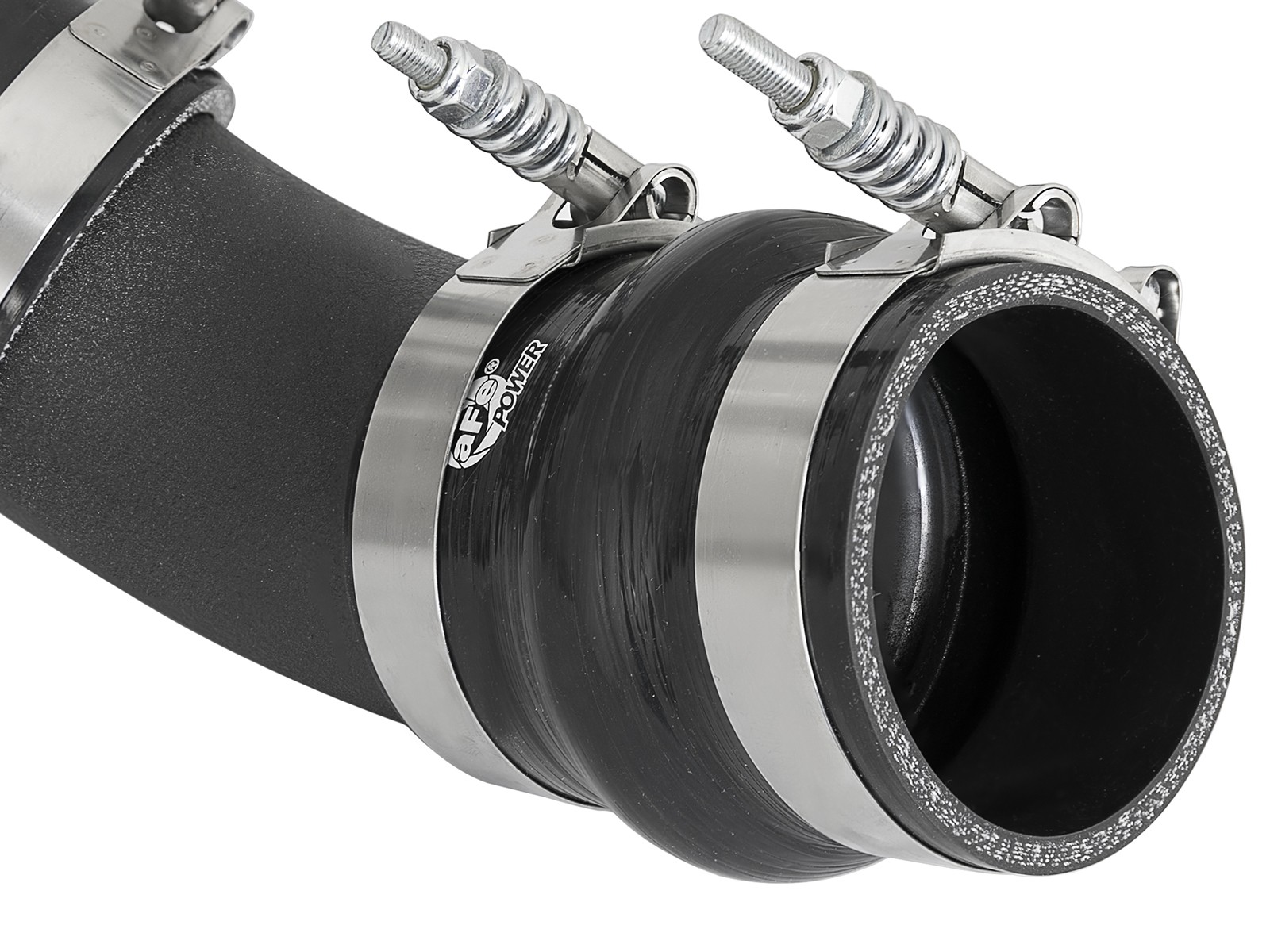

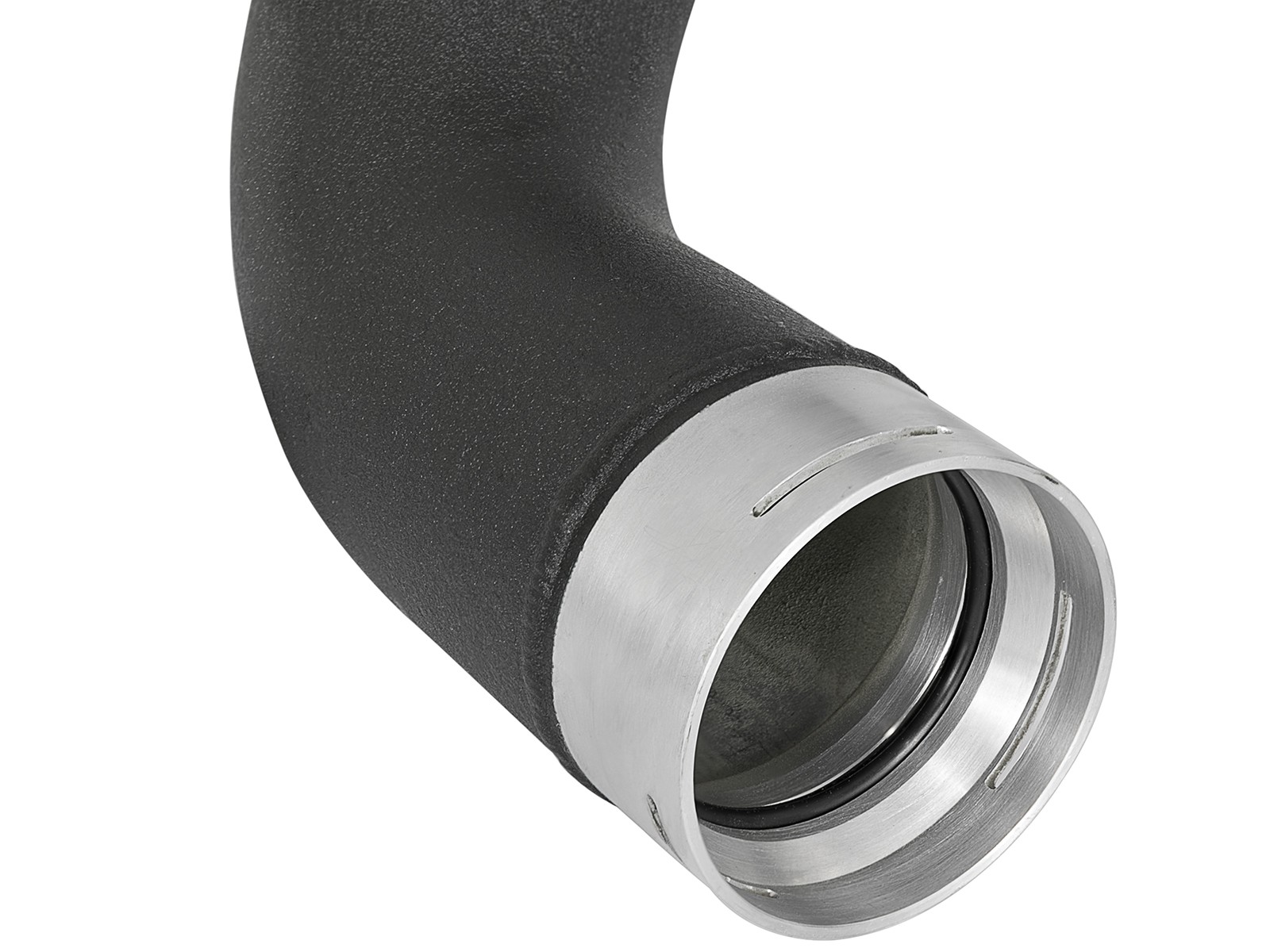

In addition, one (1) 1/8in Npt port is provided on each tube. Perfect Fit: Factory mounting locations, quality stainless steel spring-loaded T-Bolt clamps and heavy-duty 5-ply polyester reinforced silicone couplings ensure a secure install. The cold side tube includes a factory-style quick connect with an O-ring seal for a quick and simple install and retains the factory air temp sensor for a hassle-free installation.

Custom Appearance: The intercooler tubes are badged with an aluminum laser-cut aFe Power logo.

Features and Benefits:

• 10 percent flow increase over stock
• 2-5/8 Inch bar and plate core design
• Billet aluminum inlet/outlet
• Factory-style quick connect fittings
• 100 percent Tig-Welded for Strength and Durability

Details:

• Color: Black
• Core Material: Aluminum
• Core Type: Bar and Plate
• Coupler Included: Yes
• Coupler Material: Silicone
• Direct Fit: Yes
• Emission Code: 1
• End Tank Type: Fabricated Aluminum
• Fuel Type: Diesel
• Liter: 6.6 Liter
• Series: BladeRunner GT Series
• Warranty: 2 Year

Applications:

• GM Diesel Trucks 17-19 V8-6.6L (td) L5P
