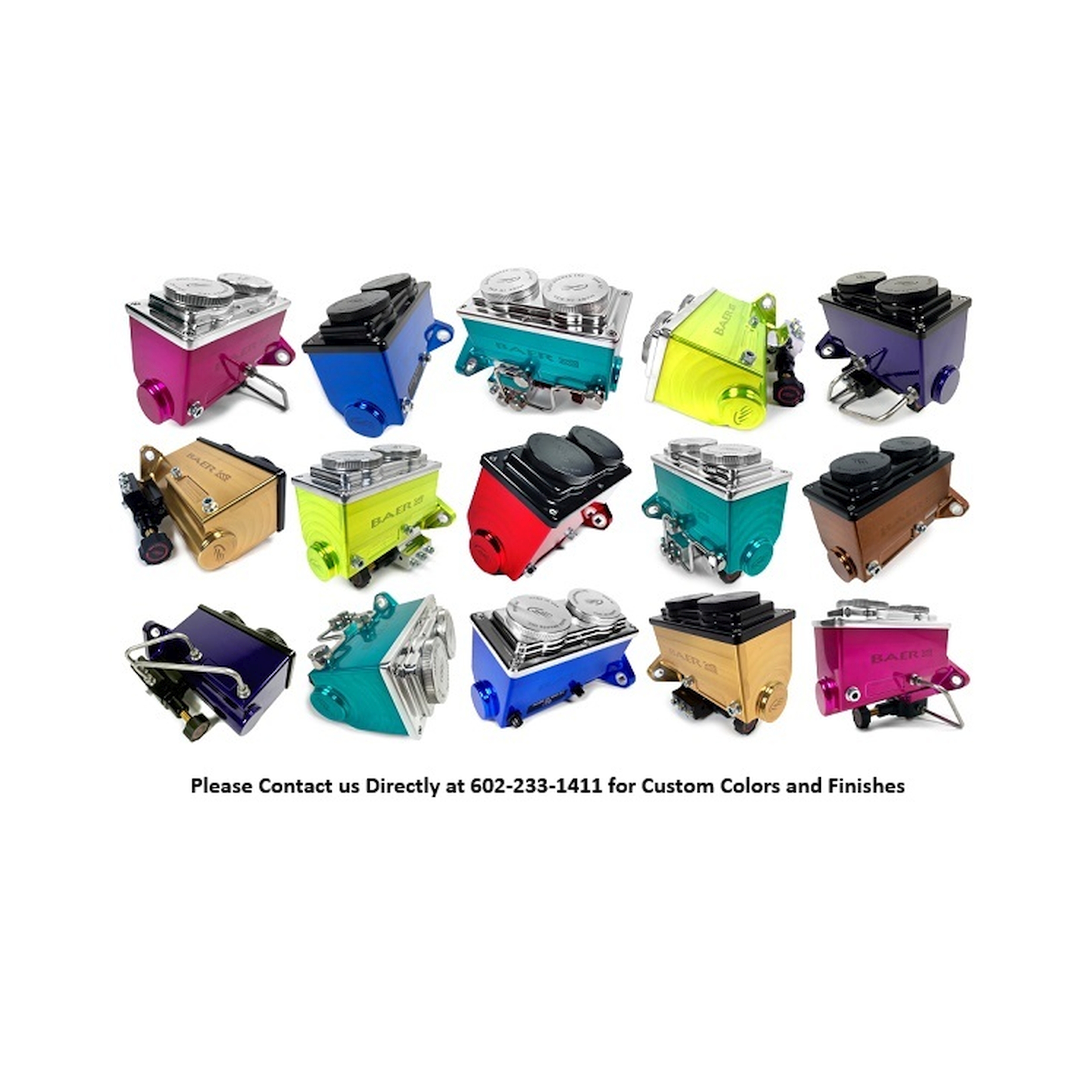

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1-1/8 inch bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage.

The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications.

Optional proportioning valves also available

Features and Benefits:

• 2-Bolt Gm/Ford Firewall Mounting Bracket
• Fully machined 6061 T6 billet aluminum construction
• Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
• Left Side Ports
• Machined and knurled screw-on caps for easy access to fill without spillage
• Anodized Remasters feature laser-etched logos

Ships in 1 Box

ReMaster 2-Bolt Gm/Ford Master Cyl Assembly, gray anodized, 1-1/8in. bore, left port. Please note, some long push-rod hydro-boost and vacuum boosters may require an additional spacer, p/n 6260258, to space the Remaster away from the booster push-rod.

Details:

• Area: 0.97
• Bleeder Hoses Included: No
• Bleeder Screw Included: No
• Bore Size: 1.125
• Box Count: 1
• Brake Booster Included: No
• Brake Pressure Switch(s) Included: No
• Connector For Warning Light: No
• Emission Code: 6
• Export Description: Brake Components
• Fittings Included: Yes
• Flange Type: 2 Bolt GM/Ford
• Gasket Or Seal Included: No
• Grade Type: Premium

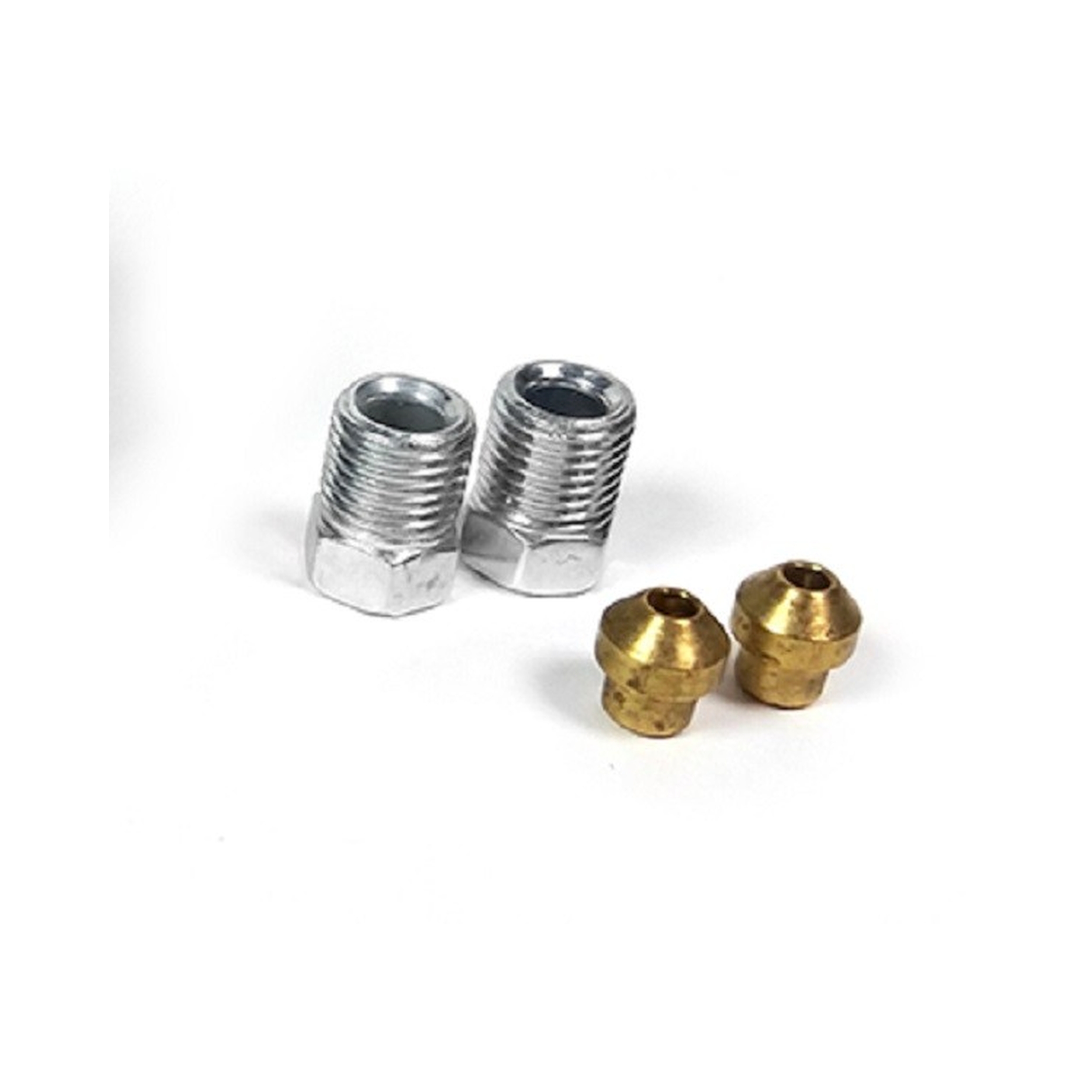

• Includes: 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts
• Master Cylinder Cap Included: Yes
• Master Cylinder Material: 6061 T6 Billet Aluminum
• Master Cylinder Outlet Port Fittings: Banjo w/o Brass Seat, 3/16 Inch Inverted Flare and Tube Nuts w/ Brass Seat
• Master Cylinder Outlet Port Quantity: 2
• Master Cylinder Outlet Port Size: 3/8/-24 Inch
• Master Cylinder Port Exit: Left side
• Mounting Hardware Included: No
• Quantity: Sold Individually
• Remaster Body Color: Gray
• Remaster Body Finish: Anodized
• Remaster Caps Color: Black
• Remaster Caps Finish: Anodized
• Remaster lid Color: Black
• Remaster lid Finish: Anodized
• Removable Seats: Yes
• Reservoir Included: Yes
• Reservoir Material: 6061 T6 Billet Aluminum
• Reservoir Size: 7oz per reservoir, Fill to 75 percent or 5.25oz per reservoir
• Reservoir Style: Integral
• Reservoir Type: Dual
• Sensor Included: No
• Series: ReMaster
• Stroke: 1.3
• Volume Ratio: 0.0840277777777778
