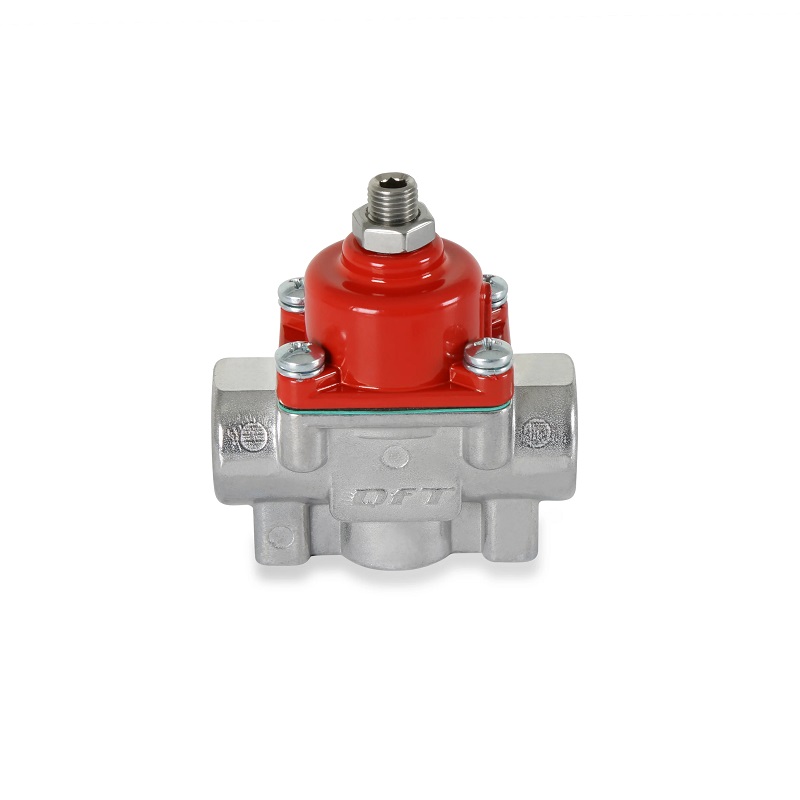

Bypass Regulator recommended for steady-state mechanical and electric fuel pumps. Comes with stainless mounting bracket.

All thread are NPT.

Features and Benefits:

• Eliminates creep at low RPM without affecting fuel flow
• Adjustable from 4.5 - 9 PSI; Preset to 6.5 PSI
• 3/8 Inch NPT ports.375 Inch (3/8 Inch) restriction
• Compatible for use with gas, alcohol and E85 fuels
• Includes an 10-32 port for manifold reference Boost Reference 1-1

Details:

• Grade Type: Performance
• Material: Aluminum
• Color: Red
• Fuel Type: Gasoline
• Adjustable: Yes
• Inlet Type: NPT
• Outlet Type: NPT
• Maximum Pressure: 9 Pounds per Square Inch
• Mounting Bracket Included: Yes
• Gauge Included: No
• Minimum Pressure: 4.5 Pounds per Square Inch
• Outlet Port Quantity: 2
• Inlet Gender: Female
• Inlet Port Diameter: 3/8 Inch
• Inlet Port Quantity: 1
• Outlet Gender: Female
• Outlet Port Diameter: 3/8 Inch
• Style: Bypass
• Warranty: Manufacturer's Limited 90 Day Warranty
