Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems.

Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory so there is no guesswork when first installing the regulator.

The Holley 12-803BP fuel pressure regulator features 3/8 inch NPT in/out ports and a 3/8 inch NPT return port.

Features and Benefits:

• Adjustable fuel regulation from 4-1/2 to 9 psi Preset to 7psi 3/8 inch NPT ports (1 inch, 1 out, 1 bypass or return) Used in systems with a return line back to the fuel tank Quieter fuel pump operation Designed only for carburetor use Polished finish Mounting bracket included

Associated Comments:

• The 803BP is designed for use with an electric fuel pump with a return line in the system. If you are using a mechanical fuel pump, use the 12-803 regulator.
• The mounting holes in the regulator are not threaded. The screws included are self-tapping for use in installation.

Details:

• Adjustable: Yes
• Color: Shiny
• Fuel Type: Gasoline
• Fuel System: Gasoline
• Gauge Included: No
• Gauge Port Included: Yes
• Grade Type: Performance
• Inlet Gender: Female
• Inlet Port Diameter: 3/8 Inch
• Inlet Port Quantity: 1.0
• Inlet Size: 3/8 inch NPT
• Inlet Type: NPT
• Material: Aluminum
• Maximum Pressure: 9 Pounds per Square Inch
• Minimum Pressure: 4.5 Pounds per Square Inch

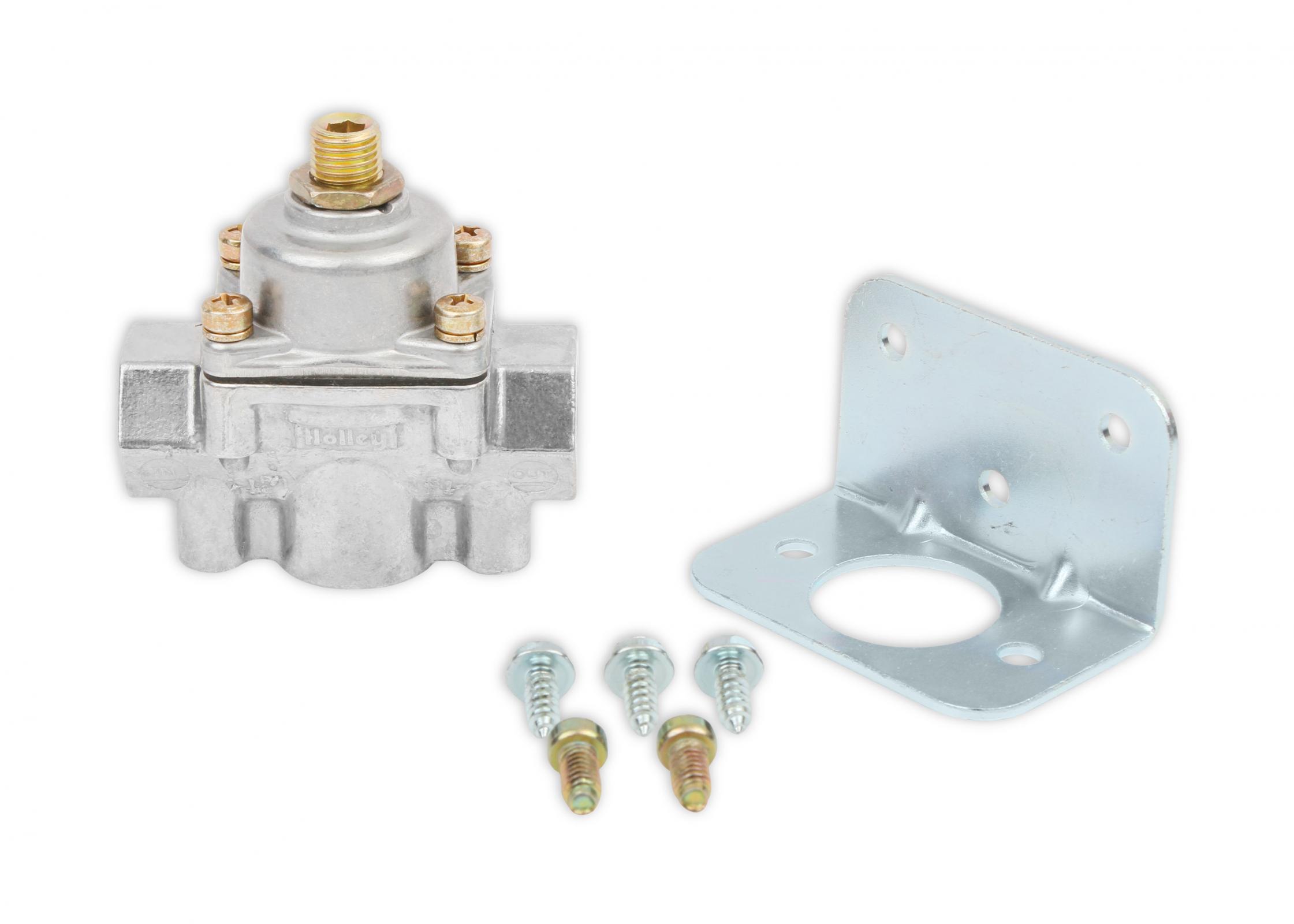

• Mounting Bracket Included: Yes
• Mounting Type: Inline
• Outlet Gender: Female
• Outlet Port Diameter: 3/8 Inch
• Outlet Port Quantity: 2.0
• Outlet Size: 3/8 inch NPT
• Outlet Type: NPT
• Port Quantity: 3.0
• Pressure Range: 4.5-9 PSI
• Rebuildable: Yes
• Return Size: 3/8 inch NPT
• Style: Bypass
• Warranty: Manufacturer's Limited 90 Day Warranty
