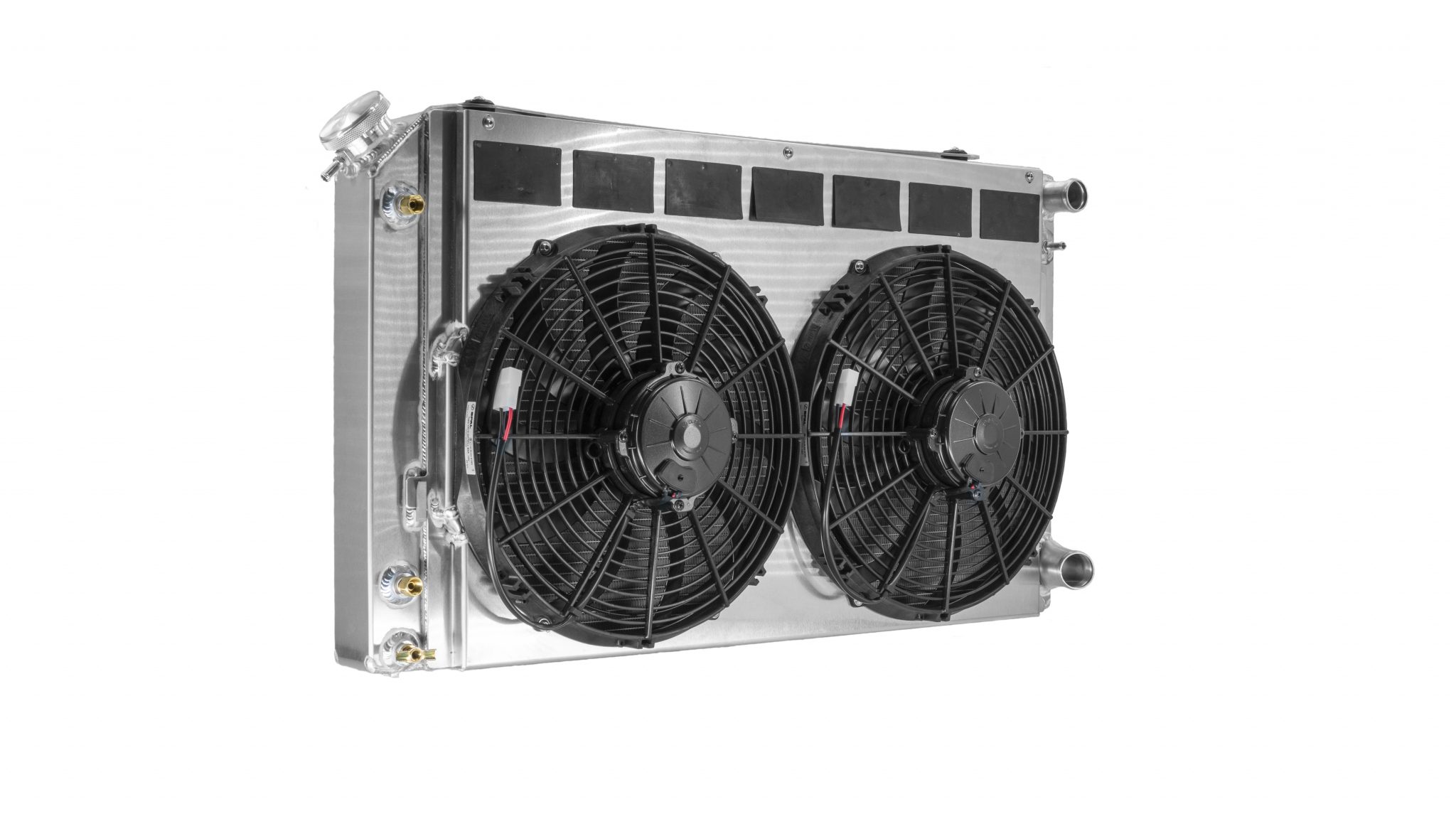

Chevrolet Camaro 70-81 Pontiac Firebird 70-74 LS Double Pass Radiator Module w/ TOC and Dual 13 Inch Spal Fans C&R Racing
SKU
15-00021-CRR
List price
$1,955.70
Price
$1,955.70

    CR's new line of Camaro radiators have taken cooling to a whole new level. From the engineered design and high-efficiency core built here at our facility to the custom aluminum shroud and largest possible Spal fans, your vehicle will have the most efficient, highest-performing cooling package on the market today.

    CR radiators are designed and engineered for today's high HP applications using the many years of high-level racing experience and expertise we have here. Protect the most expensive part of your vehicle with the quality and performance of a CR radiator.
    Features:

    • Chevrolet Camaro 1970-81 Pontiac Firebird 1970-74 LS Double Pass Radiator Module w/ TOC and Dual 13 Inch Spal Fans
    • CRs new generation of Camaro radiators designed with our own CR built cores
    • Handmade and Professionally Tig-welded in the USA/Indianapolis
    • Designed for OE fit and installation. In most instances, our radiators are a true plug and play cooling solution.
    • All CR Camaro radiators have been maximized with the most core face possible for the available space.
    • Engineered cooling tube and R-fin technology designed specifically for street applications to achieve the most heat rejection
    • Radiator modules have a custom aluminum shroud with the largest possible High-Performance Spal fans
    • Radiator Style: Crossflow
    • Number of Passes: Double
    • Inlet Location: Upper Passenger Side
    • Inlet Size: 1.25 Inch
    • Outlet Location: Lower Passenger Side
    • Outlet Size: 1.50 Inch
    Vehicle Fitment
    1970-1980 Pontiac Firebird
    1970-1980 Chevrolet Camaro
    1970-1980 Pontiac Firebird Esprit
    1970-1980 Pontiac Firebird Formula
    1970-1973 Chevrolet Camaro RS
    1970-1972 Chevrolet Camaro SS
    1970-1980 Pontiac Firebird Trans Am
    1970-1974 Chevrolet Camaro Z28
    1973-1978 Chevrolet Camaro LT
    1975 Chevrolet Camaro RS
    1976-1978 Chevrolet Camaro LT Rally Sport
    1976-1980 Chevrolet Camaro Rally Sport
    1977-1980 Chevrolet Camaro Z28
    1979-1980 Chevrolet Camaro Berlinetta
    Brand
    CR Racing
    Category
    Heating & Cooling
    Radiator
    Extruded Tube Aftermarket Radiator
    Extruded Tube Aftermarket Radiator Modules
    Specs
    Country of Origin: USA
    Availability: Available
    Blade Color: Black
    Shroud Color: Natural
    Shroud Material: Aluminum
    Universal: No
    Blade Material: Plastic
    CA Harmonized Tariff Code: 8708.91.29 00
    Engine Oil Cooler: No
    Fan Diamter (in): 13.0 Inch
    Fan Included y/n: Yes
    Fan Quantity: 2
    Inlet Location: Upper Passenger Side
    Inlet Size: 1.25 Inch
    LS Steam Line Port: Yes
    Maximum Fan CFM: 1777
    Number of Passes: Double
    Outlet Location: Lower Passenger Side
    Outlet Size: 1.50 Inch
    Power Steering Cooler: No
    Radiator Cap: Yes
    Radiator Finish: Natural
    Radiator Material: Aluminum
    Radiator Style: Crossflow
    Row Quantity: 2
    Transmission Cooler Y/N: Yes
    Tube Size: 55mm
    Vehicle Type
    Car
    Core Charge
    $0.00
