Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems.

Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory at 2.8 PSI so there is no guesswork when first installing the regulator.

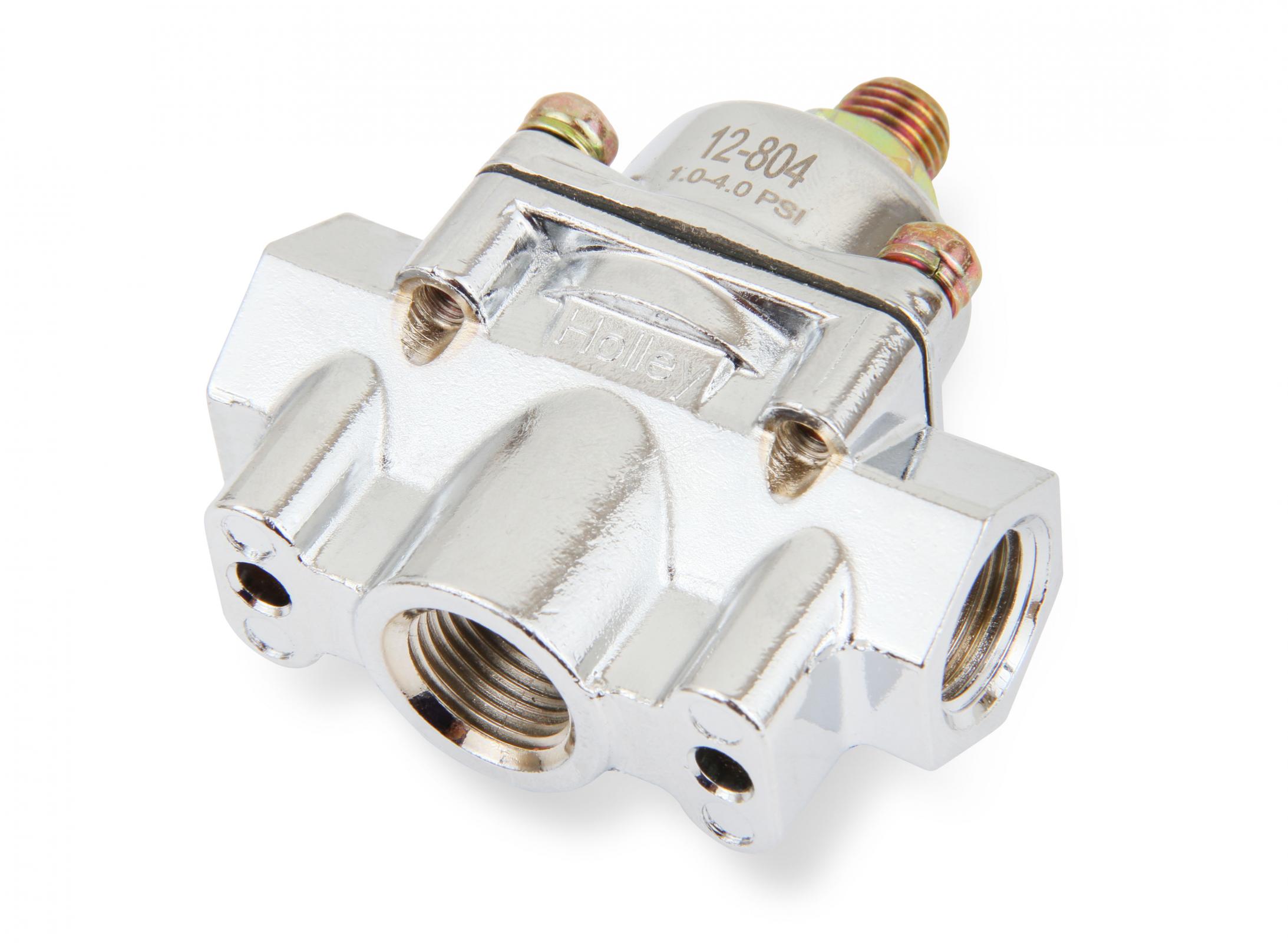

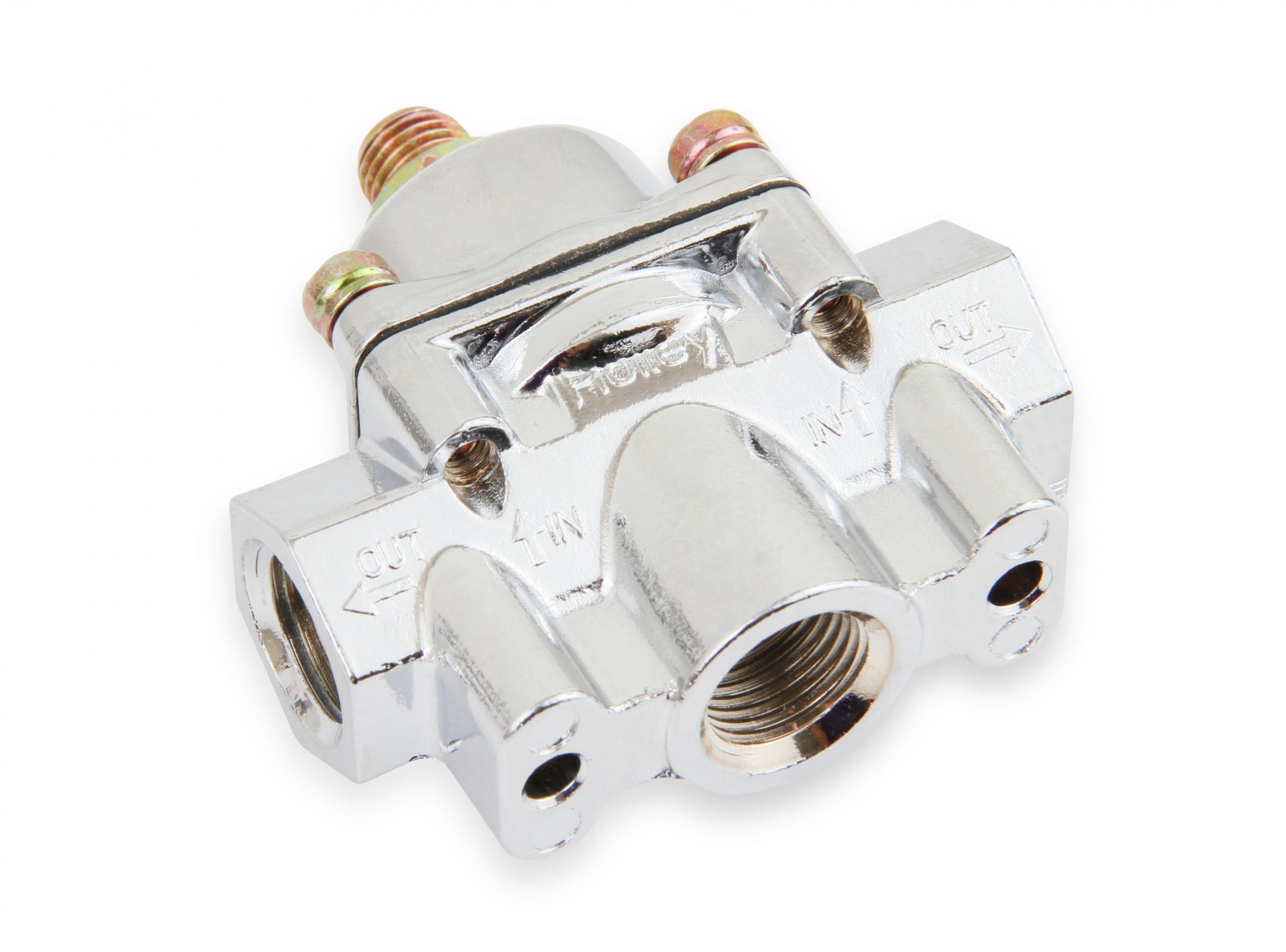

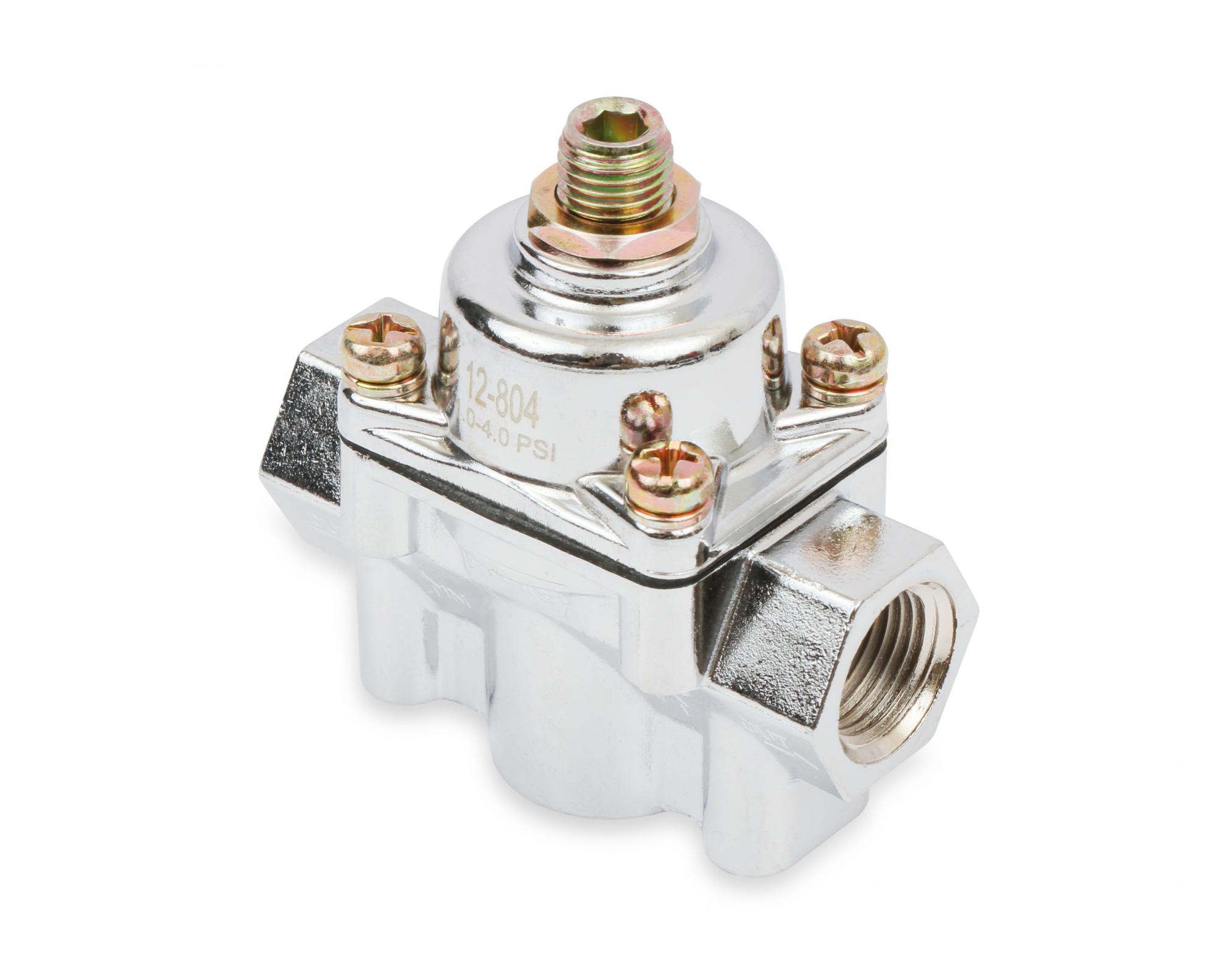

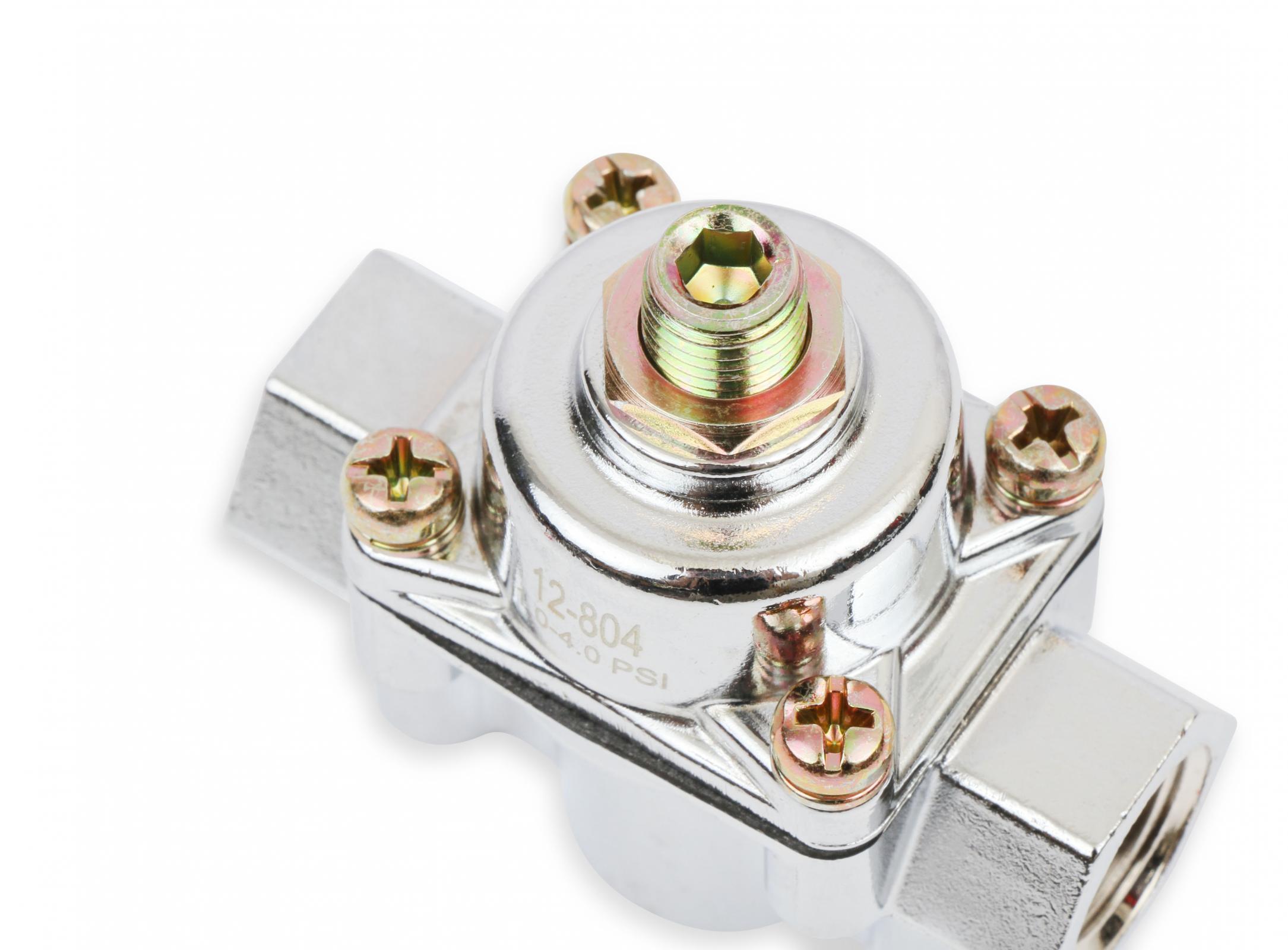

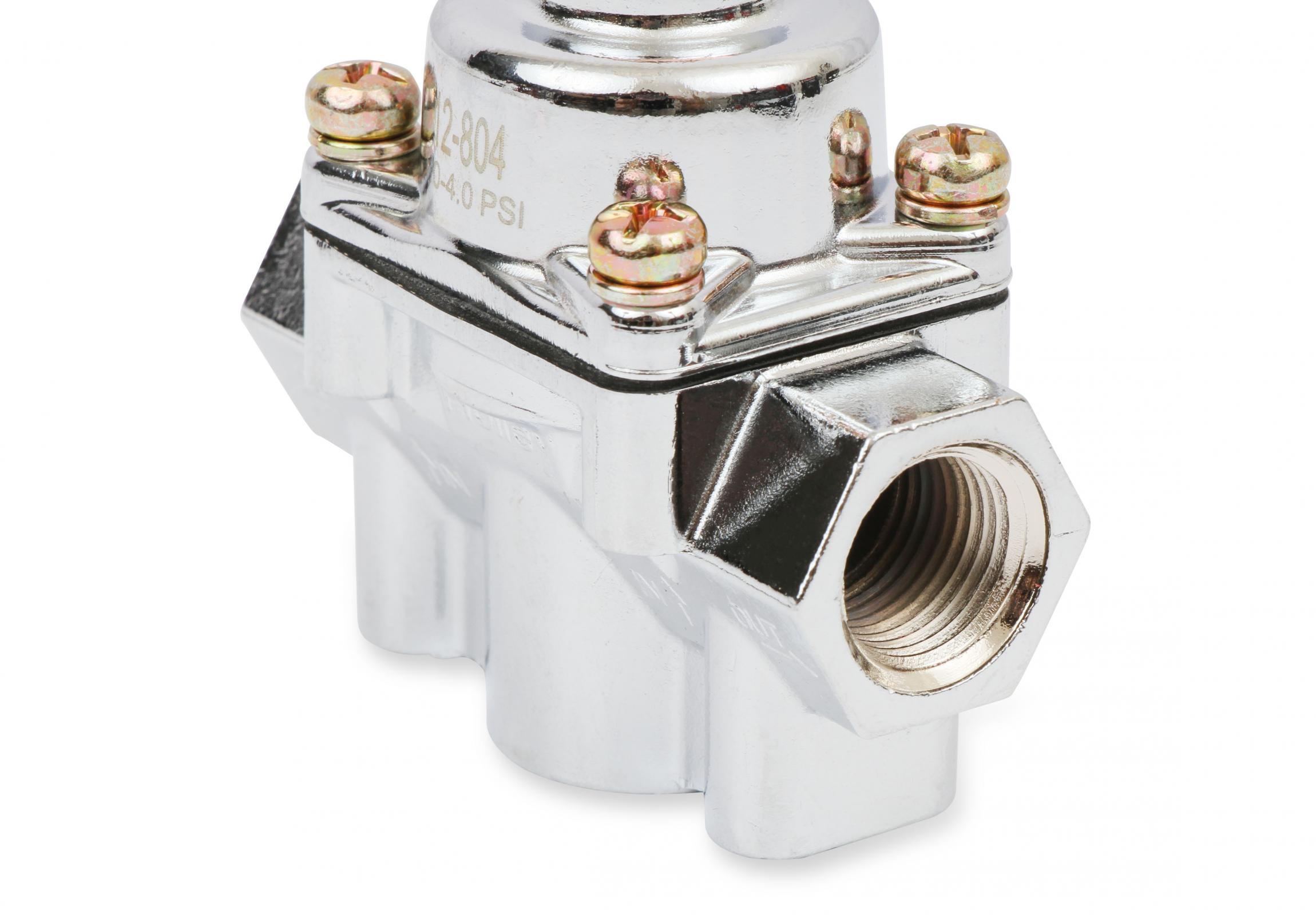

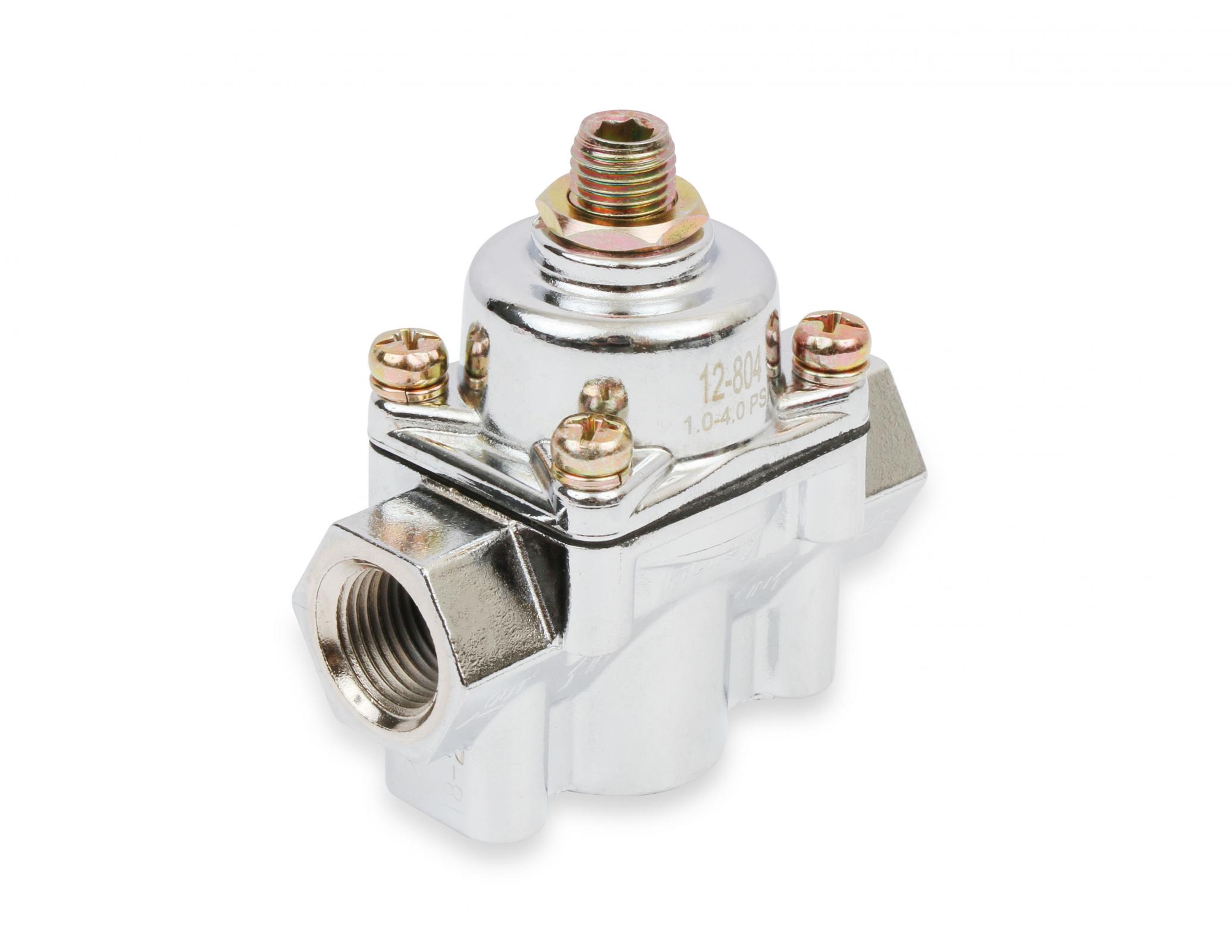

The Holley 12-804 fuel pressure regulator features 3/8 inch NPT in/out ports. The inlet pressure limitation is 7 psi.

Features and Benefits:

• Adjustable fuel regulation from 1 to 4 psi .220 inch (7/32 inch) restriction 3/8 inch NPT ports ( 1 inch, 2 out) Chrome finish Mounting bracket included Pre-set at 2.8 PSI

Associated Comments:

• Pre-set at 2.8 PSI The inlet pressure limitation is 7 psi.

Details:

• Adjustable: Yes
• Color: Shiny
• Fuel Type: Gasoline
• Fuel System: Gasoline
• Gauge Included: No
• Gauge Port Included: Yes
• Grade Type: Performance
• Inlet Gender: Female
• Inlet Port Diameter: 3/8 Inch
• Inlet Port Quantity: 1.0
• Inlet Size: 3/8 inch NPT
• Inlet Type: NPT
• Material: Aluminum
• Maximum Pressure: 4 Pounds per Square Inch
• Minimum Pressure: 1 Pounds per Square Inch

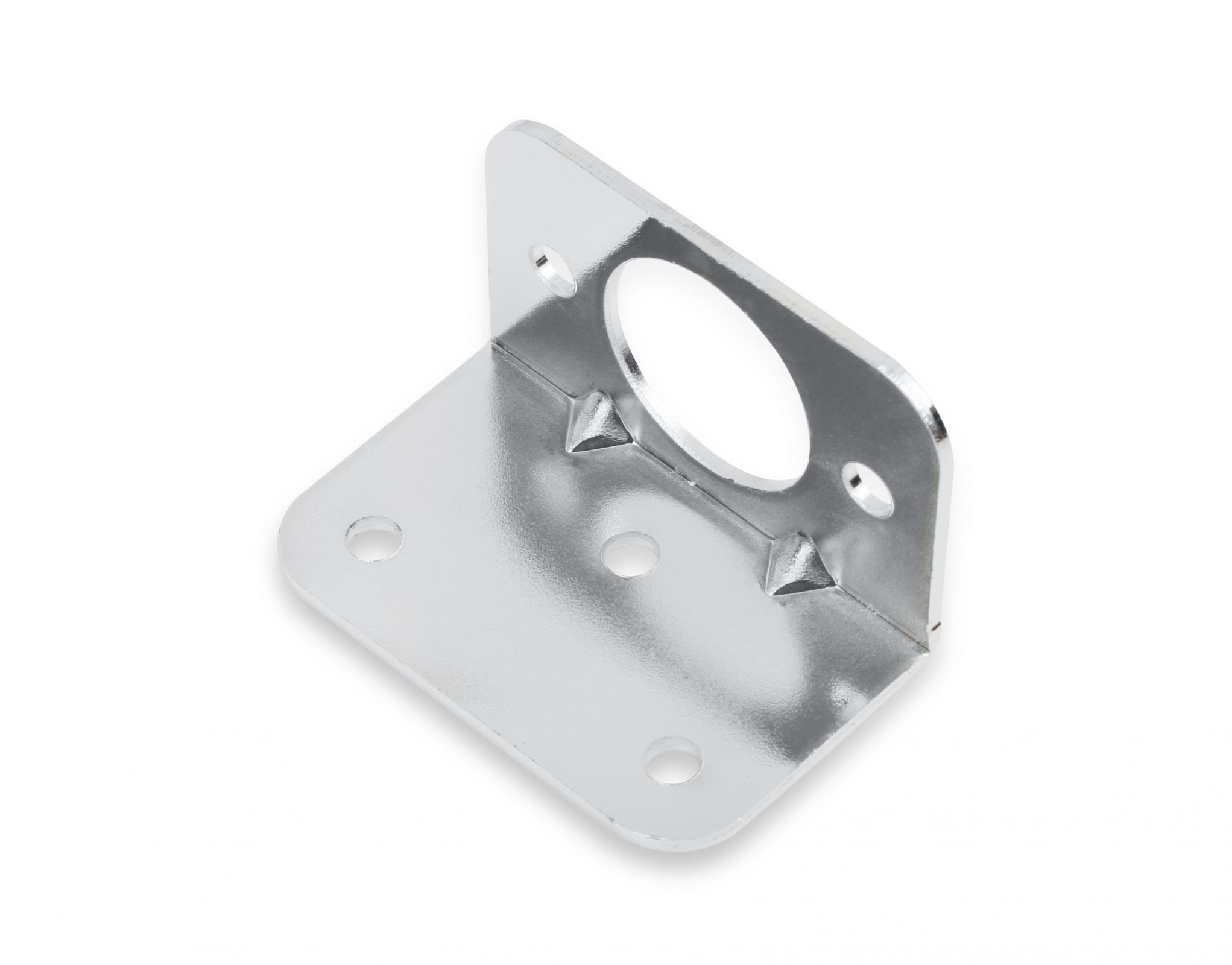

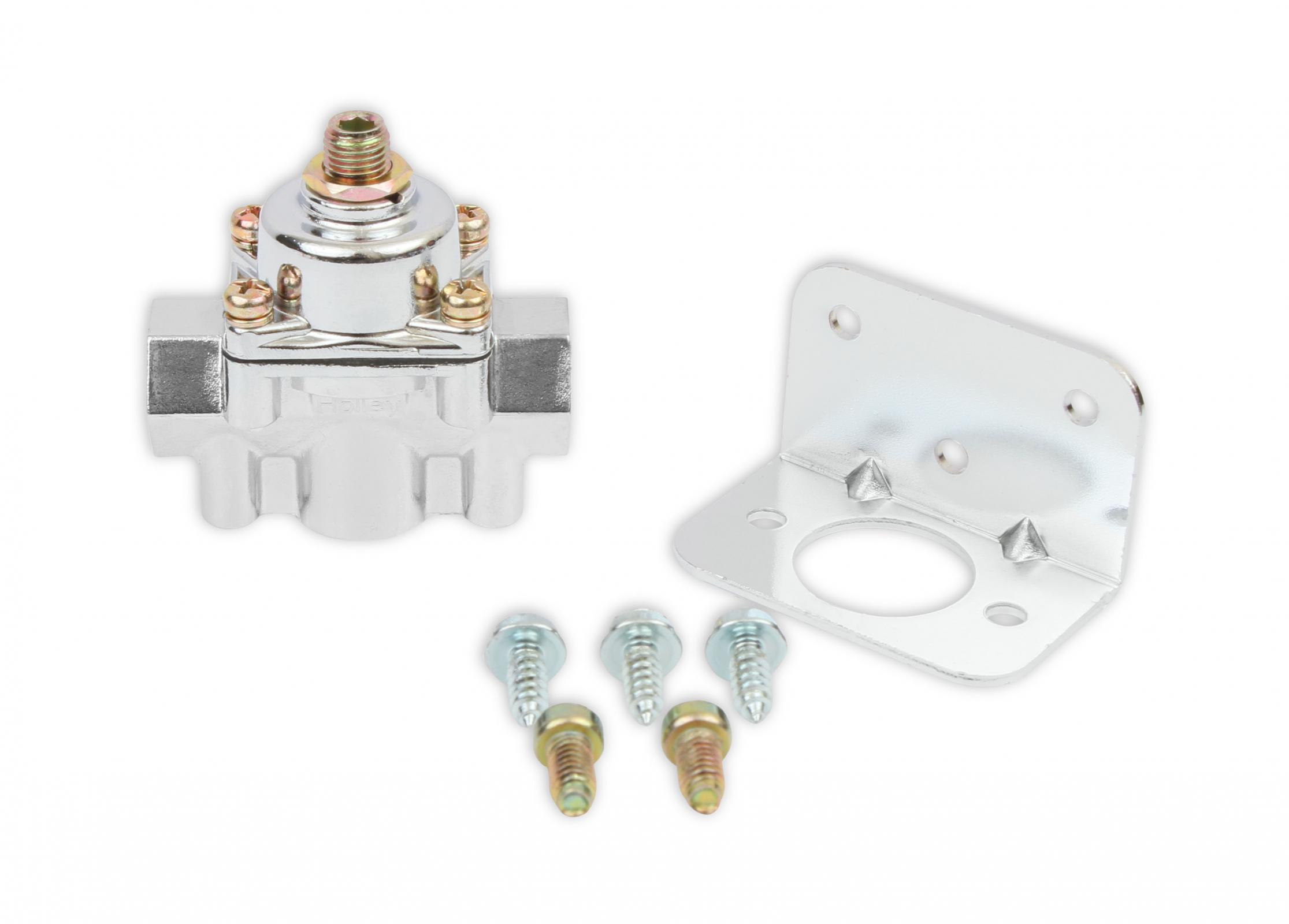

• Mounting Bracket Included: Yes
• Mounting Type: Inline
• Outlet Gender: Female
• Outlet Port Diameter: 3/8 Inch
• Outlet Port Quantity: 2.0
• Outlet Size: 3/8 inch NPT
• Outlet Type: NPT
• Port Quantity: 2.0
• Pressure Range: 1-4 PSI
• Rebuildable: Yes
• Style: Non-Return
• Warranty: Manufacturer's Limited 90 Day Warranty
