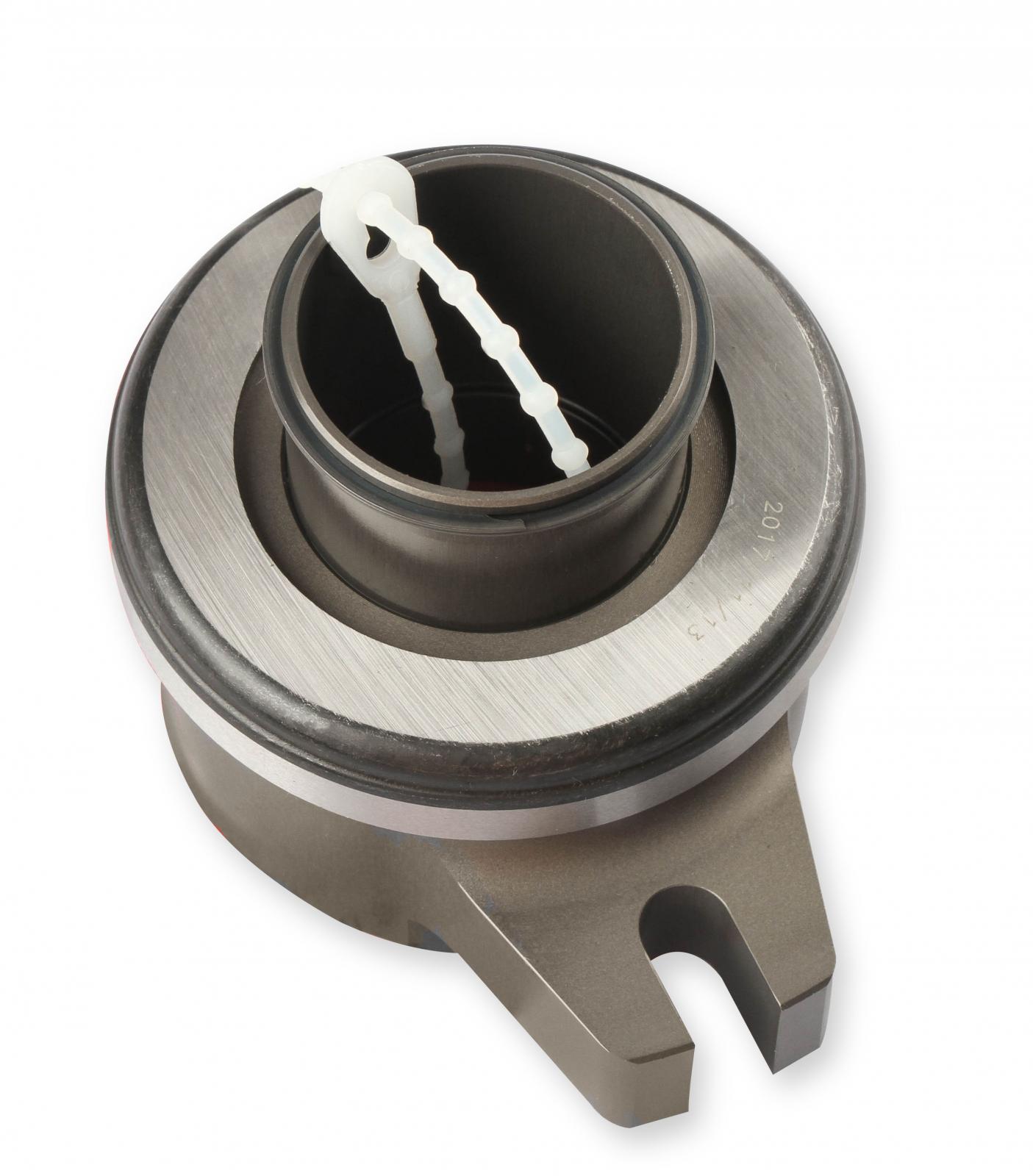

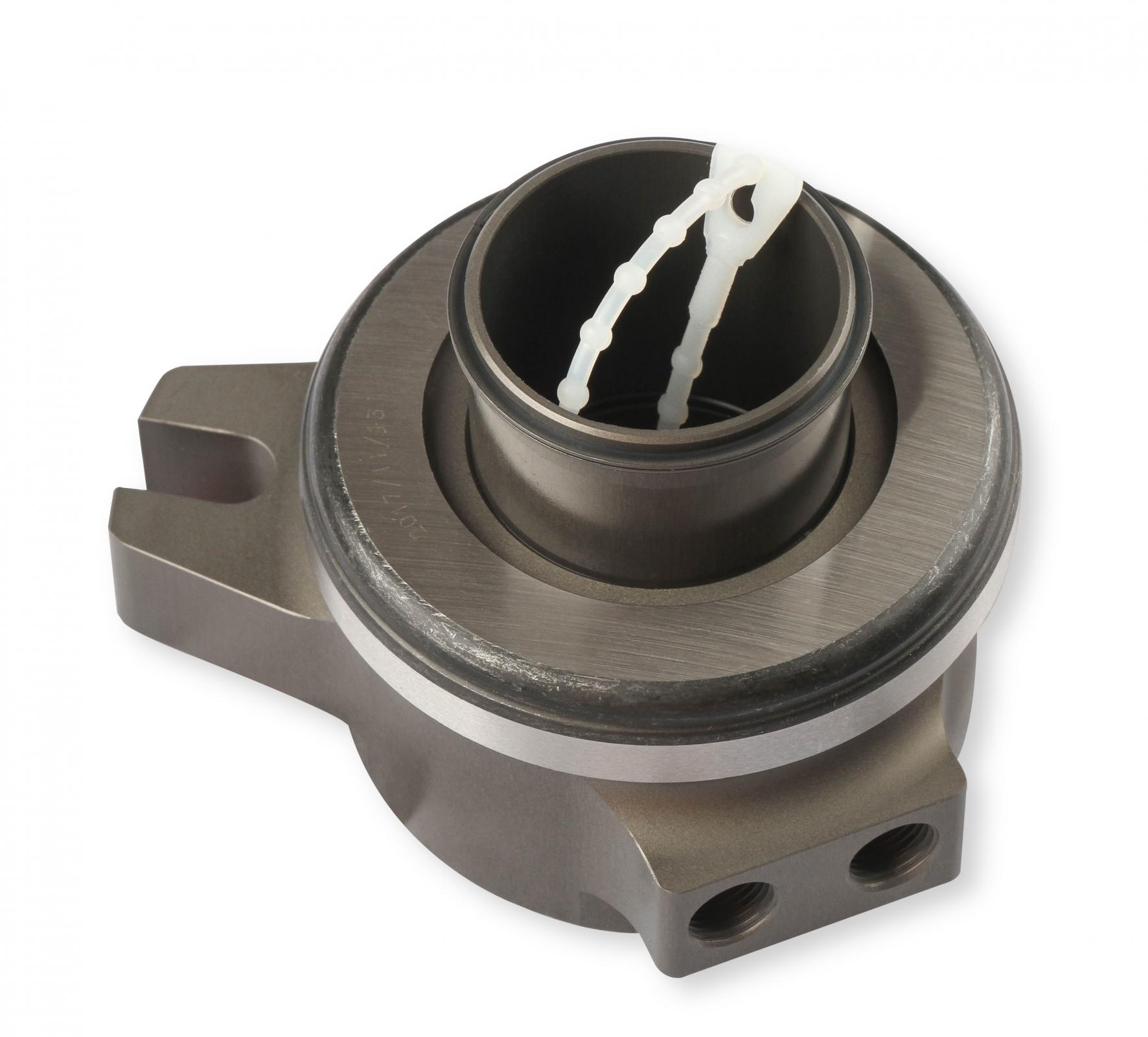

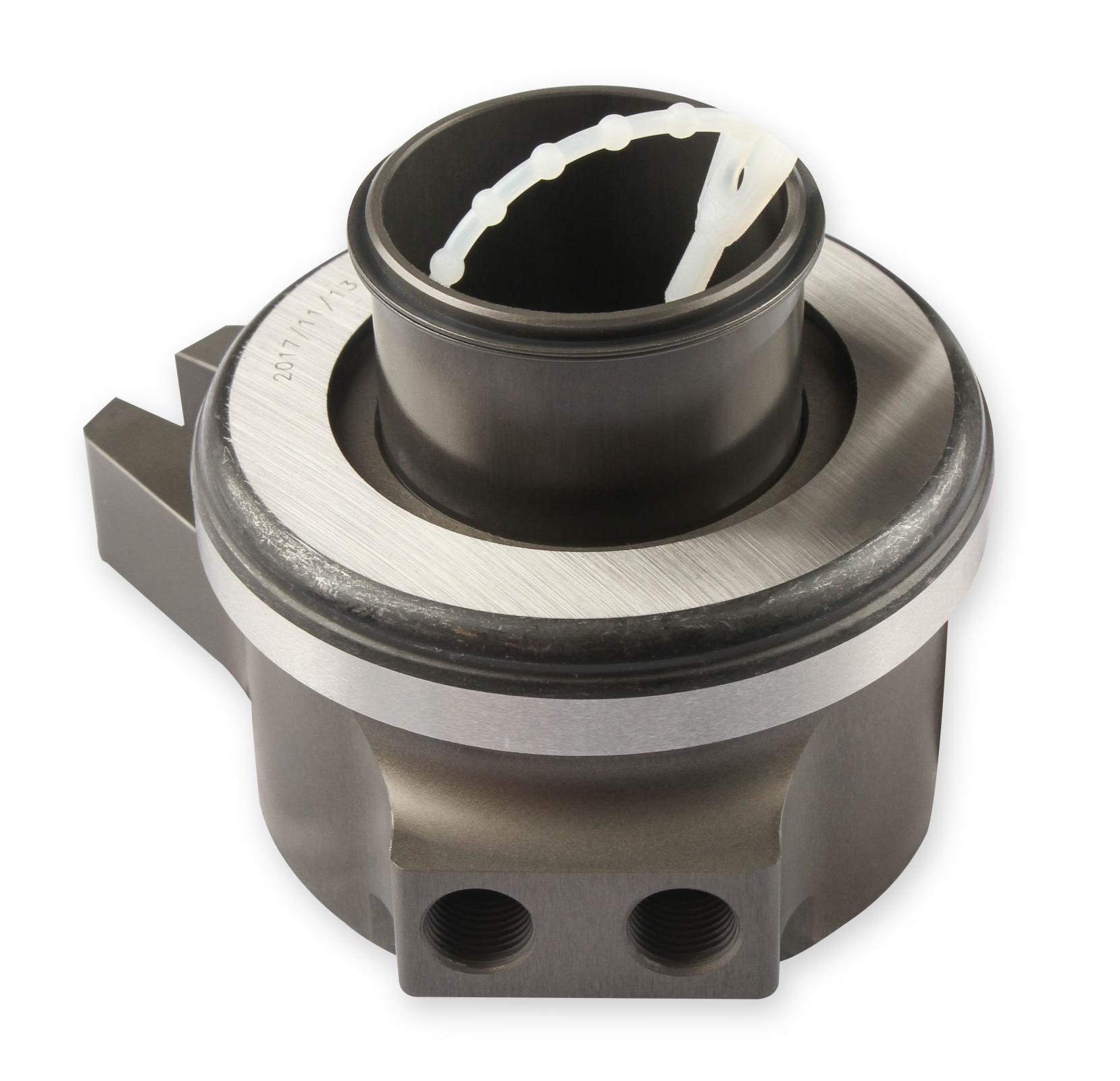

Hays release bearings are a floating design and feature large O-rings and PTFE backup rings in the grooves to help eliminate leakage along with a long service life. A snap ring on the front of the piston prevents over travel and keeps from pushing the bearing off the sleeve.

The sealed bearing snaps in place and is easily serviceable.

Features and Benefits:

• Designed to fit Tremec T-56 and TR6060 manual transmissions
• Offers easy way to add easy effort hydraulic clutch actuation
• Works with single or dual disc clutches
• Floating design bearing with large O-rings and PTFE backup rings to eliminated fluid leakage

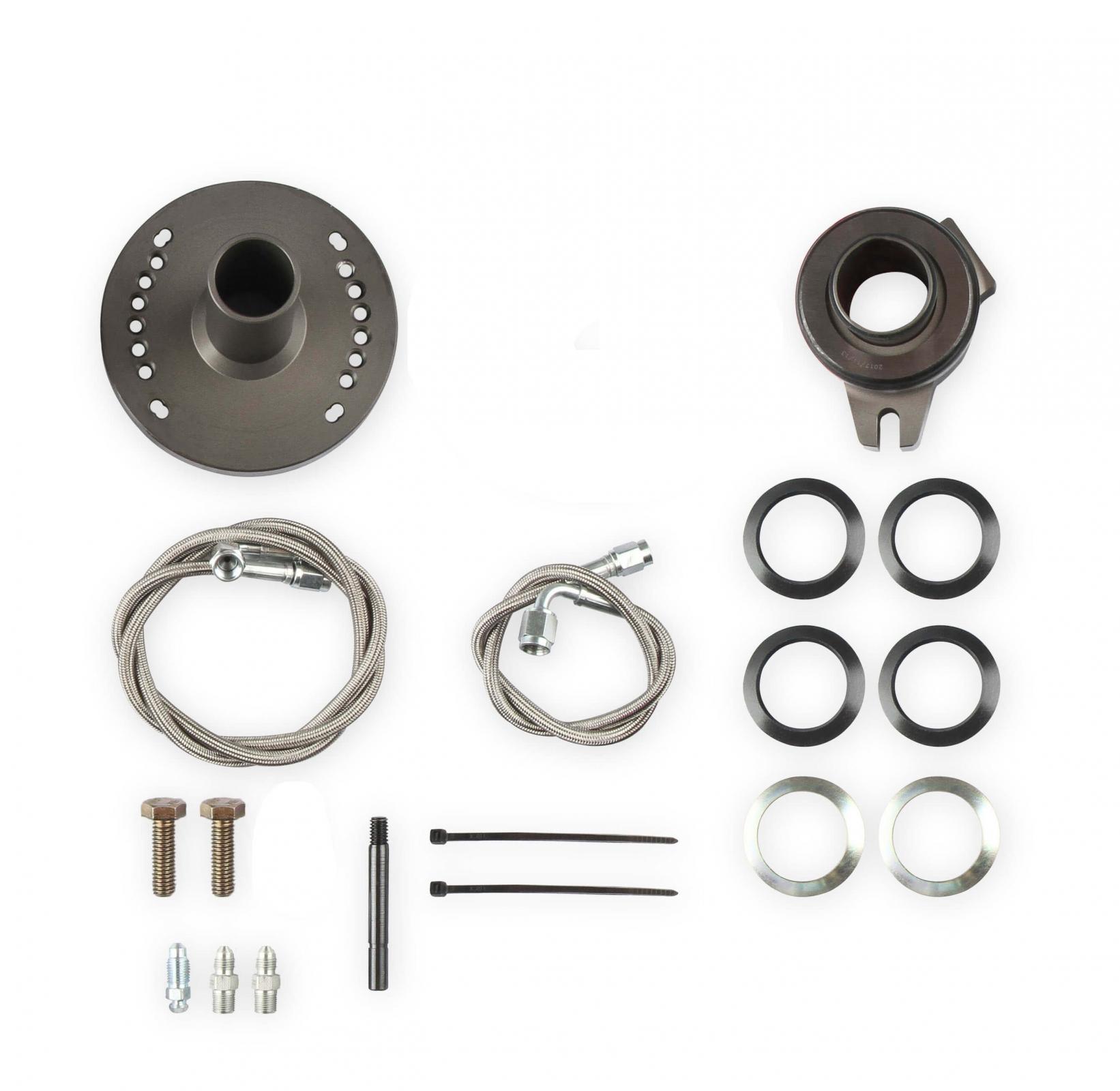

• Kits include bearing assembly, mounting hardware, adjustment shims plus -3AN bleed and feed lines

Details:

• Bearing Style: Hydraulic
• Bleed Line Included: Yes
• Bleed Line Length (inches): 18
• Emission Code: 5
• Feed Line Included: Yes
• Feed Line Length (inches): 36 Inch
• Warranty: Manufacturer's Limited 90 Day Warranty

Associated Comments:

• The included shims are the following thicknesses: Silver = .065 inch
• Black = .040 inch . Requires a .750 inch bore master cylinder with a minimum of 1.1 inch stroke
