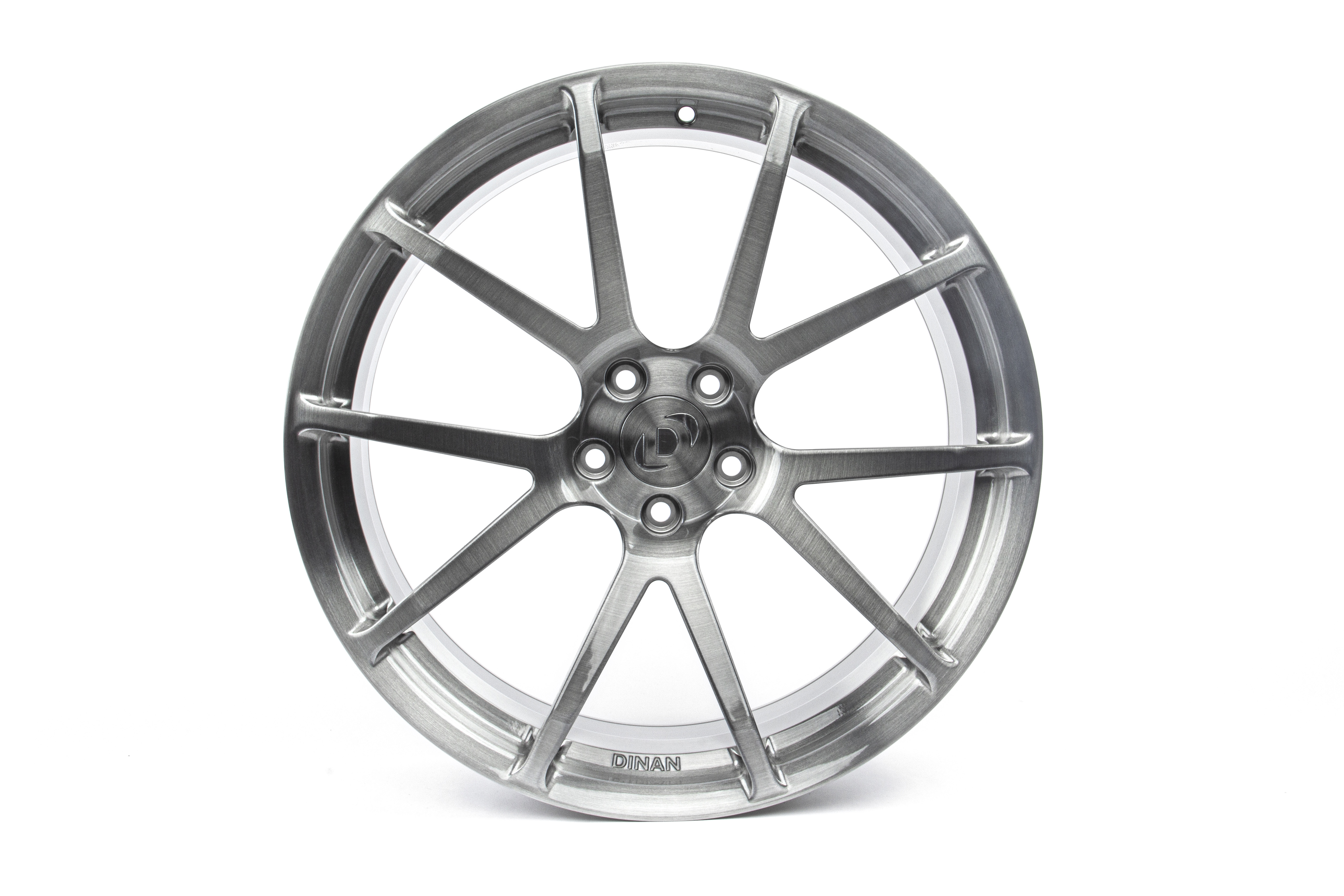

The Dinan Dc3 forged wheels are made with performance in mind. Built specifically for the F90/f97/f98, they utilize offsets and sizes for accommodating larger tires without any rubbing or modification of the wheel well.

They are also manufactured using the latest strengthening and weight savings technologies resulting in a reduction of unsprung weight that improves your BMWs grip on the road. While performance characteristics are paramount for any Dinan wheel, we would be remiss if the aesthetics were not as equally important.

Featuring a clean and timeless angular, 5-spoke Y design with hard-edge knuckle accents and weight-saving spoke pockets the Dc3 is at home in the showroom or at the track.

Following a long line of signature Dinan wheels, the Dinan Dc3 forged wheels have some big shoes to fill but we are confident they will cement themselves right along some of the most sought after Dinan wheels of all time and deliver Performance Without Sacrifice just like their forebearers.

Front Wheel

Size: 20 Inch x 10.0 Inch et26

Weight: 22.5 lbs / 10.2 kg (Factory 20x9.5: 35.3 lbs / 16 kg)

Recommended Tire (M5): Toyo Proxes Sport tires - 285/35-20 (For other tires see note below)

Recommended Tire (X3m/x4m): Pirelli P-Zero tires - 285/40-20 (For other tires see note below)

Rear Wheel

Size: 20 Inch x 11.0 Inch et31

Weight: 23.6 lbs / 10.7 kg (Factory 20x10.5: 36.4 lbs / 16.5 kg)

Recommended Tire (M5): Toyo Proxes Sport tires - 295/35-20 (For other tires see note below)

Recommended Tire (X3m/x4m): Pirelli P-Zero tires - 295/40-20 (For other tires see note below)

Features and Benefits

• Built to Dinan optimized offsets and sizes (Front: 20 Inch x 10 Inch et26; Rear: 20 Inch x 11 Inch et31)
• Lightweight (Front: 22.5 lbs; Rear: 23.6 lbs)
• 5x112mm bolt pattern
• Aerospace-grade 6061-T6 forged aluminum for extreme strength-to-weight ratio
• Wheels accommodate substantially larger tires for maximum grip and reduction of understeer by bringing the front and rear tire sizes closer together
• Engineered to minimize unsprung mass and rotational inertia for maximum performance and handling
• Finite Element Analysis (Fea) designed to minimize weight, yet retain a 1560 lb / 707 kg load rating at each corner
• Classic design suitable for both track and street performance
• DOT, via, and Jwl certified
• OE TPMS and lug hardware compatible for ease of installation
• Includes Dinan center caps

Associated Comments

The vehicle application data for this wheel is a general guideline only and fitment may not be applicable to your individual vehicle. Check width, offsets, and brake caliper clearance to confirm that the desired wheel will fit your vehicle.

Many vehicles have been modified & these changes may cause wheel fitment issues (i.e. big brake conversions, suspension changes, and other modifications). Always verify the wheel actually fits on your vehicle Before mounting tires.

Wheels are non-returnable after tires have been mounted.

If using a tire other than the recommended tire. The physical dimensions of different tire manufacturer's products may vary for a given tire size. In some cases minor trimming of the fender well lip may be required due to vehicle production tolerance variations.

Details:

• Dinan Point Value: 3
• Bolt Pattern: 5x112
• Location: Front and Rear
• Material: Aluminum
