External electric fuel pumps have been the performance standard for decades. They continue to perform well, however, the evolution of fuel pump technology has surpassed them in quiet operation and fuel delivery capabilities that an in-tank module can deliver.

• Looking ahead to the future, Sniper has designed their latest retrofit pump module especially for the carbureted applications, The module design is very similar to the existing EFI pump modules using a 340 LPH pump, but includes a built-in regulator for lower fuel pressure that carburetor applications require.
• Now you can convert your factory tank or fuel cell to an in-tank fuel system quickly and easily! The conversion is easily accomplished with basic tools and requires no welding or fabrication, The aluminum module design includes a die cast pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium, Once installed, hook up your fuel lines and your power source/ground and you're off and running! NO hassle!.
• An added bonus is that you can upgrade this module if you eventually change to an EFI system by changing the internal regulator.
• Supports up to 900 Carb HP (at 6 PSI at 13.5 Volts / 10.4 AMP Draw) of course there are many variables, estimates are based on gasoline, Individual systems will vary based on fuel system design, fuel cell location, etc, , .
• The easiest way to convert your vehicle to an in-tank fuel system.
• Installs in any fuel tank from 7 inch to 12 inch deep to fit a wide variety of applications.
• The low profile design is only 1.275 inch thick above the tank mounting surface for added clearance when needed.
• The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit.
• The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride.
• Die cast aluminum construction for corrosion resistance and long lasting good looks.
• 1/4 inch NPT ports for a wide variety of plumbing options.

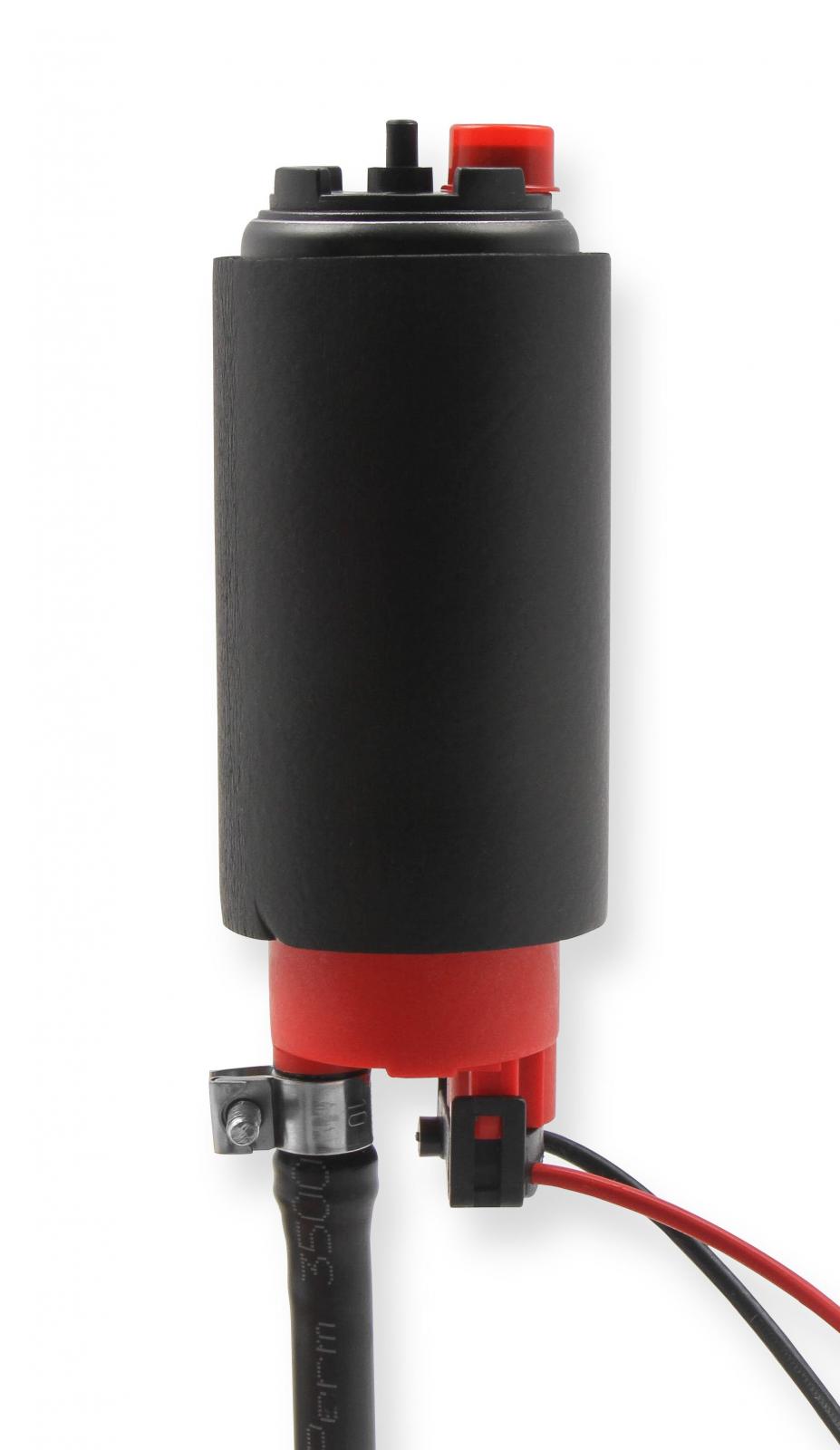

• 340LPH pump that is E85 compatible for returnless style systems.

Details:

• Application: Universal
• Diameter: 4.8 inch
• Emission Code: 3
• Free Flow LPH: 340
• Fuel Sending Unit Included: No
• Fuel System Type: Gasoline/E85 Compatible
• Fuel Tank Pressure Sensor Included: No
• Fuel Type: E85, Gasoline
• Gasket Or Seal Included: Yes
• Material: Die Cast Aluminum
• NPT Thread: 1/4 NPT
• Strainer Included: Yes
• Warranty: Manufacturer's Limited 90 Day Warranty
