75 Inch triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort.

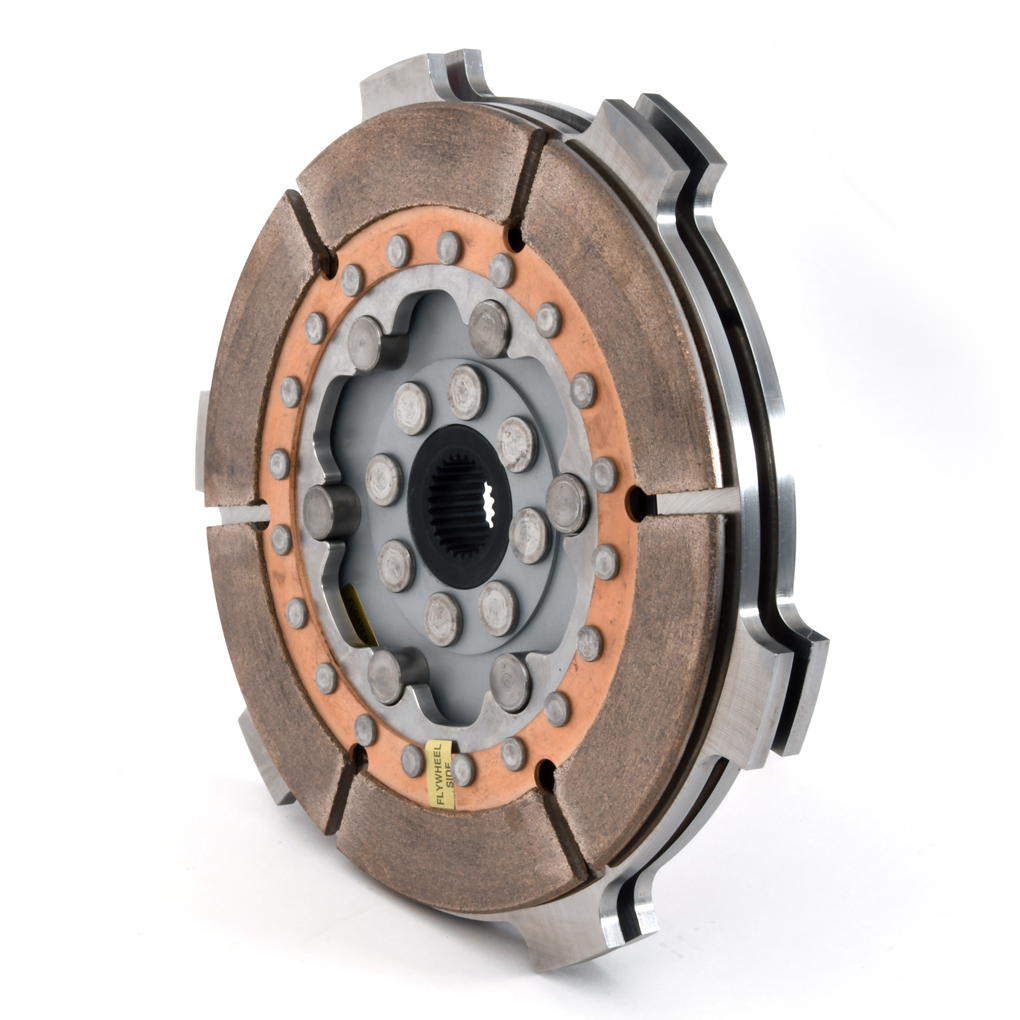

The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's.

Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA.

TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

Application Details:

• Liter: 5.7
• Cylinders: 8
• BlockType: V
• Fuel Delivery Type: FI
• Fuel Type: Gas
• CID: 350
• Engine Bore Inches: 3.9
• Engine Bore Metric: 99
• Engine Stroke Inches: 3.62
• Engine Stroke Metric: 92
• Aspiration Name: Naturally Aspirated
• Transmission Control Type: Manual

Details:

• Alignment Tool Included: Yes
• Clutch Disc Diameter: 222.3
• Counterweight Assist: No
• Crankshaft Bolt Hole Quantity: 6
• Disc Material: Sintered Metallic
• Disc Type: Full face
• Disc Type (Sprung/Solid): Solid
• Flywheel Counter Balance Weight: 0
• Flywheel Crank Bolt Size: MM11 x 1.50 x 23
• Flywheel Crank Flange Register: 2.068
• Input Shaft Diameter: 39448
• Input Spline Quantity: 26
• Installed Height: 2.89
• Material: Billet Steel Flywheel / Nodular Iron Pressure Plate / Full Face Cerametallic Friction
• Mounting Hardware Included: Yes
• Out of Package Weight: 34.3
• Pilot Bushing Included: Yes
• Ring Gear Outside Diameter: 14.105
• Tooth Quantity: 168
• Torque Capacity: 1100
• Made in the USA: Assembled
