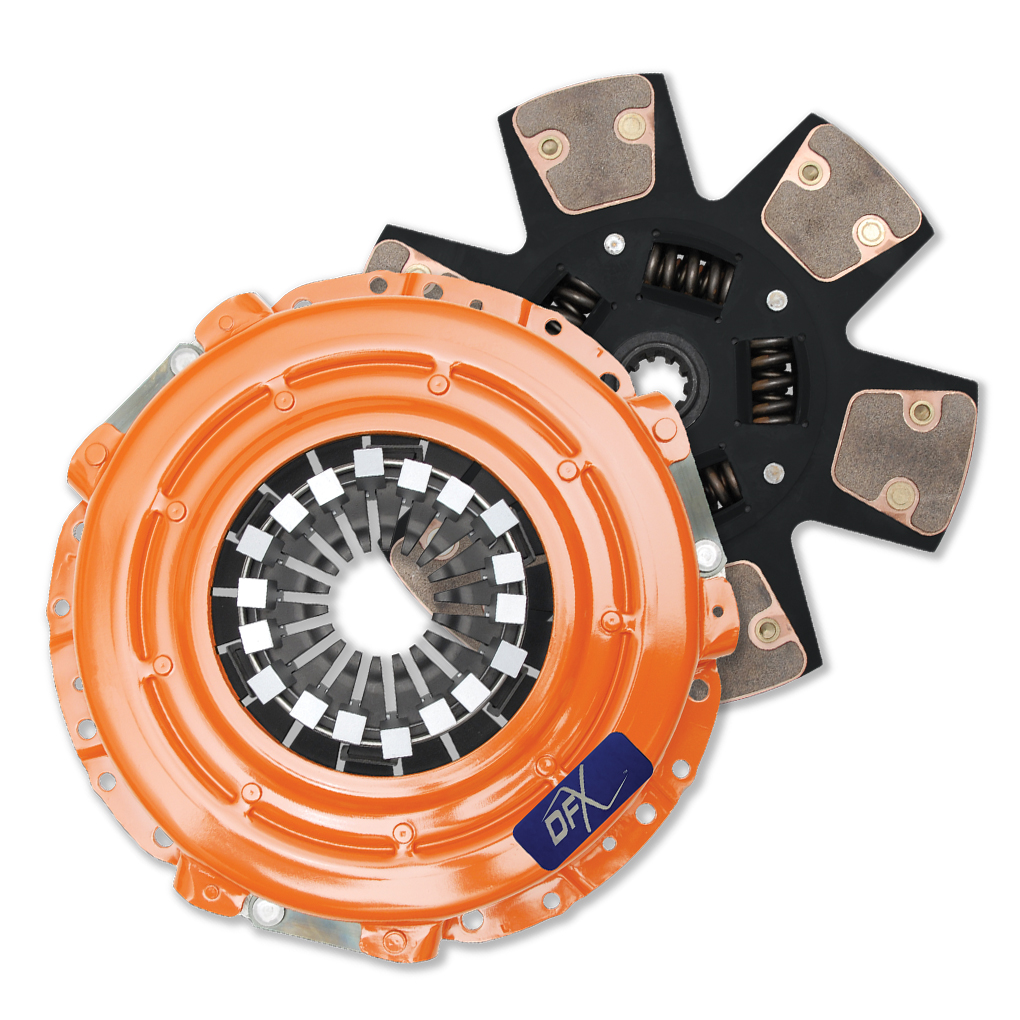

The Centerforce DFX Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship.

The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch.

The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety.

Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.

Application Details:

• Liter: 2.3
• Cylinders: 4
• BlockType: L
• Fuel Delivery Type: FI
• Fuel Type: Gas
• CID: 140
• Engine Bore Inches: 3.62
• Engine Bore Metric: 92
• Engine Stroke Inches: 3.35
• Engine Stroke Metric: 85
• Aspiration Name: Naturally Aspirated
• Engine Version: Quad 4
• Transmission Control Type: Manual

Details:

• Clutch Disc Diameter: 236
• Counterweight Assist: No
• Disc Material: Cerametallic
• Disc Type: 6-Paddle
• Disc Type (Sprung/Solid): Sprung
• Input Shaft Diameter: 1
• Input Spline Quantity: 14
• Material: Cast Iron Pressure Plate / Cerametallic Button Style Friction
• SFI 1.1 Approved: Y
• Made in the USA: Assembled

With External Slave
