Continued feedback from racers and install shops, related to our original line of EFI intakes, were critical in the development of our Race Series line of fabricated intake manifolds. The Race Series Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a very competitive alternative to much higher priced offerings in the marketplace making for a compelling value for those in the market for a high-performance sheet metal style intake manifold.

• Holley Sniper EFI Fabricated Manifolds continue to push the aftermarket by introducing our latest Race Series line of intakes for GM LS3/L92 engine platform.
• Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top, Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.

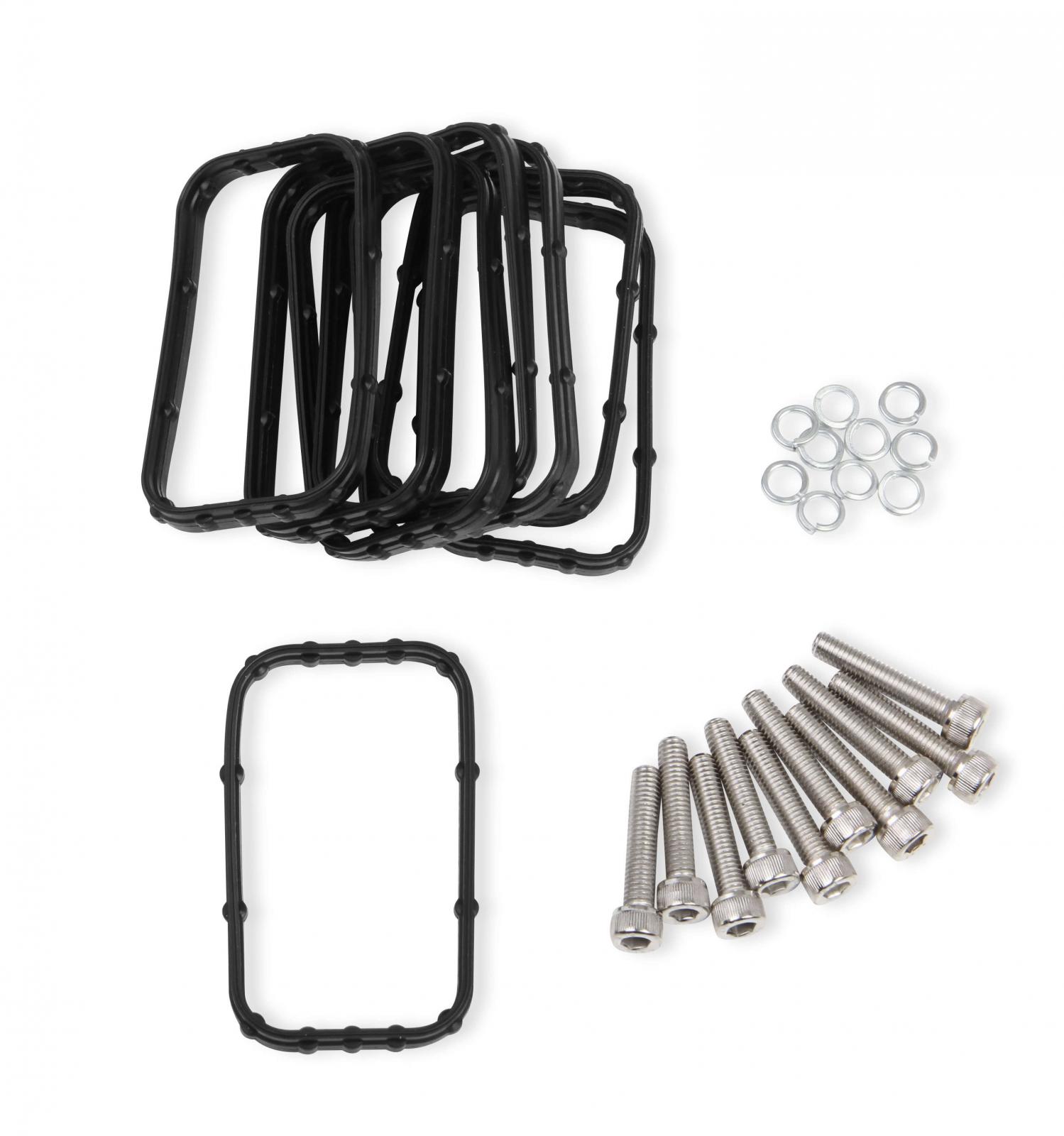

• Product includes all gaskets and hardware for a hassle-free installation.
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response.
• 5mm (13/64 inch) thick T6061 sheet aluminum construction for maximum durability.
• Larger Intake plenum vs, standard Sniper EFI manifolds for max effort engines and boosted applications.
• 100 percent TIG welded for strength and durability.
• Silver finish creates high impact under-hood styling.
• Longer Intake runner lengths offering a wider RPM operating range of 2400-8200 RPM.
• 90mm throttle bore opening for increased air flow.
• Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications.
• Removable top for ease of inspection, modification, and addition of sensors.
• Includes 3/8 inch Fuel rail kits (Sniper logo laser engraved).

Details:

• Basic Operating RPM Range: 3500-8000 RPM
• Carburetor Studs Included: No
• CNC Ported: No
• Color: Silver
• Construction: Fabricated
• Cylinder Head Port Shape: Rectangle
• Deck Height: 9.24 Inch
• EGR Port: No
• Emission Code: 4
• Engine: GM LS3/L92
• Front Maximum Height: 9.62 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: Yes
• Fuel System Type: EFI
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Injector Style Provision: LS3/L92 EV6 USCAR
• Intake Port Gasket(s) Included: Yes
• Manifold Type: Fabricated
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Silver
• Rear Maximum Height: 9.015 Inch
• Recommended Use: Forced Induction
• Removable Runners: No
• Removable Top/Lid: No
• Runner Length: 5.512 inch (140mm)
• Single Or Dual Plane Type: Single
• Style: EFI
• Throttle Body Bore Diameter: 90 Millimeter
• Throttle Body Gasket Included: Yes
• Throttle Body Included: No
• Throttle Bore: 90mm
• Vacuum Ports: (3) 1/8 inch-28BSPT & (1) 1/4 inch-19BSPT
• Warranty: Manufacturer's Limited 90 Day Warranty
