Ford distributors providing extra room in front of the engine. The new MSD

• Mounted to the top of this shaft is a fully adjustable mechanical advance
• a special compact housing designed to be less obtrusive for Ford engines.
• MSD engineers fit all of their high performance distributor experience into
• reluctor to deliver accurate trigger signals to the MSD Ignition throughout
• high rpm. The reluctor assembly is turned by a hardened steel shaft which
• cap features spark plug style terminals and is firmly screwed down to the

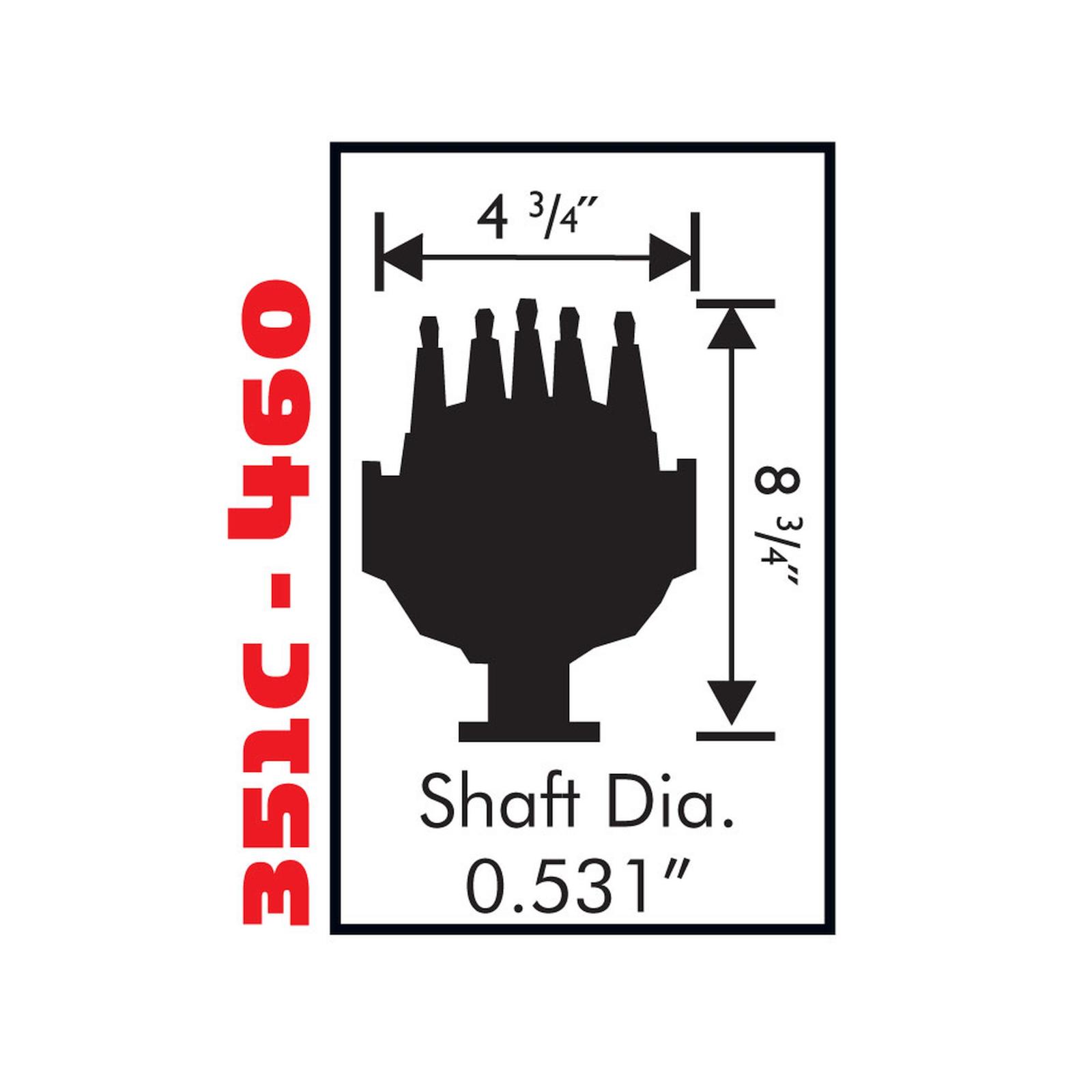

• The diameter of the special cap and housing are 5/8 Inch smaller than stock
• assembly. The rate at which the chromoly assembly advances the timing is
• housing.
• The distributor relies on MSD's race proven magnetic pickup and precision
• for total advance.
• rides in a sealed ball bearing for high rpm stability and endurance.
• easily controlled by changing the supplied advance springs and stop bushing
• Advance weight pins are staked and tig welded to the plate
• Billet housing is 5/8” smaller in diameter than stock Ford distributors
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• CNC machined billet aluminum housing and billet aluminum base

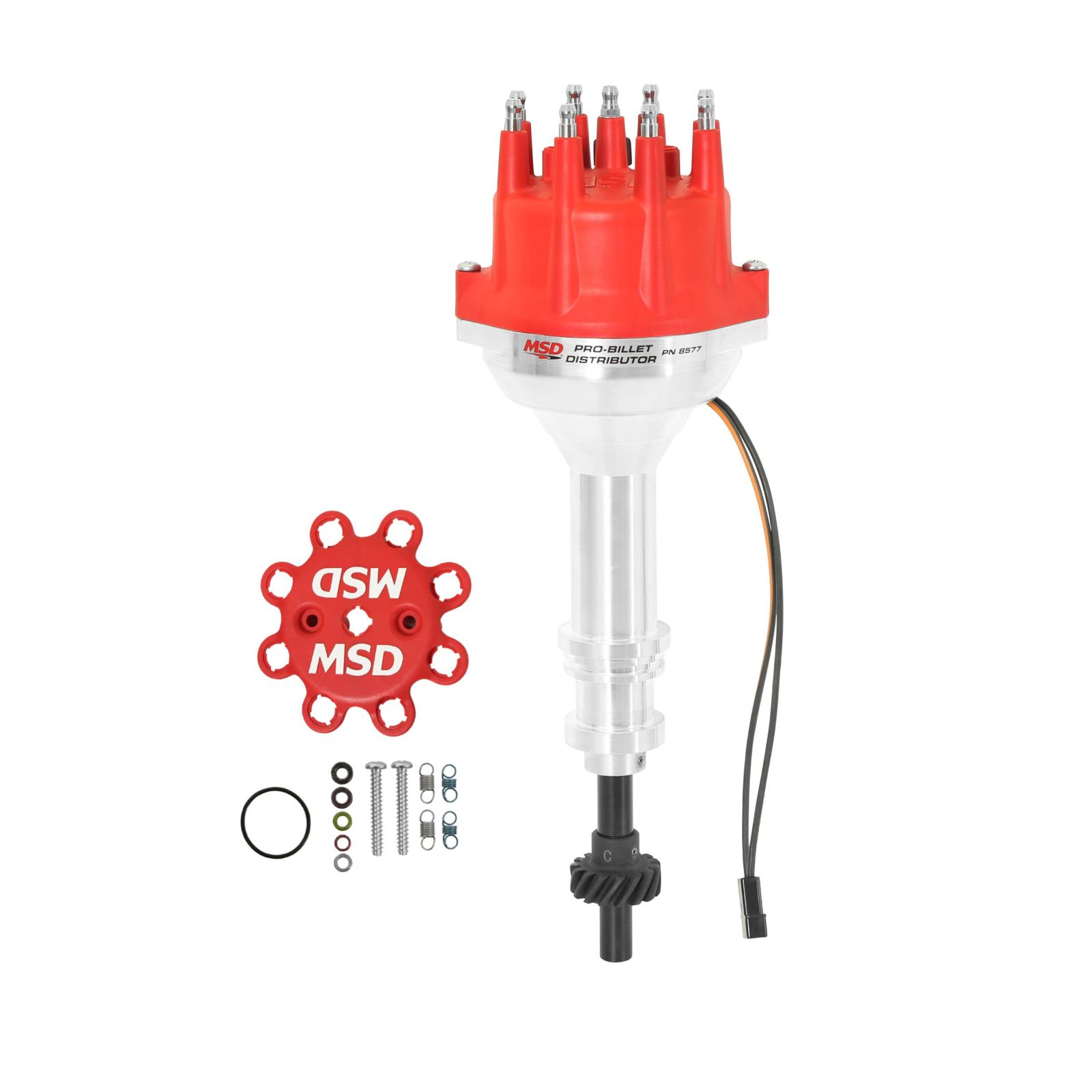

• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Nylon pads ensure smooth operation of the advance weights
• Mechanical advance assembly can be locked out for crank trigger systems
• Must be used with an MSD Ignition Control

Details:

• Distributor Cap Included: Yes
• Distributor Type: Magnetic Pickup
• Emission Code: 1
• Engine: Ford 351C-460

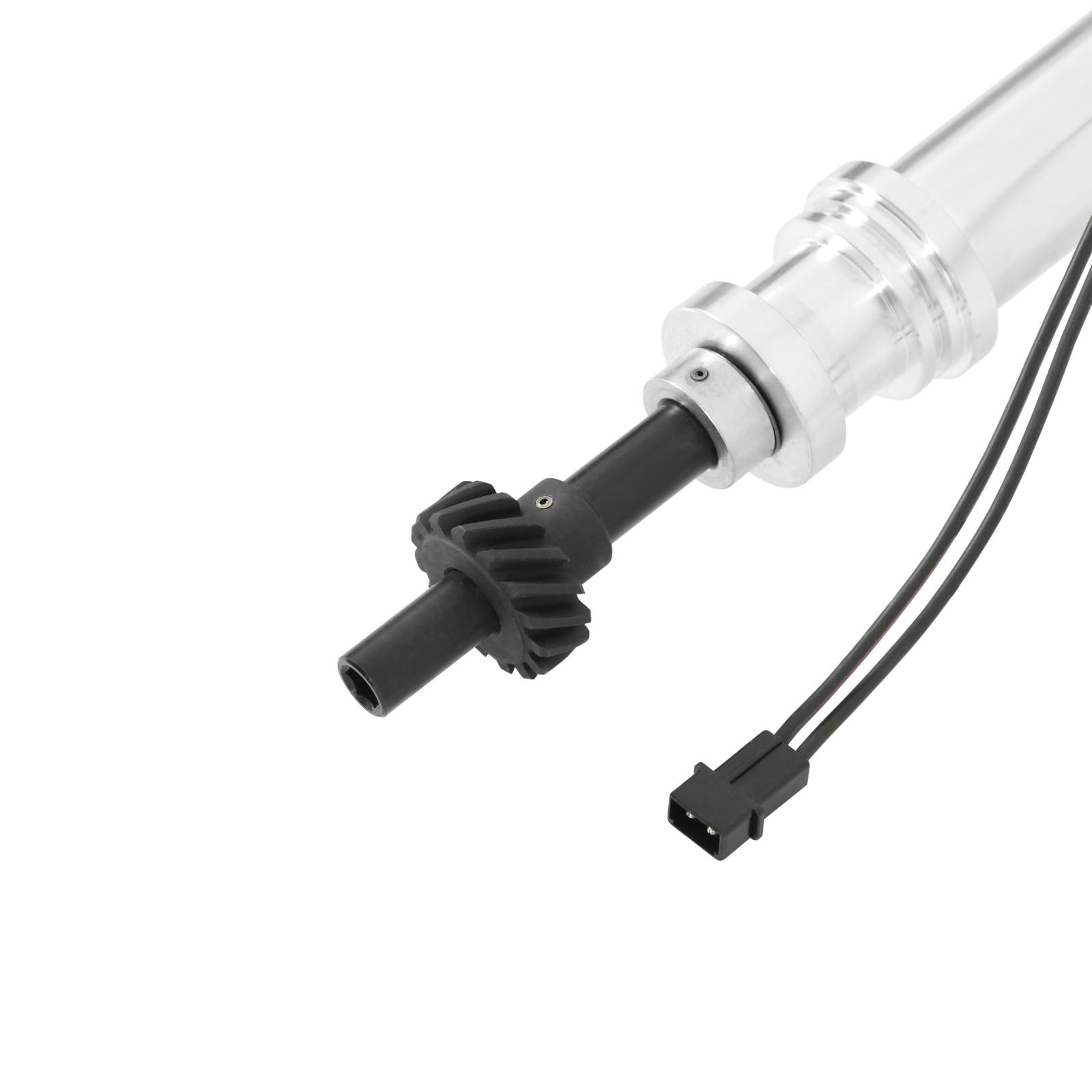

• Gear: Cast Iron
• Gear Material: Cast Iron Melonized QPQ Coated
• Ignition Box Required: Yes
• Ignition Coil Included: No
• Ignition Rotor Included: Yes
• Warranty: Manufacturer's Limited 1 Year Warranty
