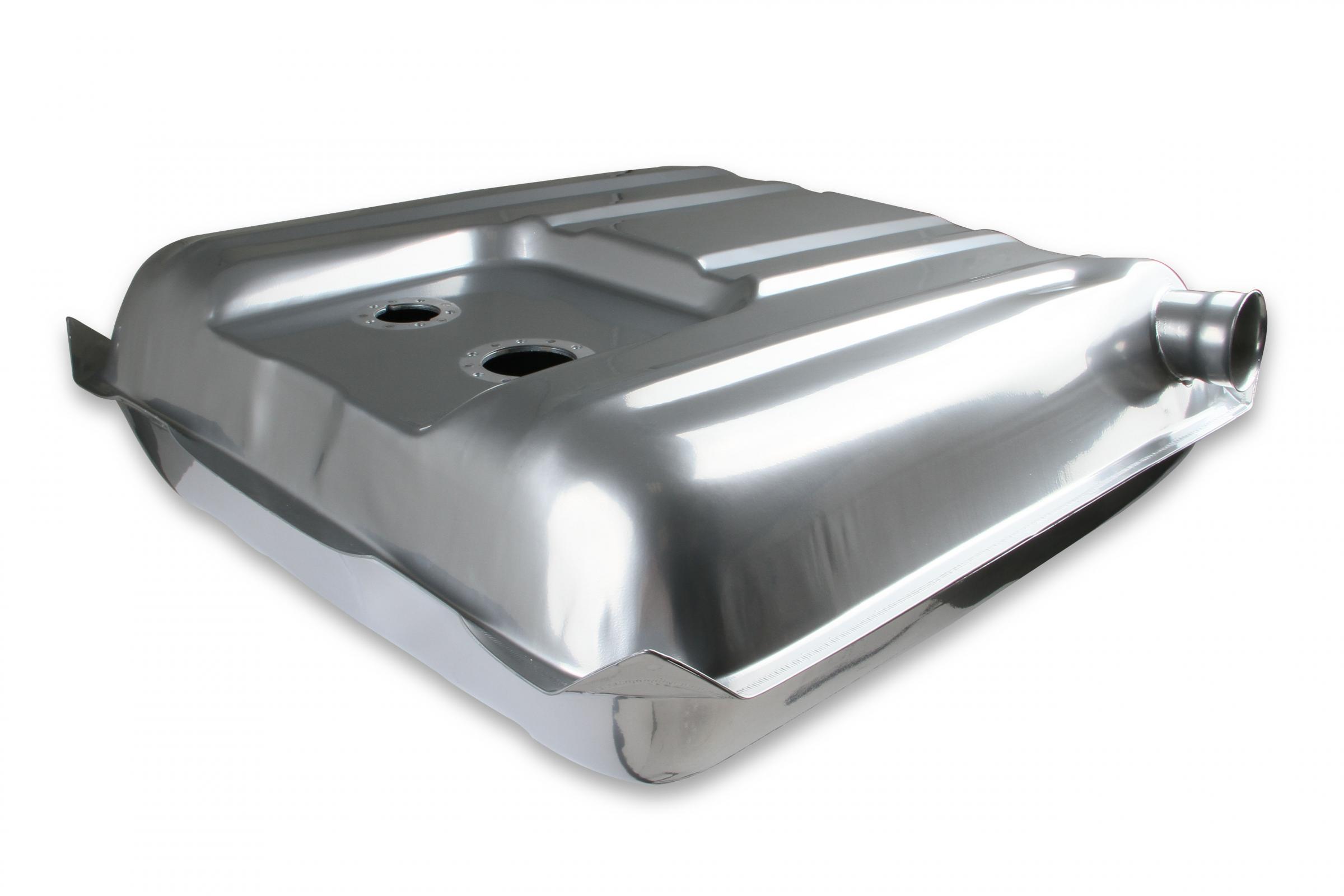

Holley and Sniper will help you to complete your EFI swap with our New EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary.

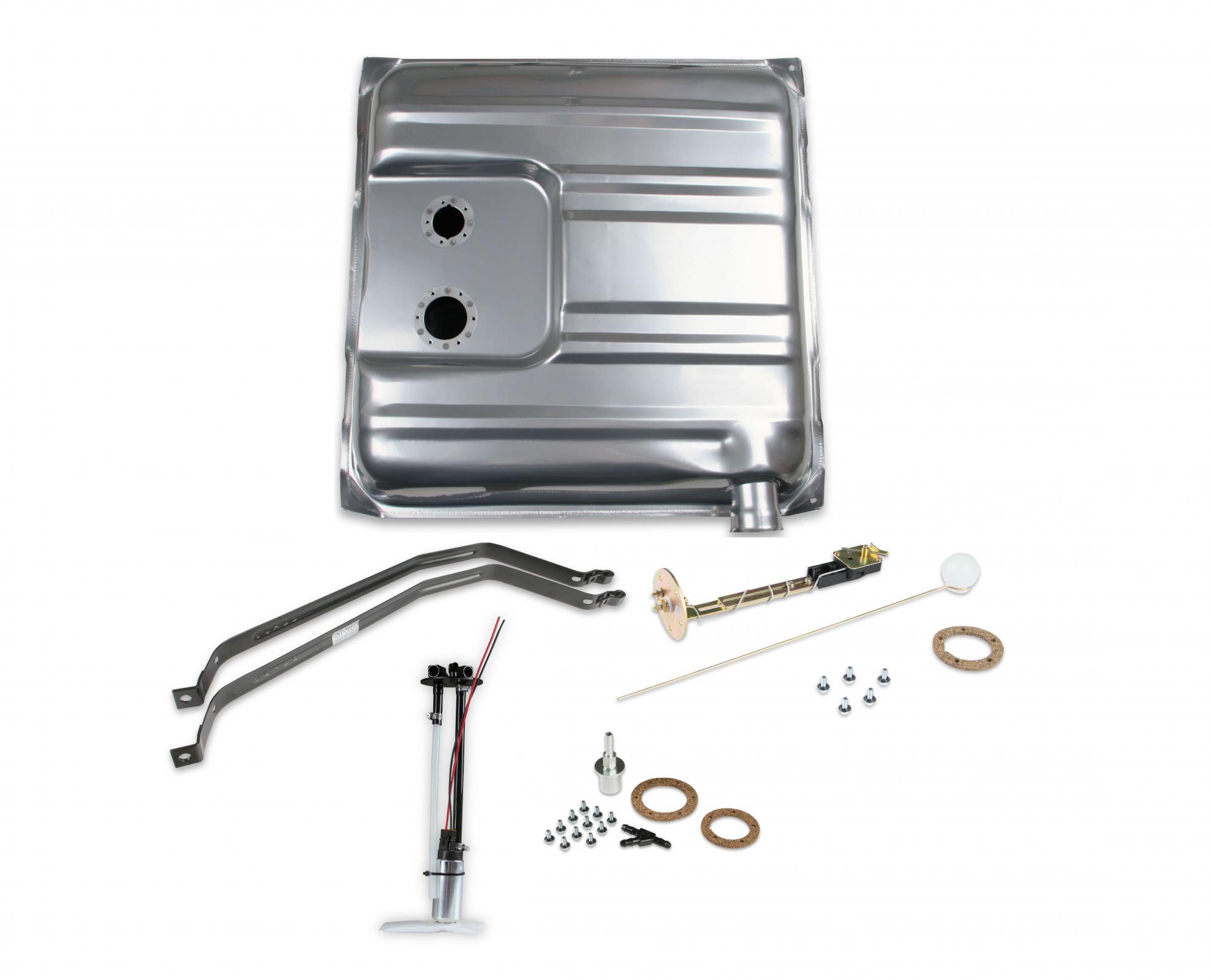

The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks.

These tank kits are a complete solution for your EFI project!

• Steel filler neck that extends to rear valance is not included, You must use your existing stock filler neck or purchase one through restoration suppliers.
• Supports up to 550 EFI (at 60 PSI at 13.5 Volts / 10.4 AMP Draw).
• Overall Size: 24-1/2 inch x 25 inch x 8 inch.

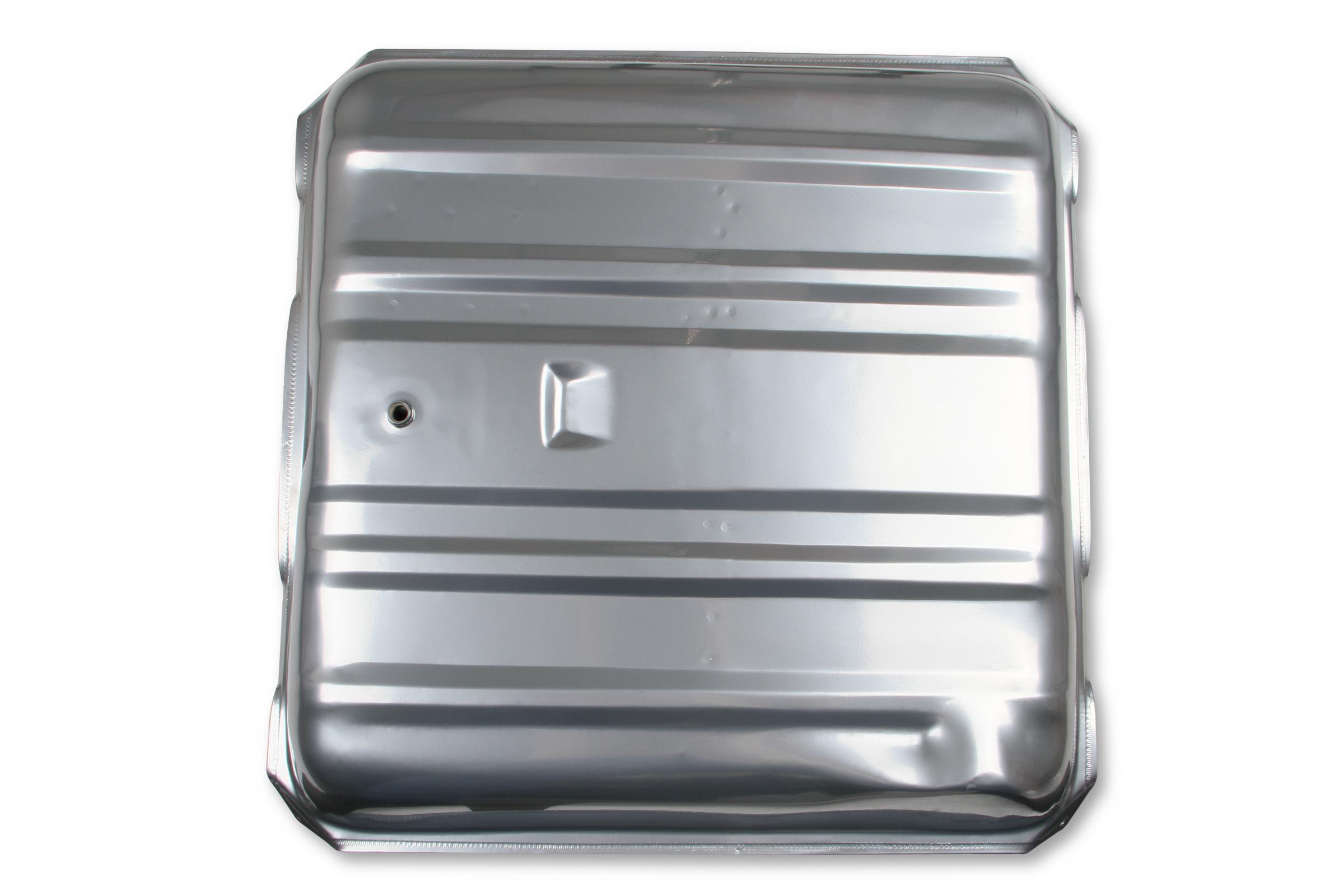

• Tanks are coated galvanized steel then powder coated silver for total corrosion protection.

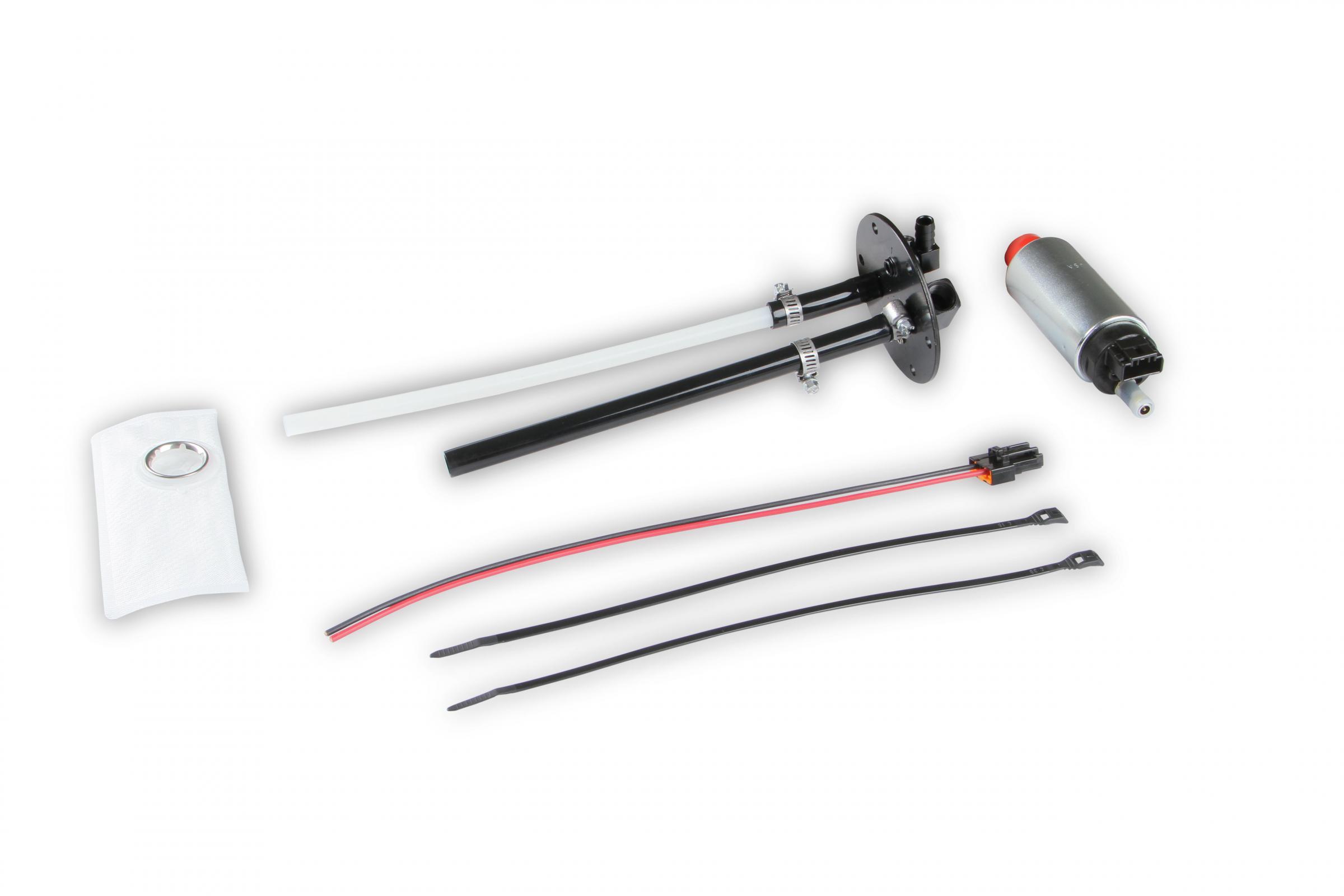

• 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness.

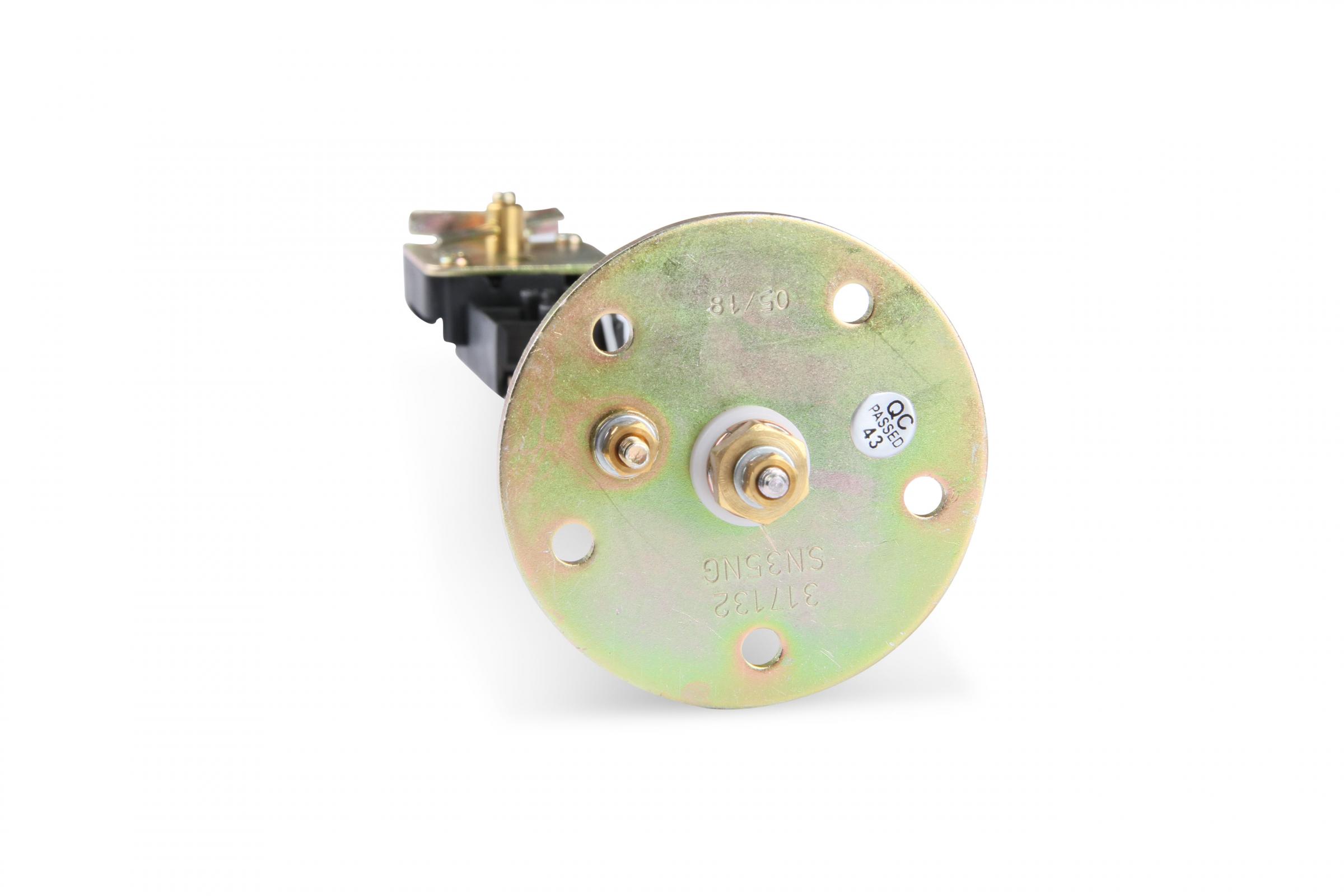

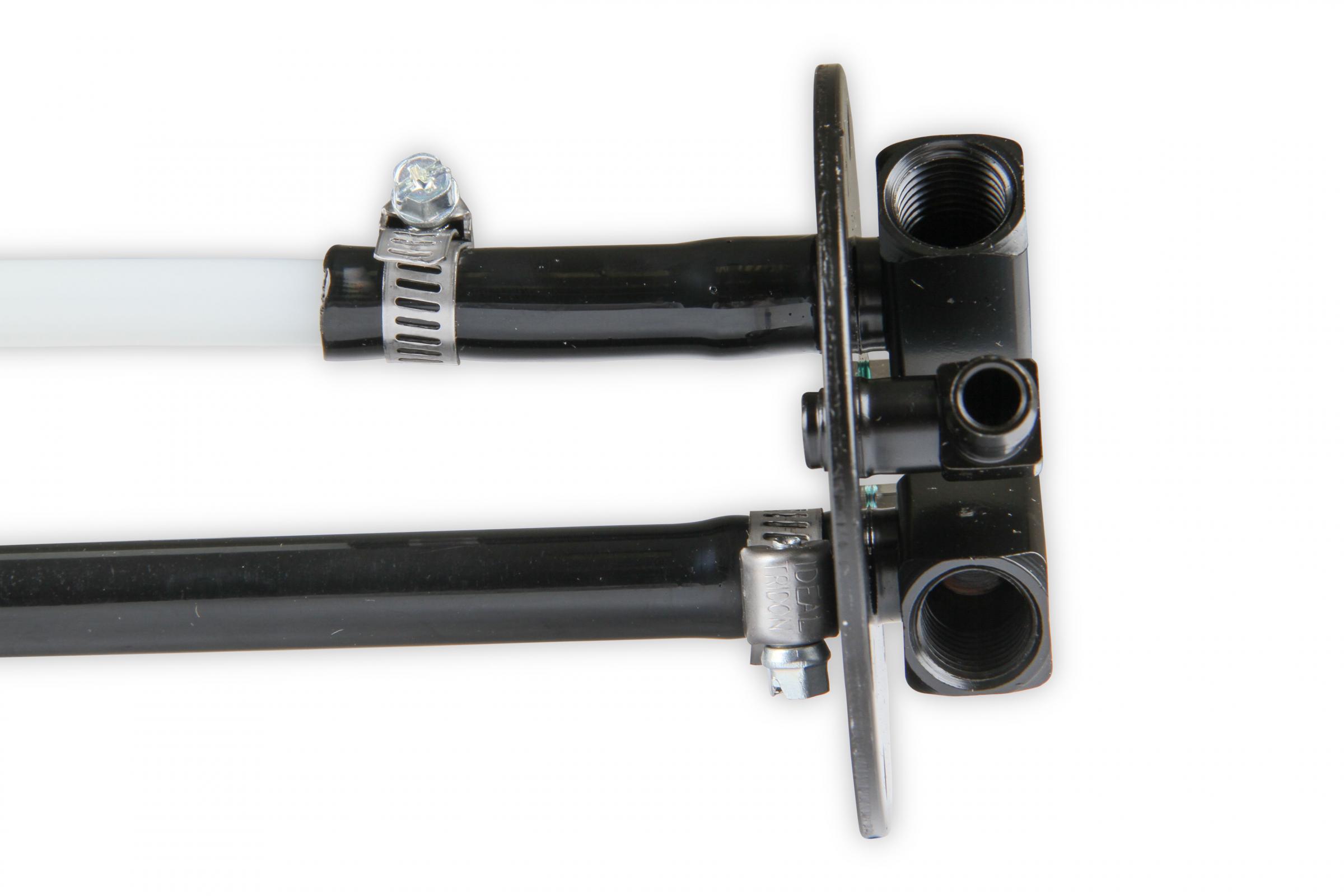

• Sender has 1/4 inch NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting.

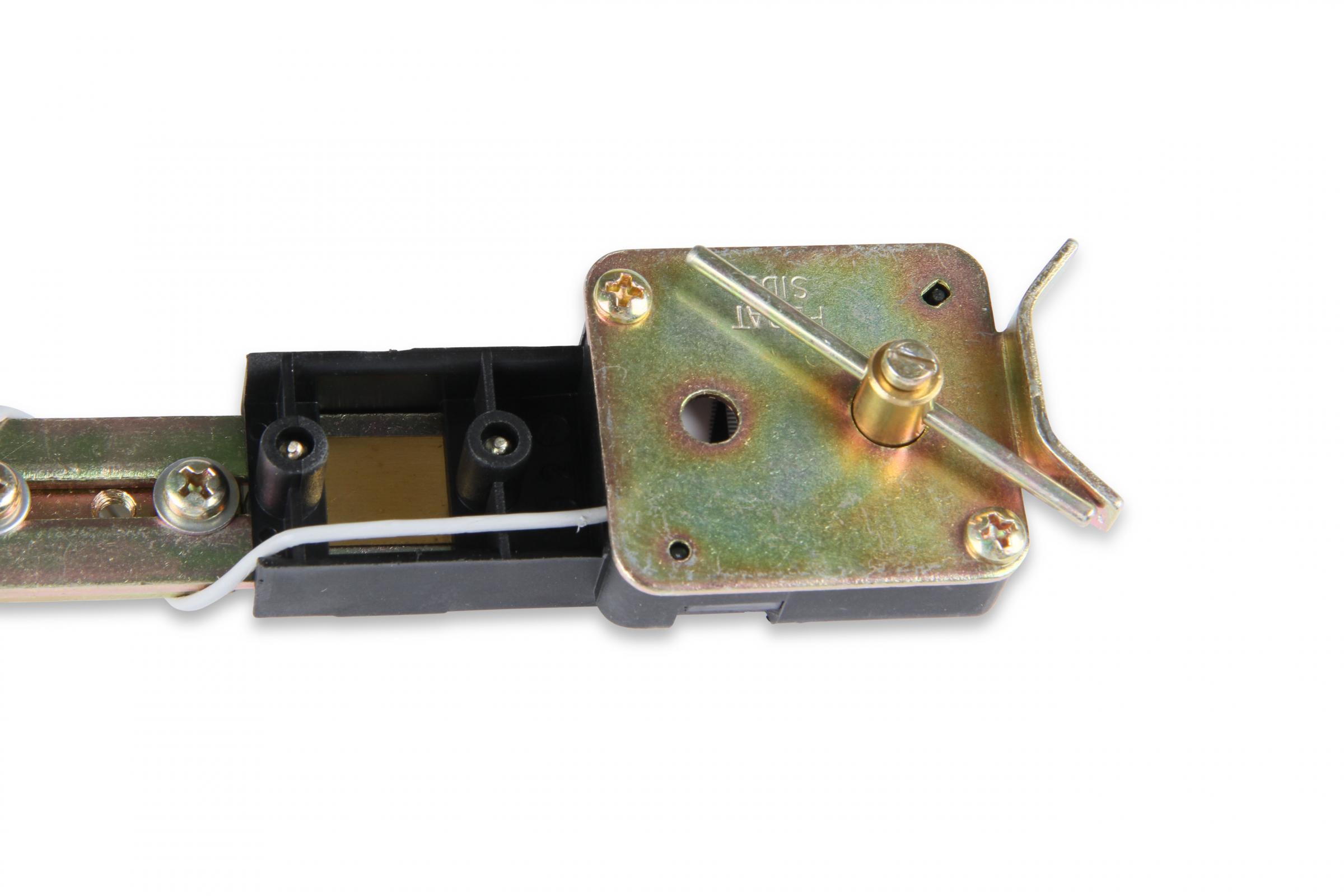

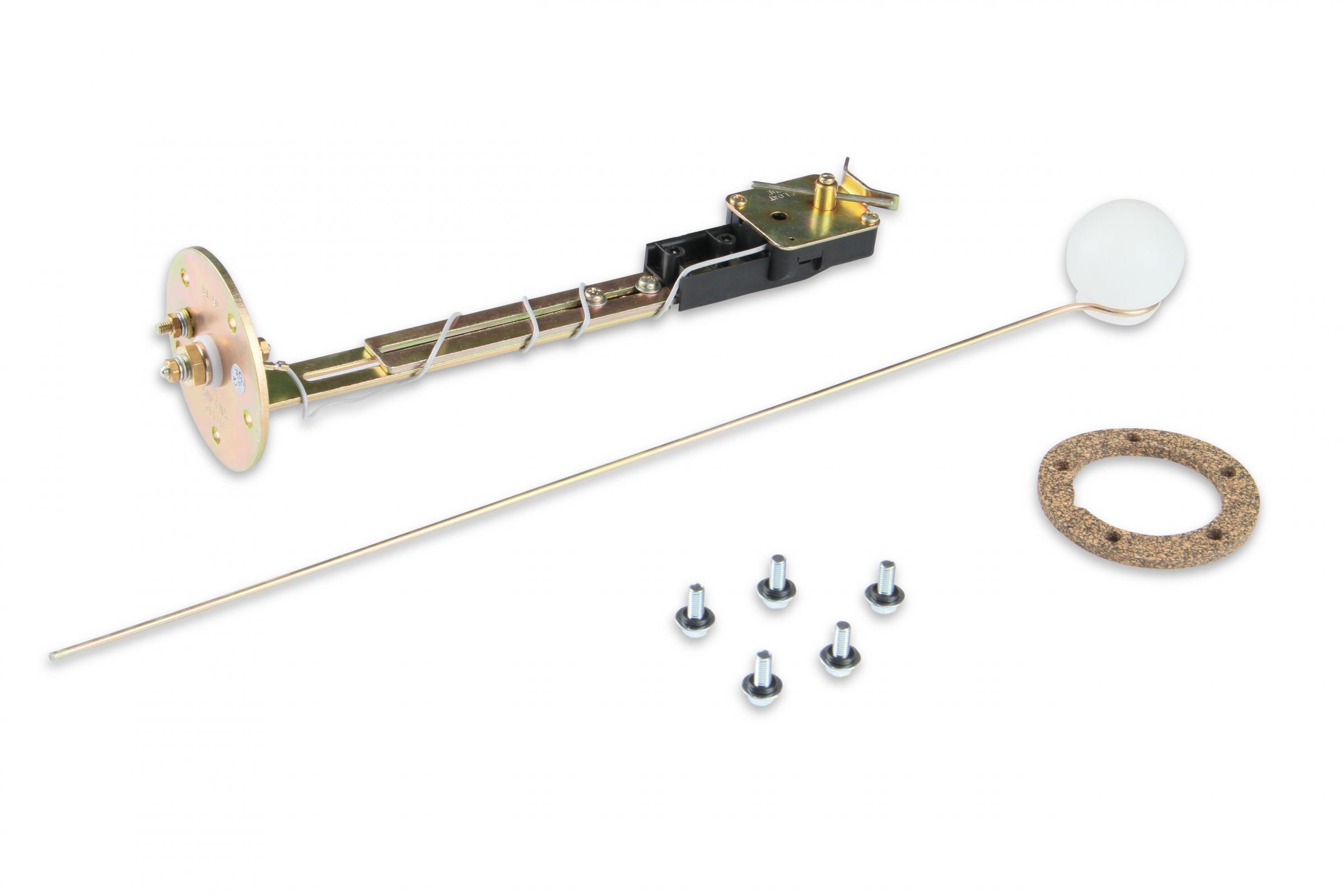

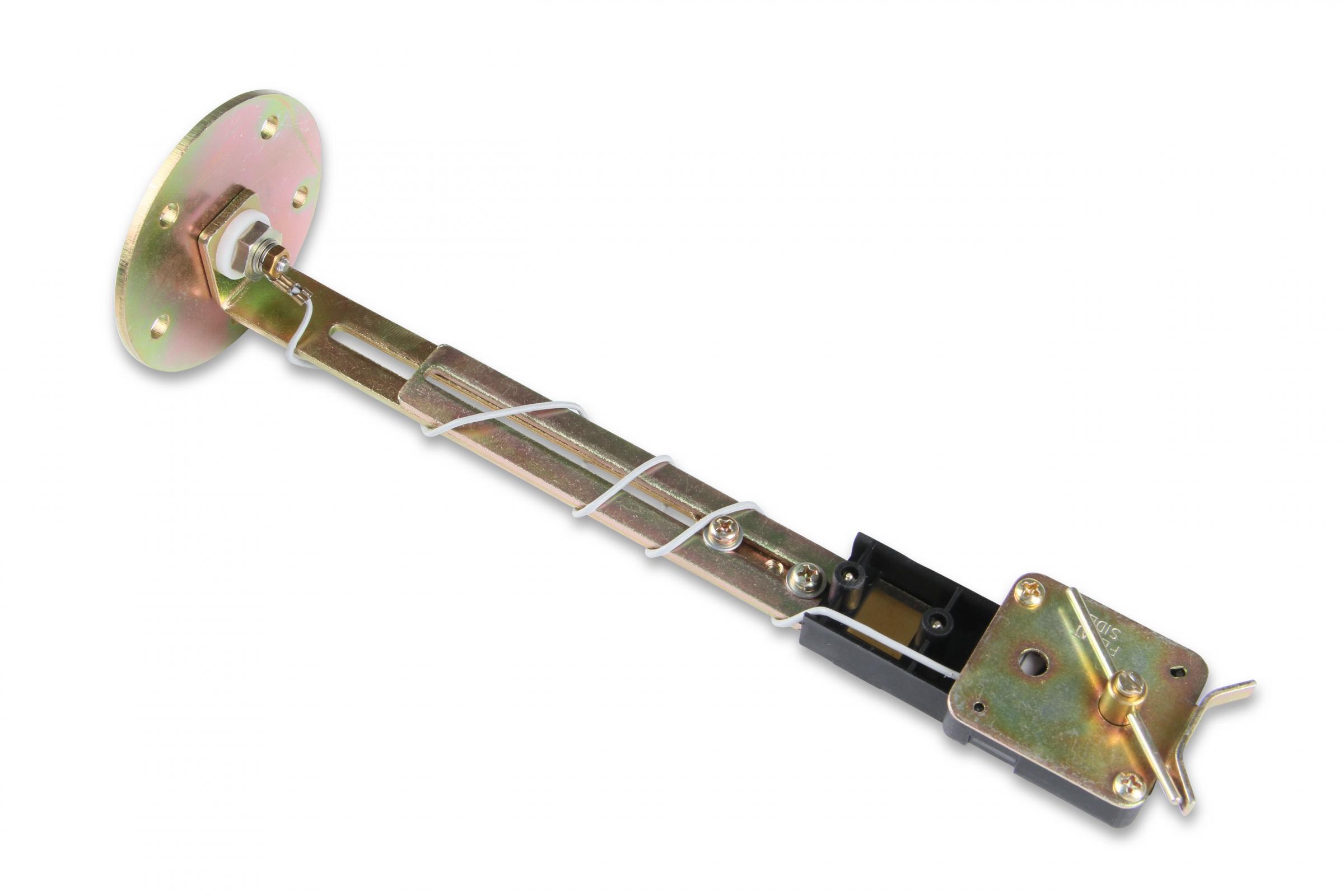

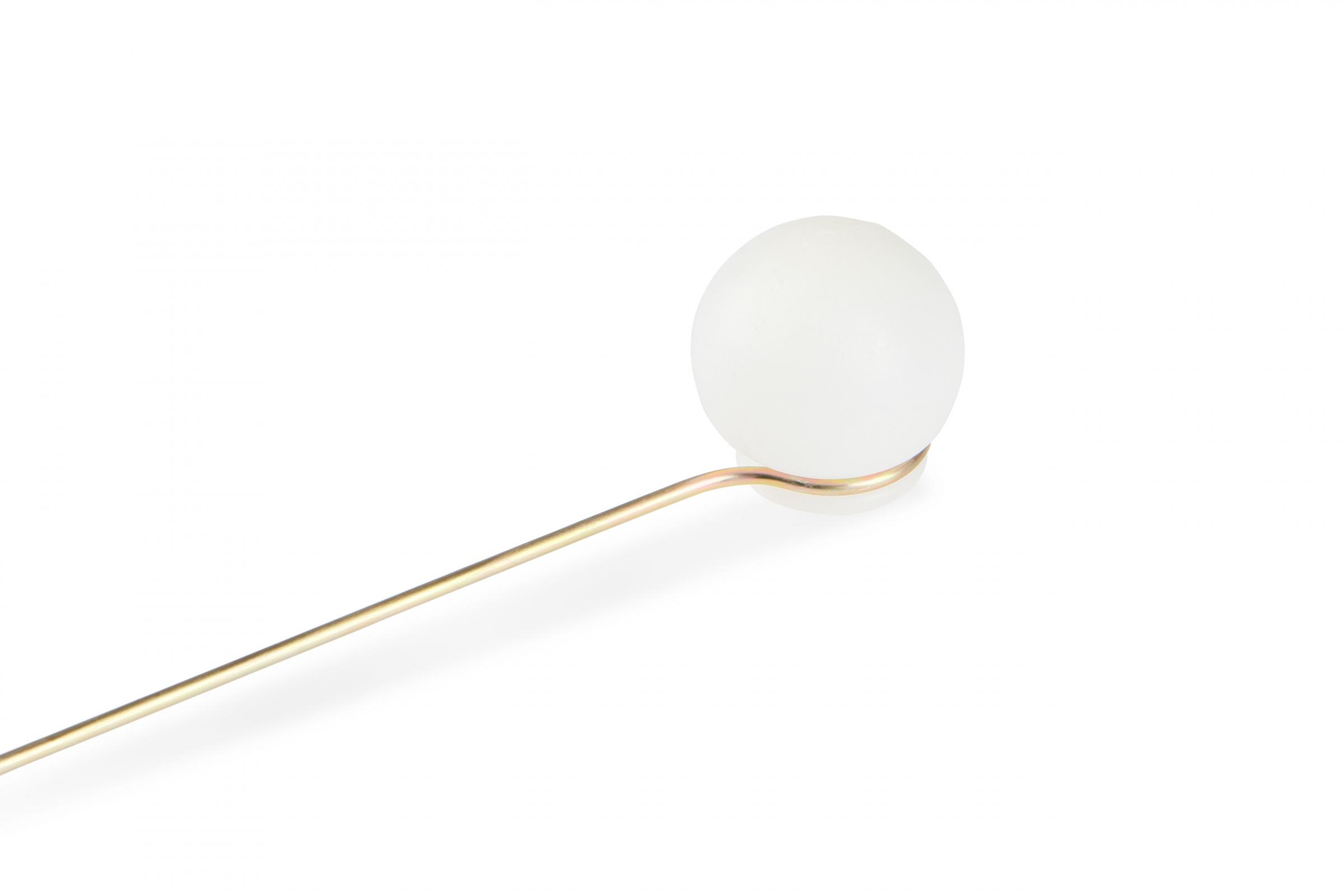

• Fuel level sender included with the correct Ohm range for your factory gauges.

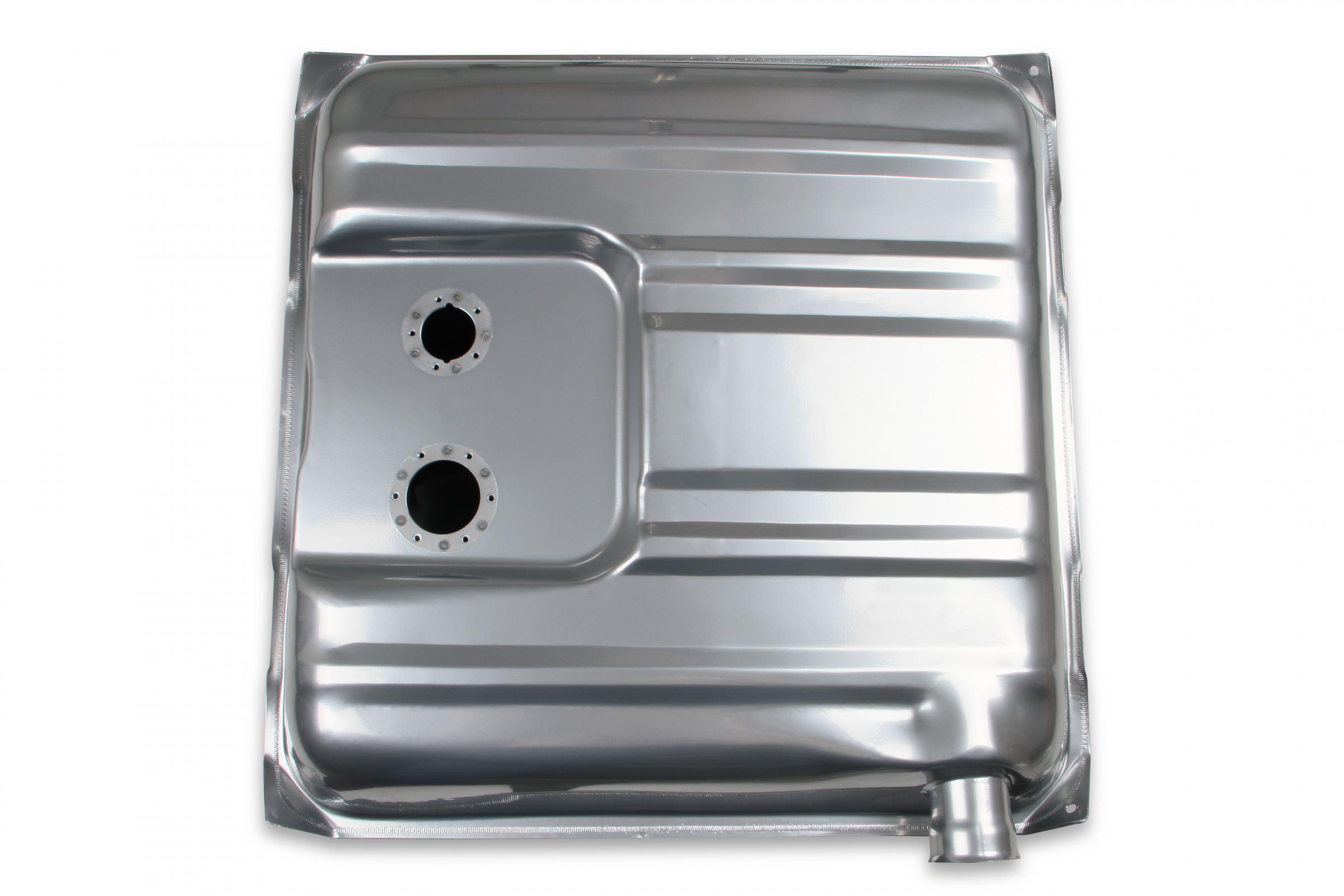

• Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car.
• EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation.
• Fits and looks like an OE tank when installed.
• Complete bolt in solution for your EFI conversion.

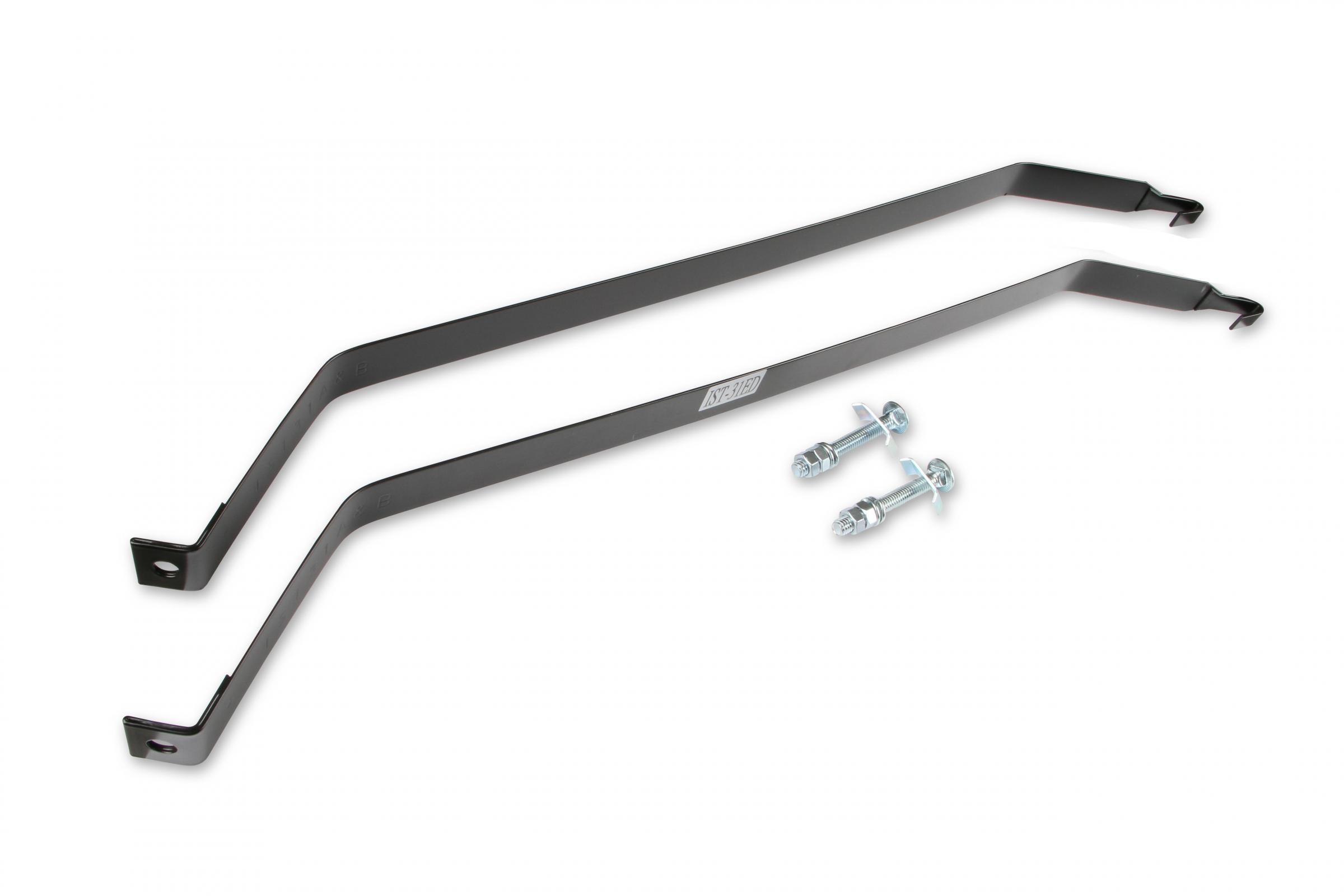

• Includes New tank straps.

Details:

• Application: 1955-56 Chevy Coupe Sedan
• Attached Sump: Yes
• Baffled Sump: Yes
• Color: Silver
• Drain Plug: No
• Emission Code: 3
• Filler Neck Attached: No
• Finish: Powdercoated
• Free Flow LPH: 255
• Fuel Sending Unit Ohms: 0-30 Ohms
• Fuel System Compatibility: Electronic Fuel Injection
• Fuel System Type: Gasoline
• Fuel Tank Coating: Powder Coated
• Gallon Capacity: 15.5
• Grade Type: Performance
• Lock Ring Included: Yes
• Material: Steel
• Maximum Flow Rating: 255 LPH
• Mounting Straps Included: Yes
• New Straps Included: Yes

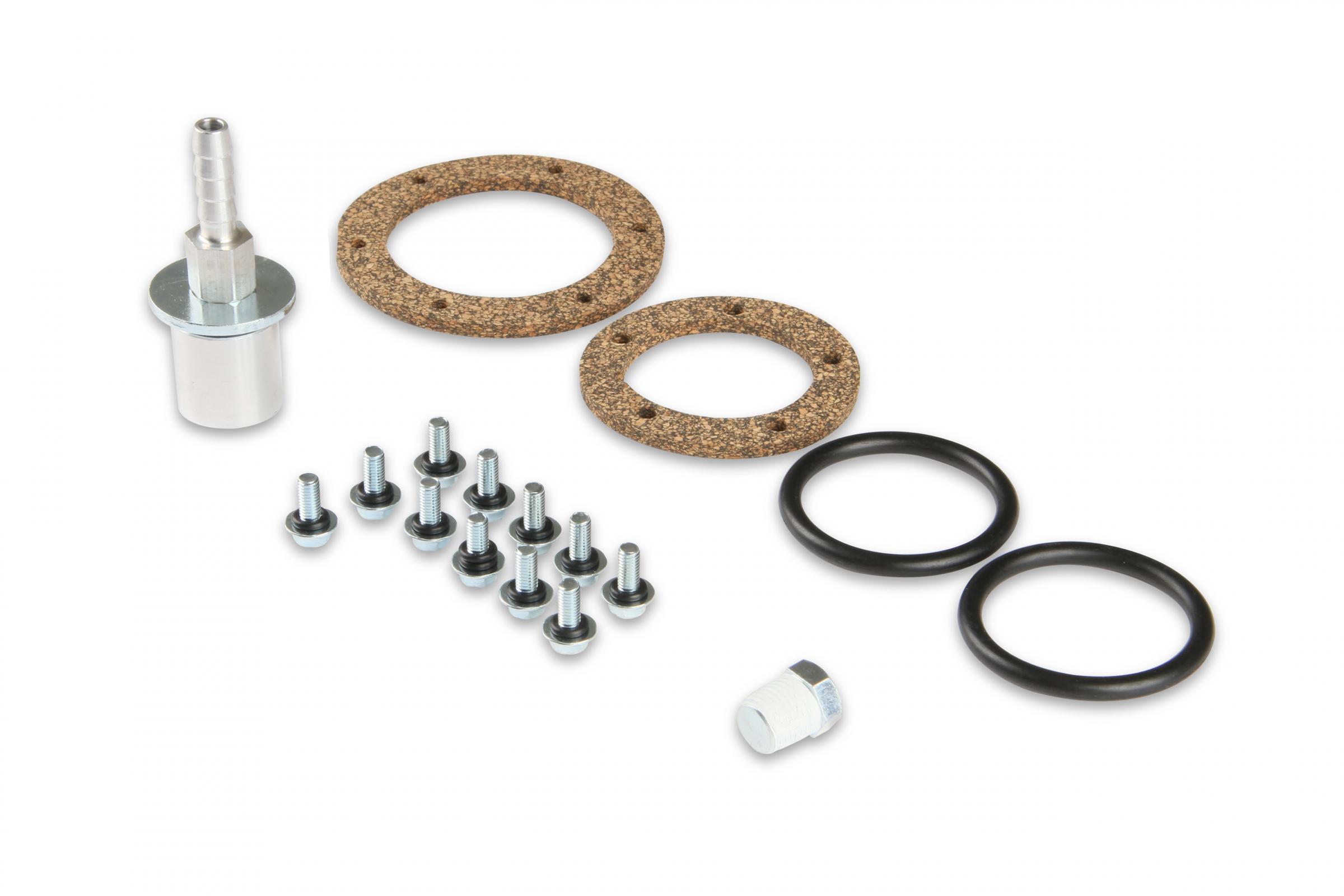

• O-Ring Included: Yes
• Resistance Ohms Empty: 0 82
• Resistance Ohms Full: 30 82
• Sending Unit Included: Yes
• Tank Capacity: 15.5 GA
• Tank Color: Gray
• Tank Material: Steel
• Warranty: Manufacturer's Limited 90 Day Warranty
