Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, and New tank straps.

The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance.

This notched corner 67-68 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27 inch to clear up to a 345 tire and 3 inch exhaust.

To help regain fuel capacity from the notched corners this tank is 1 inch deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust.

The 255 LPH fuel pump supports up to 550 EFI (at 60 PSI at 13.5 Volts / 10.4 AMP Draw).

• The filler neck is not included with the 1967-1968 Camaro/Firebird fuel tanks, You will need to use your original filler neck or purchase the 19-552 replacement filler neck.
• Tanks are galvanized steel and then powder coated silver for maximum corrosion protection.

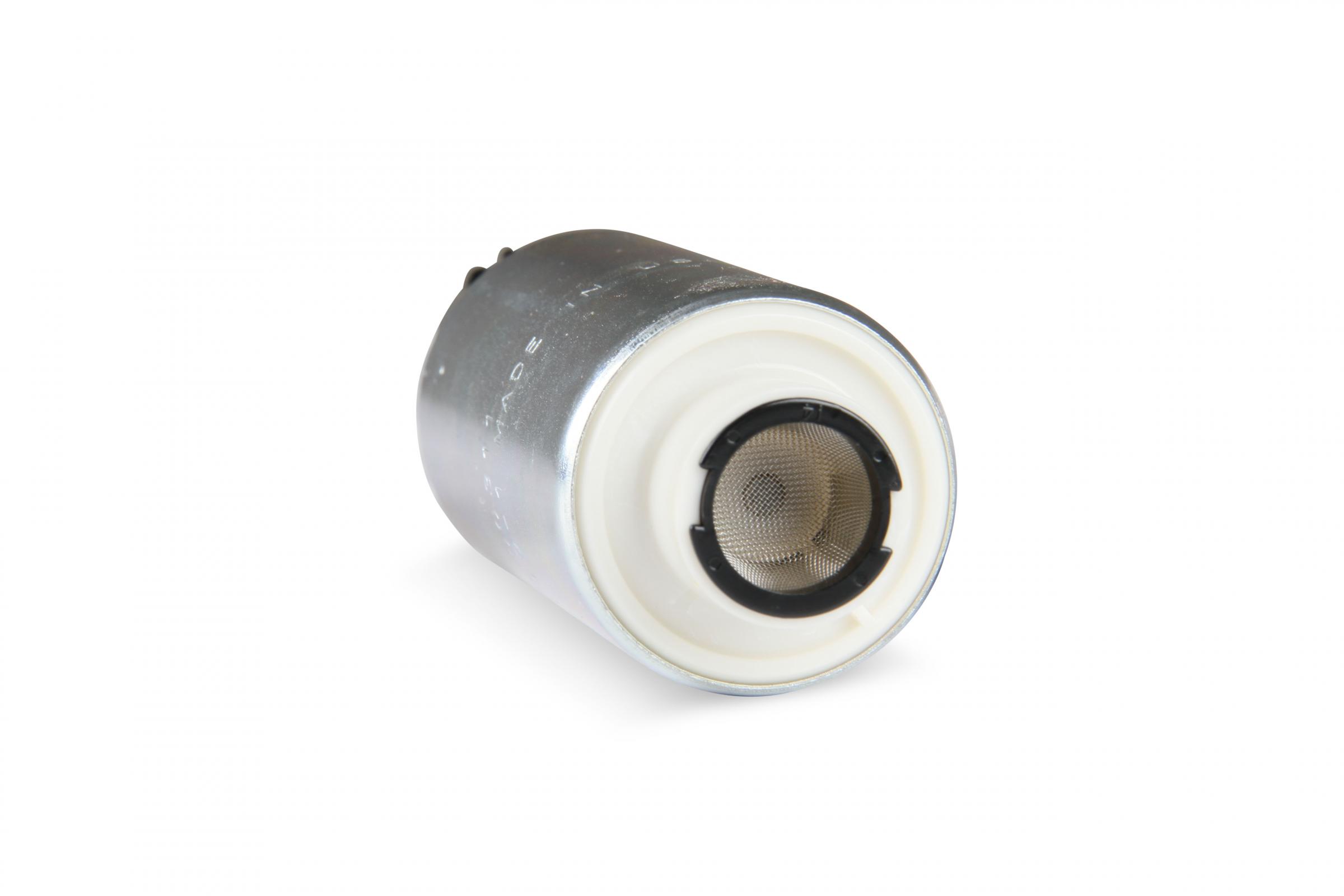

• 255 lph fuel pump with hanger assembly provides you the fuel you need with in-tank quietness.
• Sender has 1/4 inch NPT supply and return line ports for easy fuel line connection and a barbed vent fitting.
• Fuel level sender included with the correct Ohm range for your factory gauges.
• Fuel pump and sender are recessed in the fuel tank to provide an easy installation with no modifications to your vehicle.
• Internal tank baffling includes a large 4.8 liter internal fuel tray to prevent fuel pump starvation.
• Fits and looks like an OEM fuel tank when installed.
• New fuel tank straps included.
• Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance.

Details:

• Application: 1967-1968 Chevrolet Camaro/Pontiac Firebird
• Attached Sump: Yes
• Baffled Sump: Yes
• Color: Silver
• Drain Plug: No
• Emission Code: 3
• Filler Neck Attached: No
• Finish: Powdercoated
• Free Flow LPH: 255
• Fuel Sending Unit Ohms: 0-90 Ohms
• Fuel System Compatibility: Electronic Fuel Injection
• Fuel System Type: Gasoline
• Fuel Tank Coating: Powder Coated
• Gallon Capacity: 18
• Grade Type: Performance
• Lock Ring Included: Yes
• Material: Steel
• Maximum Flow Rating: 255 LPH
• Mounting Straps Included: Yes
• New Straps Included: Yes
• O-Ring Included: Yes
• Resistance Ohms Empty: 0 82
• Resistance Ohms Full: 90 82
• Sending Unit Included: Yes
• Tank Capacity: 18 GA
• Tank Color: Gray
• Tank Material: Steel
• Warranty: Manufacturer's Limited 90 Day Warranty
