Hooker Blackheart Gen III Hemi swap headers are one part of a fully engineered swap system that provides maximum component clearances and ideal drivetrain geometry. These headers are designed to fit a wide range of swap applications where clearance is limited.

Fitment has been confirmed on several popular platforms including 1987-2004 2WD Dakota, 1972-1993 2WD D100/D150, 1966-1972 B-body with manual steering box, and 1970-1974 Mopar E-Body with manual steering box.

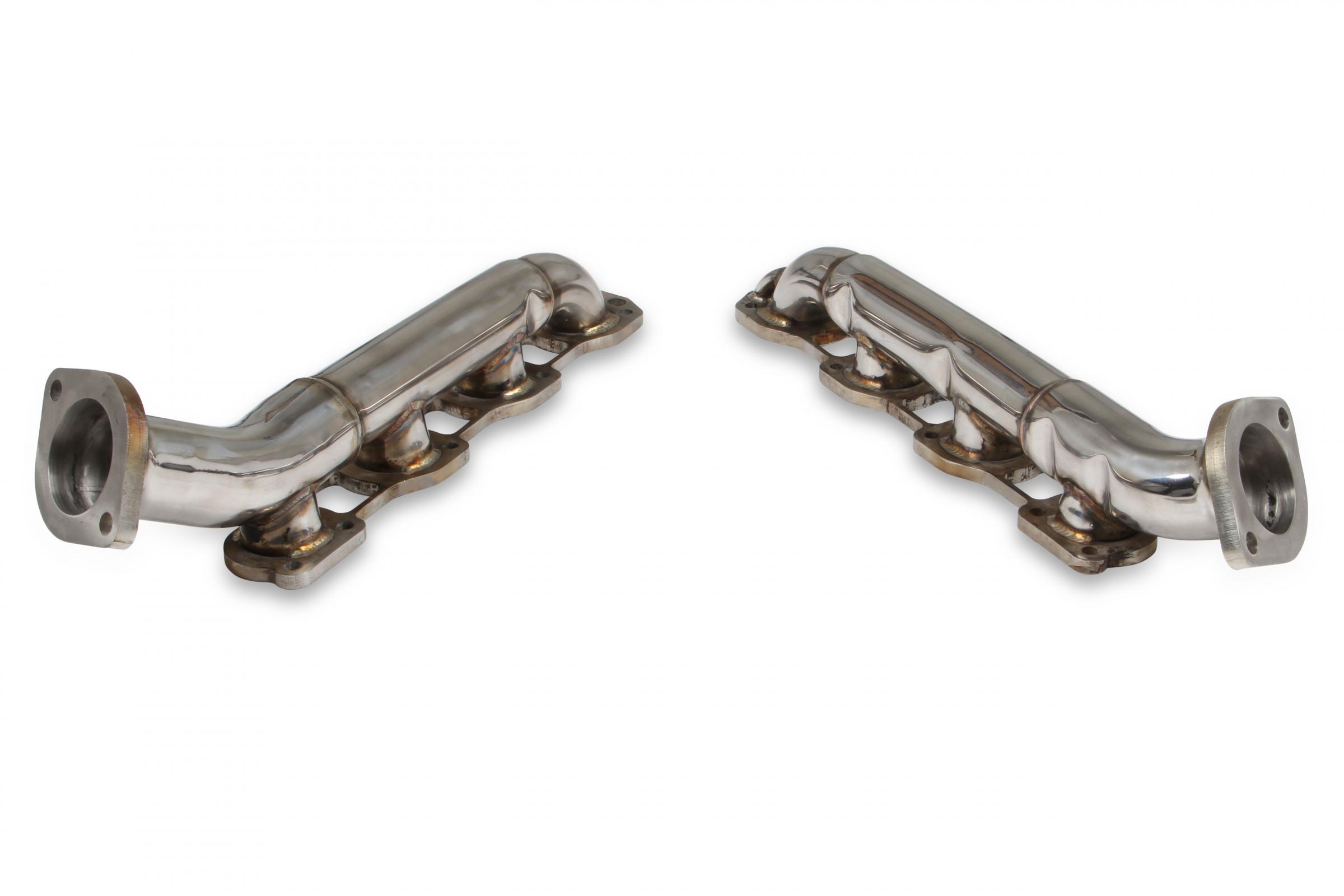

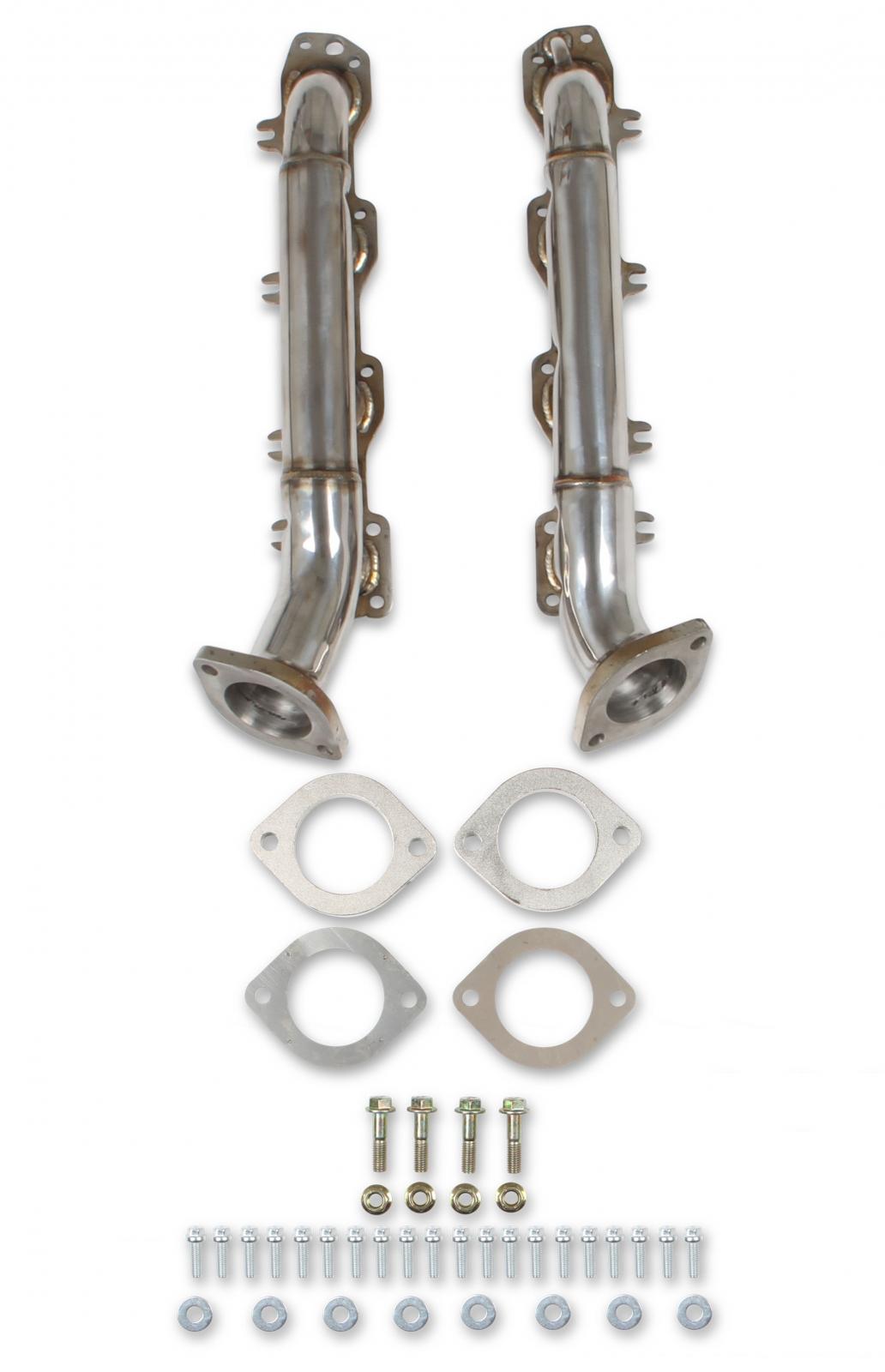

These high-quality shorty swap headers are made from 304 stainless steel and feature 3/8 Inch thick flanges, 16-gauge 1-3/4 Inch primary tubes, and 2.50 Inch 2-bolt collectors. Headers provide clearance to the brake booster, steering shaft, steering box, starter motor (both left & right side mounted starters), and provide clearance for several automatic & manual transmission options.

• Fits:
• 1966-1972 B-Body - Manual Steering ONLY, reduced head cover bolt recommended, See Figure 3 on Instruction Sheet
• 1970-1974 E-Body - Manual Steering ONLY, reduced head cover bolt recommended, See Figure 3 on Instruction Sheet
• 1987- 1996 Dodge Dakota 2WD V6/V8
• 1997- 2004 Dodge Dakota 2WD V6/V8 - Upper Control arm clearance recommended, See Figure 4 on Instruction Sheet
• 1972 -1993 Dodge D100/D150
• Gen III Hemi Swap Log Style Headers Designed Specifically for Tight Applications
• Fits a Wide range of Applications Using Gen III Hemi Engines 2003 & Up 5.7L/6.1L/6.2L/6.4L
• Confirmed Fitment on 1987-2004 Dakota , 1966-1972 B-Body w/o Power Steering, 1970-1974 E-Body w/o Power Steering, 1972-1993 D100/D150
• Shorty Style Header Geometry Designed for Maximum Clearance & Hassle Free Installation
• Works with the Following Automatic Transmissions: A727, 46RE, 46RH, 545RFE, NAG1, 8HP70 & Manual Transmission TR6060
• Constructed from 16-Gauge, Mandrel Bent 304 Stainless Steel for Strength, Durability & Corrosion Resistance
• 1-3/4 Primary Tubes w/ 2.5 2-Bolt Collector
• Manufacturer's Limited Lifetime Warranty

Details:

• Collector Diameter: 2.50 inch
• Emission Code: 8
• Engine: GEN 3 HEMI
• Header Finish: Natural
• Header Style: Shorty
• Primary Tube Dia.: 1-3/4 inch
• Product Type: Headers
• Tube Material: 304 Stainless Steel
• Warning: California Proposition 65
