Mopar's popular Gen Iii Hemi engines are ideal for swapping into muscle cars since they are durable, reliable, and make great power. The factory oil pans that come on these engines usually don't fit and hang too low for your swap.

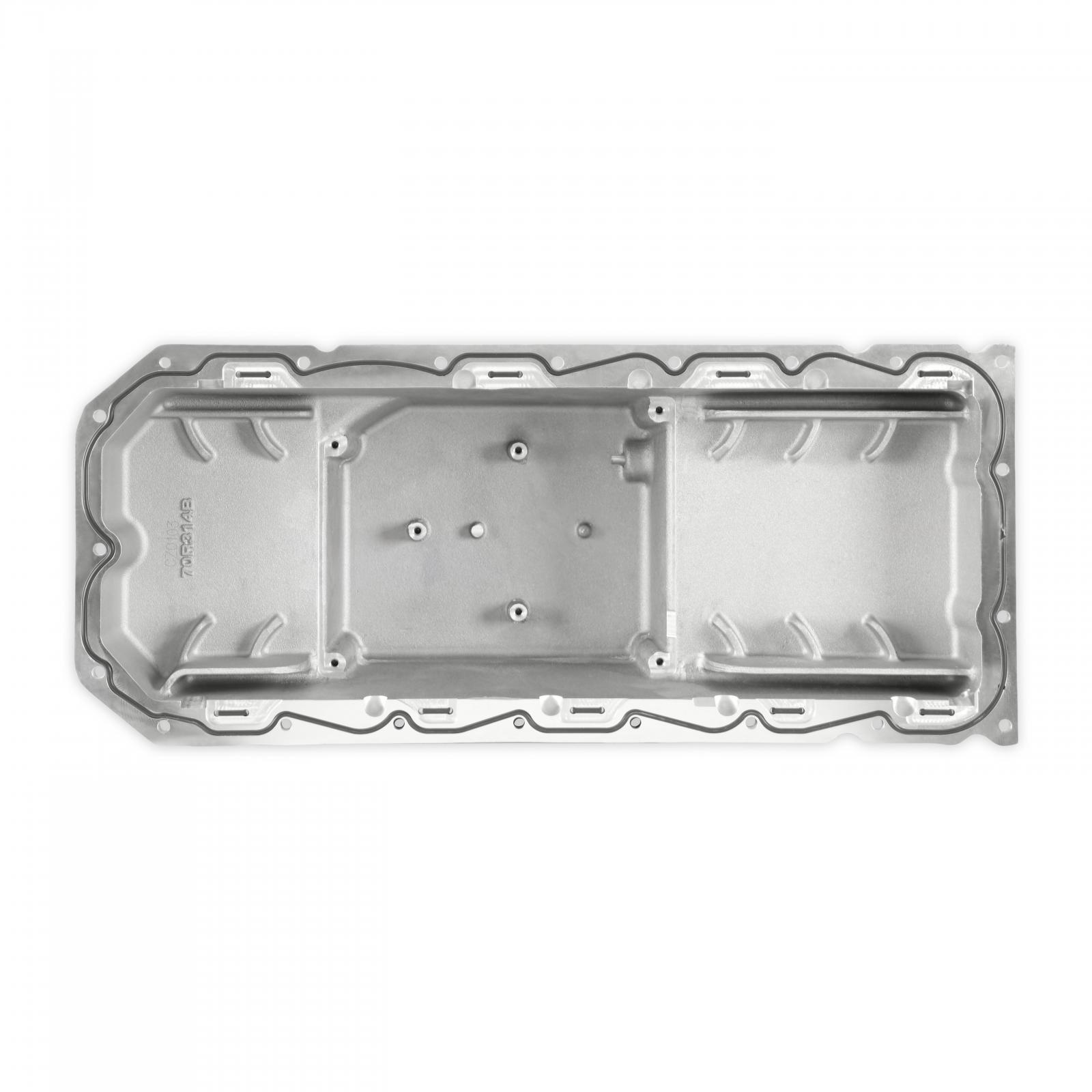

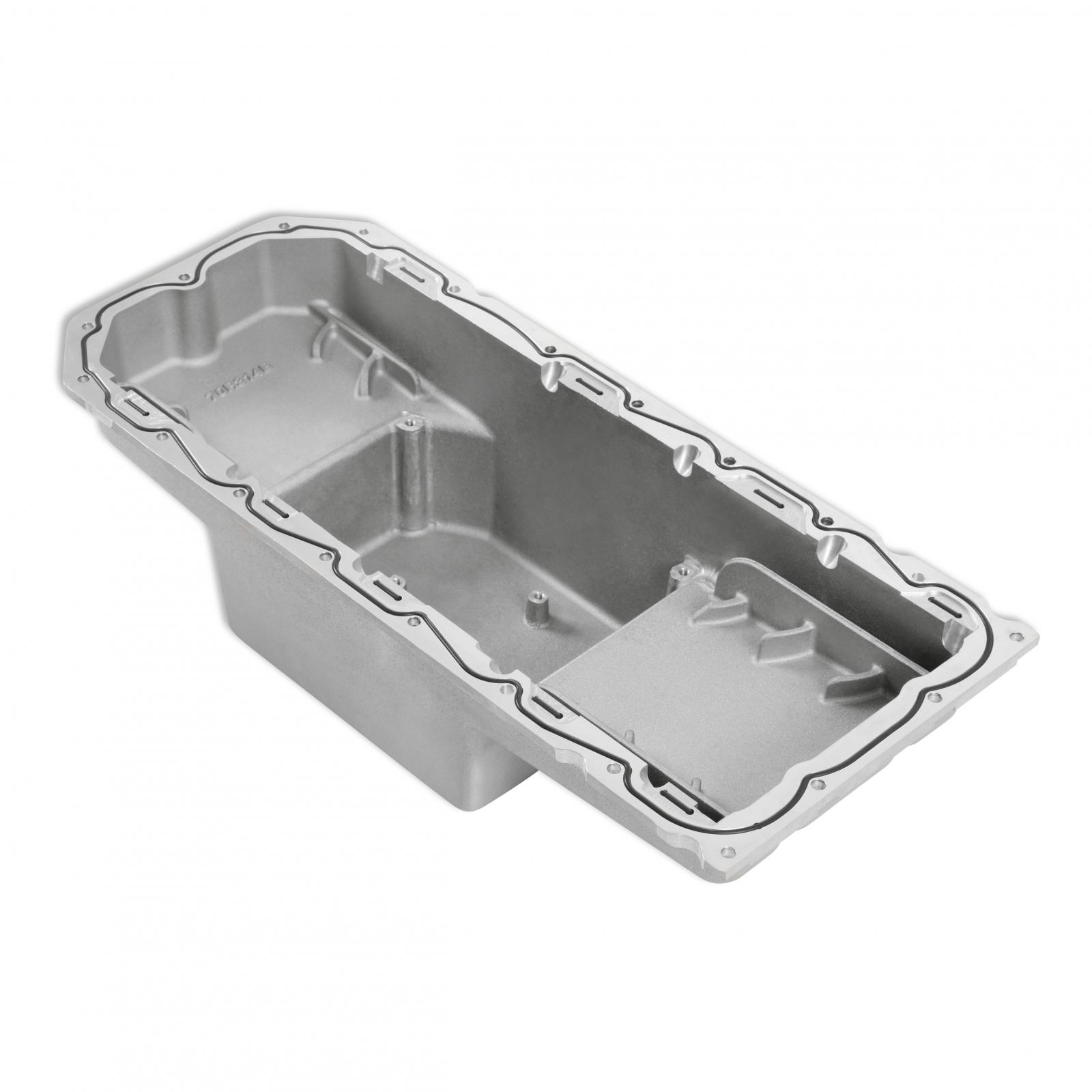

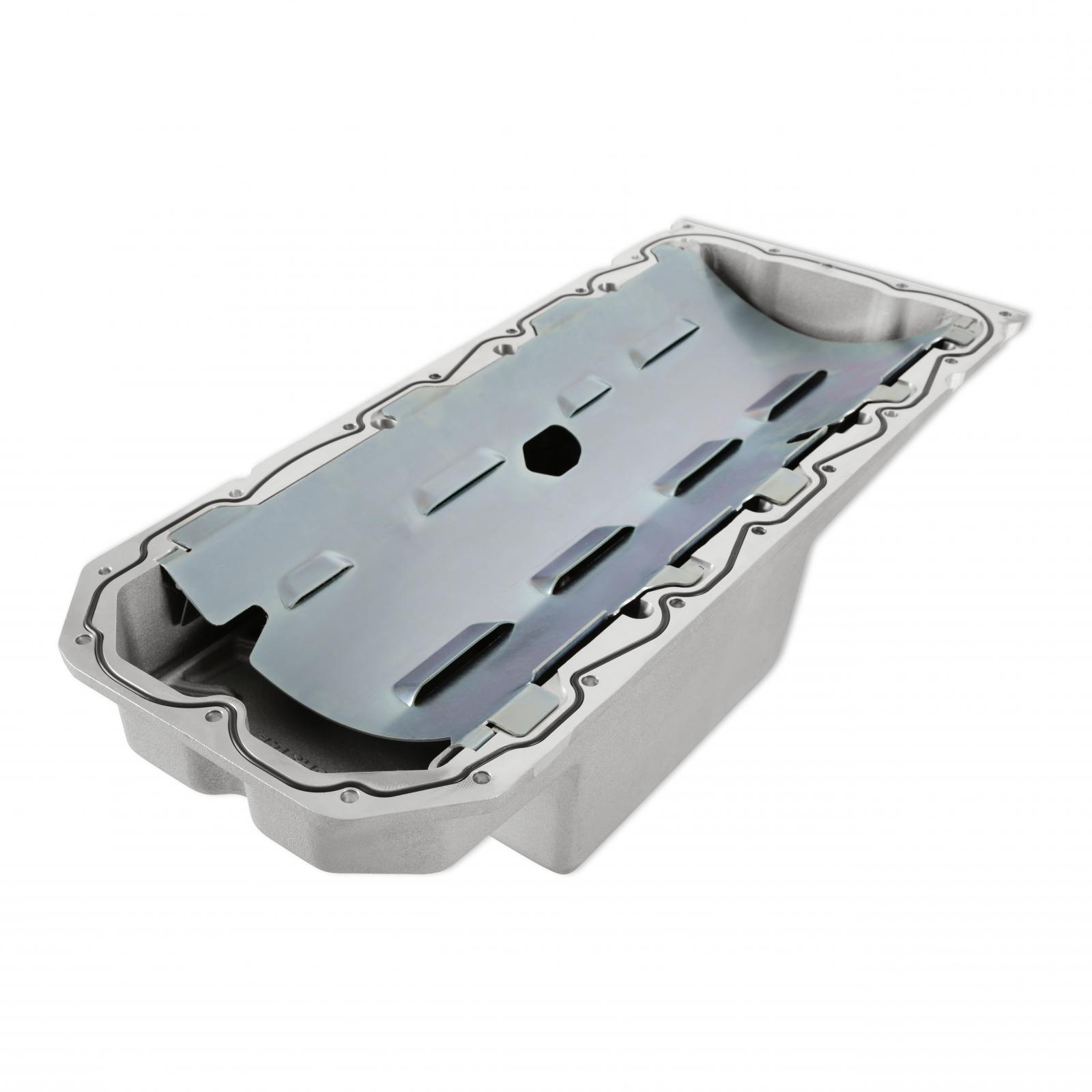

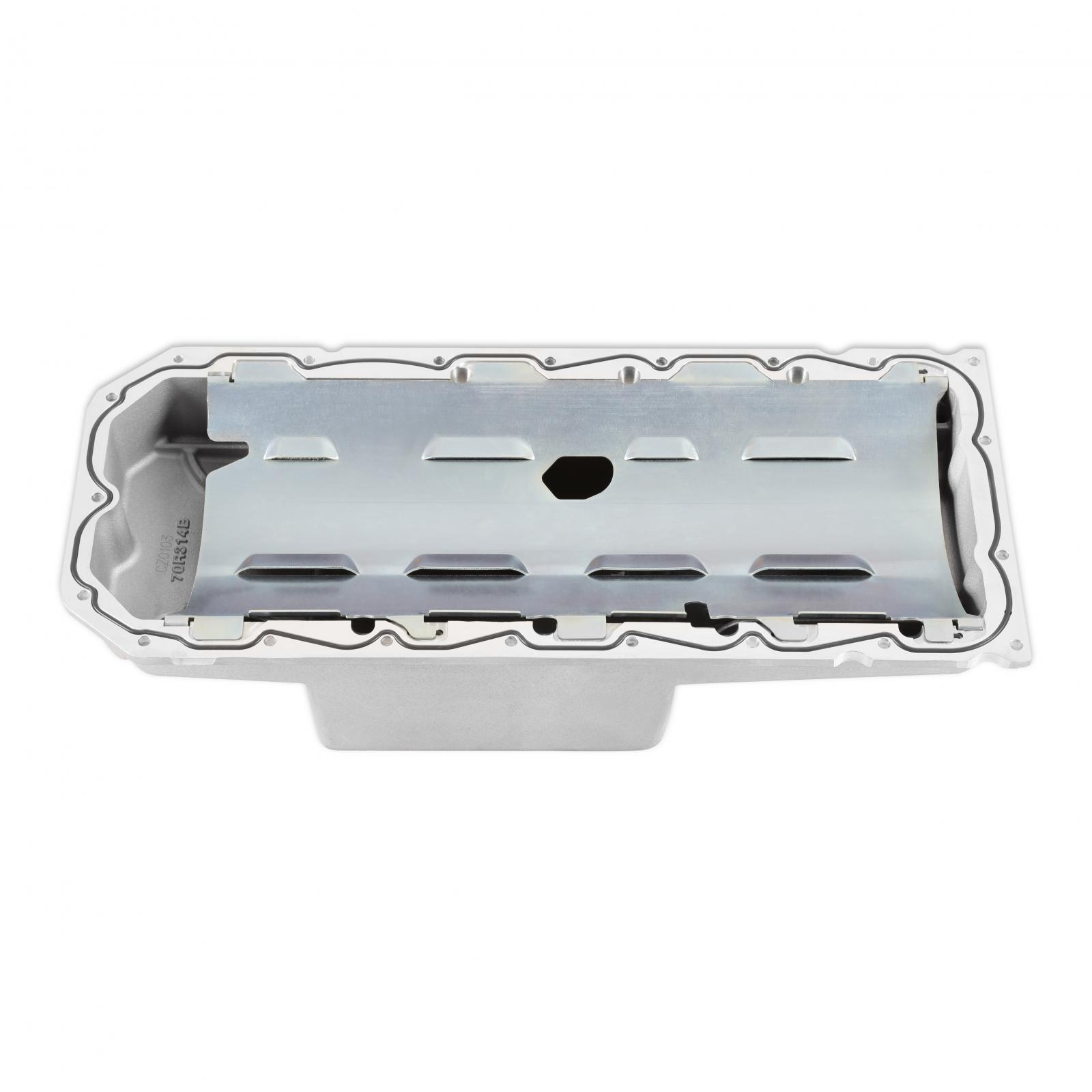

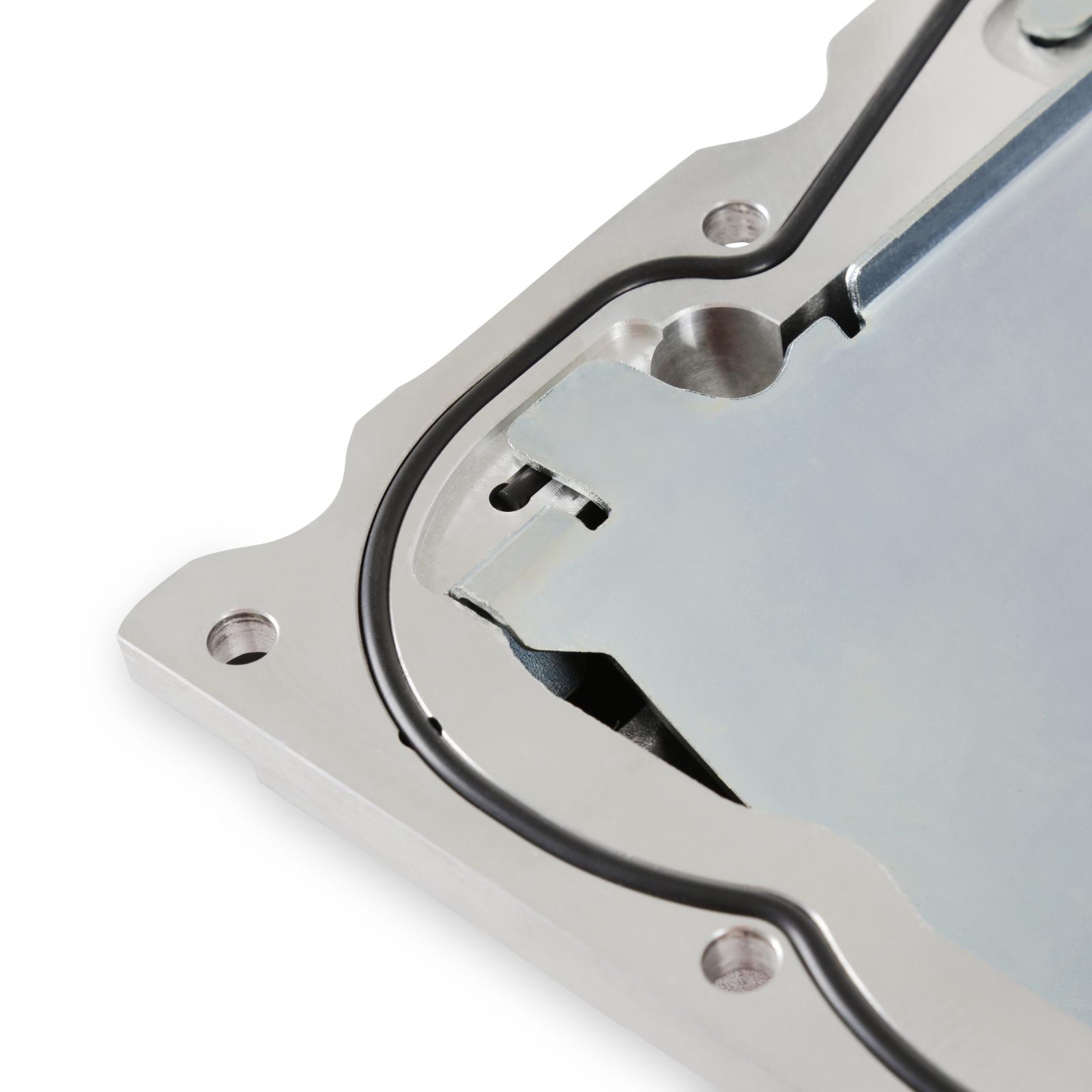

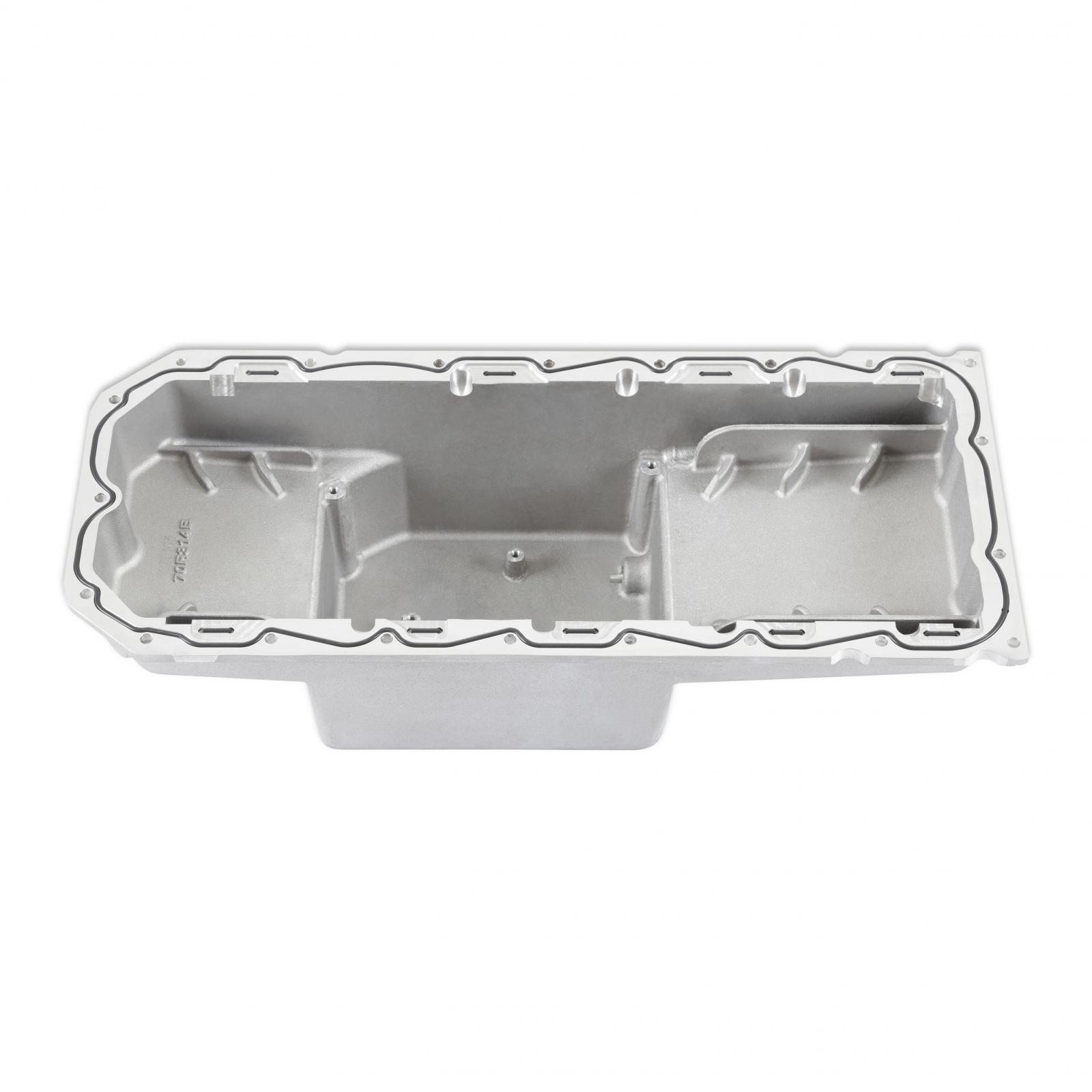

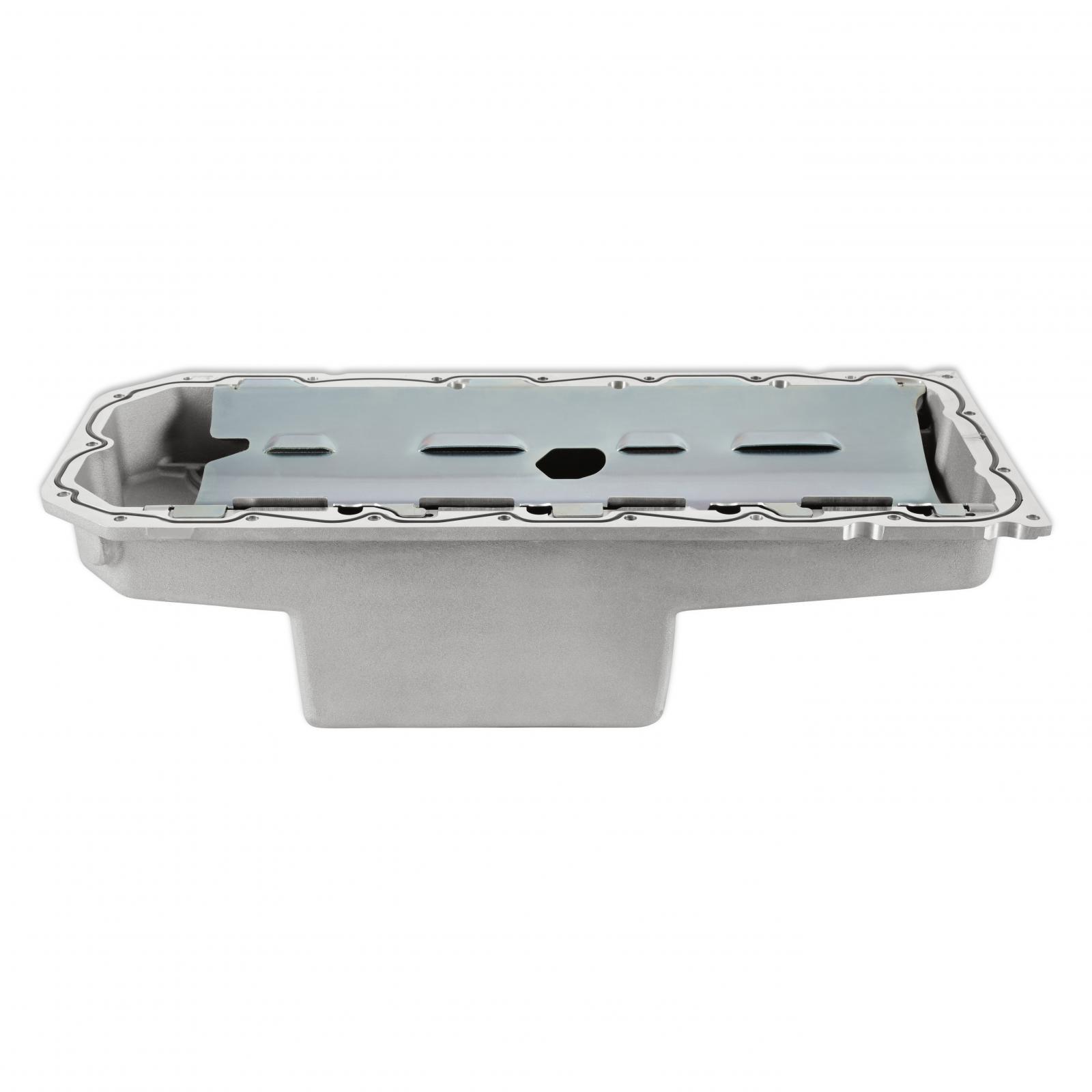

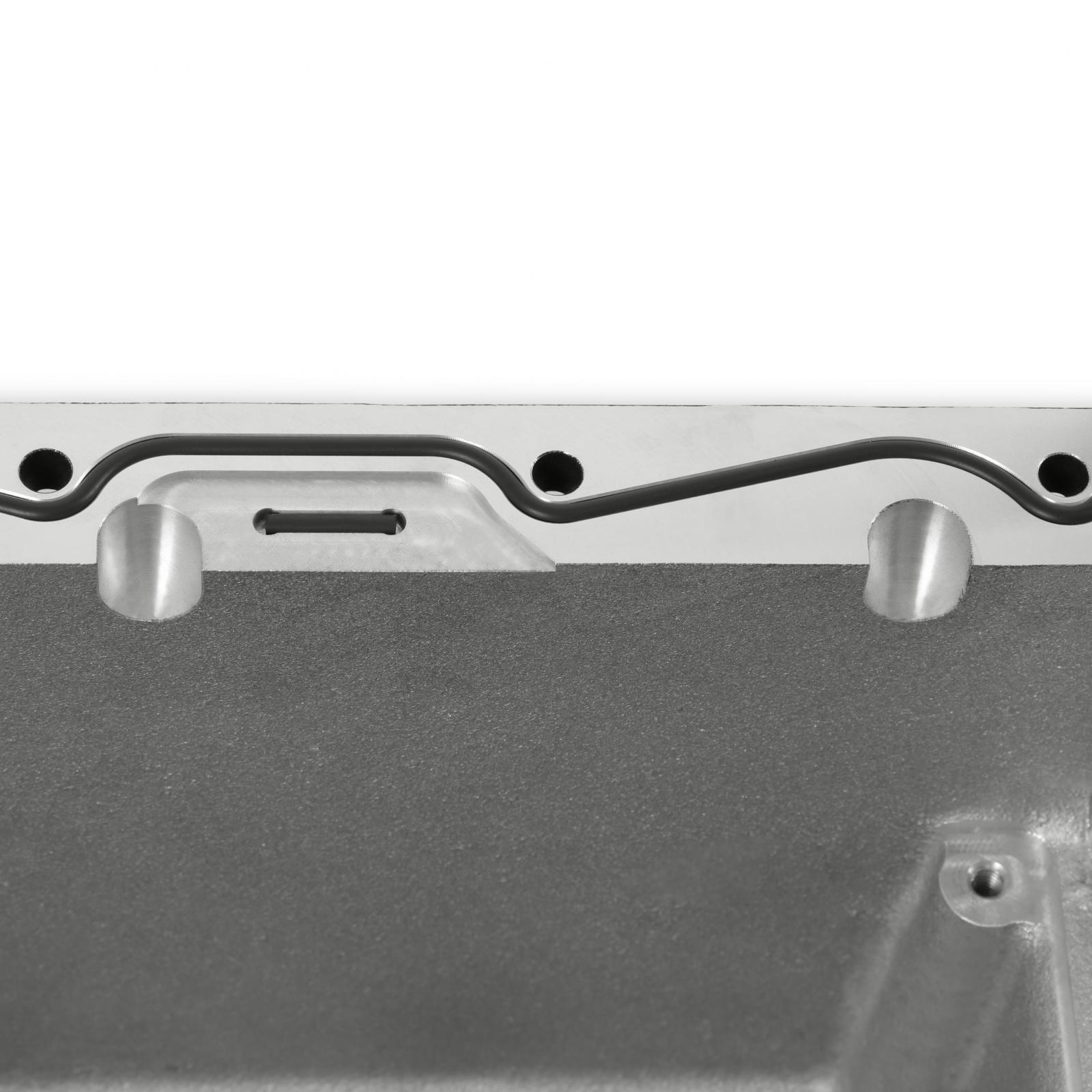

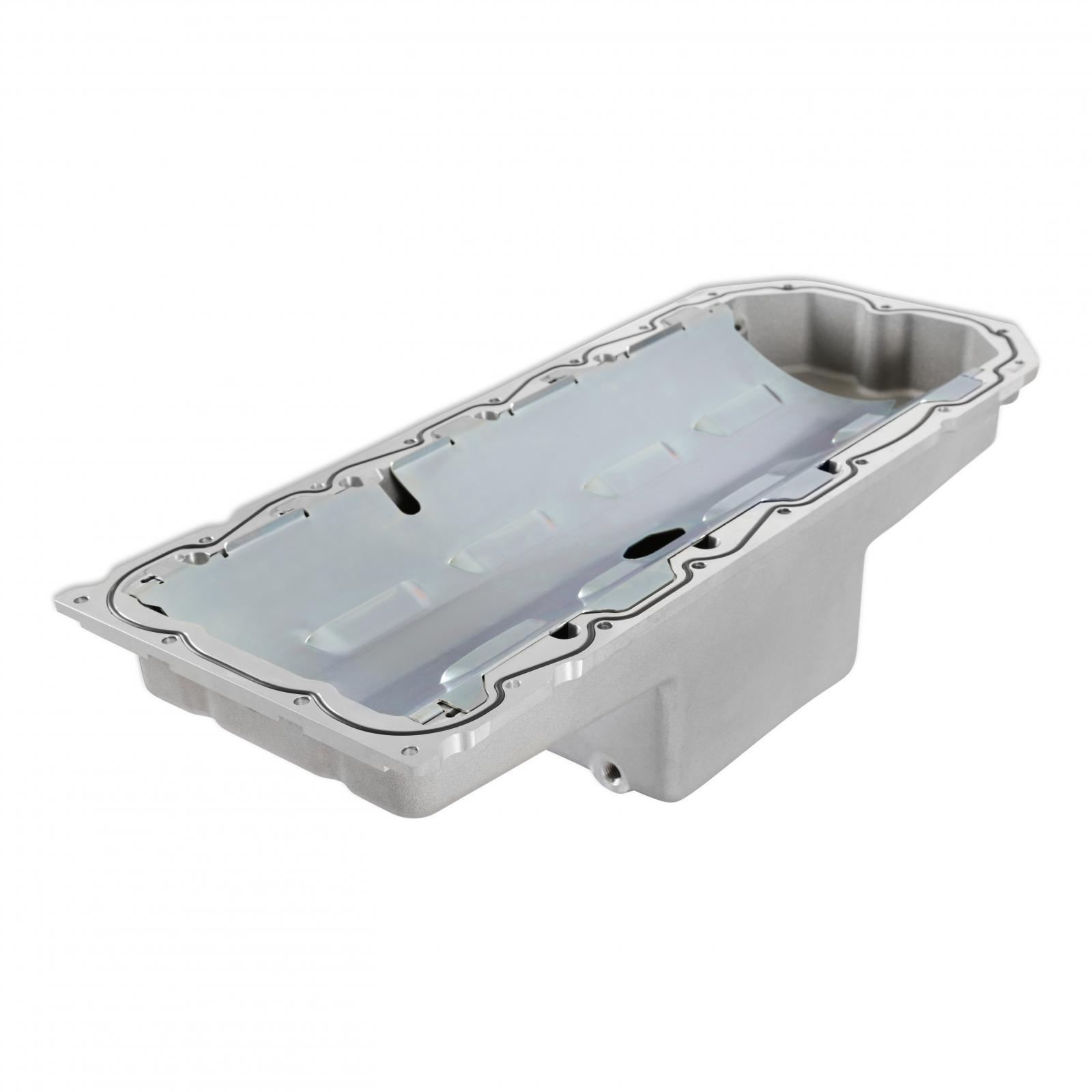

These new cast aluminum oil pans (Patent Pending) fit 1963-1974 Mopar A-Body, B-Body, C-Body & E-Body vehicles (see the Applications Tab for complete vehicle application data). The cast aluminum construction & integrated windage tray on the oil pans combined with O-ring sealing provide an attractive leak-free solution for your engine swap.

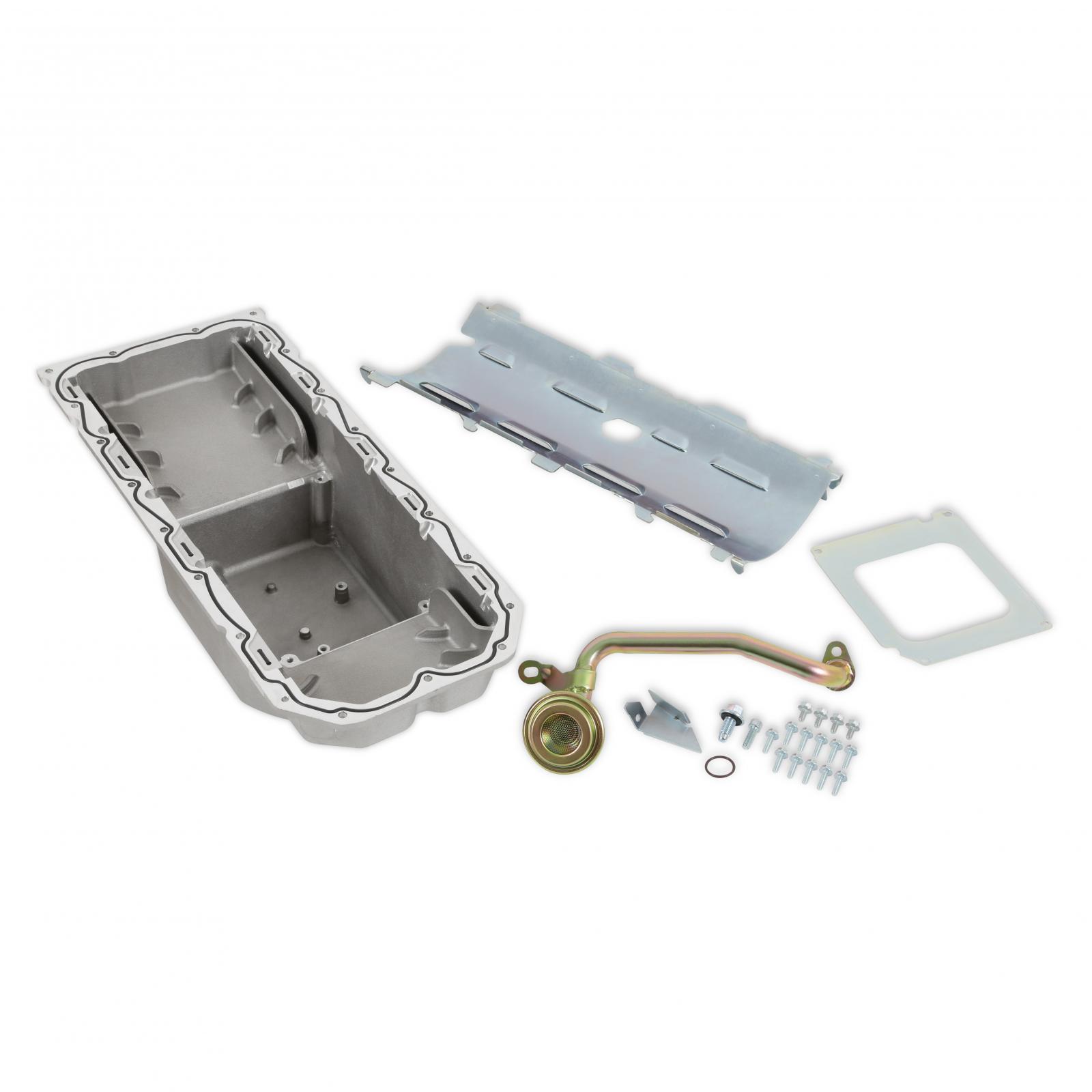

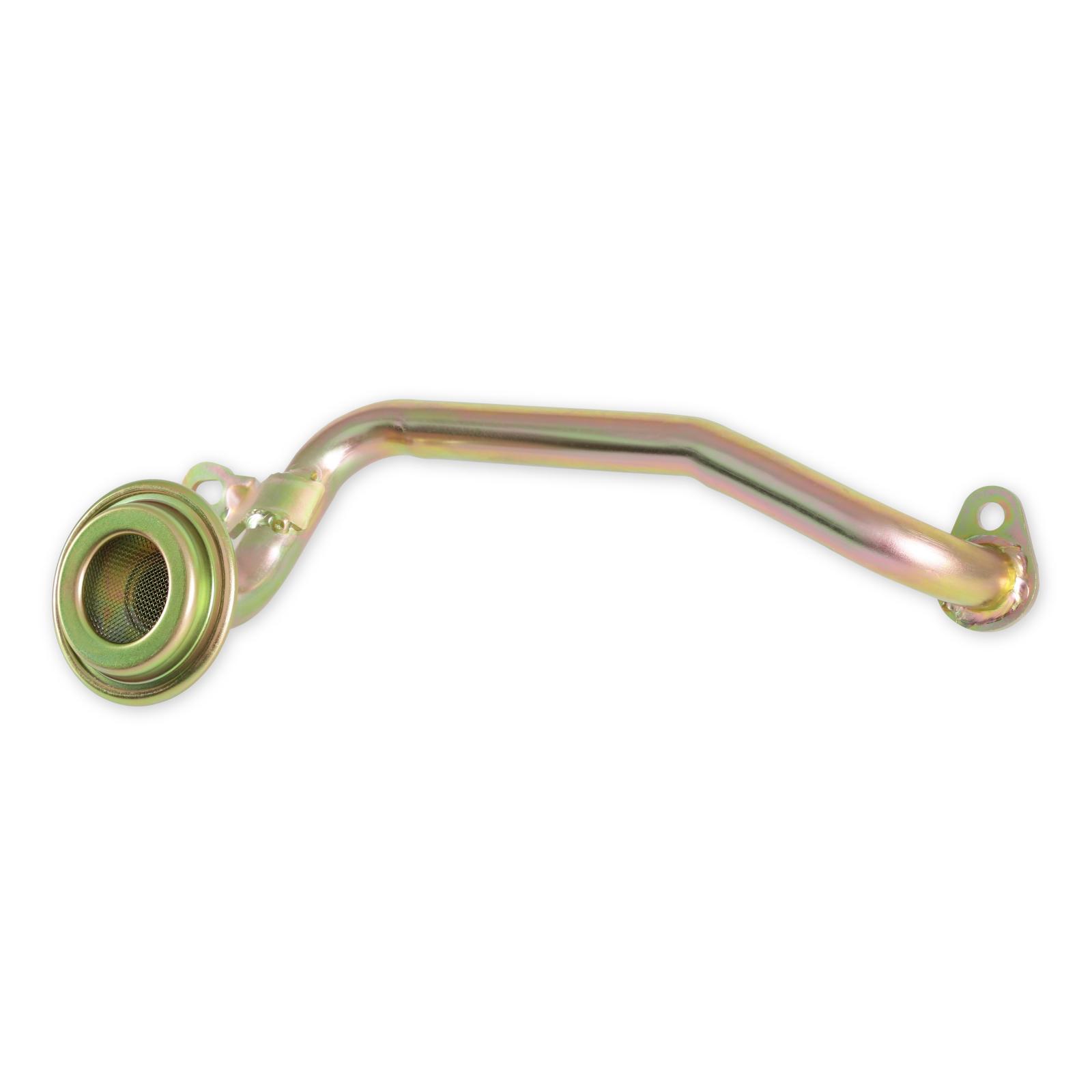

Complete oil pan kit that includes all the parts needed for installation (i.e., oil pan, pickup assembly, O-ring seal, windage tray, baffling & mounting bolts).

Features and Benefits:

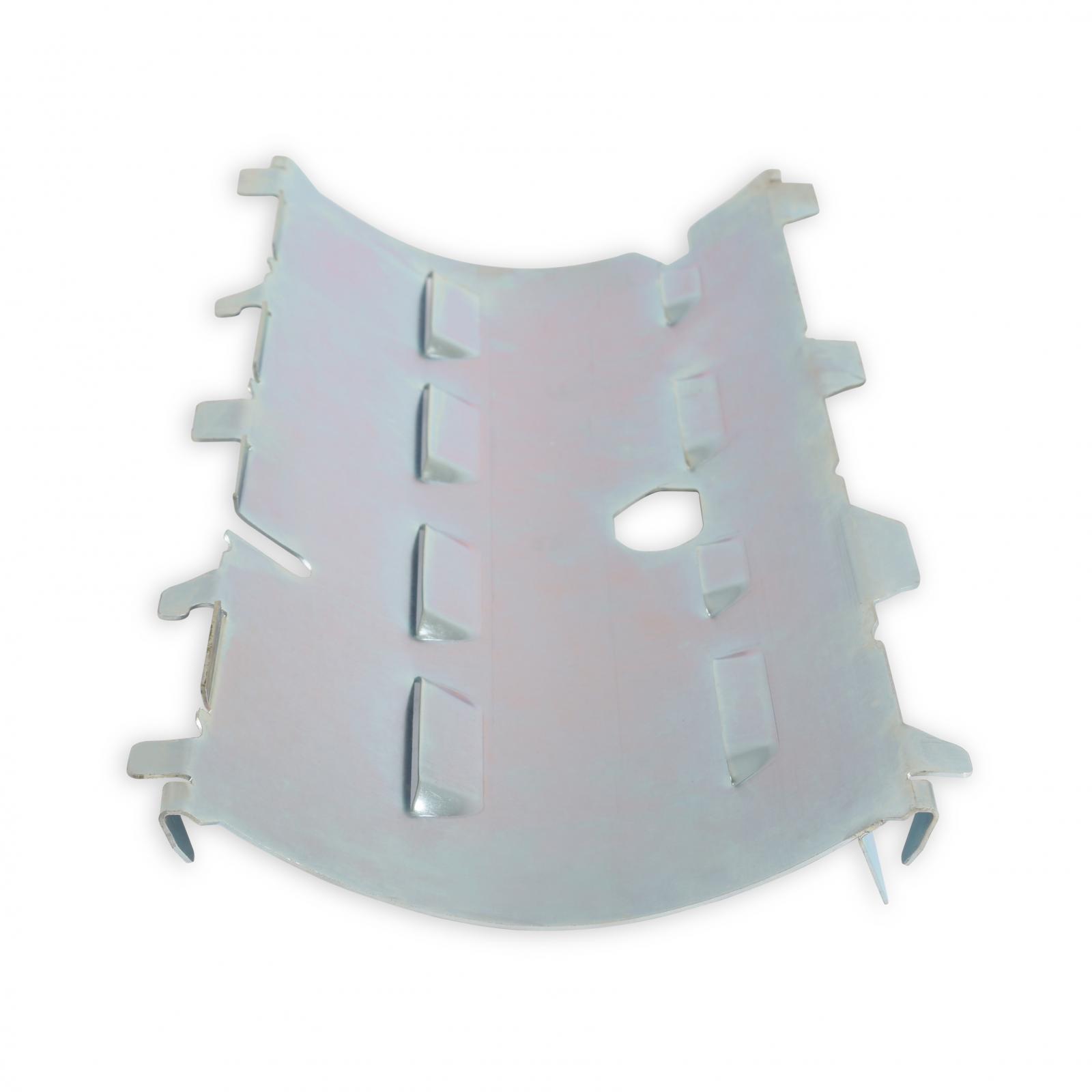

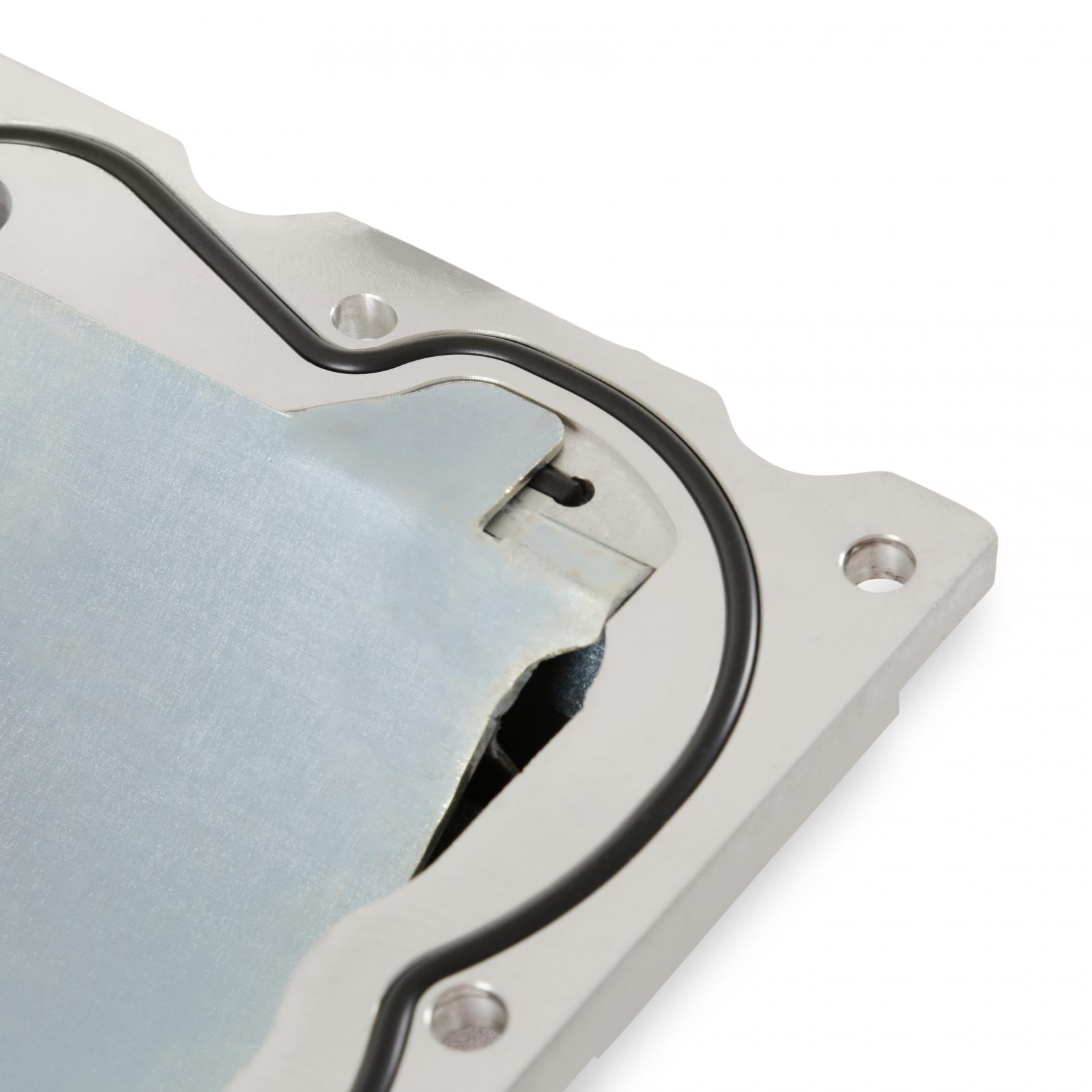

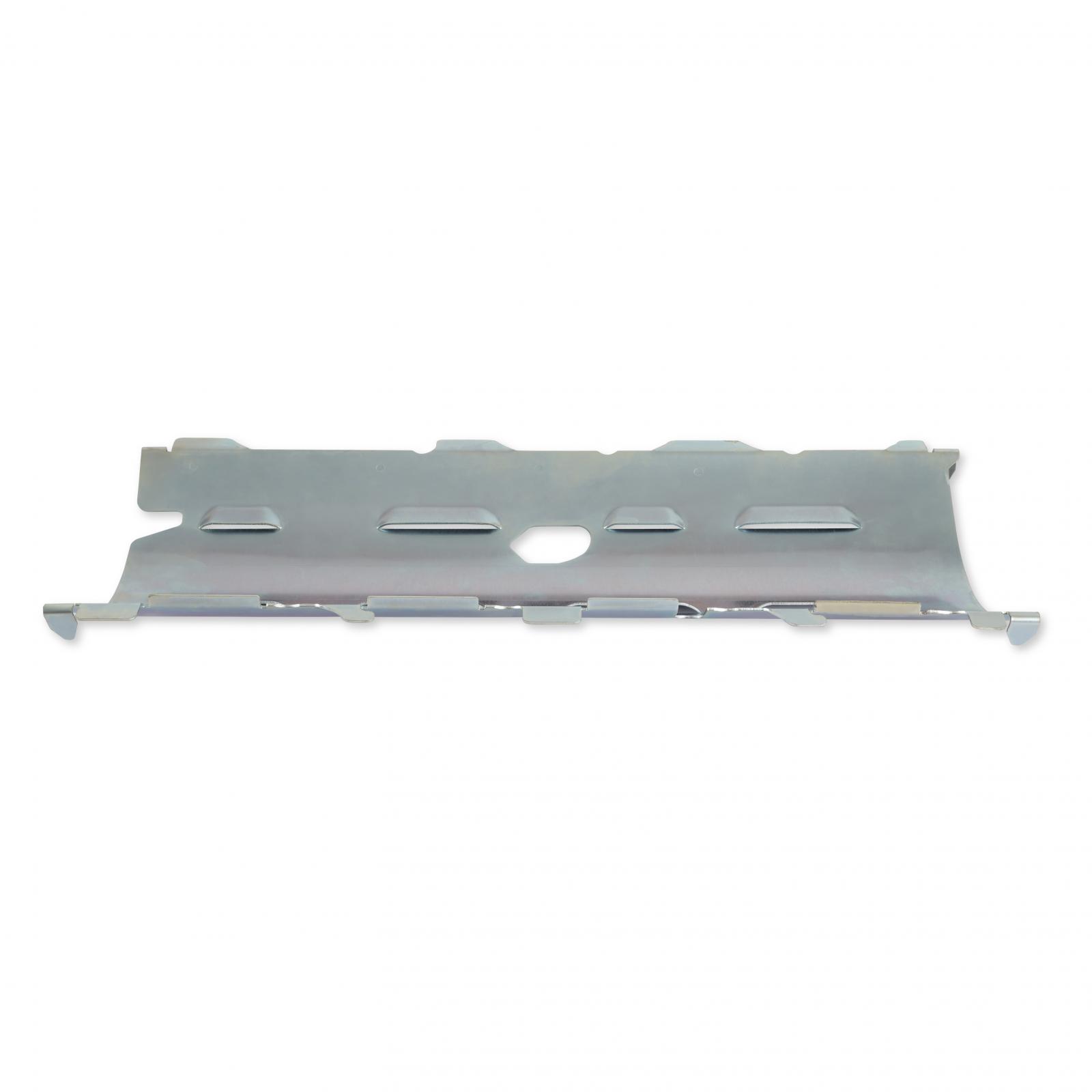

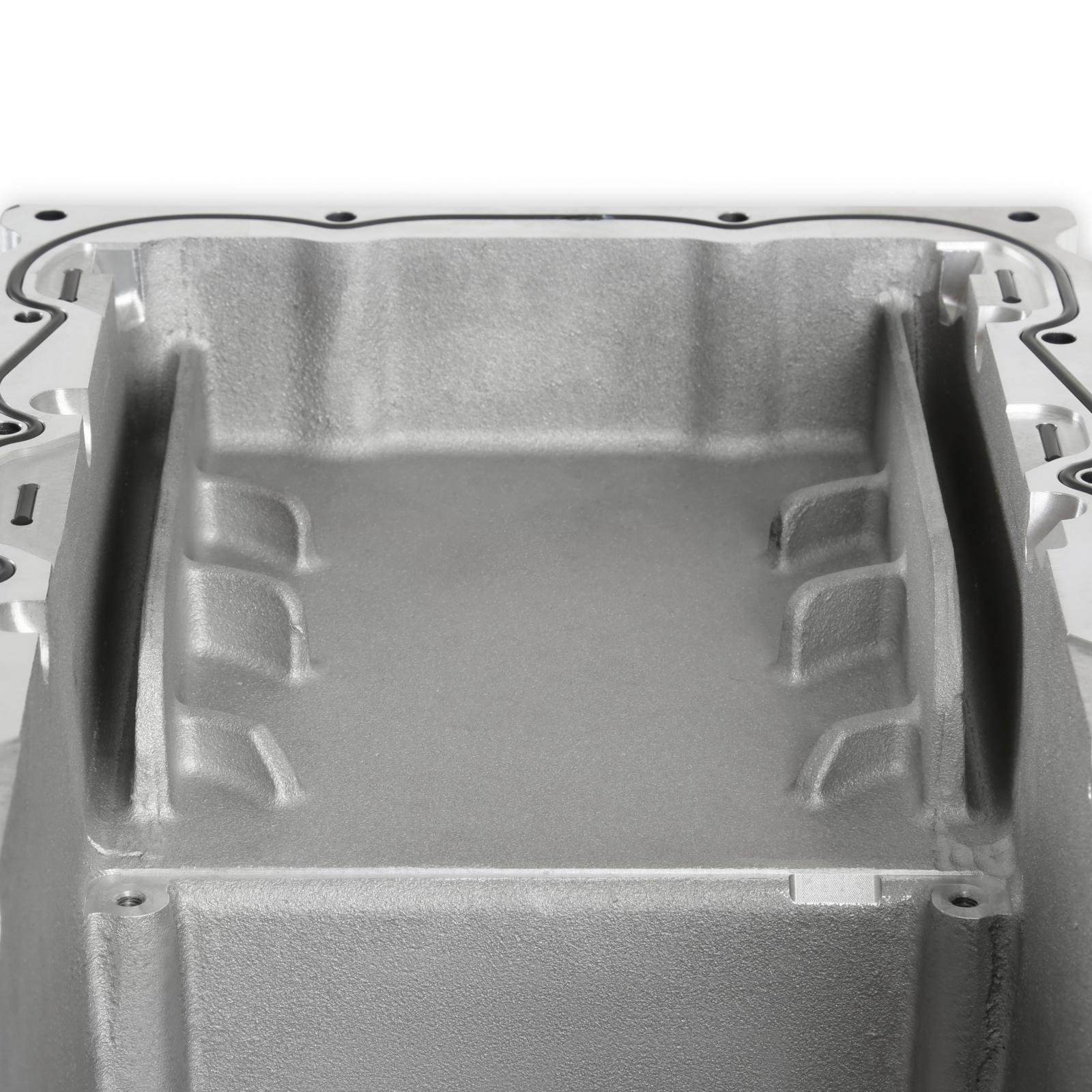

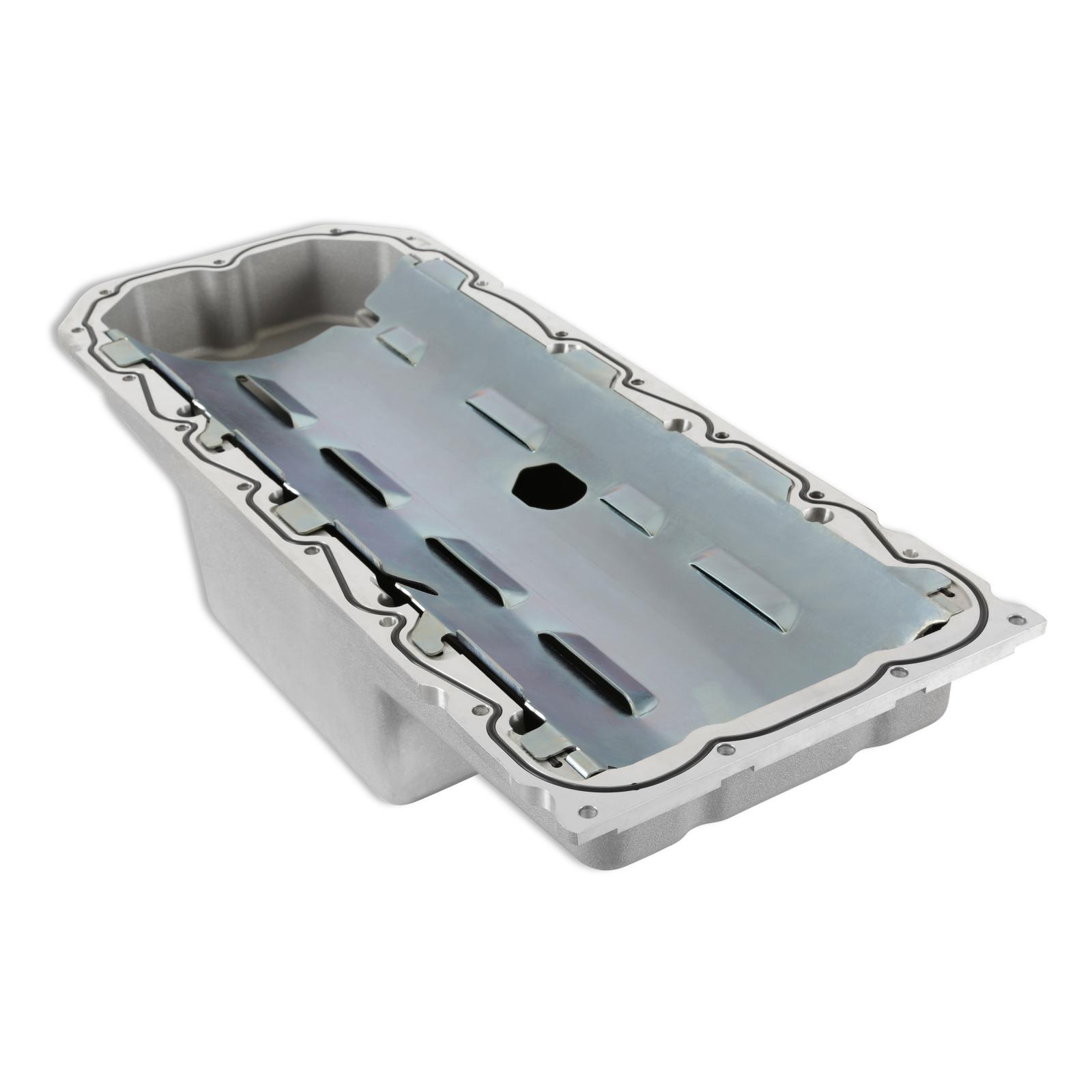

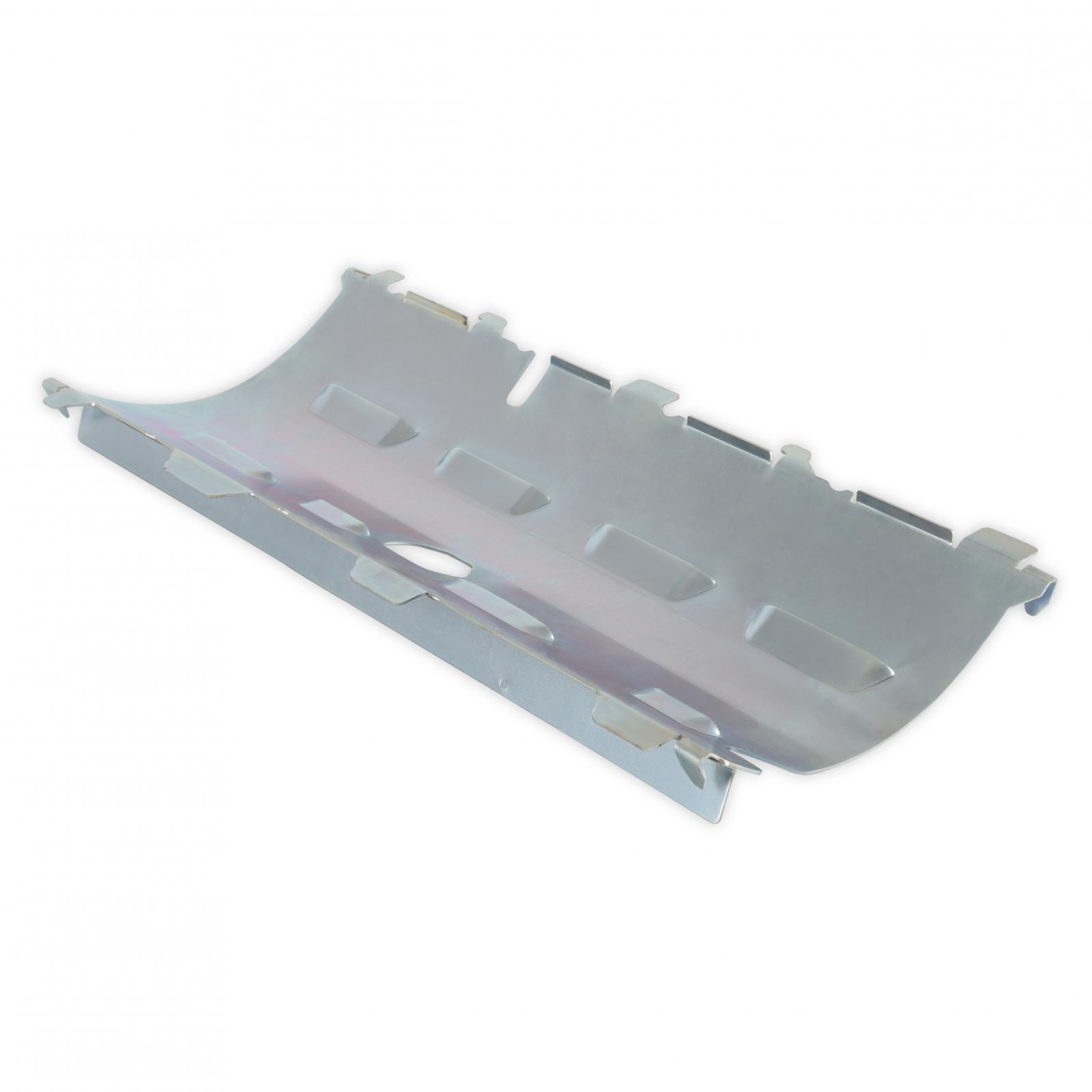

• The factory oil pans on Gen Iii Hemi engines don't fit or hang too low for muscle car engine swaps Fits 6.2-liter supercharged Hellcat - Gen Iii Hemi engines with unique bolt pattern & flange shape Complete oil pan kit that includes the oil pan, pickup assembly, O-ring seal, windage tray, baffling & mounting bolts - no extras that must be purchased separately (i.e., gaskets, pickup, windage tray, bolts) Cast aluminum mid-sump engine swap oil pan Choose from natural as-cast (302-64) or black finish (302-64BK) Unique O-Ring Seal to Block and Captured Windage Tray (Patent Pending) Integrated Windage Tray & Baffle to Control Oil (Fits up to 4.060 inch Stroke) Fits 1963-1974 Mopar A-Body, B-Body, C-Body, and E-Body - See the Vehicle Application Tab Oil Capacity - 6 Quarts (6.5 Quarts w/ Filter) Works with Most Factory & Aftermarket Dipsticks - Pn 302-74 recommended Steel windage tray - for performance, strength, and durability Cast bosses on front corners of pan can be tapped for oil returns - if needed Patent Pending

Associated Comments:

• Turbo oil drain back bosses are on the front corners of the oil pan, but these will require machining - if needed.

Details:

• Application: Gen Iii Hemi
• Baffled: Yes
• Cam Style: Vvt
• Capacity: 6 U.S Quart
• Color: Silver
• Crank Shaft Wiper Included: No
• Dipstick Port: No
• Drain Plug Included: Yes
• Engine: Gen Iii Hemi
• Finish: Natural Cast
• Grade Type: Performance
• Material: Aluminum
• Maximum Stroke: 4.060 Inch
• Oil Pan Capacity: 6.0 Quarts
• Oil Pan Type: Cast
• Oil Return Size: Not Machined
• Pickup Included: Yes
• Sump Location: Center
• Sump Type: Wet
• Turbo Oil Drainback: No
• Warranty: Manufacturer's Limited 90 Day Warranty
• Windage Tray Included: Yes
