SKU
302-20-BBVL
List price
$618.95
Price
$493.95

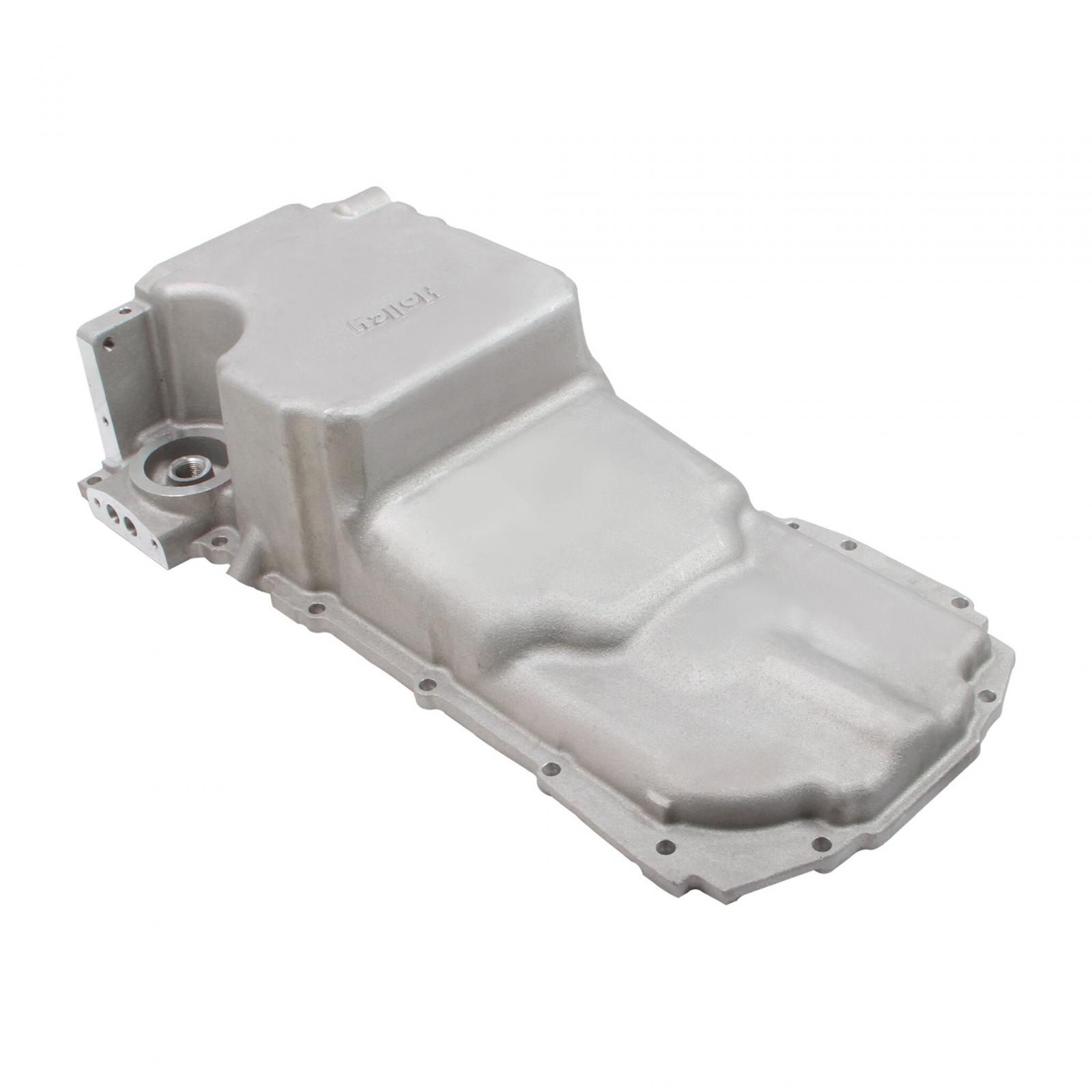

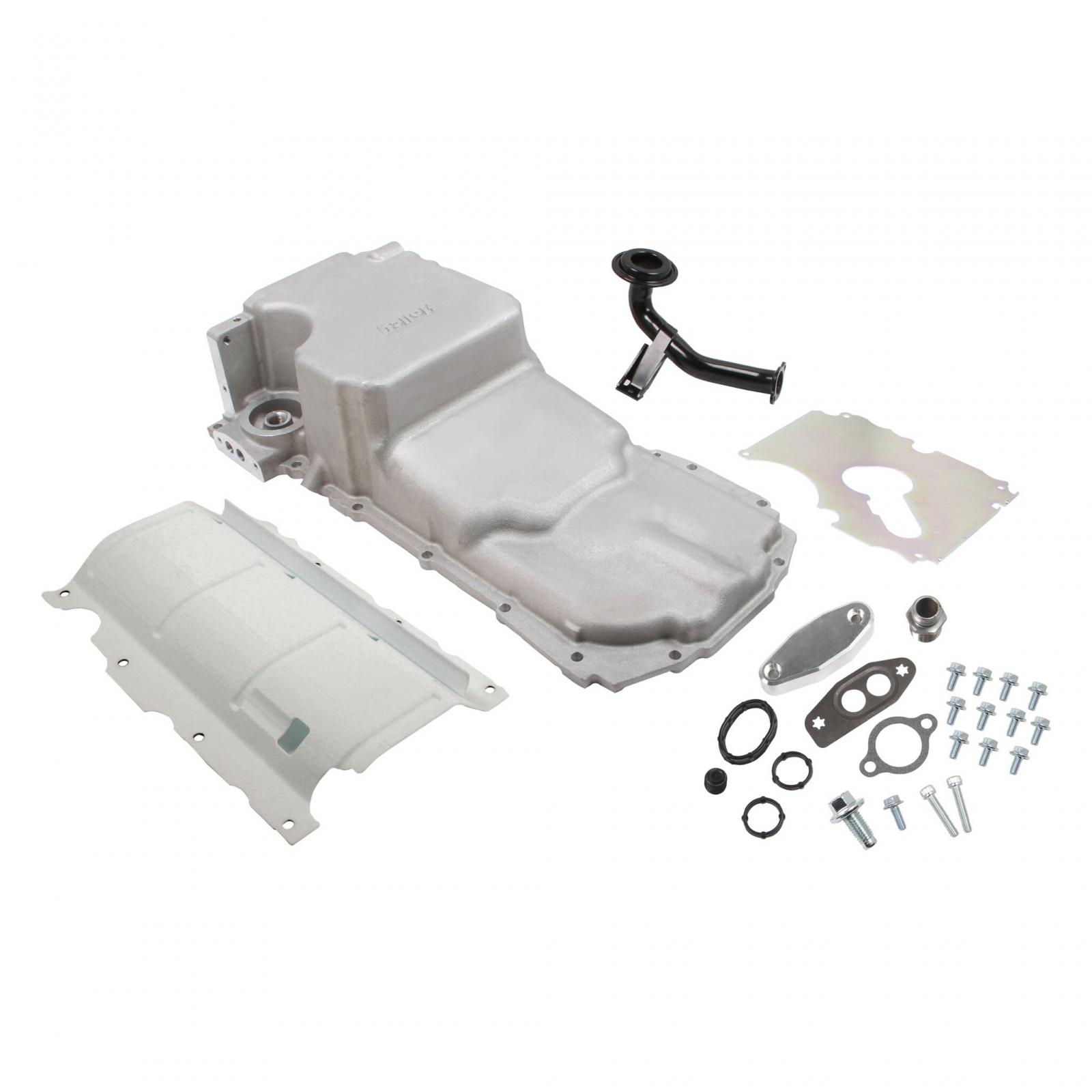

Gm's new Gen V Lt direct injected engines are starting to find their way into a large variety of vehicles. They make great power, plus they're very durable and reliable.

Unfortunately, the factory oil pans don't always fit or they hang too low for today's hot rods. Holley's new Lt Swap Engine Oil Pan is designed to help!

It provides maximum clearance to the chassis and ground, plus provides an Oe (Original Equipment) style fitment for durability and proper sealing. These oil pans are perfect for: 1967-1992 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1978-1987 G-body, 1964-1972 A-body, and 1973-1987 Chevy/GMC Full Size Trucks.

Features and Benefits:

  • Designed for Lt Engine Swap Installations in Classic Car and Truck Chassis Requiring More Oil Pan to Chassis Clearance Around the Front Half of the Oil Pan Allows for up to 4.00 inch Crankshaft Stroke Can Be Used Anywhere a Gm F-Body Oil Pan Can Be Used Provides Oe Style fitment - Oe oil filter mounting, Oe oil cooler port provision, Oe engine Nvh suppression, Oe flange gasket and sealing, proper structural rigidity and Oe bell-housing attachments Traditional High-Quality Cast Aluminum Appearance With Clean Exterior Styling Provides Maximum Clearance for Vehicles Where the Steering Linkage is Behind the Engine cross-member Traditional high-quality cast aluminum appearance with clean exterior styling
  • Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember

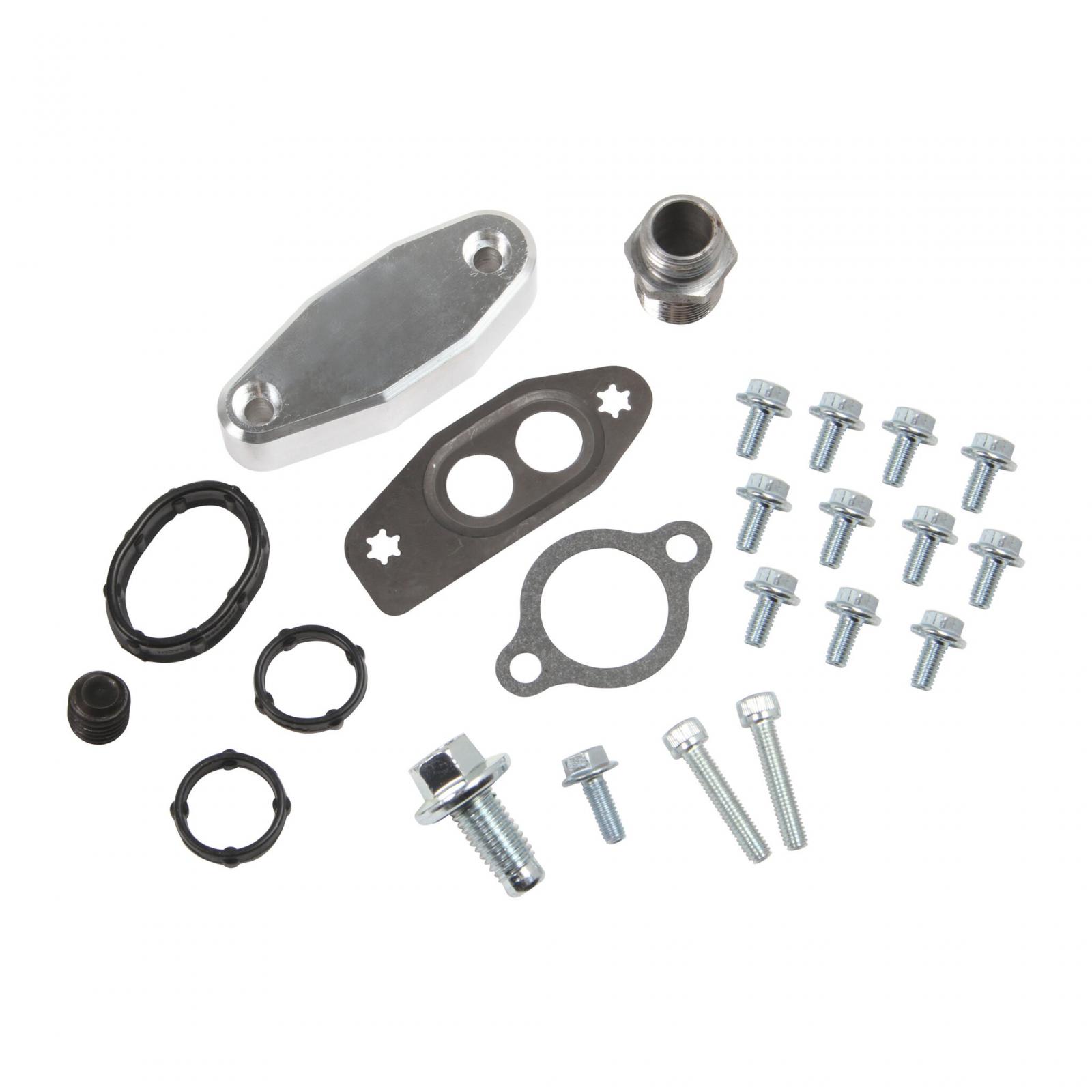

  • Cast and machined aluminum 1/2 inch NPT port - Ideal for Turbo Oil Return or Pcv Oil Return Optional Hinge Door Baffle - Available Separately Complete Kit Includes: Windage Tray, Sump Baffle, Oe Style Pick-Up Tube, Sump Port Plug, Oil Filter Stud, Billet Oil Passage Cover, etc.

Associated Comments:

  • Maximum Recommended Crankshaft Stroke 4.00 inch. This oil pan is not for use on engines that originally used a dry sump oiling system.
  • Recommended Lt Dipstick & Dipstick Tube - Gm part #s 12661062 (dipstick) and 12678823 (dipstick tube) Some factory LT1 applications include an oil temperature sensor. Currently this pan does not have a boss to install that temperature sensor.
  • If the sensor is desired, it will have to be relocated and machining would be required.

Details:

  • Application: Gm Gen V Lt
  • Baffled: No
  • Capacity: 6.1 U.S Quart
  • Color: Silver
  • Crank Shaft Wiper Included: No
  • Dipstick Port: No
  • Drain Plug Included: Yes
  • Engine: Gm Gen V (Lt)
  • Finish: Natural Cast
  • Grade Type: Performance
  • Material: Aluminum
  • Maximum Stroke: 4.00 Inch
  • Oil Pan Capacity: 6.1 Quarts
  • Oil Pan Type: Cast
  • Oil Return Size: 1/2 Inch NPT

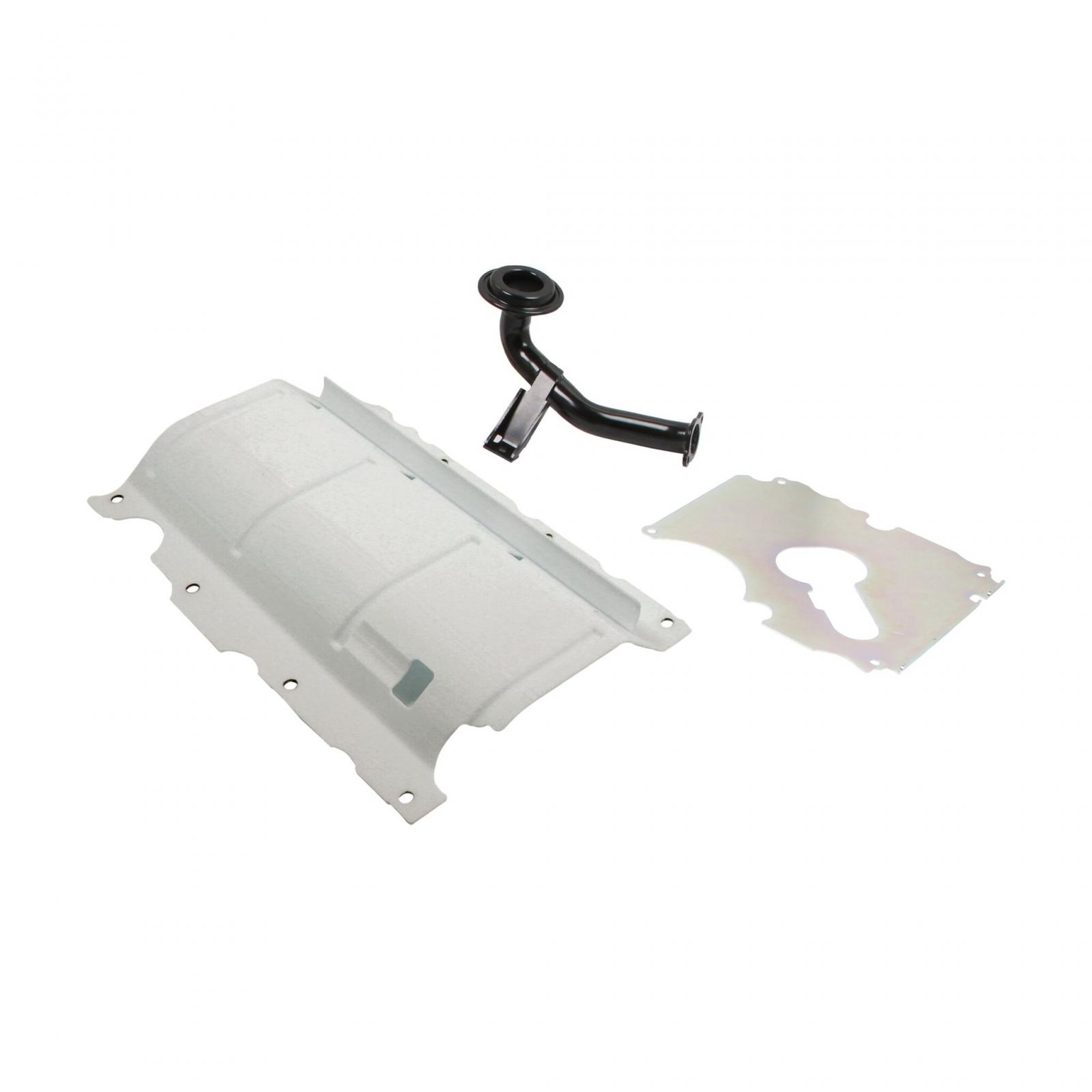

  • Pickup Included: Yes
  • Sump Location: Rear
  • Sump Type: Wet
  • Turbo Oil Drainback: Yes
  • Warranty: Manufacturer's Limited 90 Day Warranty
  • Windage Tray Included: Yes
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
1963-1974 Chevrolet C10 Pickup
1967-1969 Chevrolet Camaro Z28
1967-1974 GMC C15/C1500 Pickup
1967-1969 Pontiac Firebird 400
1967-1969 Chevrolet Camaro SS
1967-1969 Pontiac Firebird Sprint
1967-1969 Chevrolet Camaro RS
1967 Pontiac Firebird HO
1967-1969 Pontiac Firebird
1967-1969 Chevrolet Camaro
1968 Chevrolet Chevy II Nova
1968-1971 Pontiac Acadian
1968-1969 Pontiac Firebird 350
1969 Pontiac Firebird Trans Am
1969-1972 Chevrolet Nova
1969 Pontiac Firebird 350 HO
1971-1972 Pontiac Ventura
1973-1974 Chevrolet K10 Pickup
1973-1974 Chevrolet C10 Suburban
1973-1974 GMC K15/K1500 Pickup
1973-1974 Chevrolet Blazer
1973-1982 GMC Jimmy
1973-1974 GMC C15/C1500 Suburban
1975-1980 Chevrolet C10 Suburban Scottsdale
1975-1978 GMC K15 Sierra Classic
1975-1986 Chevrolet C10 Custom
1975-1981 Chevrolet K10 Cheyenne
1975-1982 GMC Jimmy Sierra Classic
1975-1978 GMC C15 Sierra Classic
1975-1980 Chevrolet K5 Blazer Cheyenne
1975-1981 Chevrolet C10 Cheyenne
1975-1980 Chevrolet K10 Custom Deluxe
1975-1980 Chevrolet C10 Suburban Custom Deluxe
1975-1978 GMC C15 Sierra Grande
1975 Chevrolet K5 Blazer Custom Deluxe
1975-1980 Chevrolet C10 Custom Deluxe
1975-1986 Chevrolet K10 Silverado
1975-1986 Chevrolet C10 Silverado
1975-1980 Chevrolet C10 Suburban Silverado
1975-1978 GMC K15 High Sierra
1975-1978 GMC C15 High Sierra
1975-1982 GMC Jimmy High Sierra
1975-1978 GMC K15 Sierra Grande
1975-1986 Chevrolet K10 Scottsdale
1975-1982 GMC Jimmy Sierra Grande
1975-1986 Chevrolet C10 Scottsdale
1975-1978 GMC C15
1975-1978 GMC K15
1976 Chevrolet K5 Blazer
1977-1978 GMC C15 Heavy Half
1977-1980 Chevrolet K5 Blazer Custom Deluxe
1977 GMC K15 Indy Hauler
1977 GMC C15 Indy Hauler
1978-1981 Pontiac Bonneville Safari
1978-1986 Pontiac Bonneville
1978-1980 Chevrolet Malibu Classic Estate
1978-1981 Chevrolet Malibu Classic Landau
1978 Chevrolet El Camino Conquista
1978-1983 Pontiac Grand Prix LJ
1978-1987 GMC Caballero Diablo
1978-1983 Chevrolet Malibu Classic
1978-1987 Buick Regal Limited
1978-1988 Oldsmobile Cutlass Supreme
1978-1981 Chevrolet Monte Carlo Landau
1978-1980 Oldsmobile Cutlass Salon
1978-1984 Oldsmobile Cutlass Calais
1978-1987 Chevrolet El Camino
1978-1980 GMC Caballero Laredo
1978-1981 Chevrolet Malibu
1978-1980 Pontiac Grand Prix SJ
1978-1987 Pontiac Grand Prix
1978-1980 Oldsmobile Cutlass Salon Brougham
1978 GMC C15 Street Coupe
1978-1982 GMC Jimmy Street Coupe
1978-1987 Chevrolet El Camino SS
1978-1979 Oldsmobile Cutlass Salon 442
1978-1982 Buick Regal Sport
1978-1980 Chevrolet C10 Big Ten
1978 Chevrolet K5 Blazer Silverado
1978-1986 Pontiac Bonneville Brougham
1978-1987 Oldsmobile Cutlass Supreme Brougham
1978-1979 Oldsmobile Cutlass Vista Cruiser
1978-1987 Buick Regal
1978 Chevrolet Monte Carlo Sport
1978-1987 GMC Caballero
1979-1982 GMC C2500 Suburban Sierra Grande
1979-1980 Chevrolet Malibu Estate
1979-1986 GMC C2500 Suburban High Sierra
1979-1986 GMC C2500 High Sierra
1979-1986 GMC C2500 Suburban Sierra Classic
1979-1982 GMC C2500 Sierra Grande
1979 Chevrolet Malibu Landau
1979-1982 GMC C1500 Suburban Sierra Grande
1979-1986 GMC C1500 Suburban High Sierra
1979-1986 Chevrolet C20 Scottsdale
1979-1986 Chevrolet C20 Silverado
1979 Chevrolet Malibu Police
1979-1986 GMC C2500
1979-1981 Chevrolet C20 Cheyenne
1979 Oldsmobile Cutlass Salon Hurst
1979-1986 GMC C1500 Suburban
1979-1980 Chevrolet C20 Suburban Silverado
1979-1986 GMC C2500 Suburban
1979-1980 Chevrolet Malibu Classic Sport
1979-1980 Chevrolet Malibu Sport
1979-1980 Chevrolet C20 Suburban Scottsdale
1979-1981 Chevrolet El Camino Royal Knight
1979 Chevrolet Monte Carlo
1979-1986 GMC C1500 Suburban Sierra Classic
1979-1986 GMC C2500 Sierra Classic
1979 Oldsmobile Cutlass Vista Cruiser Brougham
1979-1980 Chevrolet C20 Suburban Custom Deluxe
1979-1980 Chevrolet C20 Custom Deluxe
1980-1981 Oldsmobile Cutlass Brougham
1980-1981 Oldsmobile Cutlass Cruiser Brougham
1980-1982 Chevrolet K5 Blazer Silverado
1980 Oldsmobile Cutlass
1980 Chevrolet Monte Carlo Sport
1980-1981 Oldsmobile Cutlass LS
1980-1983 Oldsmobile Cutlass Cruiser
1981 Oldsmobile Cutlass Supreme LS
1981 GMC Caballero Royal Knight
1981-1986 GMC Caballero Amarillo
1981-1986 Chevrolet K10 Custom
1981-1982 Chevrolet K5 Blazer Custom
1981-1988 Chevrolet Monte Carlo
1981 Oldsmobile Cutlass Supreme
1981-1987 Pontiac Grand Prix Brougham
1981-1986 Chevrolet El Camino Conquista
1981-1986 Chevrolet C10 Suburban Custom
1981-1986 Chevrolet C20 Custom
1981-1986 Chevrolet C20 Suburban Custom
1981 GMC Caballero Conquista
1981 Chevrolet C20 Suburban Deluxe
1981 Chevrolet C20 Deluxe
1981 Chevrolet K10 Deluxe
1981 Chevrolet K5 Blazer Deluxe
1981 Chevrolet C10 Deluxe
1981 Chevrolet C10 Suburban Deluxe
1982-1986 Chevrolet C15 Custom
1982 Buick Regal Limited Turbo
1982-1986 Chevrolet C10 Suburban Silverado
1982-1986 Chevrolet C20 Suburban Silverado
1982 Chevrolet C10 Suburban Scottsdale
1982-1986 Chevrolet C15 Cheyenne
1982 Chevrolet C20 Suburban Scottsdale
1982-1983 Buick Regal Estate Wagon
1983-1986 Buick Regal T-Type
1983-1984 Oldsmobile Cutlass Calais Hurst
1983-1988 Chevrolet Monte Carlo SS
1983 Chevrolet Monte Carlo CL
1984 Chevrolet C15 Sport
1984-1986 Chevrolet C10 Suburban Scottsdale
1984-1986 Chevrolet C20 Suburban Scottsdale
1984-1986 Pontiac Bonneville LE
1984-1987 Pontiac Grand Prix LE
1984-1987 Buick Regal Grand National
1985-1987 Oldsmobile Cutlass Salon
1985-1987 Oldsmobile Cutlass Salon
1985 Oldsmobile Cutlass Supreme LS
1985-1986 Oldsmobile Cutlass Salon 442
1986-1988 Chevrolet Monte Carlo LS
1986-1987 Chevrolet C20
1986-1987 Chevrolet C20 Cheyenne
1987 GMC R1500 Suburban Sierra Classic
1987 Chevrolet R10 Silverado
1987-1990 Jeep Wrangler Laredo
1987 Chevrolet V10 Silverado
1987 Buick Regal GNX
1987 GMC R1500 Sierra Classic
1987 GMC R2500 Suburban Sierra Classic
1987-1988 Chevrolet R10 Suburban Silverado
1987-1988 Chevrolet R20 Suburban Silverado
1987 GMC R2500 High Sierra
1987 GMC R2500 Suburban High Sierra
1987 GMC R1500 Suburban High Sierra
1987 GMC R1500 High Sierra
1987 GMC R2500 Sierra Classic
1987-1988 Oldsmobile Cutlass Eurosport
1987 Chevrolet R10 Suburban Custom Deluxe
1987-1988 Chevrolet C15
1987-1988 Oldsmobile Cutlass
1987-1995 Jeep Wrangler
1987 GMC R1500
1987 Oldsmobile Cutlass Supreme 442
1987 GMC R1500 Suburban
1987 GMC R2500
1987-1988 Oldsmobile Cutlass Lujo
1987 Chevrolet R20 Suburban Custom Deluxe
1987 Chevrolet R10 Scottsdale
1987-1988 Chevrolet R20 Suburban Scottsdale
1987-1988 Chevrolet R10 Suburban Scottsdale
1987 Chevrolet V10 Scottsdale
1987 GMC R2500 Suburban
1987-1988 Jeep Wrangler Sport
1987 Chevrolet V10 Custom Deluxe
1987 Chevrolet R10 Custom Deluxe
1988-1995 Jeep Wrangler Sahara
1988 Oldsmobile Cutlass Supreme Classic Brougham
1988 Oldsmobile Cutlass Supreme Classic
1988-1998 Chevrolet K1500 Silverado
1988 Oldsmobile Cutlass Supreme SL
1988-1998 Chevrolet C1500 Cheyenne
1988-1998 Chevrolet C1500 Silverado
1988-1993 GMC C1500 Sierra SLX
1988-1993 GMC K1500 Sierra SLX
1988 Oldsmobile Cutlass Supreme Indy 500 Pace Car
1988 Jeep Wrangler S
1988-1992 Chevrolet C1500 Scottsdale
1988-1992 Chevrolet K1500 Scottsdale
1988-1993 GMC K1500 Sierra
1988-1993 GMC C1500 Sierra
1988-1992 Jeep Wrangler Islander
1988 Oldsmobile Cutlass Supreme International
1988-1999 GMC C1500 Sierra SLE
1988-1999 GMC K1500 Sierra SLE
1989-1991 Chevrolet C1500
1989-1991 Chevrolet R3500 Cheyenne
1990-1998 Chevrolet K1500 WT
1990-1998 Chevrolet C1500 WT
1990-1993 Chevrolet C1500 454 SS
1991-1994 Jeep Wrangler S
1991-1994 Jeep Wrangler Renegade
1991 Chevrolet K1500 Sport
1993 GMC K1500 Sierra Sport
1994-1998 GMC K1500 Sierra Special
1994-1999 GMC K1500 Sierra SL
1994-1995 Jeep Wrangler SE
1994-1998 Chevrolet C1500
1994-1998 GMC C1500 Sierra Special
1994-1999 GMC C1500 Sierra SL
1994-1997 Chevrolet K1500
1994-1999 GMC K1500 Sierra SLT
1994-1999 GMC C1500 Sierra SLT
1995 Jeep Wrangler Rio Grande
1995 GMC K1500 Sierra SLS
1997 GMC C1500 Sierra GT
1997-2004 Jeep TJ Sahara
1997 Jeep Wrangler
1997-2003 Jeep TJ SE
1997-2004 Jeep Wrangler Sahara
1997-2006 Jeep Wrangler Sport
1997-2006 Jeep Wrangler SE
1997-2006 Jeep TJ Sport
2001 Jeep Wrangler 60 Aniversario
2002-2006 Jeep Wrangler X
2003-2006 Jeep TJ Rubicon
2003-2006 Jeep Wrangler Rubicon
2003 Jeep Wrangler X AT
2004-2006 Jeep Wrangler Unlimited
2005-2006 Jeep TJ SE
2005-2006 Jeep Wrangler Unlimited Rubicon
2006 Jeep Wrangler 65th Anniversary Edition
2006 Jeep Wrangler X 65 Aniversario
Installation Instructions
e1257ce990bca1e7bd8a13824105b4c4_1.pdf (1.56 MB)
Brand
Holley
Category
Engine and Components
Engine Oil Pan
Color
Silver
Finish
Natural Cast
Material
Aluminum
Specs
Country of Origin: USA
Sold As: Each
UPC: 90127002865
Availability: Available
Universal: No
Vehicle Type
Car
Core Charge
$0.00
