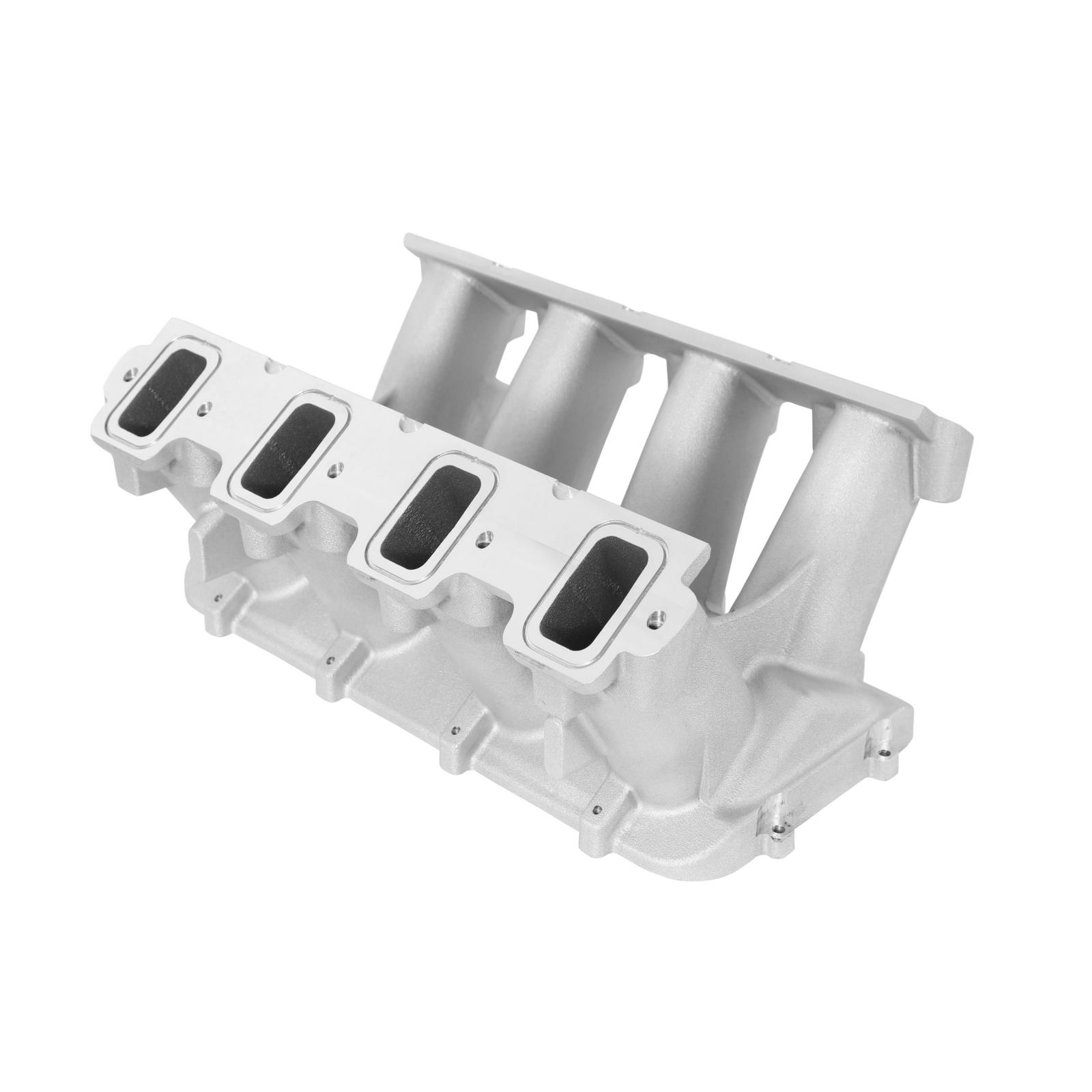

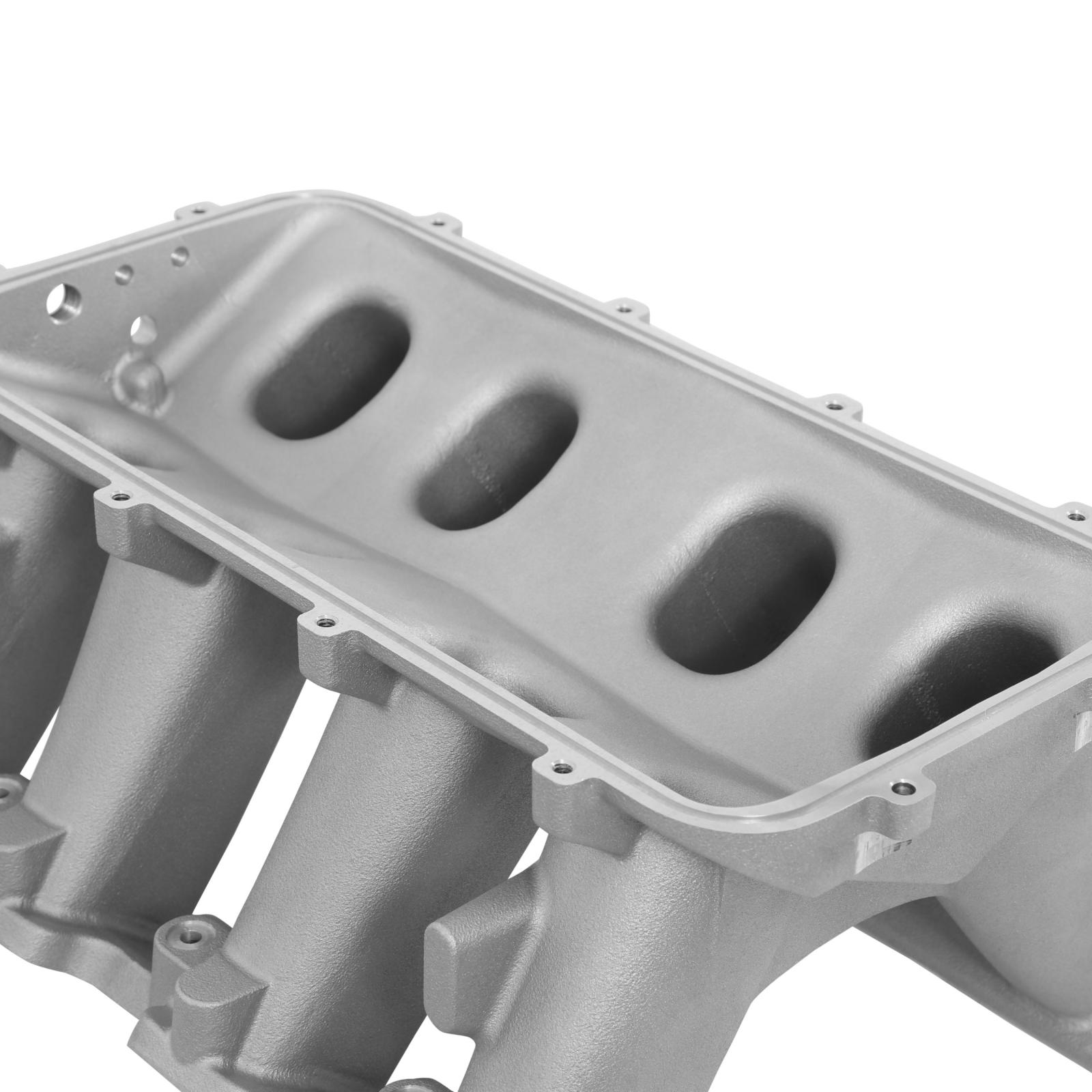

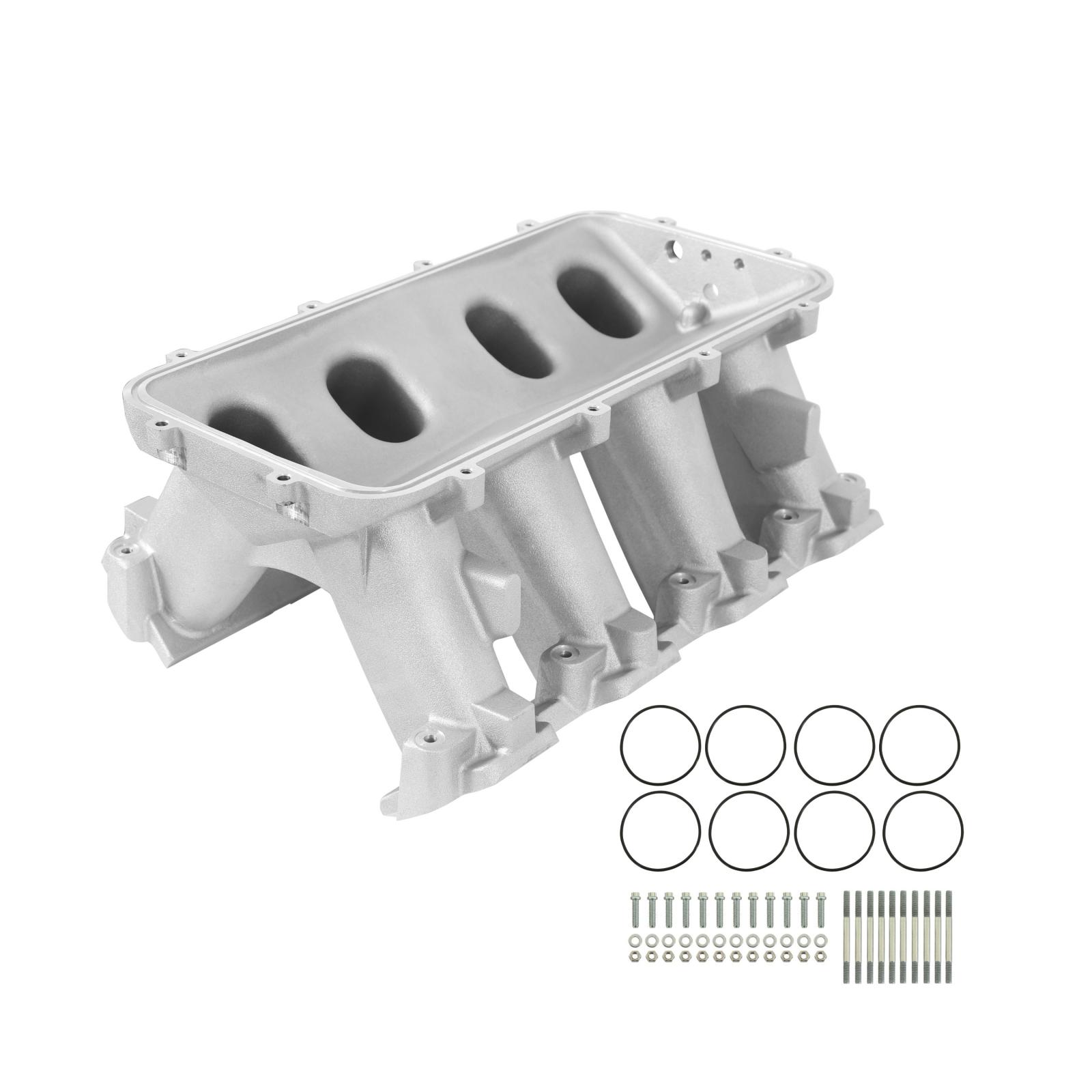

Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)

Features and Benefits:

• Plenum Top Gasket Type - 3/32 inch Round O-ring Cord Port Size - 2.49 inch Height x 1.21 inch Wide Mounting Flange Gasket Type - Standard LS3 Molded O-Ring Runner Length - 6.50 inch, As-Cast Runner Cross-Sectional Area - Tapered 4.25 inch to 2.77 in2

Associated Comments:

• These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are Not a consideration.

Details:

• Basic Operating RPM Range: 3500-8000 RPM
• Cnc Ported: No
• Carburetor Studs Included: No
• Color: Natural
• Construction: Cast
• Cylinder Head Port Shape: Rectangle
• Deck Height: 9.24 Inch
• Egr Port: No
• Engine: Gm LS3/L92
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: Carb
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Natural
• Removable Runners: No
• Removable Top/Lid: Yes
• Single Or Dual Plane Type: Single Plane
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Type of Component: Lower Manifold
• Vacuum Ports: Yes
• Warranty: Manufacturer's Limited 90 Day Warranty
