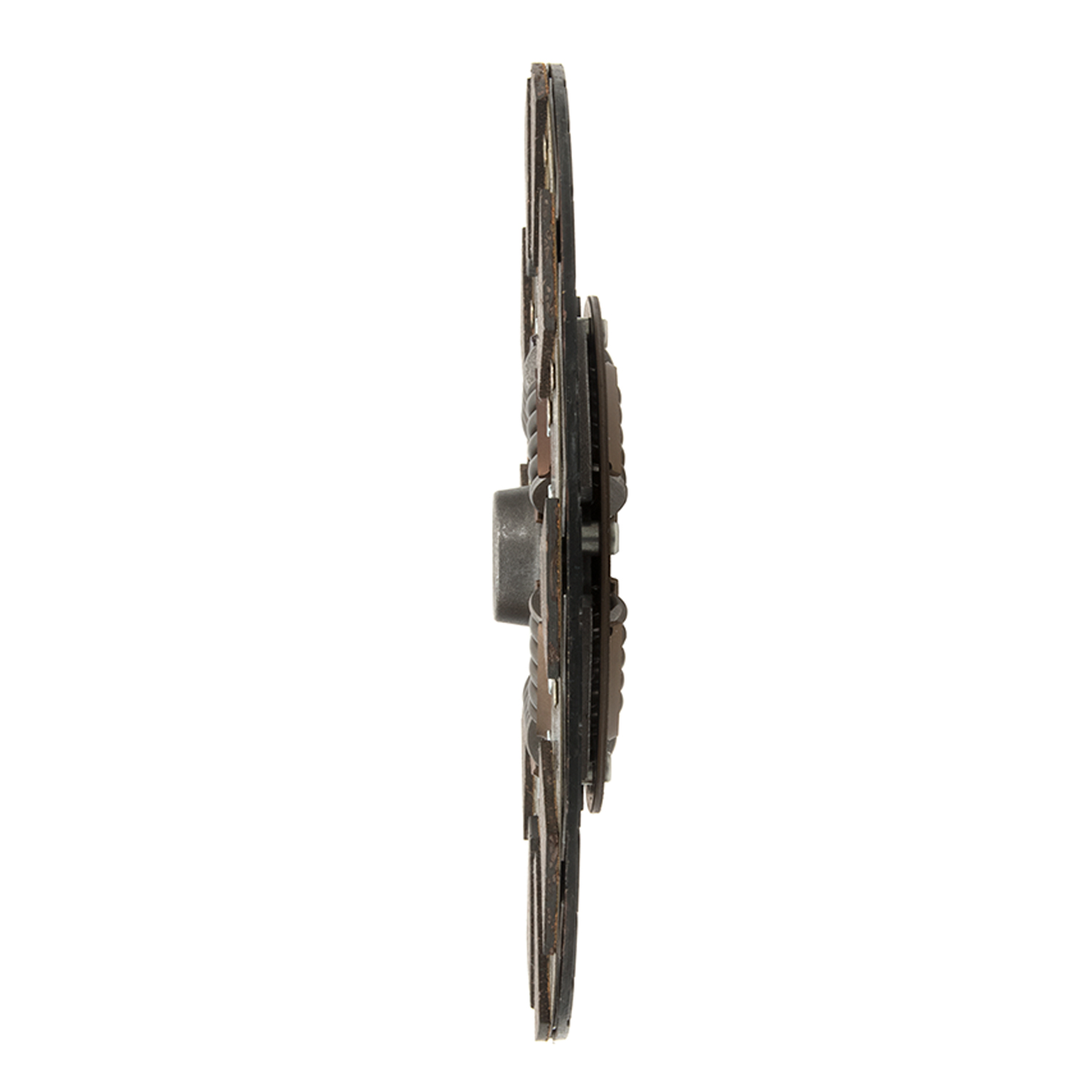

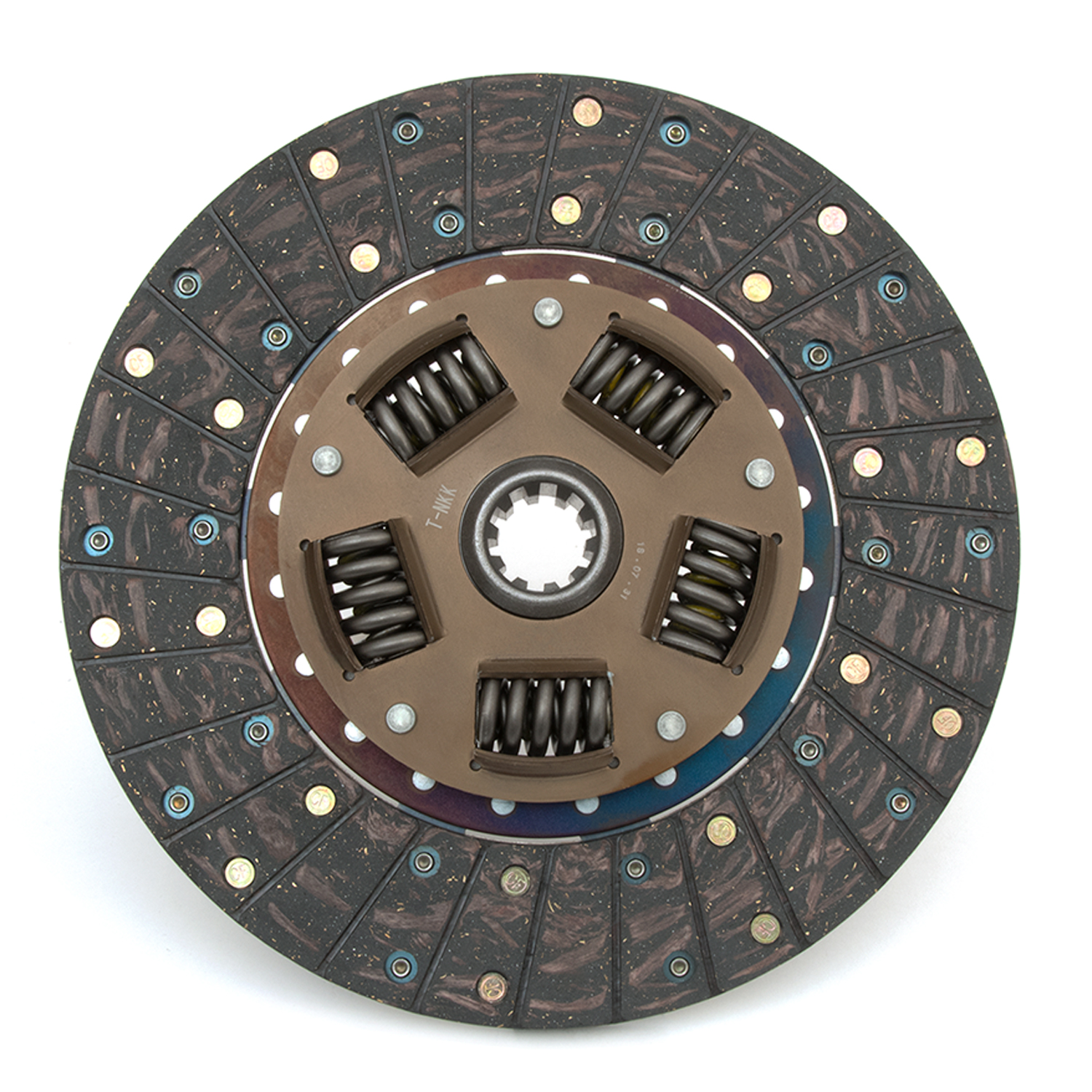

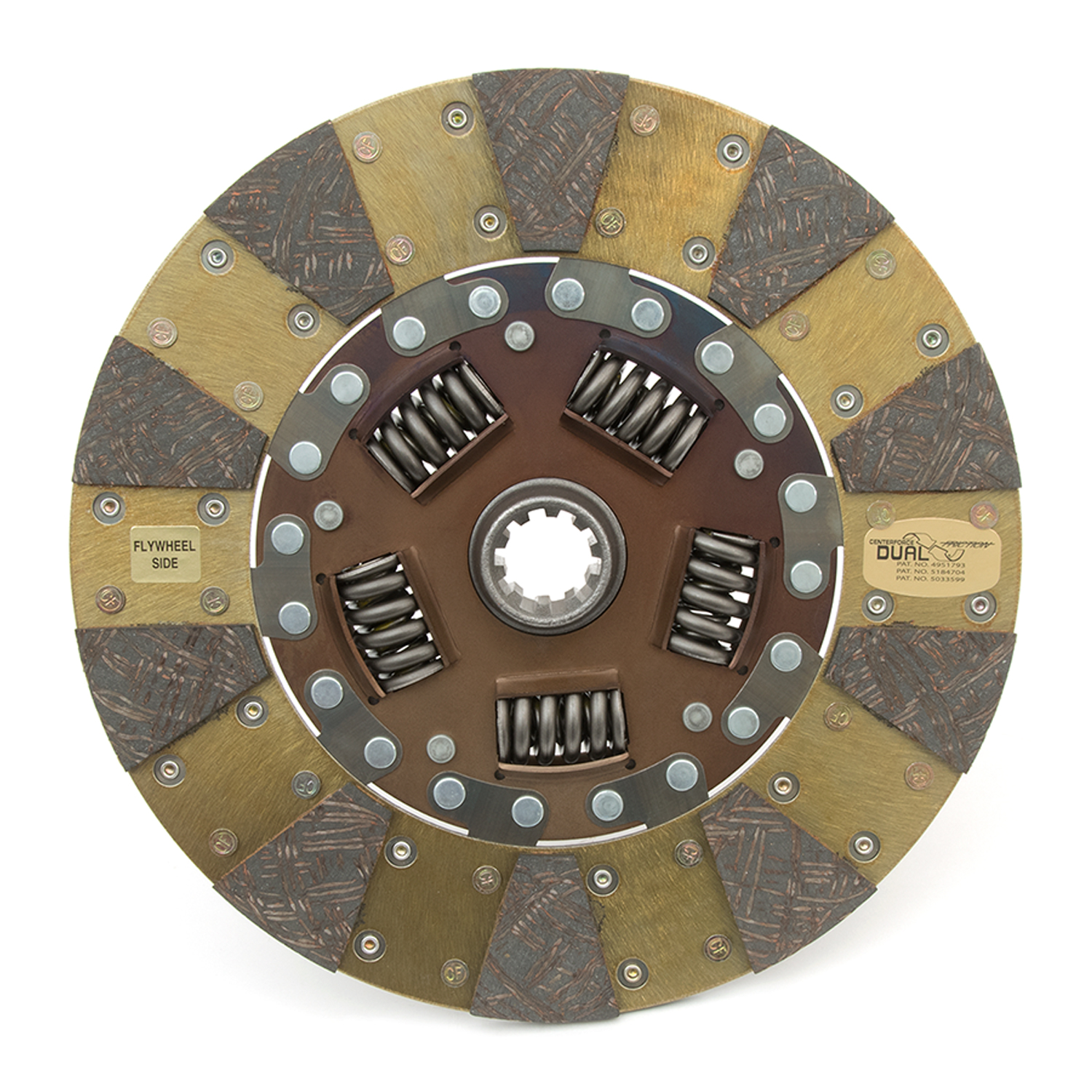

The Centerforce Dual Friction Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.

Application Details:

• Liter: 4.9
• Cylinders: 8
• BlockType: V
• Fuel Delivery Type: CARB
• Fuel Type: Gas
• CC: 4917
• CID: 300
• Engine Bore Inches: 3.75
• Engine Bore Metric: 95.3
• Engine Stroke Inches: 3.4
• Engine Stroke Metric: 86.4
• Aspiration Name: Naturally Aspirated
• Transmission Control Type: Manual

Details:

• Clutch Disc Diameter: 264.2
• Disc Material: Organic/Carbon Composite
• Disc Type: Full face/Segmented face
• Disc Type (Sprung/Solid): Sprung
• Input Shaft Diameter: 39448
• Input Spline Quantity: 10
• Inside Diameter of Friction Surface: 6.49
• Material: Full Face and Segmented Organic Friction
• Out of Package Weight: 4.34
• Made in the USA: Assembled
